Product Description

UL 854 Standard cable MHF cable with XLPE insulation

Product Description

The MHF mobile home Feeder is 600 voltage aluminum alloy conductors, cross-linked polyethylene (XLPE) insulated moisture, heat, low-temp,
sunlight resistant, flame retardant cable wire.

Applications

HUATONG TYPES Mobile Home Feeder Cable is used to provide power from the electrical disconnect to the distribution panel board in mobile
home applications accordance with the requirements of the NEC NFPA 70, 2011 Edition, suitable for direct burial at conductor temperatures
not to exceed 90°C. Voltage rating is 600 volts.

Standards

Hebei Huatong Mobile home feeder meets the requirements
• ASTM B800 and B801
• UL 44
• UL 854 (USE-2)
• ICEA T-29-520

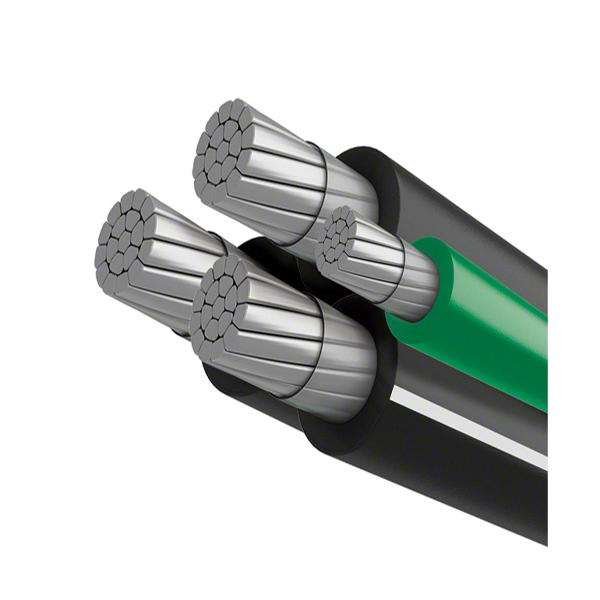

Construction

HUATONG TYPES mobile home feeder consists of four quadruplexed type RHH or RHW-2 or USE-2 AA-8000 series aluminum alloy compacted
conductors. The cable contains 2 triple-extruded phase conductors, a white striped neutral conductor and a green grounding conductor to
eliminate the need for field marking per the National Electrical Code. The insulation is sunlight resistant.

Technical Parameter List

Size (AWG)	Phase Conductor		Neutral Conductor		Grounding Conductor		Overall Cable O.D. (Mils)	Weight Per 1000' (Lbs)	Ampacity
Size (AWG)	Strand	Diameter (Mils)	Strand	Diameter (Mils)	Strand	Diameter (Mils)	Overall Cable O.D. (Mils)	Weight Per 1000' (Lbs)	Ampacity
2-2-4-6	6	388	7	33	6	292	937	301	100
2-2-2-4	6	388	6	333	4	333	937	345	100
2/0-2/0-1-4	18	536	18	459	7	333	1294	553	150
2/0-2/0-2/0-1	18	536	18	536	8	462	1294	671	150
4/0-4/0-2/0-4	18	635	18	536	7	333	1533	784	200
4/0-4/0-4/0-2/0	18	635	18	635	18	536	1533	989	200

Packaging & Shipping

Cable will be packed and shipped on non-returnable wooden/wooden & iron/steel cable drum or recycled wooden box.

Our Services

We provide 24- hour service, you can contact +86-185 6701 6066 or by E-mail.
If you have any questions please feel free to contact us for more information and price.

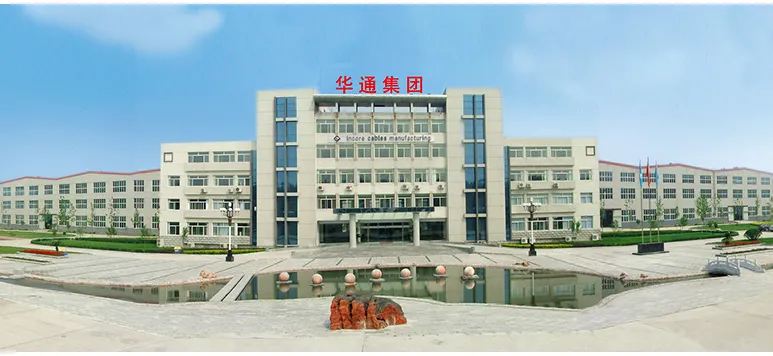

Company Information

Hebei huatong wires & cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa (Japanese company) for rubber serious
cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very
influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control
cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products
are exported, most customers are from developed countries. We got ISO,UL, TUV,KEMA,CE and many other certifications.

UL 854 Standard Cable Mhf Cable with XLPE Insulation

UL 854 Standard Cable Mhf Cable with XLPE Insulation

Certificate

Now we got UL, TUV, CE, BV, KEMA, SABS, PSB products certifications and ISO9001, ISO14001, OHSAS18001 system certifications.
These UL certifications including AC, XHHW, THW/THHN, SER/SEU/MHF/UD, MV90/MV105,TC/TC-ER/, PV, MC,WELDING CABLES, SOOW/SJOOW,
DLO, MINING CABLES....
