China UL 3122 Ian Fiberglass Braided Silicon Rubber Electric Electrical Insulated Tinned Copper Conductor Wire

Product Description

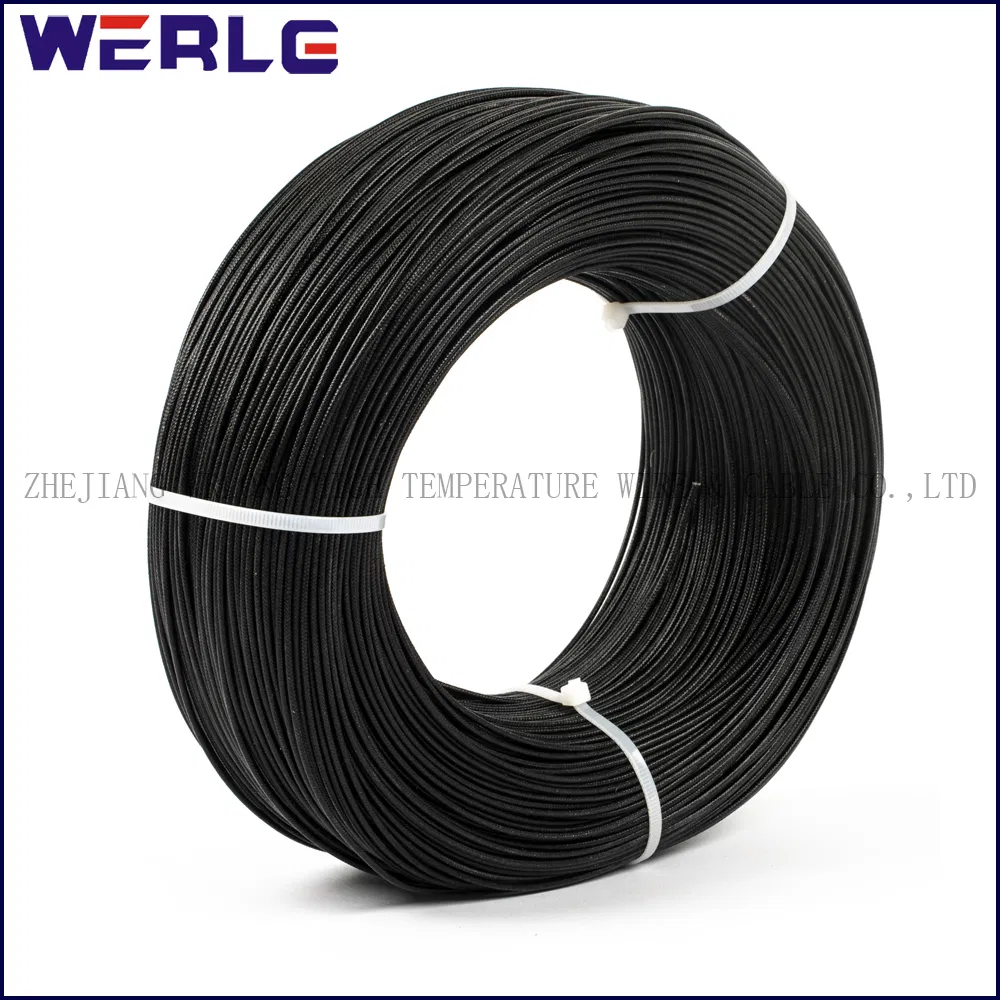

UL 3122 Black Fiberglass Braided Silicon Rubber Electric Electrical Insulated Tinned Copper Conductor Wire

TECHNICAL DATA
Nominal voltage: 600V
Temperature range: -60ºC~+200ºC
Conductor: Tinned copper
Insulator: Silicone
OD Tolerance: ±0.05mm

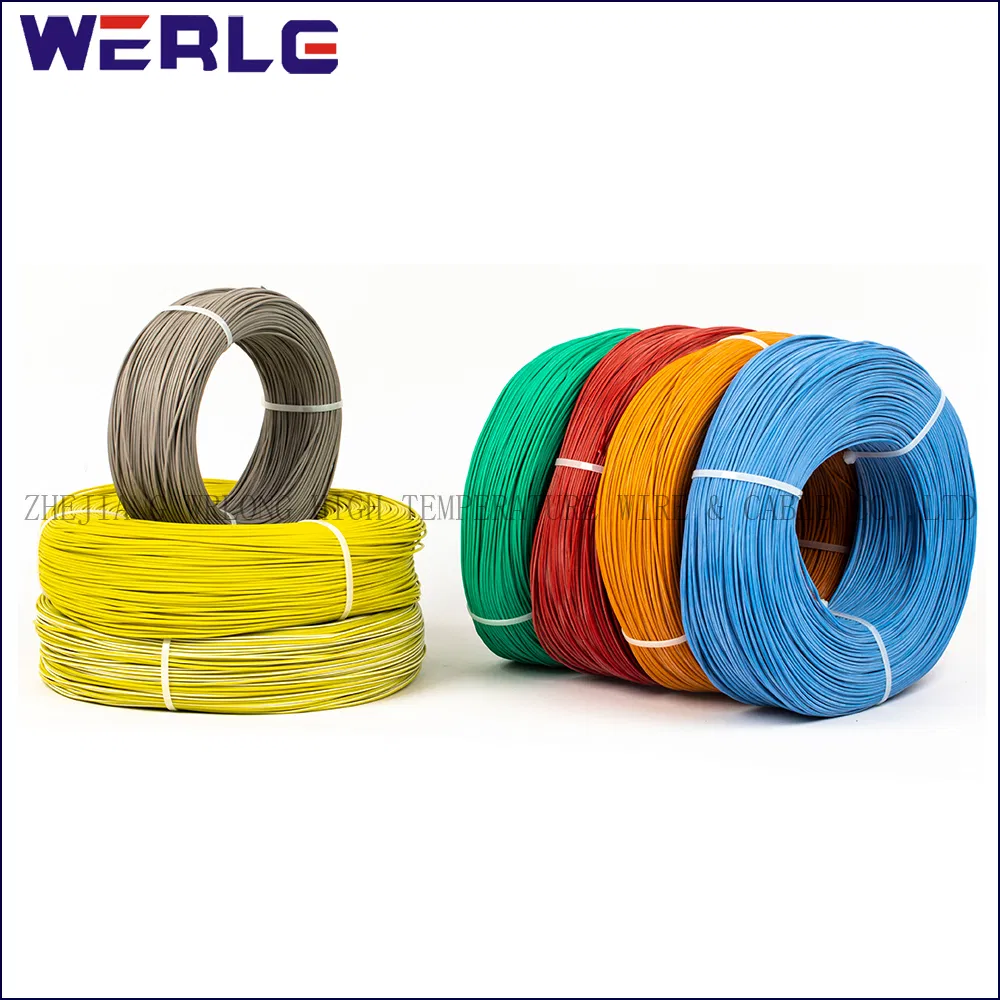

Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc
CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid and alkali, fire and aging resistance, inoxidizability, resistance of humidity, fine electric insulation and flexible performance UL 758, RoHs compliance.
APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electronic equipment electric machines, temperature sensor, aircraft, aviation, military series, metallurgy chemical series, motor cars & ships , electric heating products, electrical installation, etc.

UL3135	Conductor		Over Diamter ±0.05mm²	Insulator			Technical Data		Packing(m/roll)
Size	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.05mm²	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing(m/roll)
26AWG	7/0.16	0.489	2.01	silicone rubber	0.761	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	:-60ºC~+200ºC	600V	610
25AWG	7/0.18	0.550	2.07		0.76				610
24AWG	11/0.16	0.612	2.14		0.764				610
23AWG	17/0.14	0.666	2.19		0.762				610
22AWG	17/0.16	0.761	2.29		0.764				610
21AWG	21/0.16	0.846	2.37		0.762				610
20AWG	26/0.16	0.942	2.47		0.764				610
19AWG	33/0.16	1.061	2.58		0.759				610
18AWG	41/0.16	1.182	2.71		0.763				610
17AWG	33/0.20	1.326	2.85		0.762				305
16AWG	26/0.254	1.495	3.02		0.762				305
15AWG	65/0.18	1.675	3.20		0.762				305
14AWG	41/0.254	1.877	3.40		0.761				305
13AWG	52/0.254	2.114	3.64		0.762				305
12AWG	65/0.254	2.399	3.92		0.759				305
