UL 3074 Silicone Rubber High Voltage Wire
UL3074 Factory wholesale flexible Silicone Fiberglass Electrical Wire Specifications:Nominal voltage: 600VTemperature range: 200ºCStandard: UL 758Conductor: Tinned copper wireInsulation: Silicone Rubber+Fiber GlassProduct dimensions: ConductorInsulationMax.cond resistance(Ω/km)Un......
Send Inquiry
Product Description

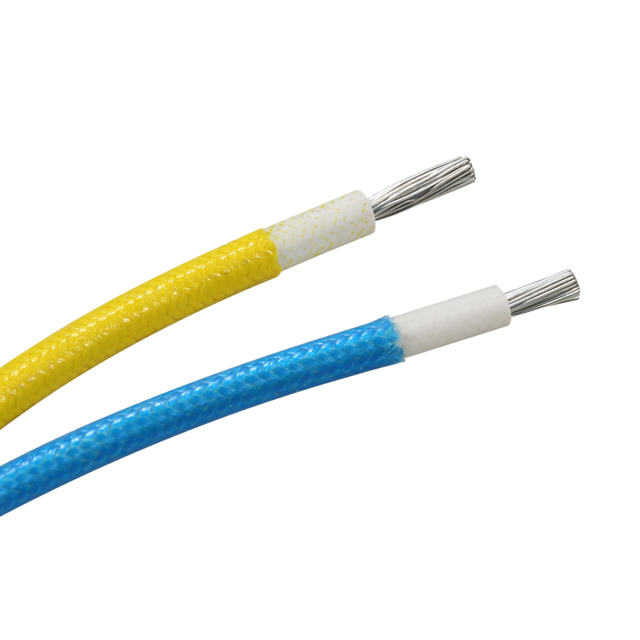

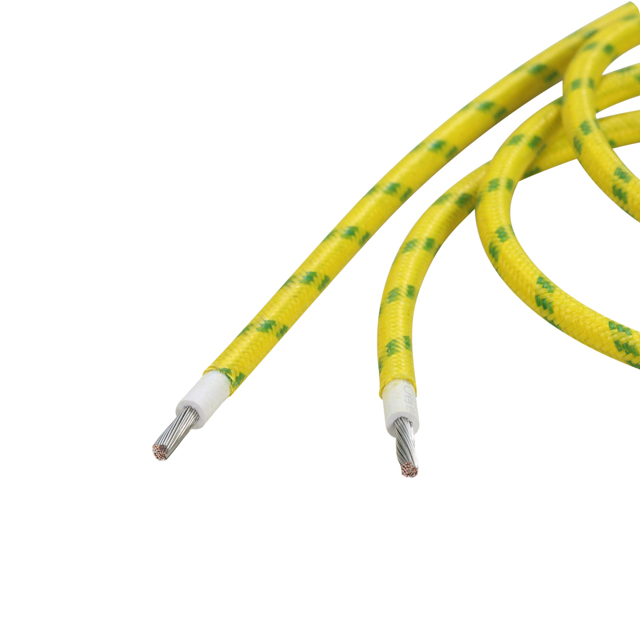

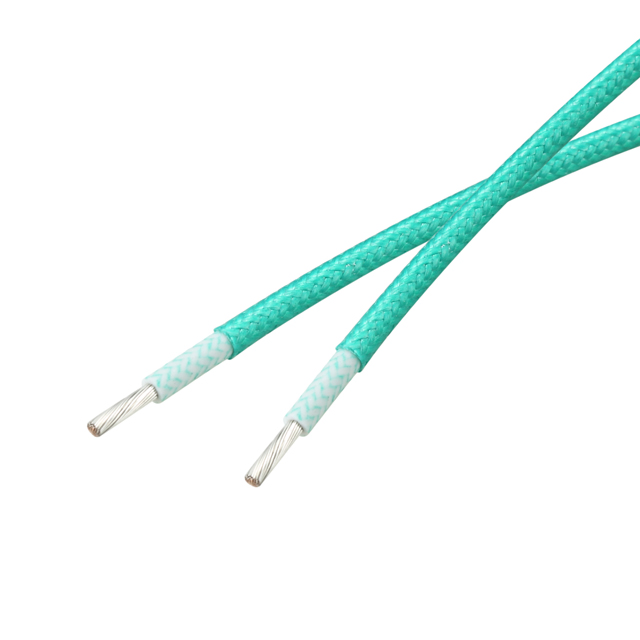

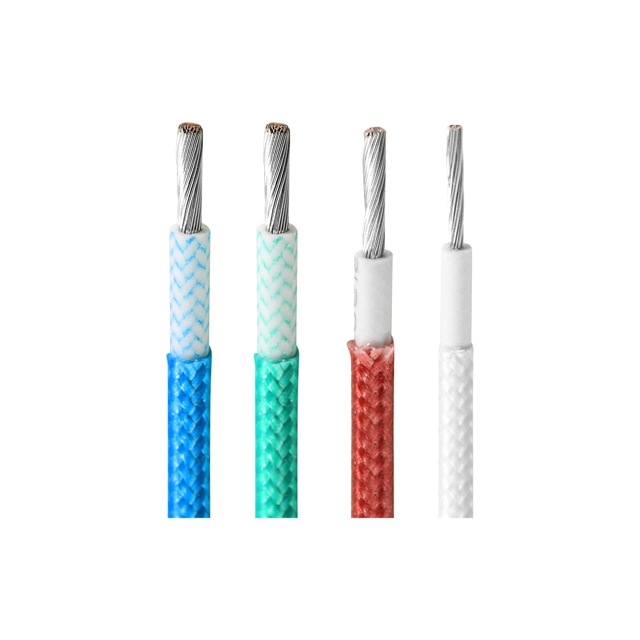

UL3074 Factory wholesale flexible Silicone Fiberglass Electrical Wire
Specifications:
Nominal voltage: 600V
Temperature range: 200ºC
Standard: UL 758
Conductor: Tinned copper wire
Insulation: Silicone Rubber+Fiber Glass
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) | Unit Length (m)(Ft) | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 1.81 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 1.97 | 56.4 | ||
| 20 | 7/0.31 | 0.94 | 2.14 | 35.2 | ||
| 18 | 7/0.39 | 1.19 | 2.39 | 22.2 | ||
| 16 | 7/0.49 | 1.49 | 2.69 | 14 | ||
| 24 | 1/0.50 | 0.50 | 0.65 | 1.80 | 89.3 | 305/1000 |
| 22 | 1/0.65 | 0.65 | 1.95 | 56.4 | ||
| 20 | 1/0.81 | 0.81 | 2.11 | 35.2 | ||
| 18 | 1/1.02 | 1.02 | 2.32 | 22.2 | ||
| 16 | 1/1.20 | 1.20 | 2.50 | 14 | ||
| 24 | 11/0.16 | 0.61 | 0.60 | 1.81 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 1.96 | 56.4 | ||
| 20 | 26/0.16 | 0.94 | 2.14 | 35.2 | ||
| 18 | 41/0.16 | 1.18 | 2.38 | 22.2 | ||
| 16 | 26/0.254 | 1.49 | 2.69 | 14 | ||
| 0.30mm² | 12/0.18 | 0.71 | 0.60 | 1.91 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 2.12 | 40.1 | ||
| 0.75mm² | 30/0.18 | 1.13 | 2.33 | 26.7 | ||
| 1.00mm² | 40/0.18 | 1.31 | 2.51 | 20 | ||
| 1.25mm² | 50/0.18 | 1.46 | 2.66 | 14.35 | ||
Company Information

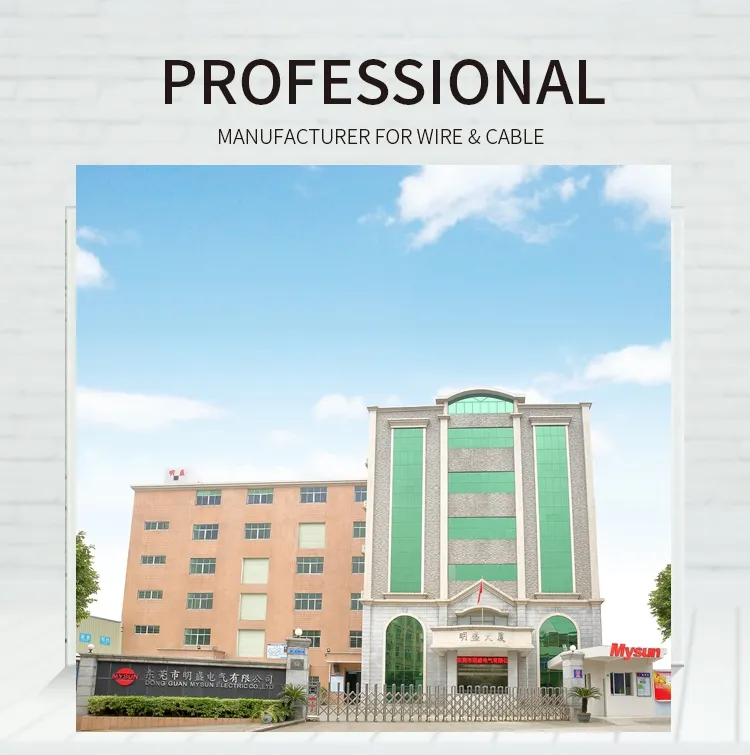

Shenzhen Mysun Insulation Materials Co.Ltd. is a comprehensive enterprise integrated with manufacture,distribution and trade.Wespecialize in production of all sorts of wire of high temperature and connecting which have been subjected to tests of UL,cUL,VDE,CE,CCC,SGS and TUV,and supply enterprises such as home appliance,electronics,lighting,medical unit,communication and office equipment with connecting wiring harness and processing service.
With the development and devote us into special materials field as an expert, our product lines are
now covering:
1)FEP/PFA/ETFE/PTFE wires;
2)Silicone rubber wires;
3)XLPE wires;
4)Special electrical wires;
5)PVC&XLPVC wires;
6)High temperature insulation tubing;
7)wiring harnesses.
"Quality is guarantee forexistence" is the guideline the the company always upholds.To realize own value and servethe society is our target and also our advancing power.
Service
Packaging : Hard cardboard carton ( Customizable)
Shipment:
1. by express
2. by sea
3. by air plane
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have a good cooperation!
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
