              UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire
              • UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire
              • UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire
              • UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire
              • UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire

              UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire

              Product DescriptionCE rohs PVC wire UL1007 24AWG 20AWG 10P 8P rainbow cable flat ribbon wire Rated temperature:80ºCRated voltage:300VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 32~16AWGPVC insulation, comply with ROHS, REACH environme......

              Send Inquiry

              Product Description

              Product Description

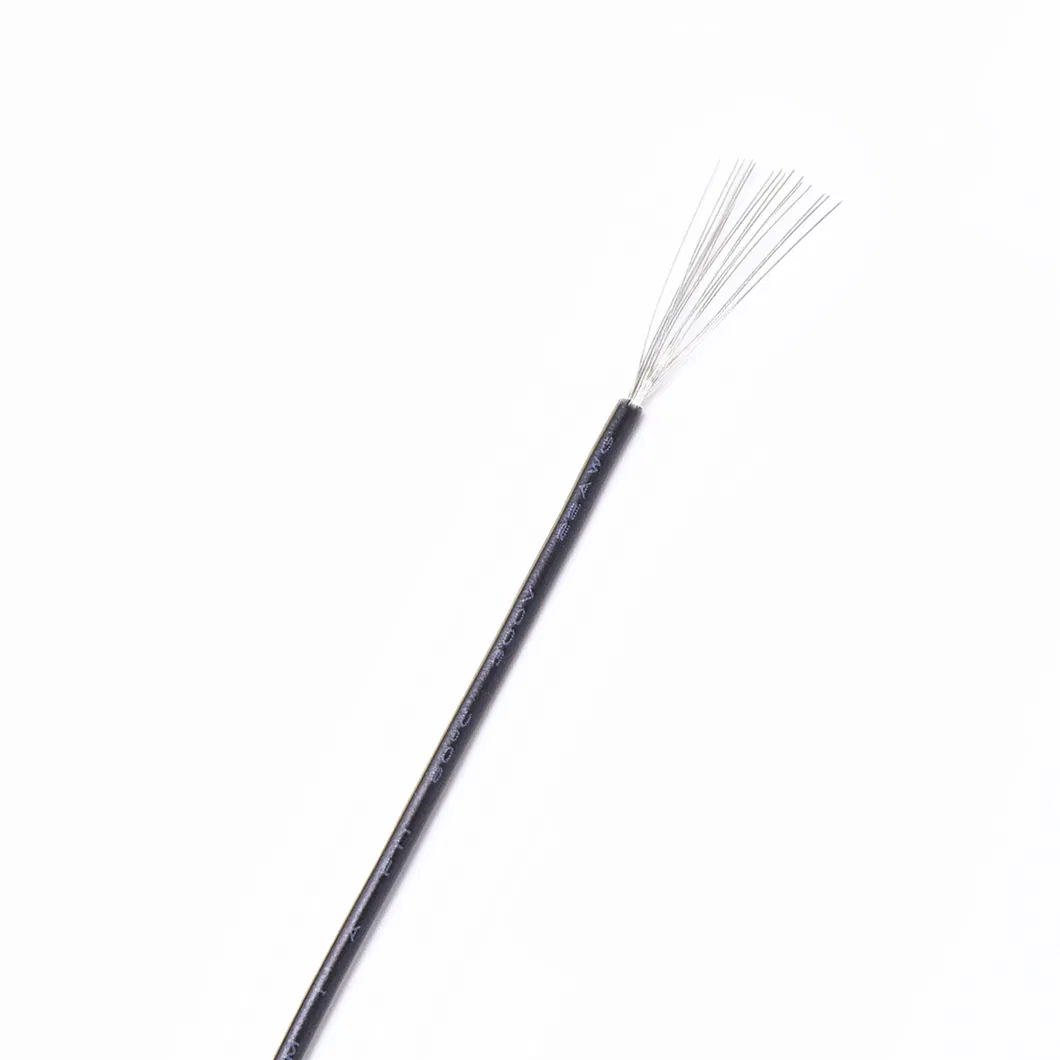

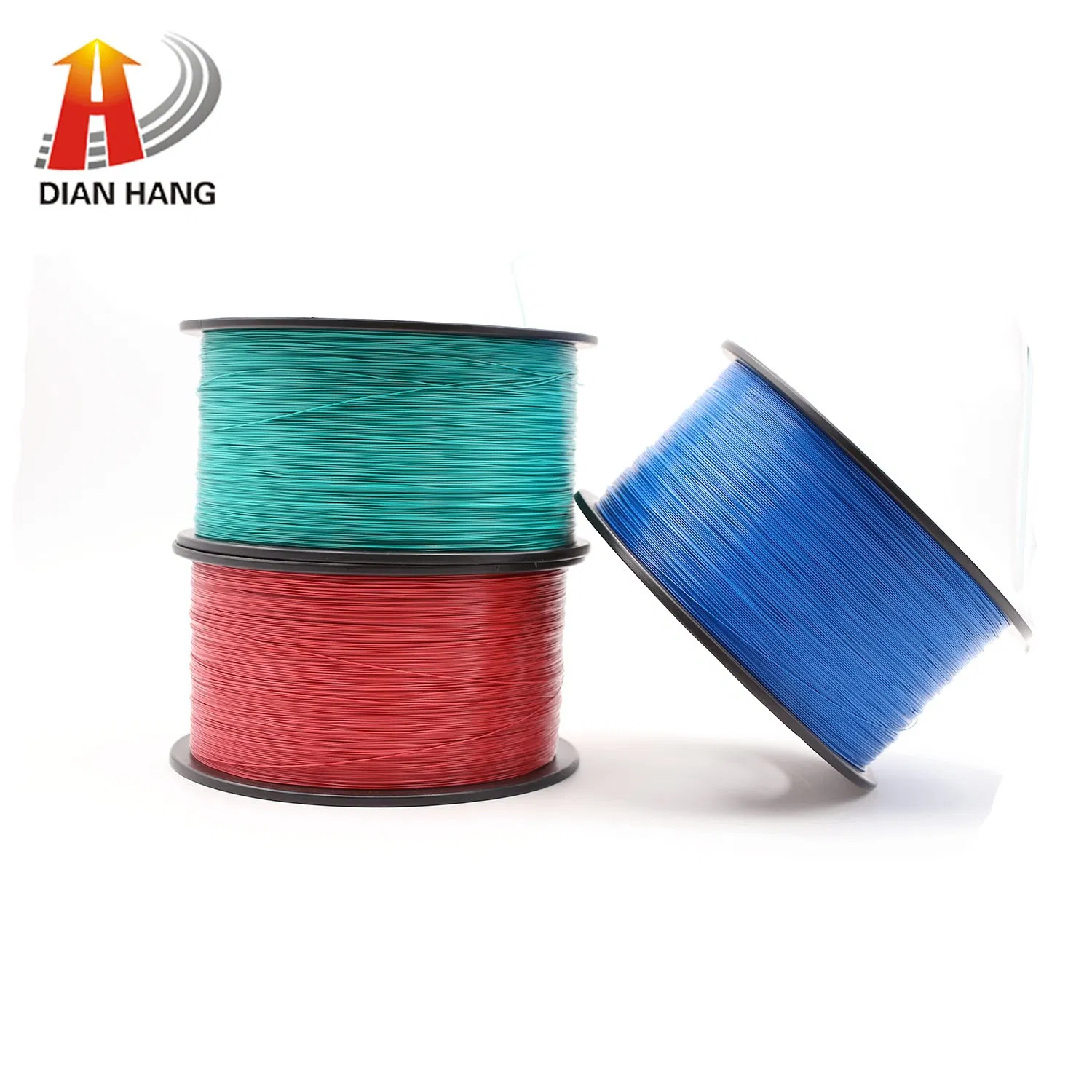

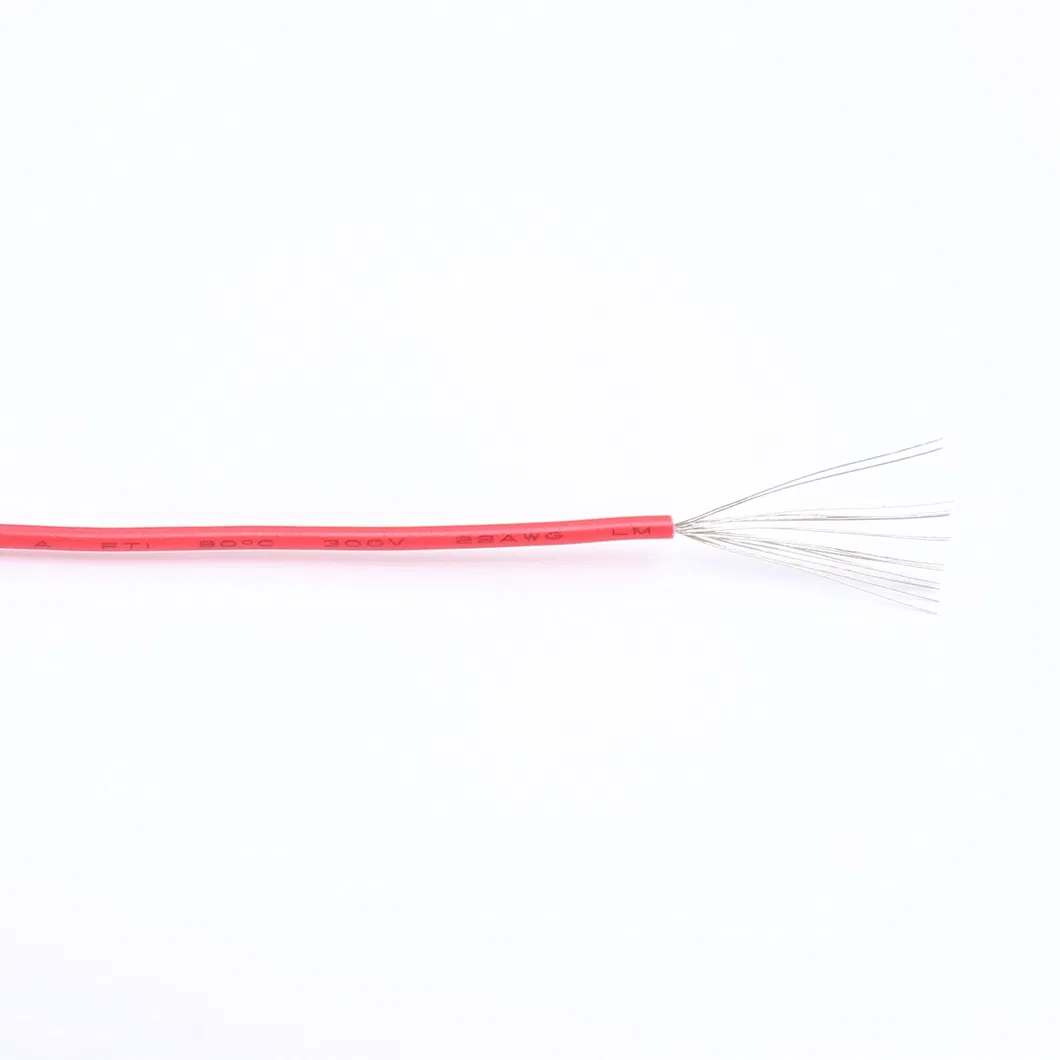

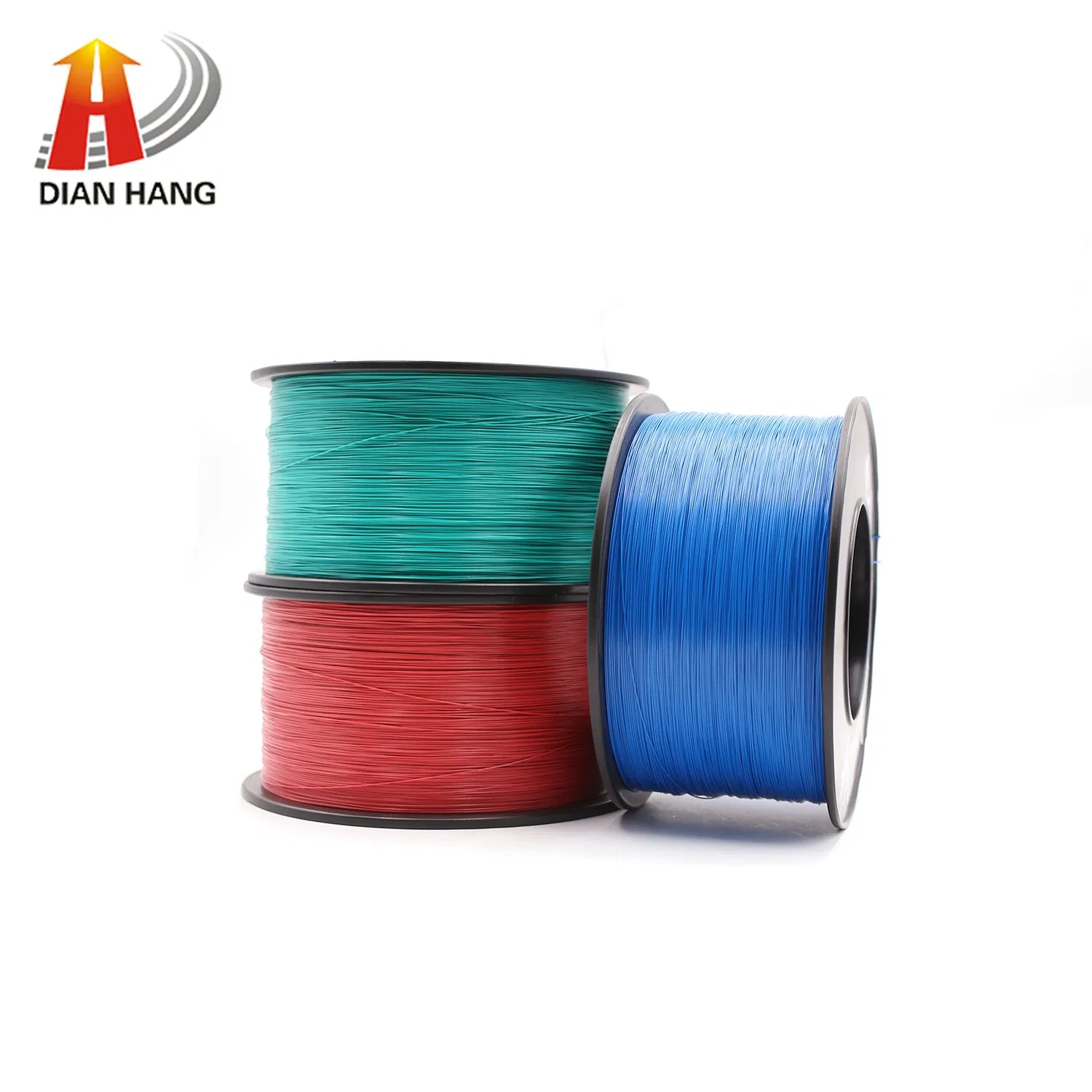

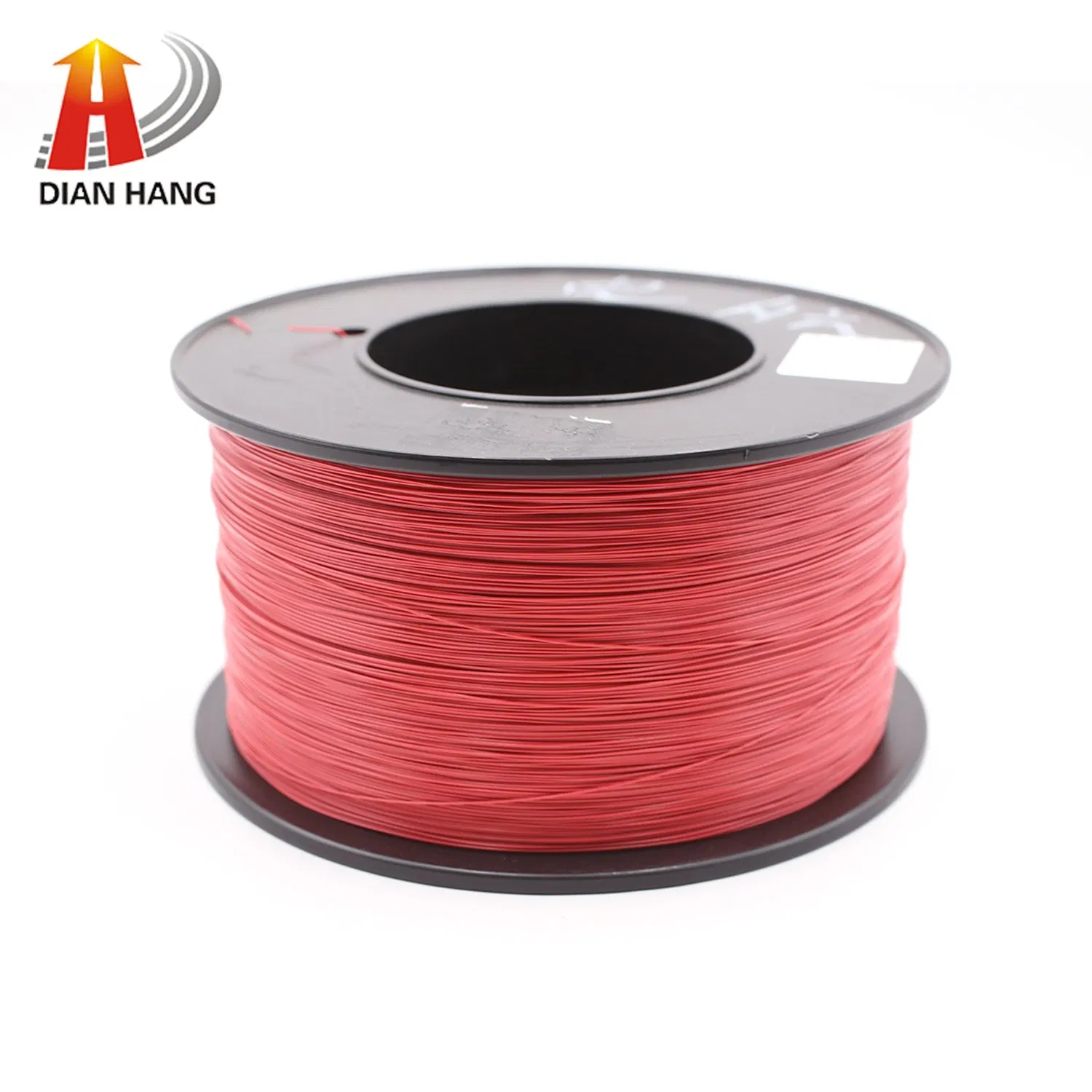

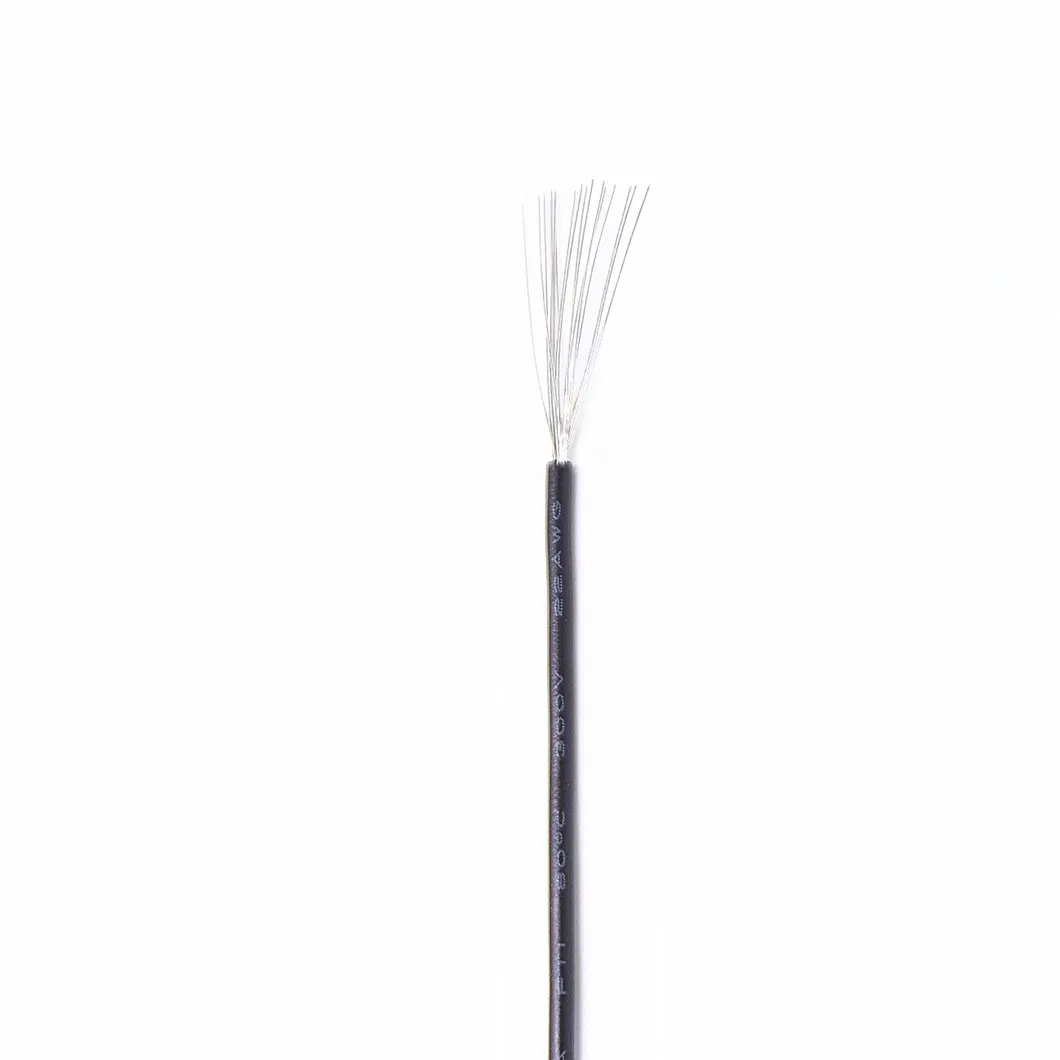

              UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire
              CE rohs PVC wire UL1007 24AWG 20AWG 10P 8P rainbow cable flat ribbon wire



              Rated temperature:80ºC

              Rated voltage:300V

              Reference standard:UL758,UL1581,CSA C22.2No.210.2

              Solid or stranded, tinned or bare copper conductor 32~16AWG

              PVC insulation, comply with ROHS, REACH environmental standard

              Passes UL VW-1, CSA FTI and JQA F-Mark flame test

              Uniform insulation thickness to ensure easy stripping and cutting

              Application:For general purpose internal wiring of appliance

              UL Type

              Conductor

              Insulation

              (Max.cond.

              Resistance)

              (Dielectric Strength)

              1007

              AWG

              Construction

               (No./mm)

              OD

              (mm)

              Thickness

              (mm)

              OD

              (mm)

              (Ω/Km,20ºC,Dc)



              (Vac,1min)



              30

              7/0.10

              0.30

              0.40

              1.10

              381

              2000

              28

              7/0.127

              0.38

              0.41

              1.20

              239

              2000

              26

              7/0.16

              0.48

              0.41

              1.30

              150

              2000

              24

              11/0.16

              0.61

              0.40

              1.40

              94.2

              2000

              22

              17/0.16

              0.76

              0.42

              1.60

              59.4

              2000

              20

              26/0.16

              0.94

              0.43

              1.80

              36.7

              2000

              18

              41/0.16

              1.20

              0.45

              2.10

              23.2

              2000

              16

              26/0.254

              1.49

              0.46

              2.40

              14.6

              2000

              UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire

              Company Profile




              UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire
              Certifications



              UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire

              Packaging & Shipping



              UL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable WireUL 1571 Insulated Electronic Wire Cable PVC Hook-up Wire PVC Copper Thinned Wire Electrical Cable PVC Control Power Cable Wire
