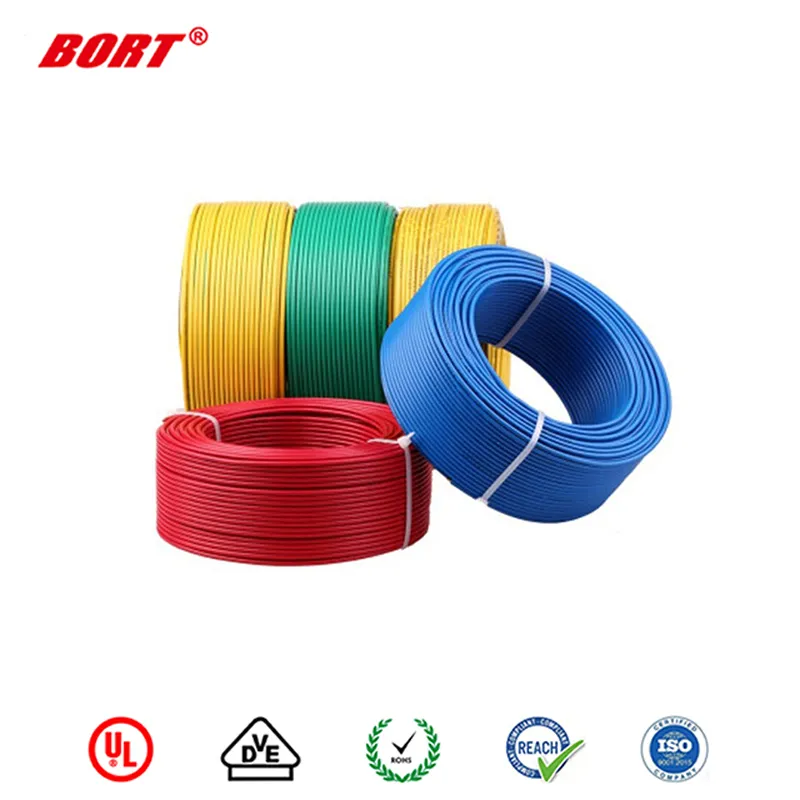

China UL 1571 Electronic Wire Cable PVC Hook-up Wire

Product Description

UL 1571 Electronic Wire Cable PVC Hook-Up Wire ★ Rated temperature: 80ºC

★ Rated voltage: 30V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2

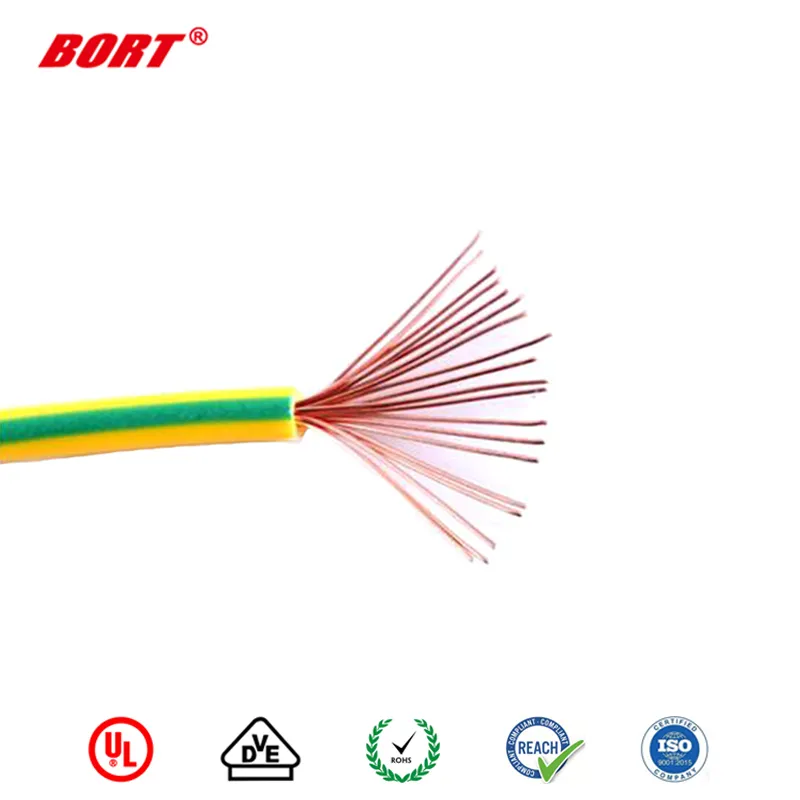

★ Tinned or bare, stranded, Top coated, Over coated copper wire or solid copper conductor
copper wire, 50 AWG minimum
★ Colour-coded lead free PVC or SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Ultra fine version are available
★ Application: For internal wiring of electronic and electrical equipment, and power
adaptor for portable PC

Conductor			Insulation		Spiral Shield		Jacket		Maximum Resistance at 20 ºC Ω/km
AWG	No./mm	Dia. mm	Nom. Thick. mm	Nom.Dia. mm	No./mm	Nom.Dia	Nom. Thick. mm	Nom.Dia. mm	Maximum Resistance at 20 ºC Ω/km
36	7/0.050	0.15	0.15	0.45	-	-	-	-	1490
34	7/0.065	0.195	0.15	0.5	-	-	-	-	908
32	7/0.08	0.24	0.23	0.70	-	-	-	-	597
30	7/0.1	0.30	0.30	0.90	28/0.1	1.10	0.35	1.80	354
30	7/0.1	0.30	0.20	0.70	-	-	-	-	354
28	7/0.127	0.38	0.26	0.90	28/0.1	1.10	0.35	1.80	223
28	7/0.127	0.38	0.26	0.90	-	-	-	-	223
26	7/0.16	0.48	0.26	1.00	-	-	-	-	139
24	7/0.2	0.6	0.25	1.10	-	-	-	-	88.9
22	7/0.16	0.76	0.32	1.40	37/0.12	1.64	0.58	2.80	57.5
22	17/0.16	0.76	0.25	1.25	-	-	-	-	57.5
20	26/0.16	0.94	0.43	1080	57/0.1	2.00	0.56	3.10	34.6
18	65/0.127	1.18	0.30	1.78	47/0.12	2.02	0.59	3.20	23.3
16	51/0.18	1.52	0.32	2.15	54/0.12	2.39	0.61	3.60	15.1

Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.

Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.

Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.

Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.

Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.

Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
