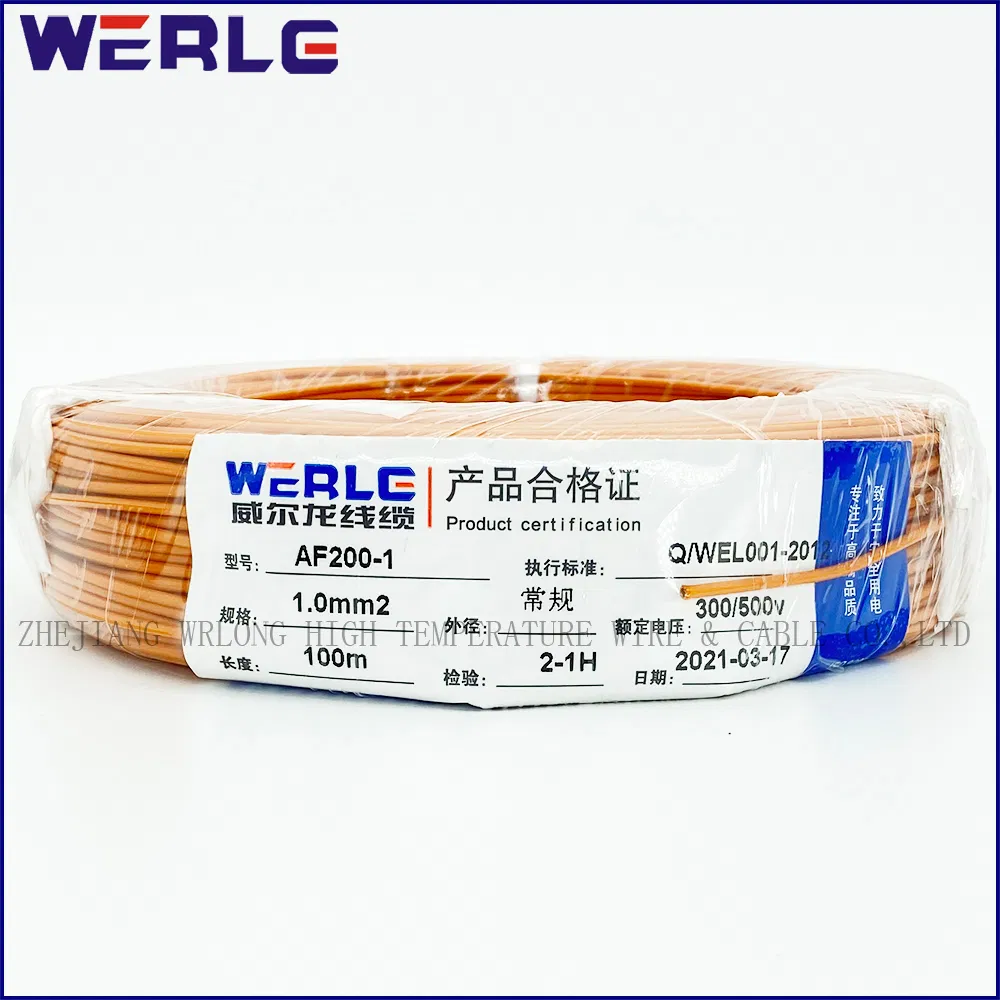

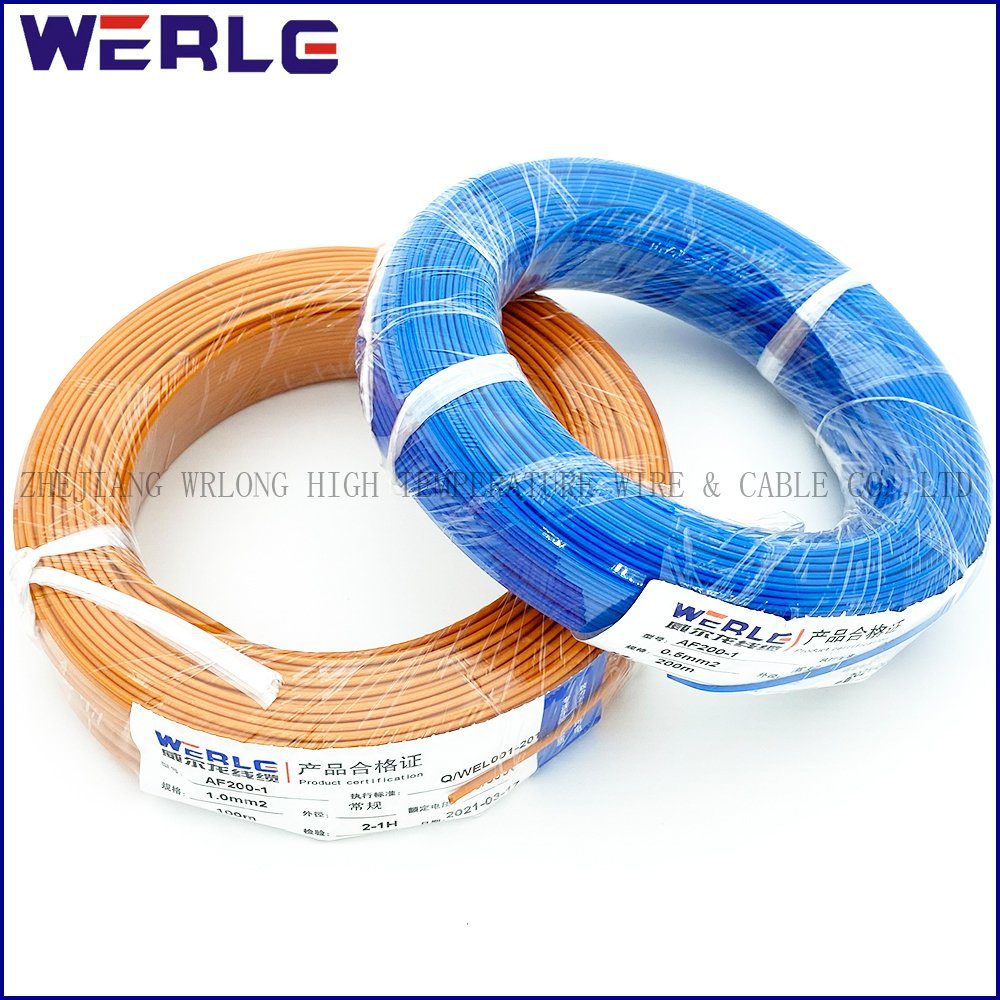

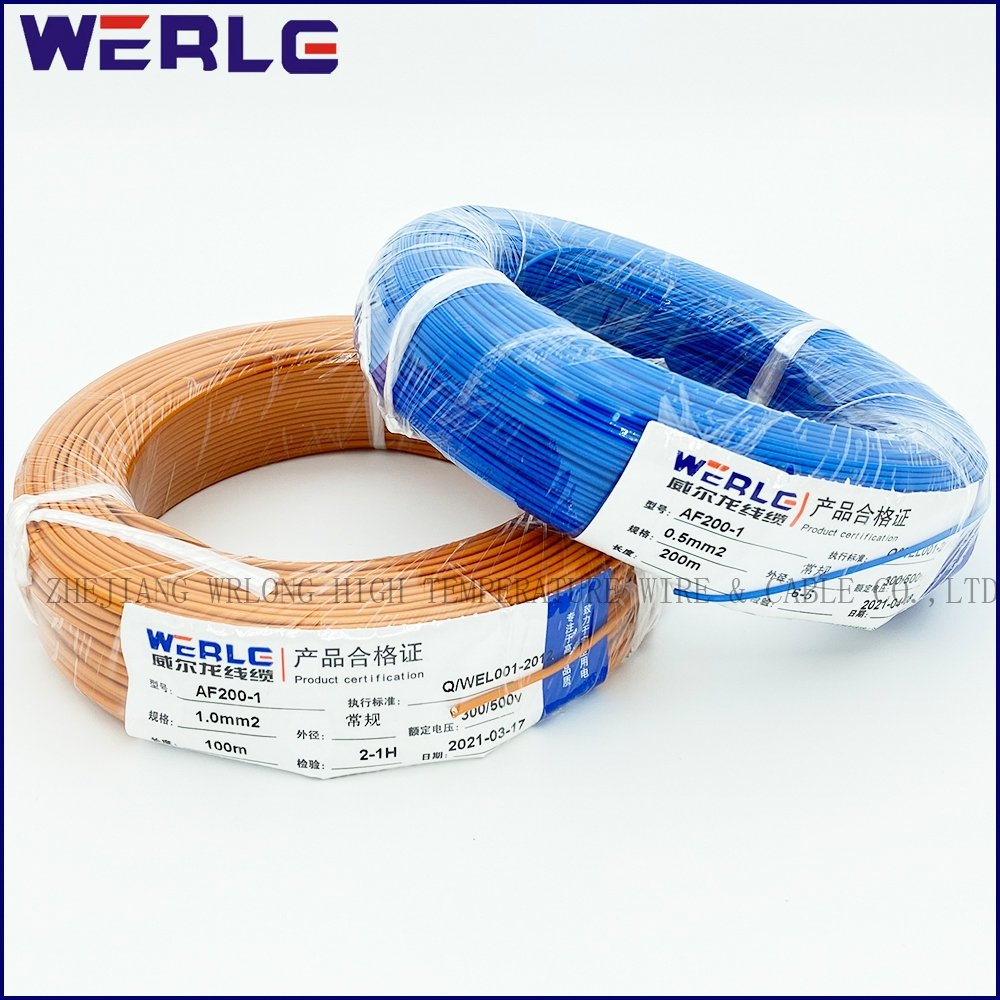

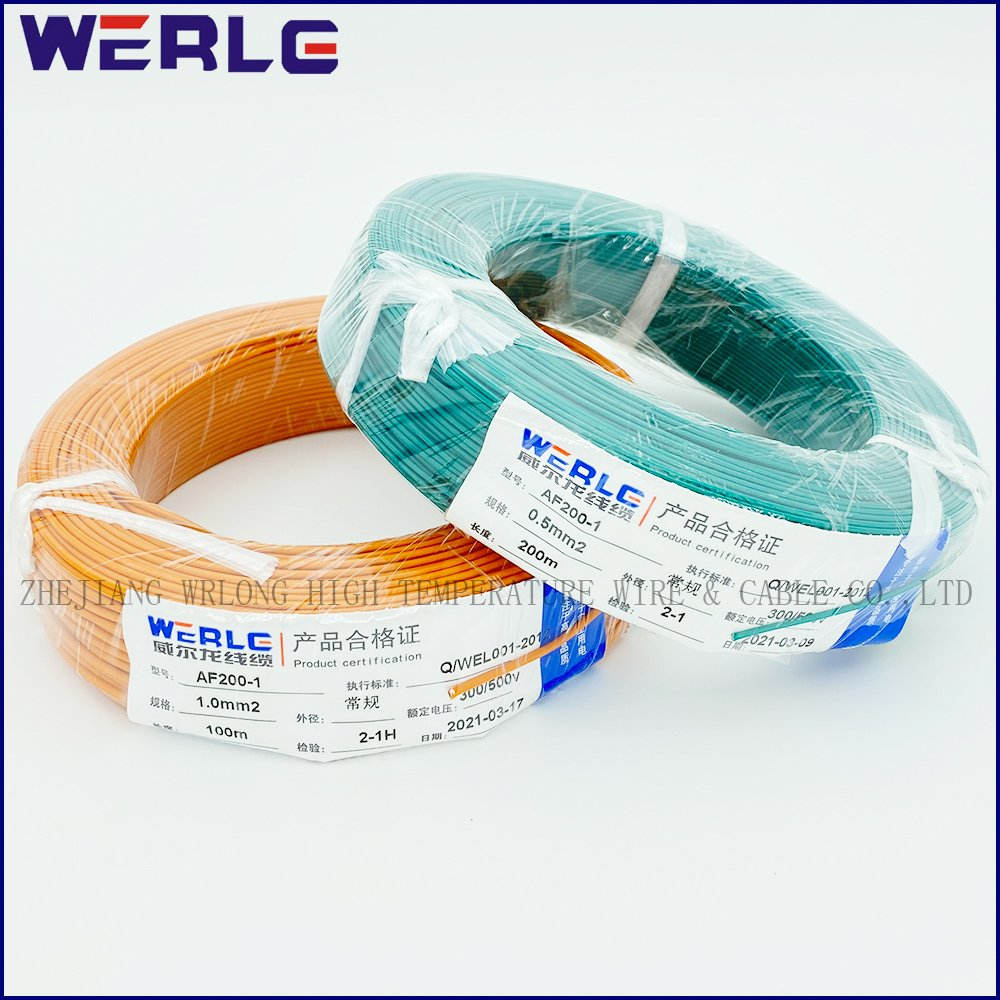

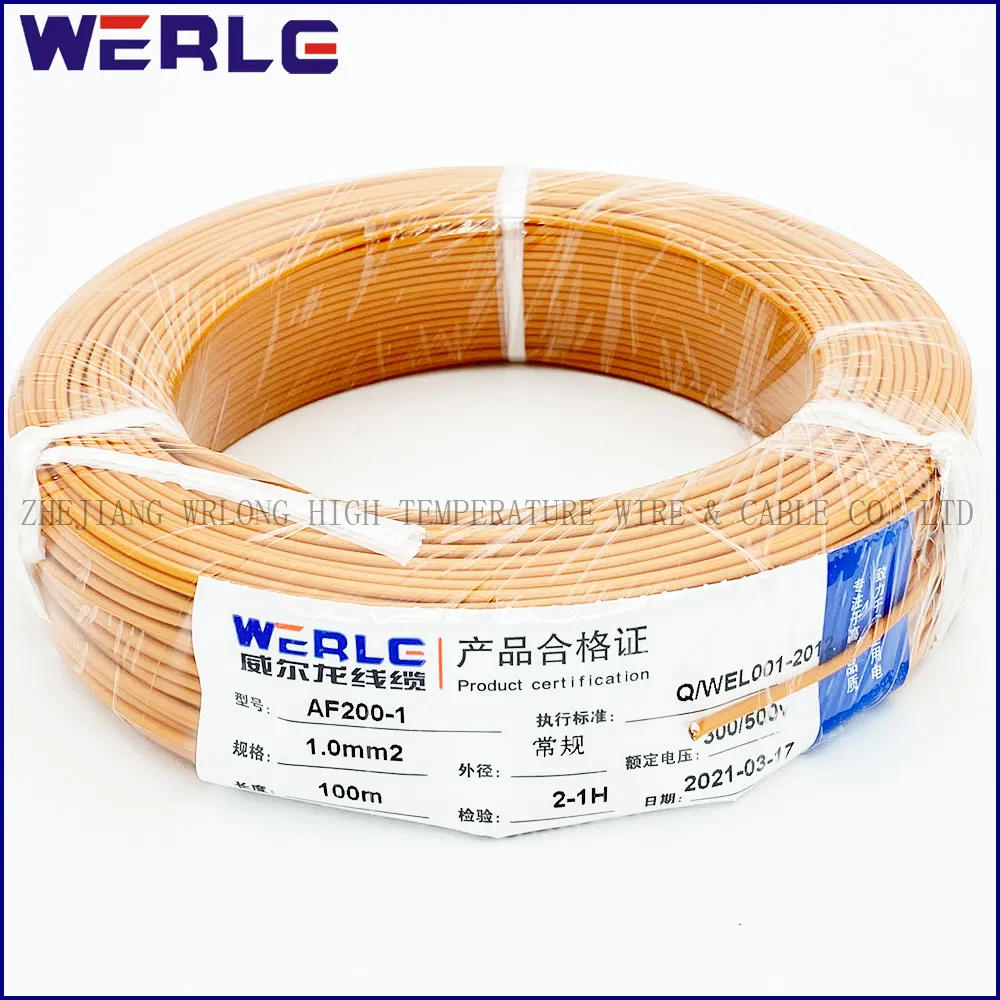

China UL 1332 AWG 22 Orange FEP Teflon Insulated Electric Wire

Product Description

UL 1330 AWG 22 Orange FEP Teflon Insulated Electric Wire

UL certificate RoHS CCC

GB/T19001 ISO9001

Nominal Voltage: 600V

Temperature Range: -100~+200

O. D. Tolerance: ± 0.10mm

Testing Volta: 2500V

Conductor: Tinned Copper

Insulator: FEP TEFLON

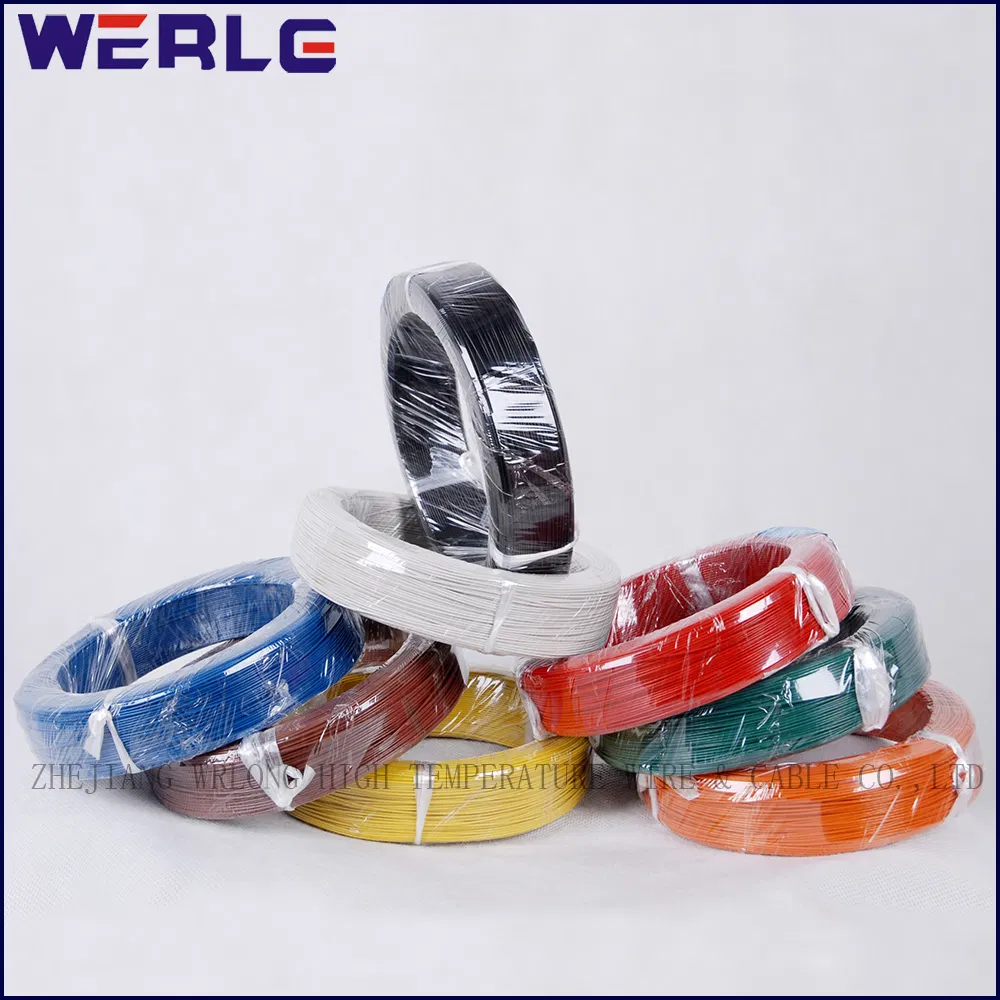

Colours: Whit-bule-red-black-brown-yello-wgreen-transparent-yellow/green

They are the same with then inner fixed wires for Home Electric applinaces, Lighthing equipments, mechanical electrical machines

Conductor			Insulator		Electrical Characteristic		Packing
AWG	Conductor Construction No./mm	Diameter mm	Insulator Thickness mm	Over Diamter mm	Realst.max Cuc,c20ocohm/km	Permissible ampacity 20oc-AMP	mt/coils
30	7x0.10	0.3	0.51	1.32	376.96	0.66	610
28	7x0.12	0.36		1.38	237.25	1.05	610
26	7X0.16	0.48		1.5	148.94	1.61	610
26	1x0.4			1.42	148.94	1.61	610
24	7X0.20	0.60		1.62	93.25	2.57	610
24	19X0.12	0.60		1.62	93.25	2.57	610
22	7X0.25	0.75		1.78	55.00	4.36	610
22	19X0.15	0.75		1.77	55.00	4.36	610
20	7X0.31	0.93		1.97	34.60	6.94	610
20	19X0.19	0.95		1.97	34.60	6.94	610
18	7X0.39	1.17		2.2	21.80	11.01	610
18	19X0.235	1.18		2.2	21.80	11.01	610
16	7X0.50	1.50		2.52	13.70	17.52	305
16	19X0.30	1.50		2.52	13.70	17.52	305
14	19X0.37	1.85		2.87	8.62	27.84	305
12	19X0.48	2.40		3.42	5.43	44.20	305
10	37X0.43	3.01		4.03	3.41	70.38	305
