Product Description

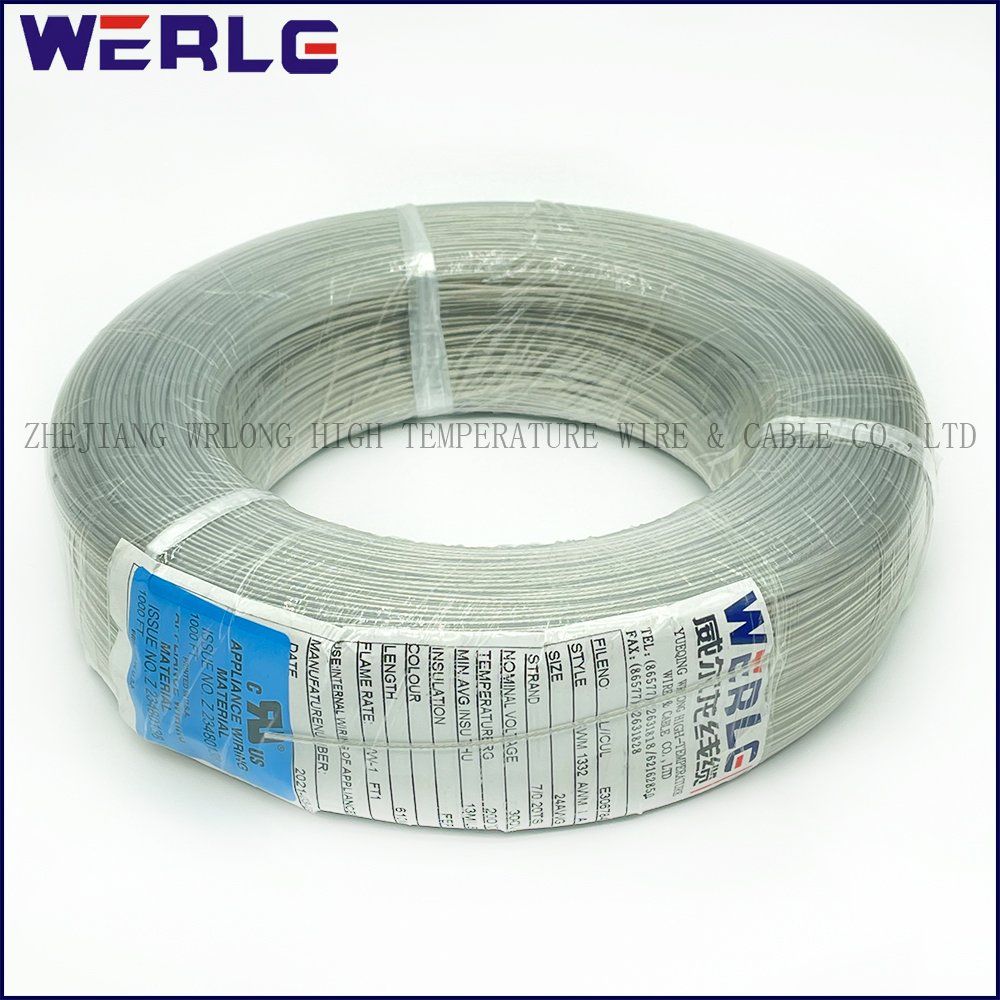

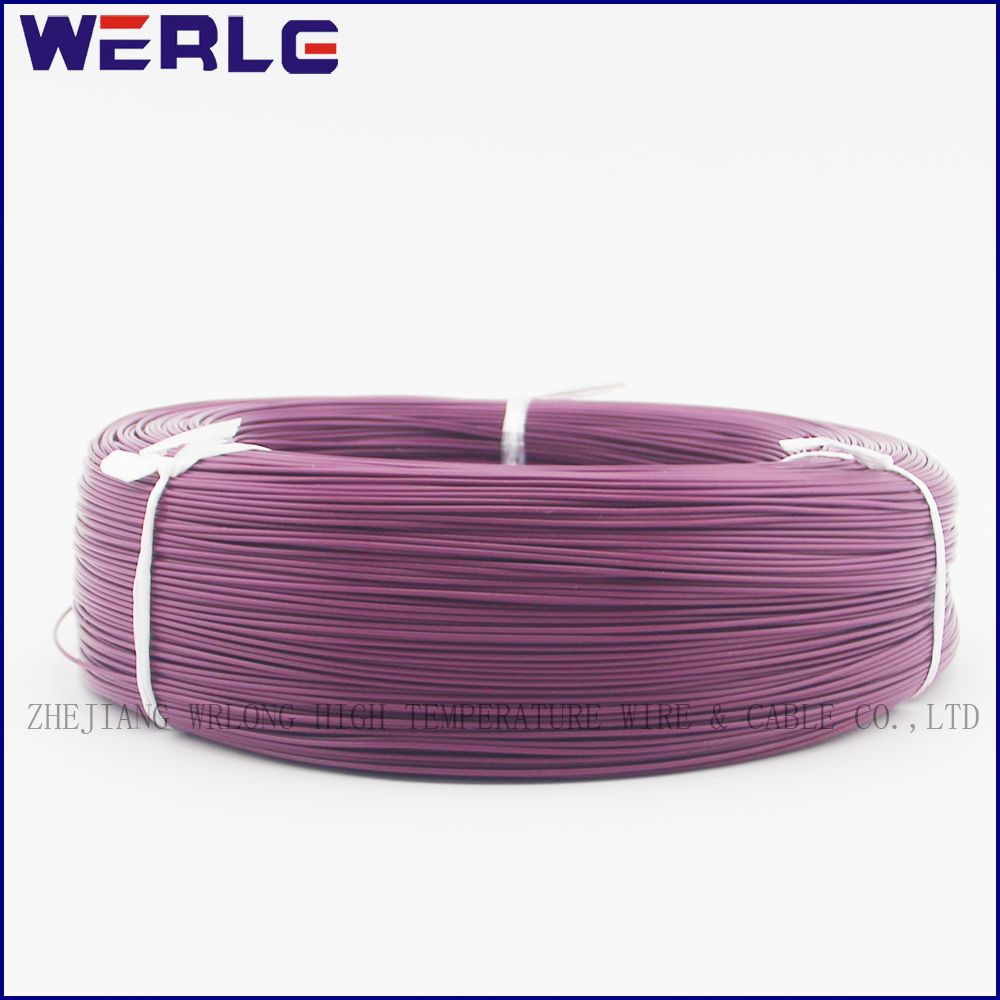

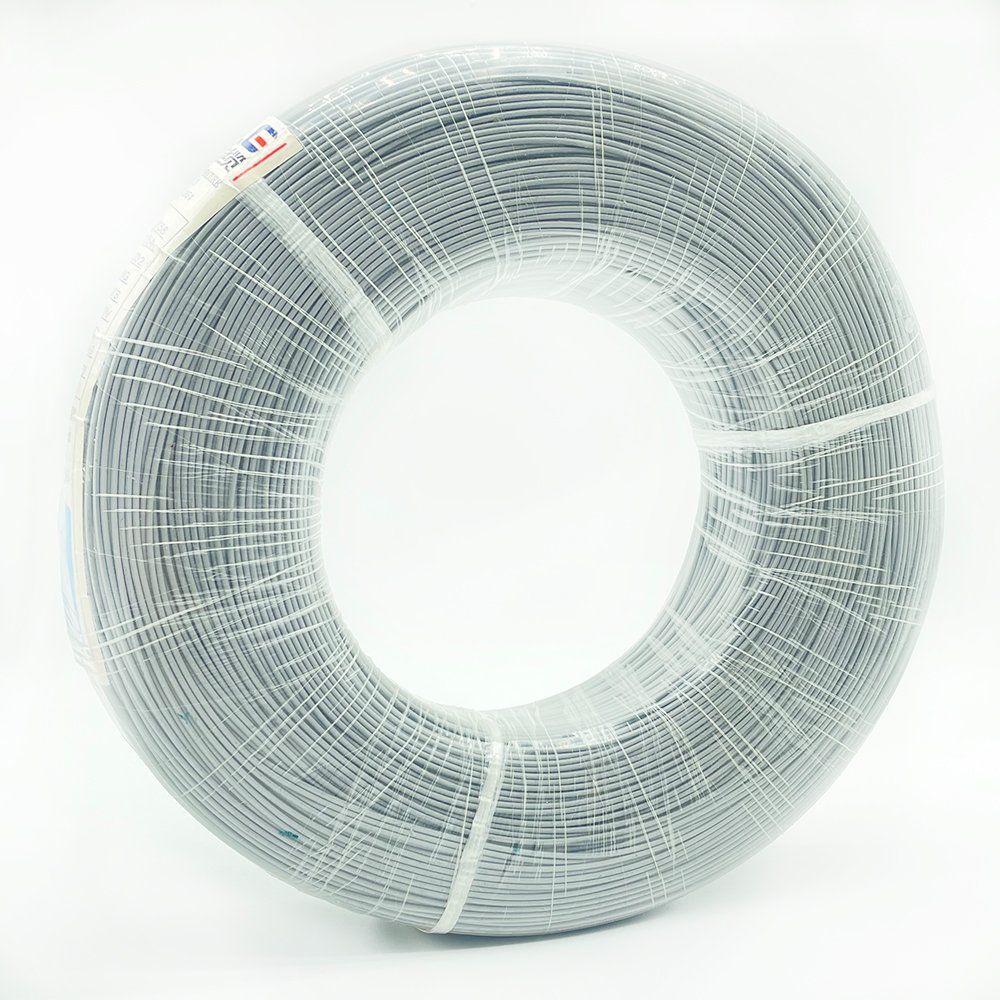

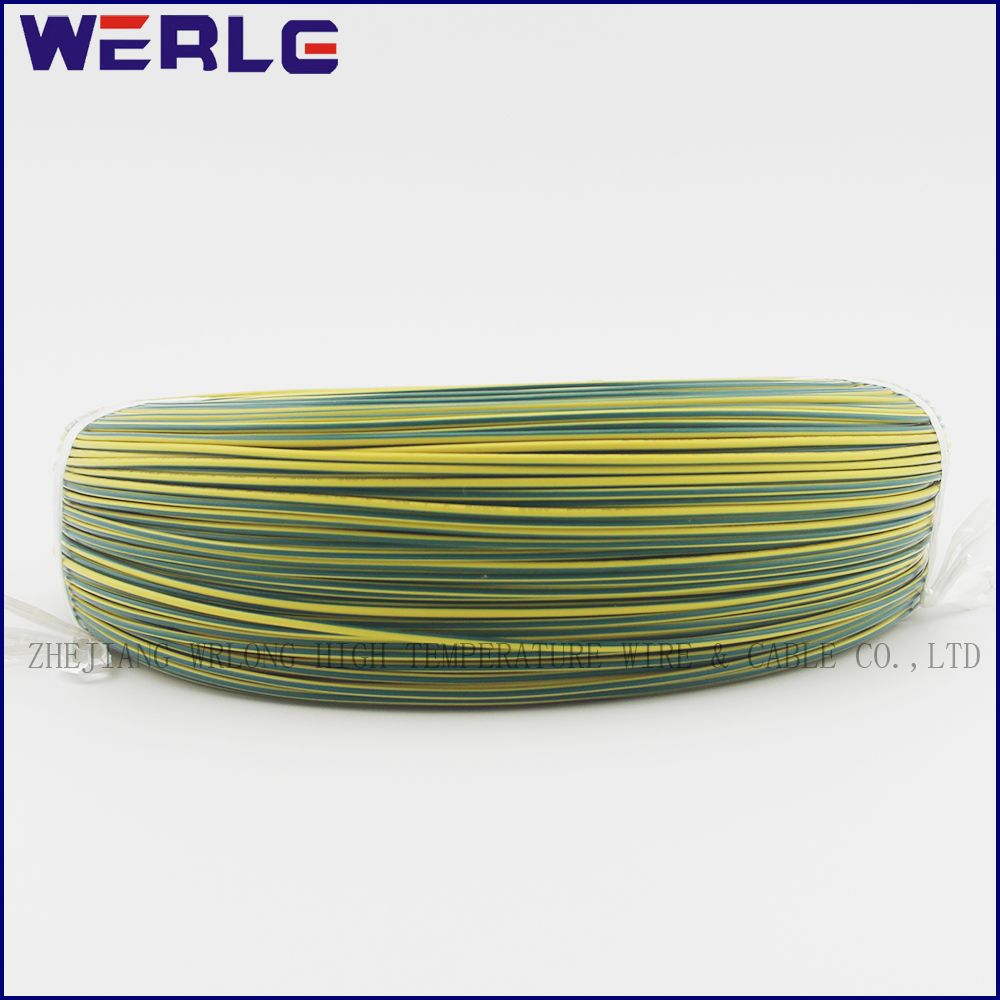

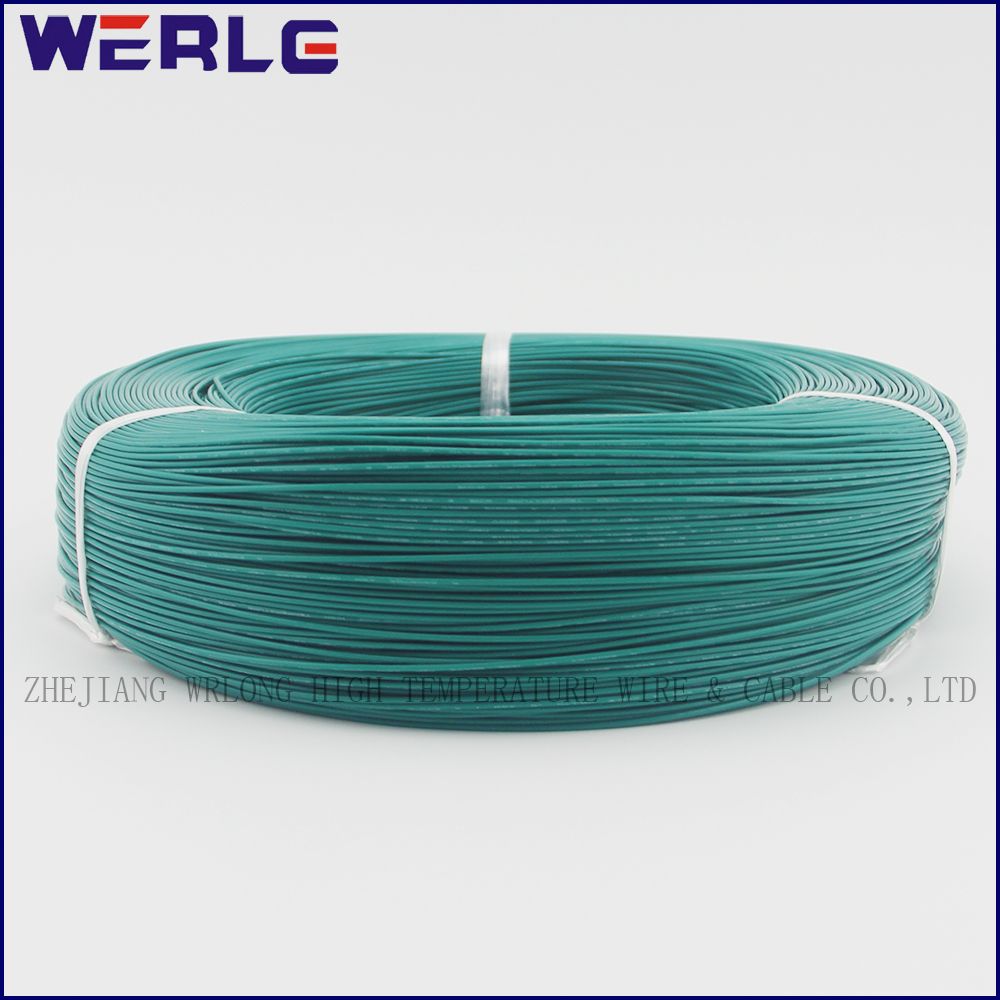

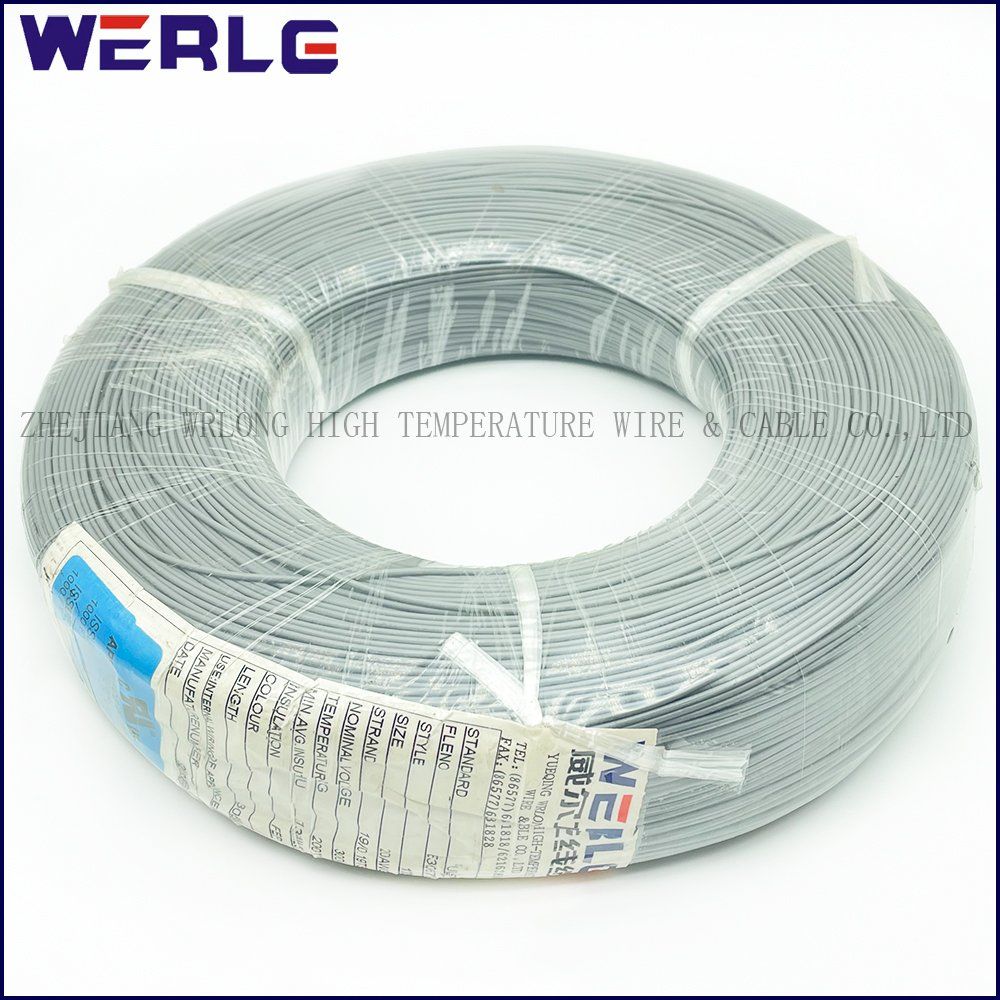

UL 1015 Approved PVC Insulated Tinned Copper Conduct Electric Electrical Wire

TECHNICAL DATA
Rated voltage: 600V
Rated temperature:-40ºC~+105ºC
Conductor: Tinned or bare copper
Insulator: PVC
OD Tolerance: ±0.10mm
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

CHARACTERISTIC
Flexible, easy assemble, cold resistance, stable performance, UL 758, RoHs compliance.

APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor,metallurgy chemical series, motor cars & ships, electrical installation.

UL1015	Conductor Construction No./mm		Over Diamter ±0.05mm²	Insulator			Technical Data		Packing (m/roll)
Size	Conductor Construction No./mm	Diameter mm	Over Diamter ±0.05mm²	Material	Average Thickness mm	Colour	Temperature Range(ºC)	Nominal voltage	Packing (m/roll)
30 AWG	7/0.1	0.3	1.87	PVC	0.782	red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent	105ºC	600V	610
28 AWG	7/0.127	0.38	1.95	PVC	0.781				610
26 AWG	7/0.16	0.48	2.05	PVC	0.781				610
24 AWG	11/0.16	0.61	2.18	PVC	0.784				610
22 AWG	17/0.16	0.76	2.33	PVC	0.784				610
20 AWG	26/0.16	0.94	2.51	PVC	0.784				305
18 AWG	41/0.16	1.18	2.75	PVC	0.783				305
16 AWG	26/0.254	1.49	3.06	PVC	0.782				305
14 AWG	41/0.254	1.86	3.44	PVC	0.781				305
12 AWG	65/0.254	2.35	3.93	PVC	0.782				305
10 AWG	66/0.32	3	4.57	PVC	0.784				305
