UL 1007 Mulit Core Electrical Copper PVC Insulation Single Conductor Electric Cable
Product DescriptionSPECIFICATION:UL 1007 Multicore Electrical Tinned Copper PVC Insulation Single Conductor Electric Speaker CableUL certificate no: E306784Rated voltage: 300V,Rated temperature: 80° Cconductor:Tinned or bare, strand or solid copper conductor, 30AWG mininsulator: Color-coded ......
Send Inquiry
Product Description
SPECIFICATION:

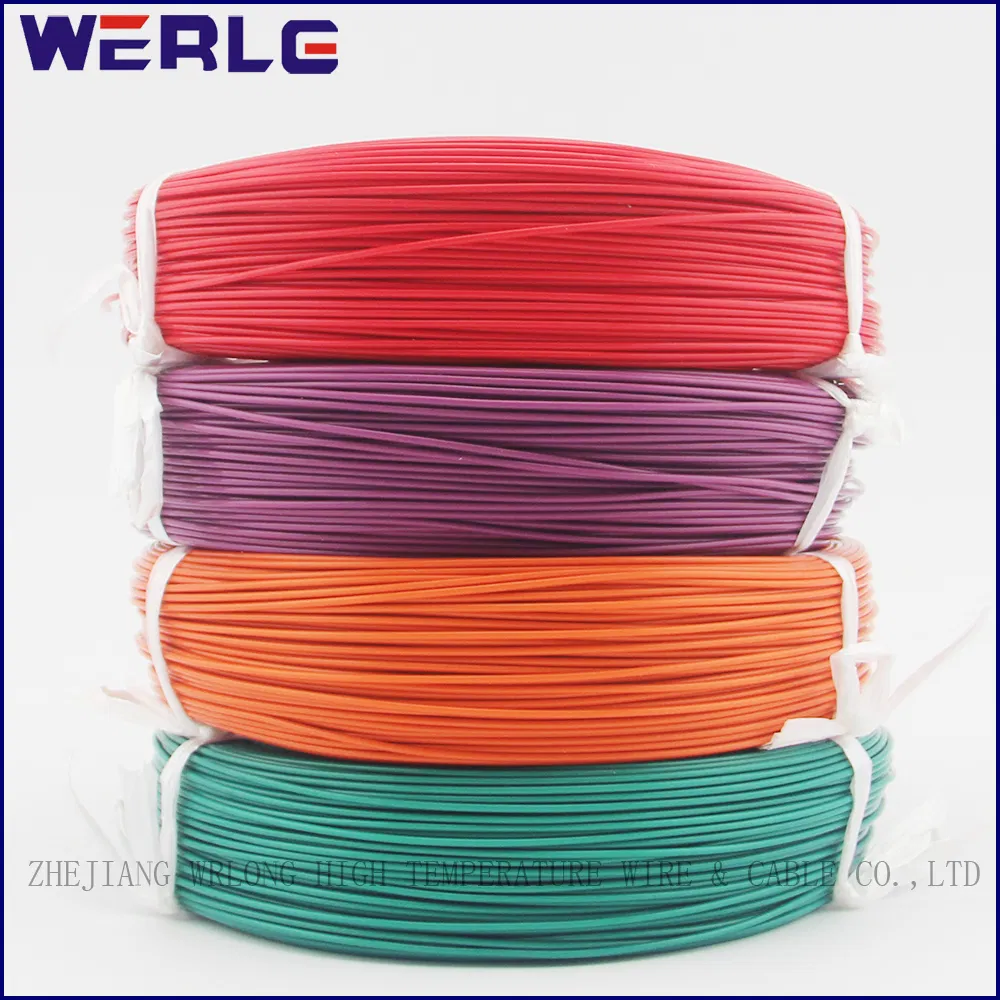

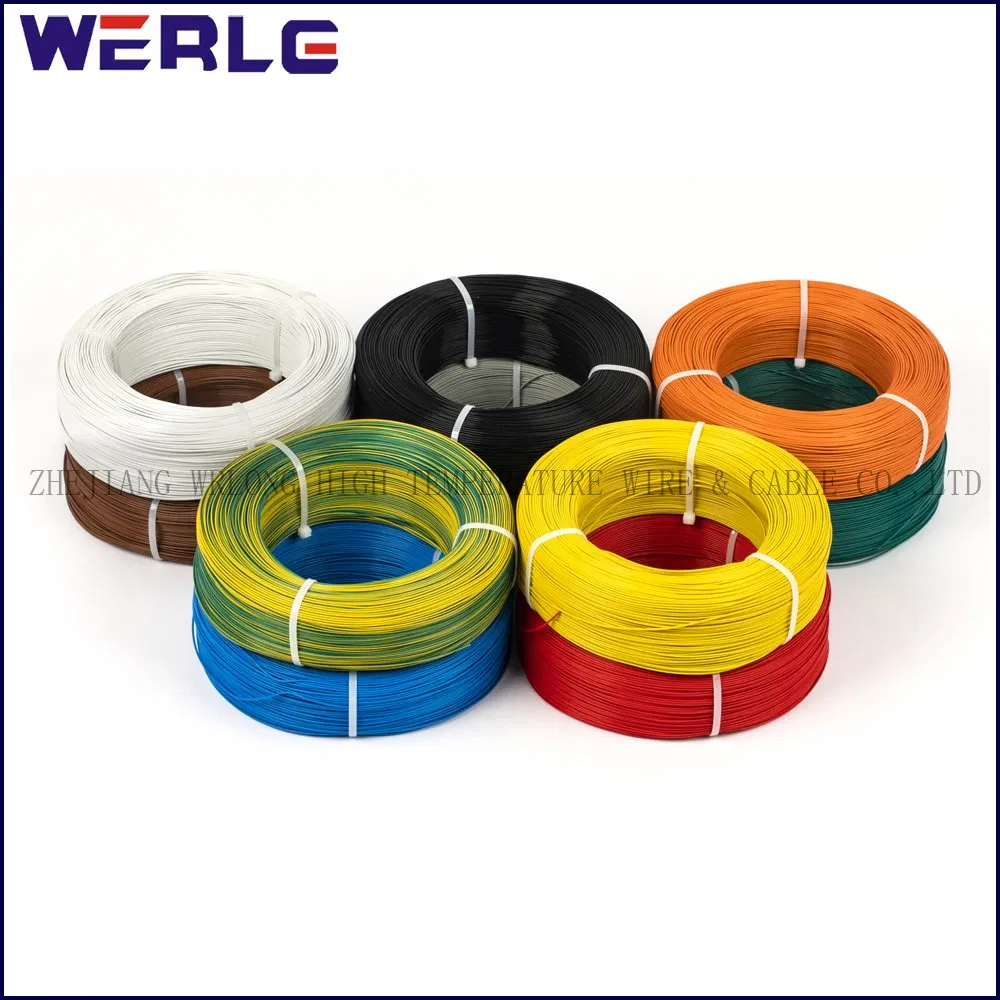

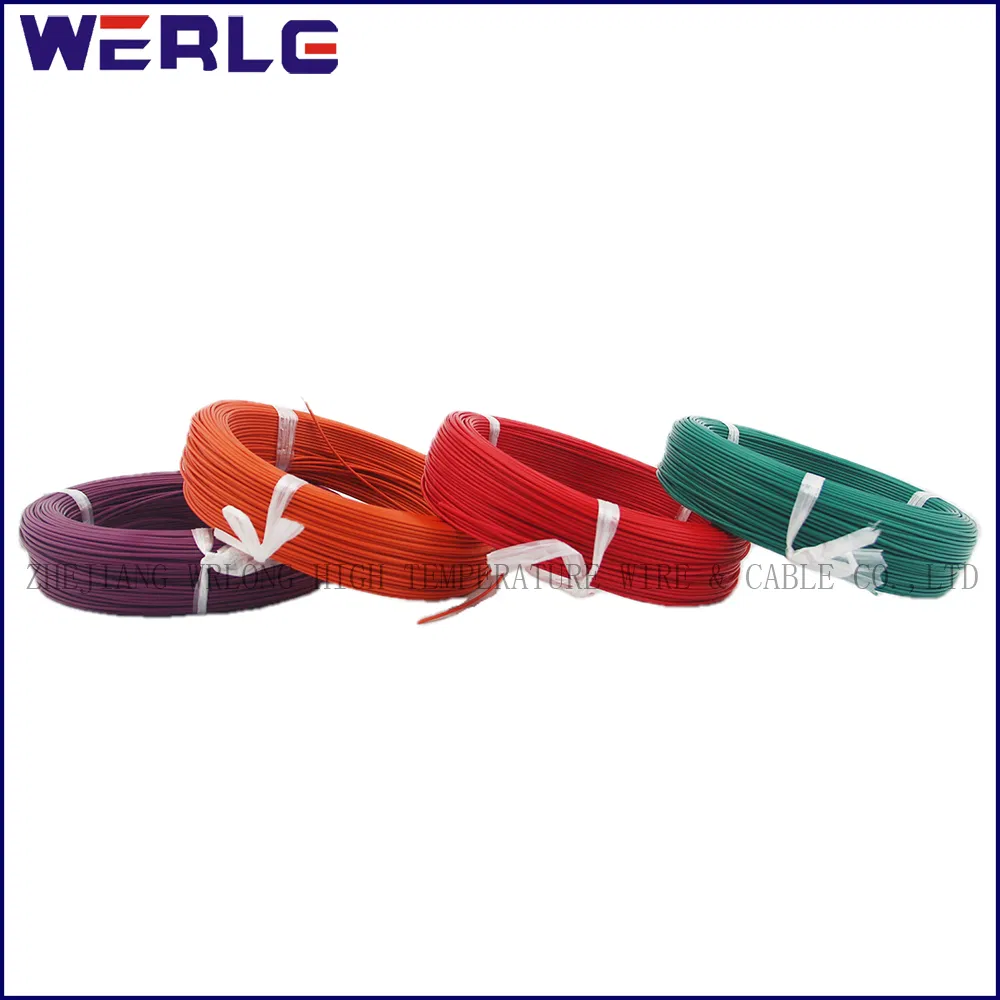

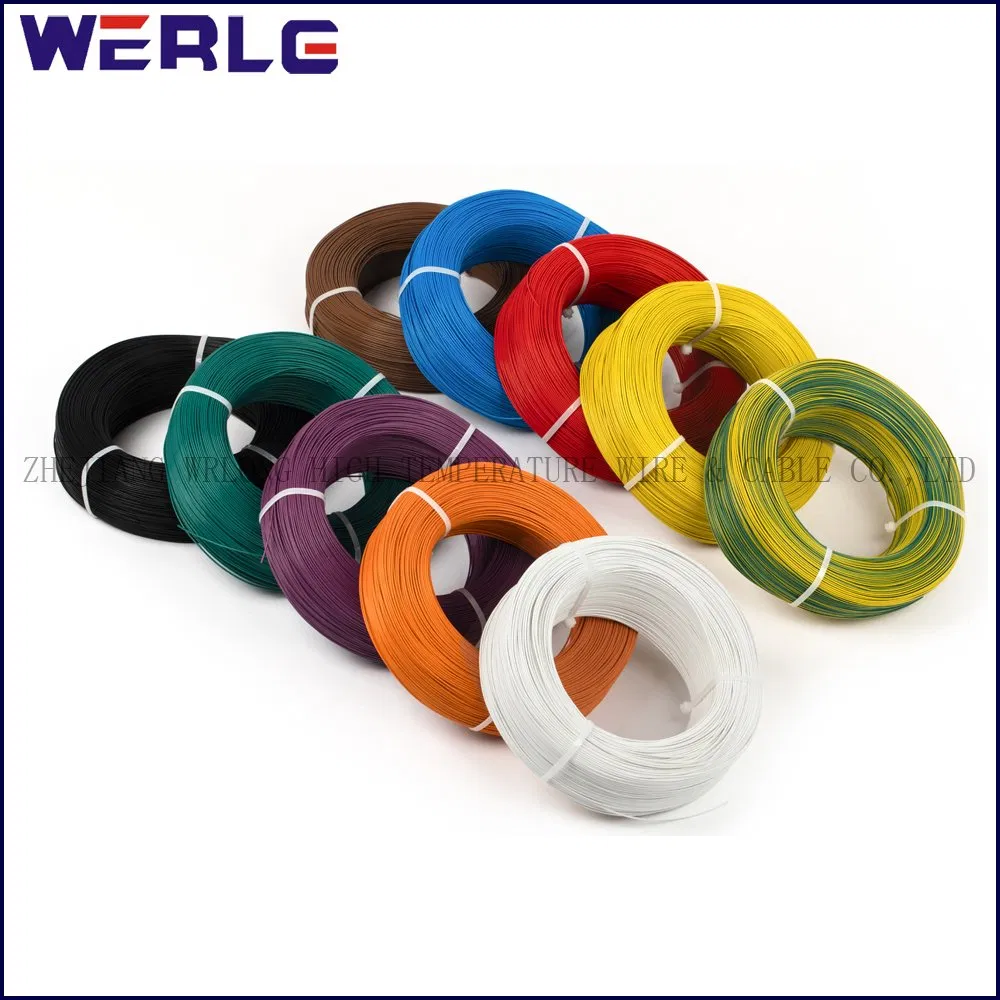

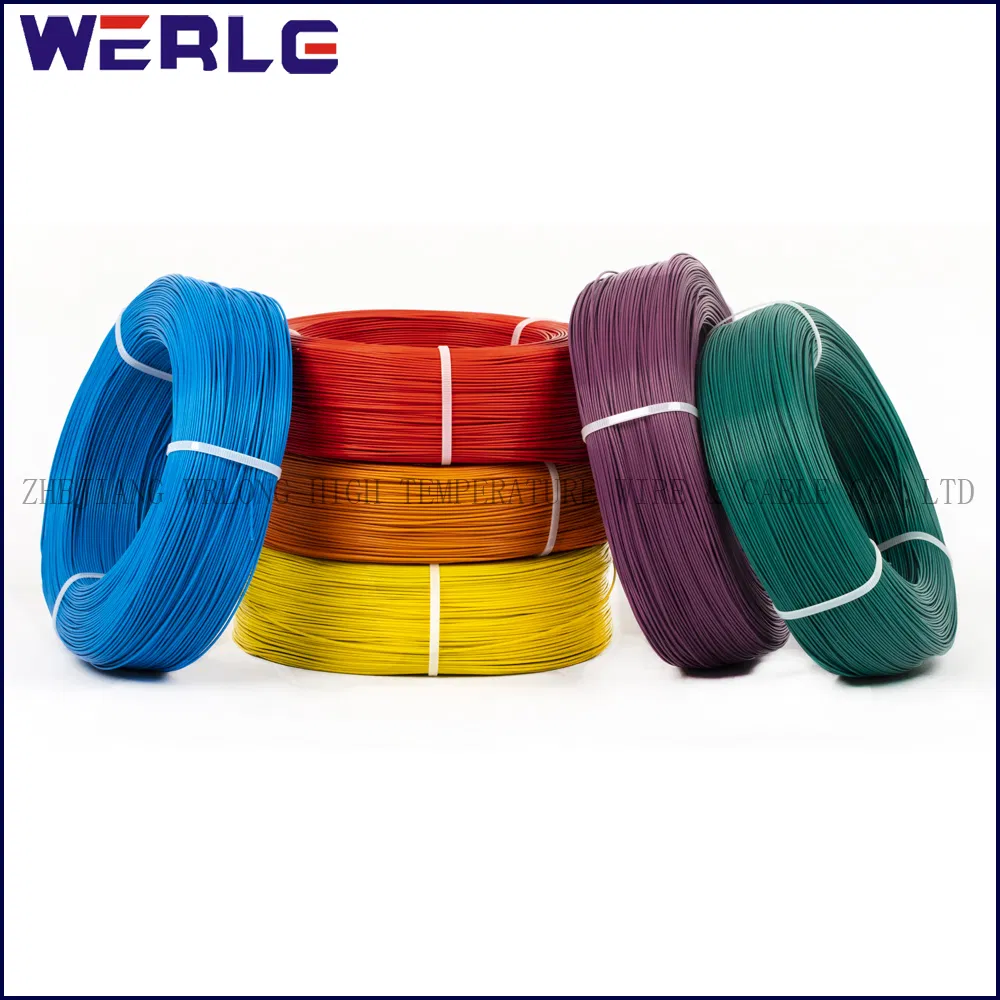

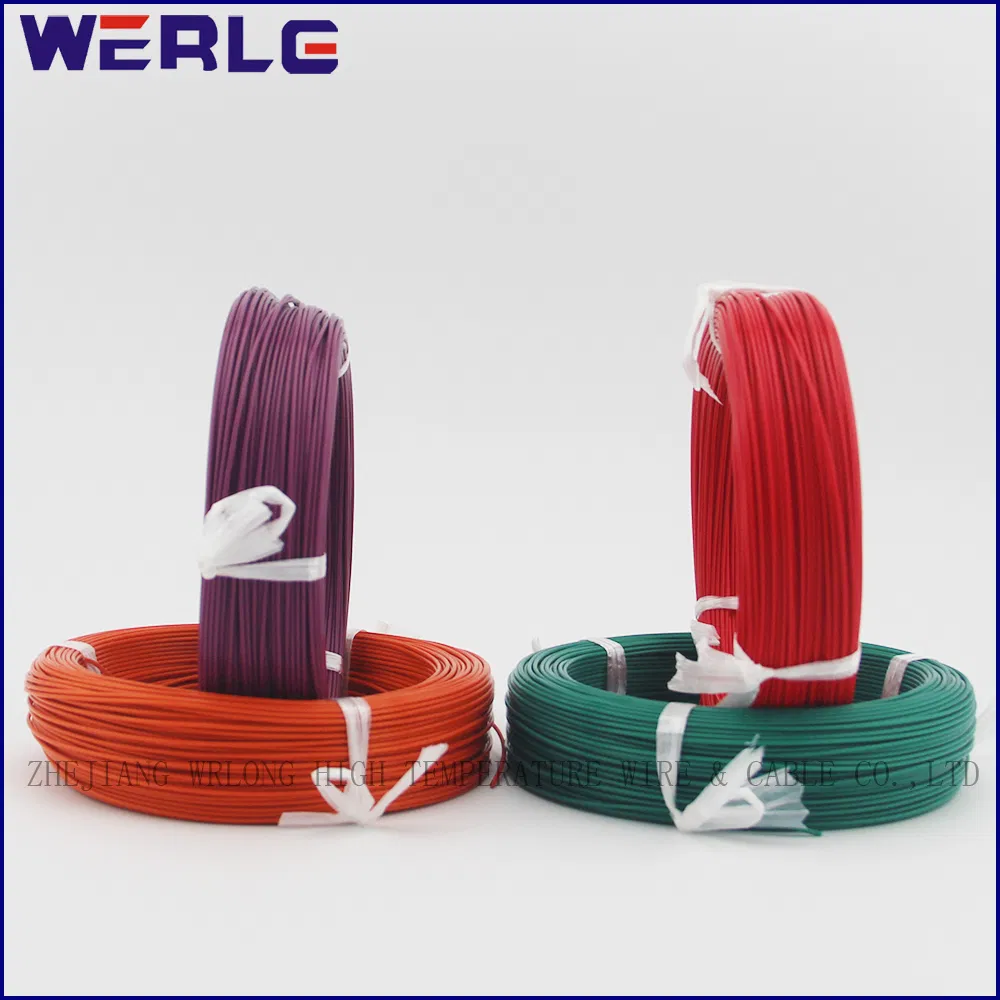

UL 1007 Multicore Electrical Tinned Copper PVC Insulation Single Conductor Electric Speaker Cable
UL certificate no: E306784
Rated voltage: 300V,
Rated temperature: 80° C
conductor:Tinned or bare, strand or solid copper conductor, 30AWG min
insulator: Color-coded PVC insulation
Uniform insulation thickness of wire to ensure easy stripping and cutting
Feature: Resistant to acid, alkali, oil, moisture and fungi, comforming RoHS
Application fields: Motor, Transformer, Automobile, outdoors in hostile environment,inductive coil, machine wiring, household appliances, lighting, electronic apparatus, etc
production lead time: 7 to 15 days
Trade term: FOB, CFR or CIF
Payment term: T/T ,L/C
| AWG | CONDUCTOR | INSULATOR | ||
| construction (nxmm) | conductor diameter (mm) | thickness (mm) | over diameter (mm) | |
| 32 | 7x0.08 | 0.24 | 0.38 | 1 |
| 30 | 7x0.1 | 0.3 | 1.06 | |
| 28 | 7x0.127 | 0.38 | 1.14 | |
| 26 | 7x0.16 | 0.48 | 1.24 | |
| 24 | 11x0.16 | 0.61 | 1.37 | |
| 22 | 17x0.16 | 0.76 | 1.52 | |
| 20 | 26x0.16 | 0.94 | 1.7 | |
| 18 | 41x0.16 | 1.18 | 1.94 | |
| 16 | 26x0.254 | 1.49 | 2.25 | |
