              UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable
              • UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable
              • UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable
              • UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable
              • UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable

              UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable

              Product DescriptionUL 1007 32 Awg Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableTECHNICAL DATARated voltage: 300V Rated temperature:-40ºC~+80ºCConductor: Tinned or bare, strand or solid copper Insulator: PVCOD Tolerance: &plusm......

              Send Inquiry

              Product Description

              Product Description

              UL 1007 32 Awg Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable

              TECHNICAL DATA
              Rated voltage: 300V
              Rated temperature:-40ºC~+80ºC
              Conductor: Tinned or bare, strand or solid copper
              Insulator: PVC
              OD Tolerance: ±0.05mm
              Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc

              CHARACTERISTIC
              Flexible, easy assemble, cold resistance, stable performance, UL 758, RoHs compliance.

              APPLICATION
              Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, military series, metallurgy chemical series, motor cars & ships, electrical installation.

              Product Parameters
              UL1007ConductorOver
              Diamter
              ±0.05mm²              		InsulatorTechnical DataPacking(m/roll)
              SizeConductor
              Construction
              No./mm              		Diameter
              mm              		MaterialAverage
              Thickness
              mm              		ColourTemperature Range(ºC)Nominal voltage
              32  AWG7/0.080.241.O5PVC0.403red,yellow,
              blue,green,
              black,white,
              purple,brown,
              orange,
              yellow-green,
              transparent              		80ºC300V610
              30  AWG7/0.10.31.11PVC0.402610
              28  AWG7/0.1270.381.19PVC0.401610
              26  AWG7/0.160.481.29PVC0.401610
              24  AWG11/0.160.611.42PVC0.404610
              22  AWG17/0.160.761.57PVC0.404610
              20  AWG26/0.160.941.75PVC0.404305
              18  AWG41/0.161.181.99PVC0.403305
              16  AWG26/0.2541.492.29PVC0.397305
              14  AWG41/0.2541.862.68PVC0.401305

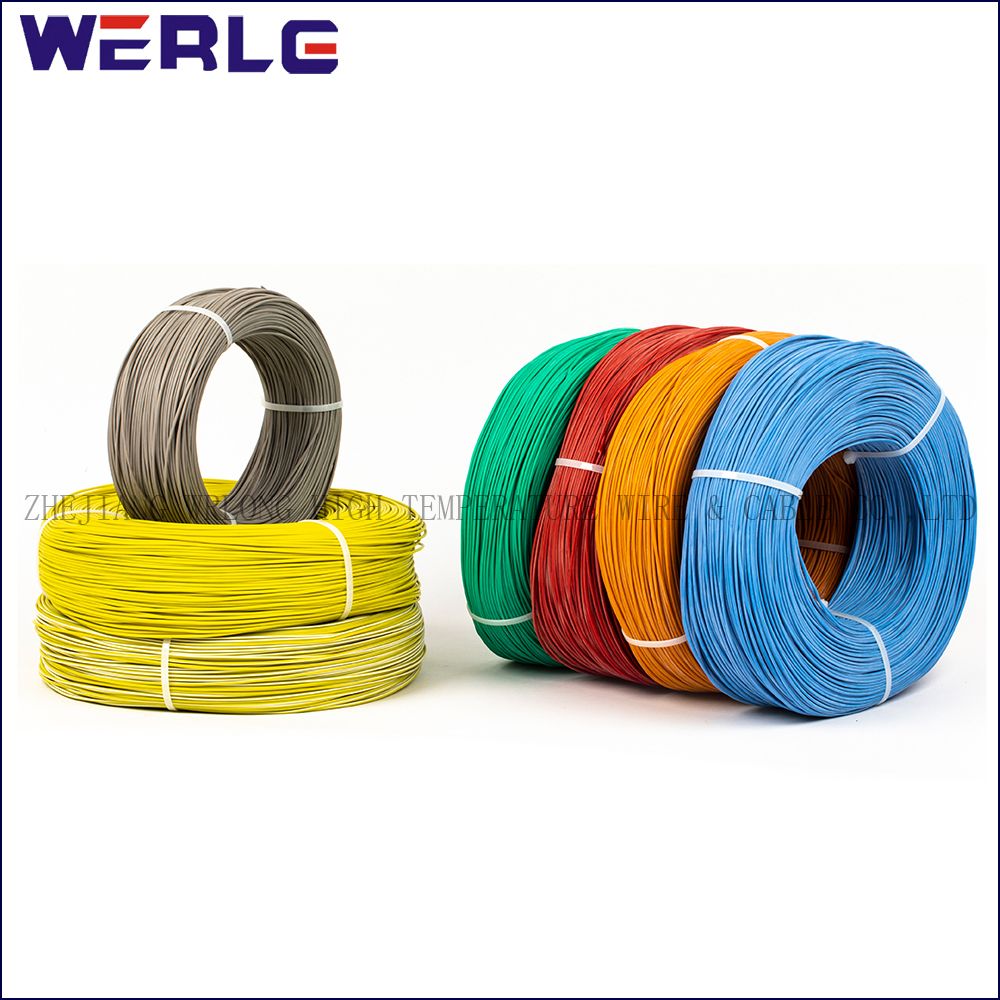

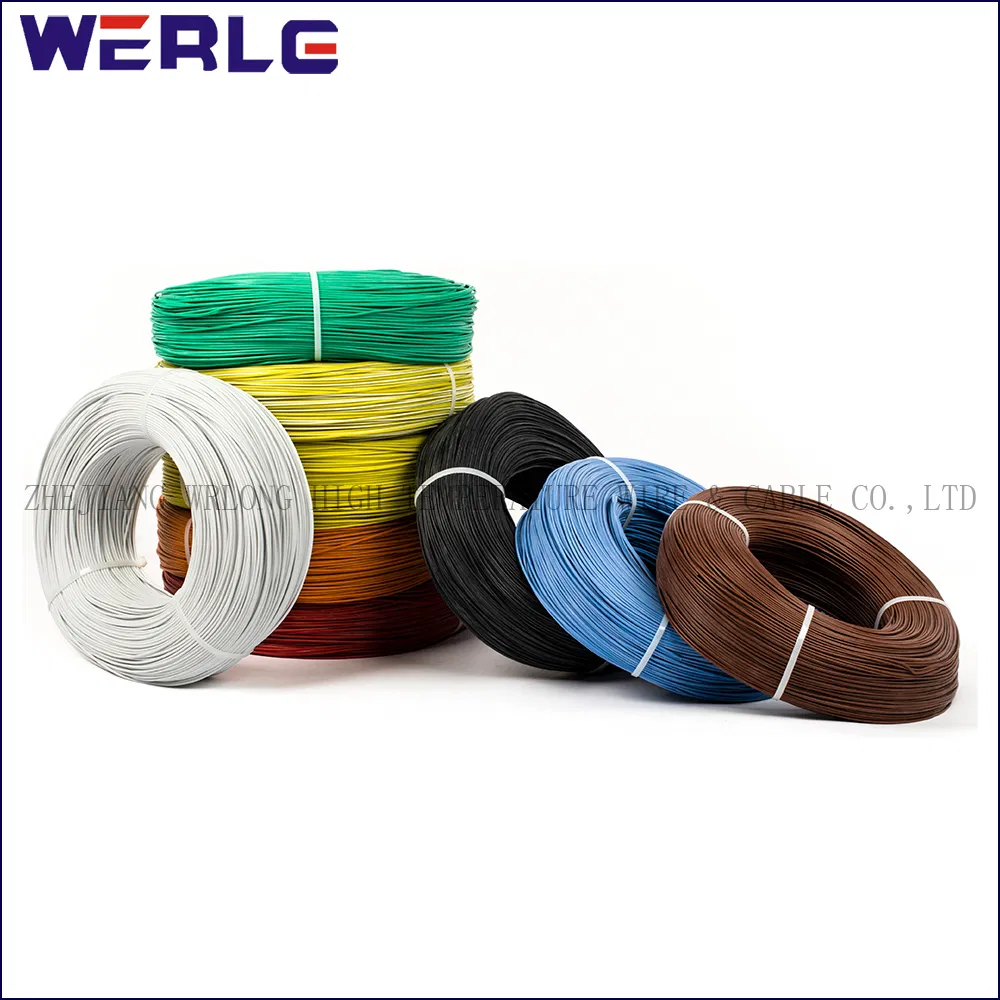

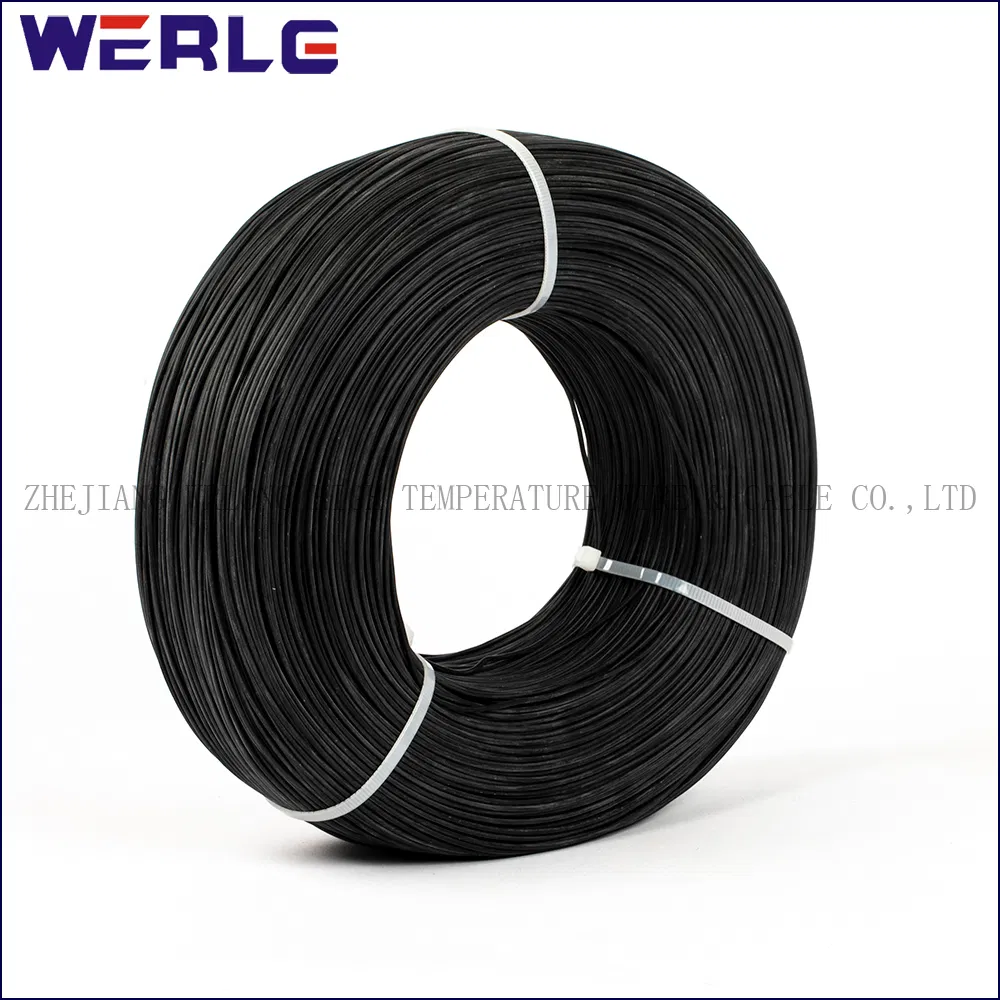

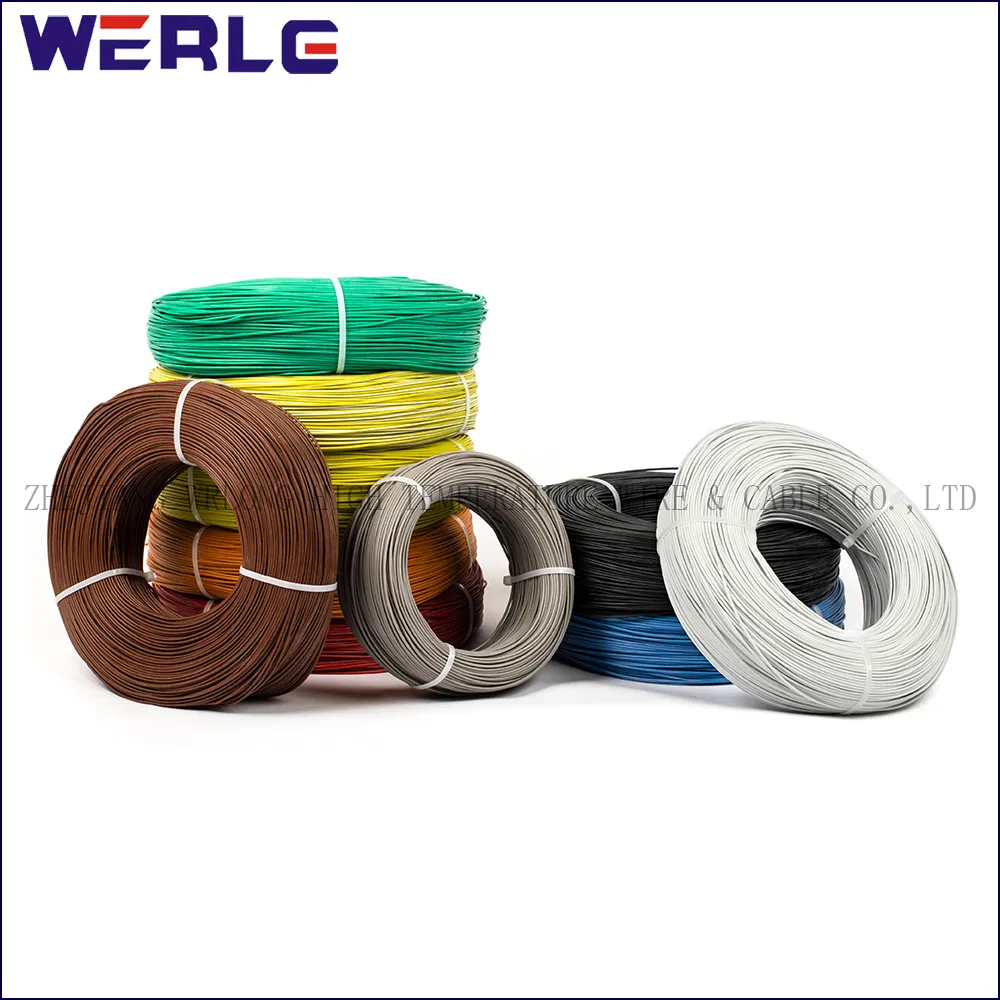

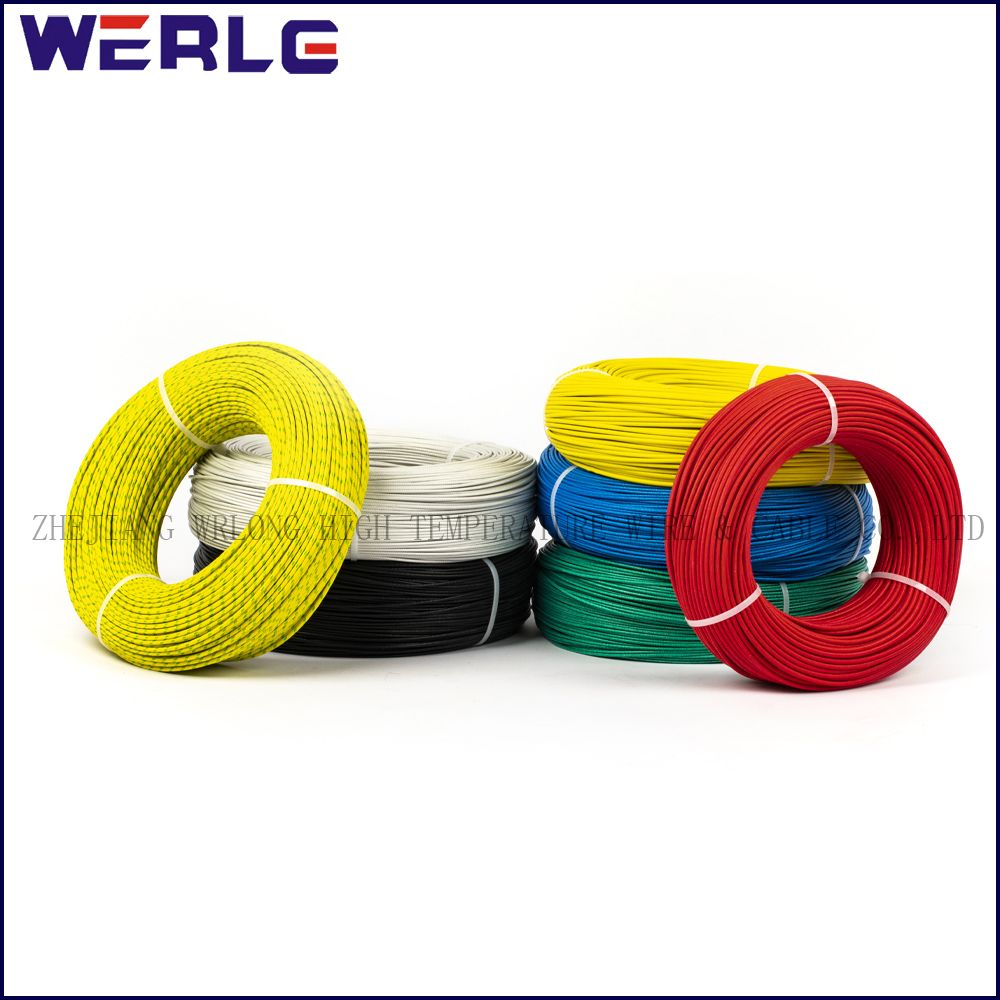

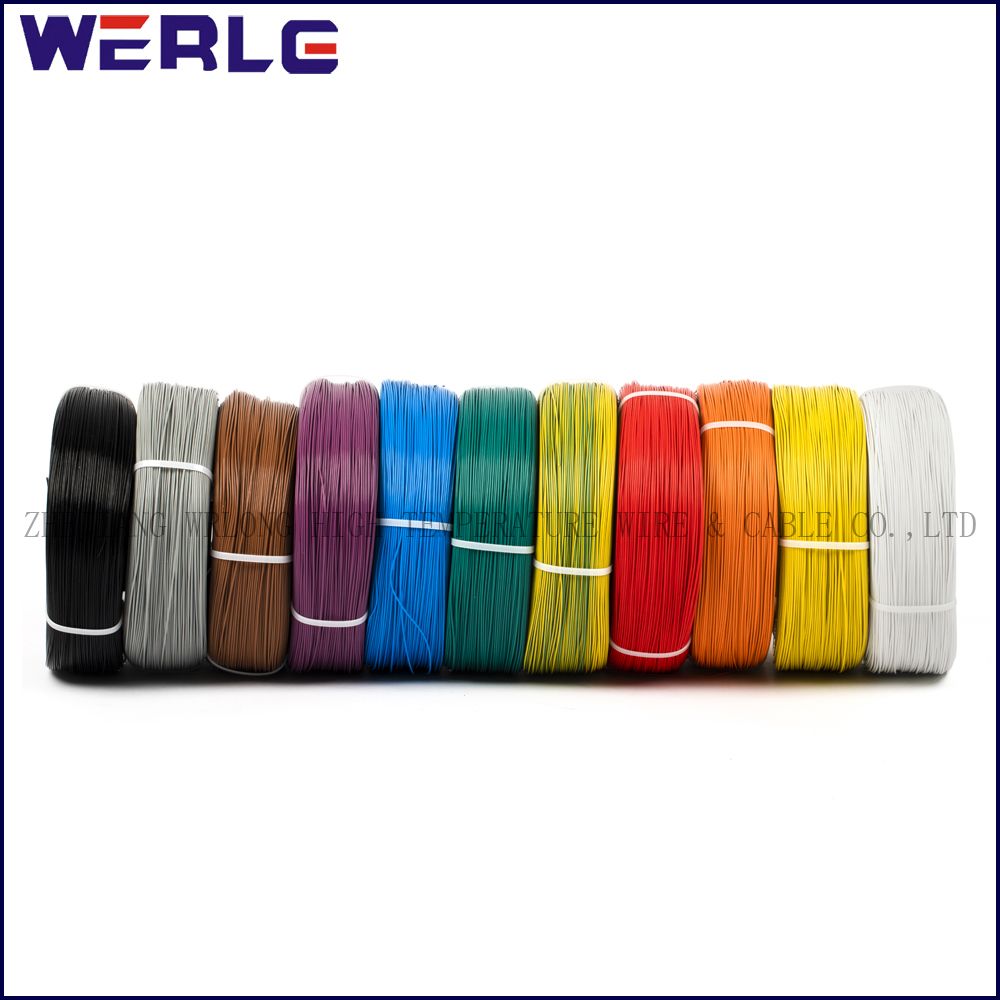

              Detailed Photos

              UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable

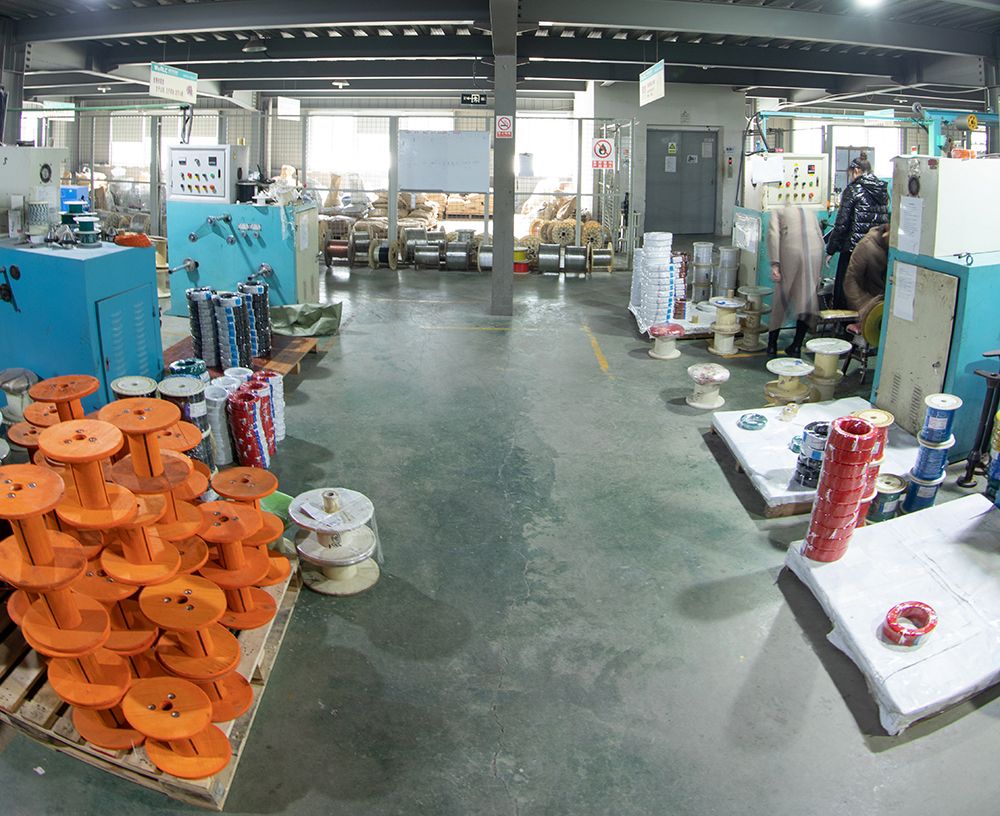

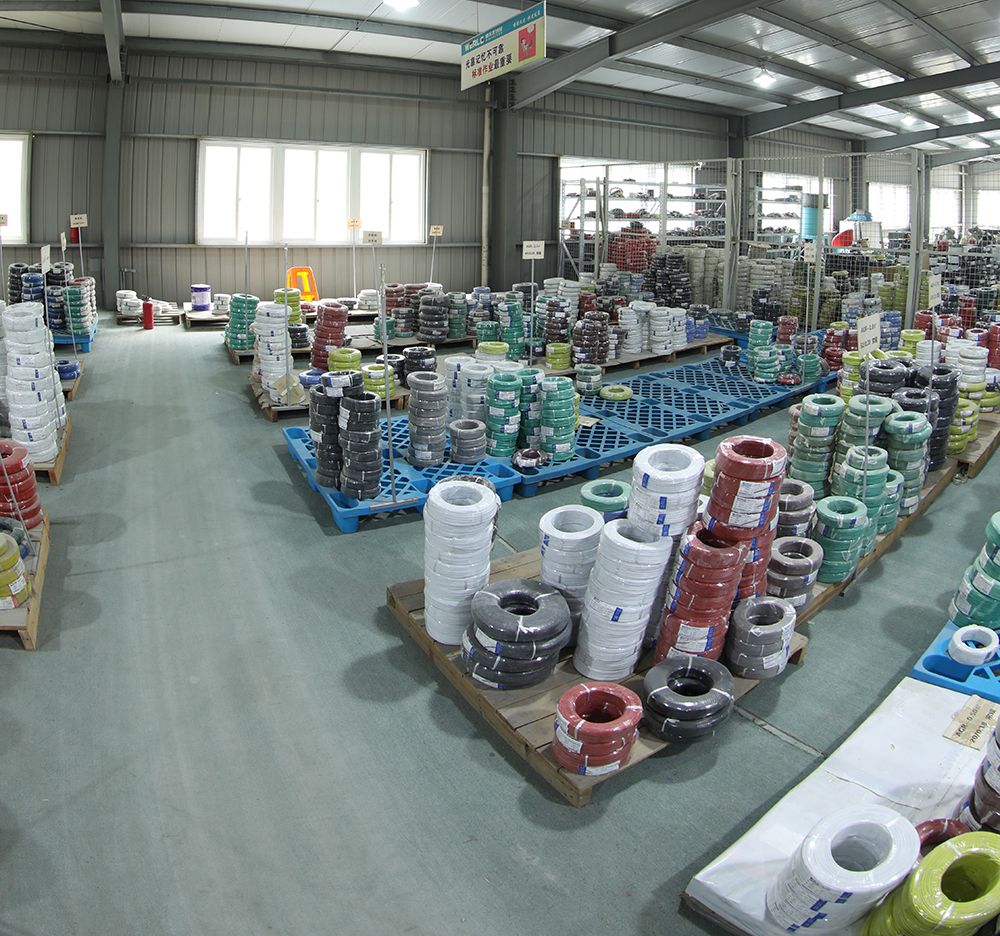

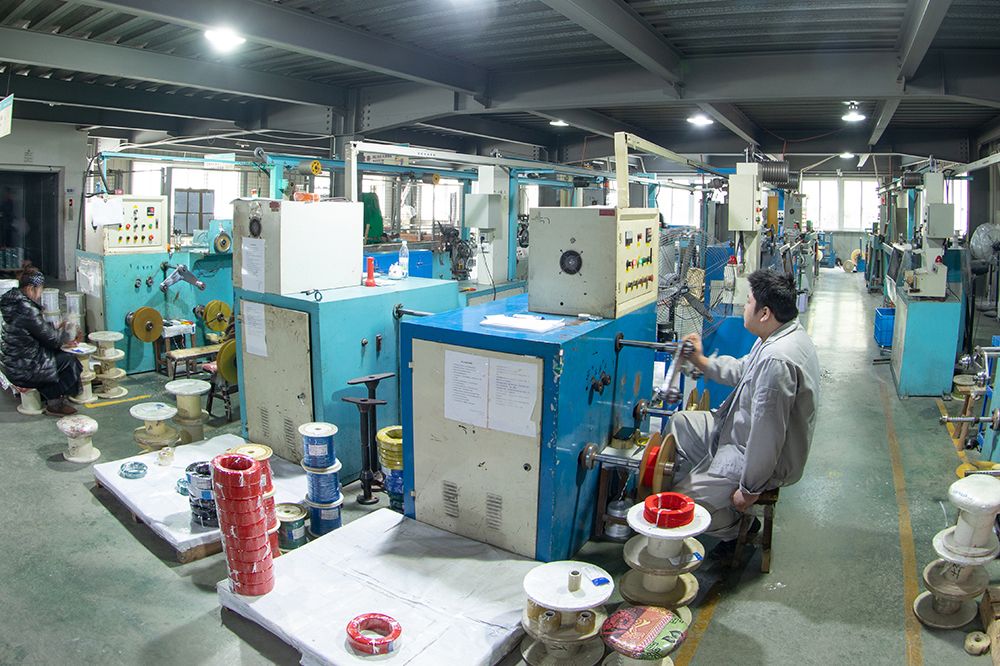

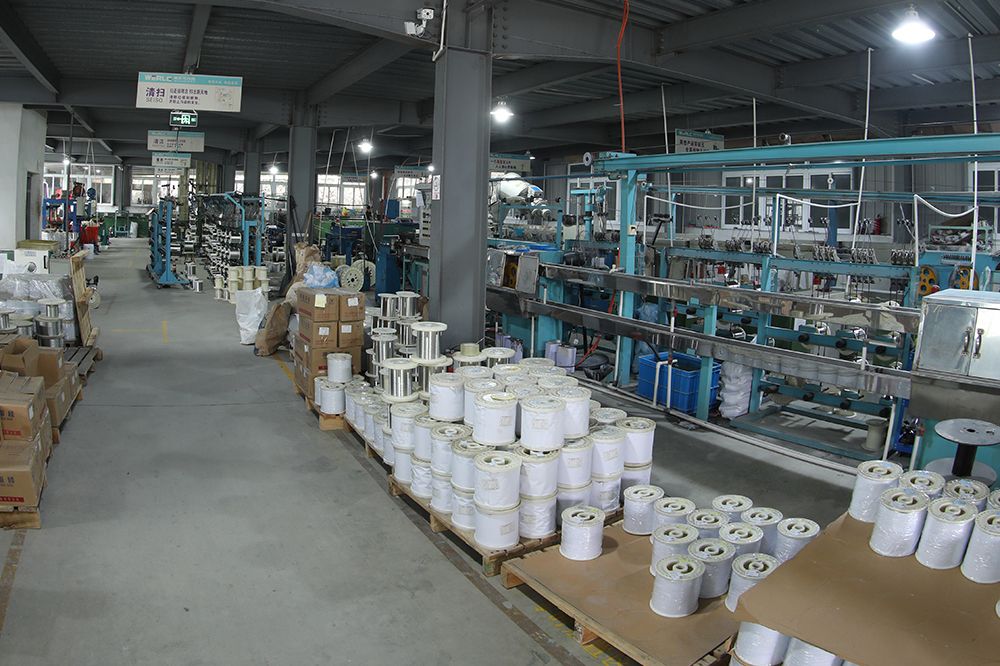

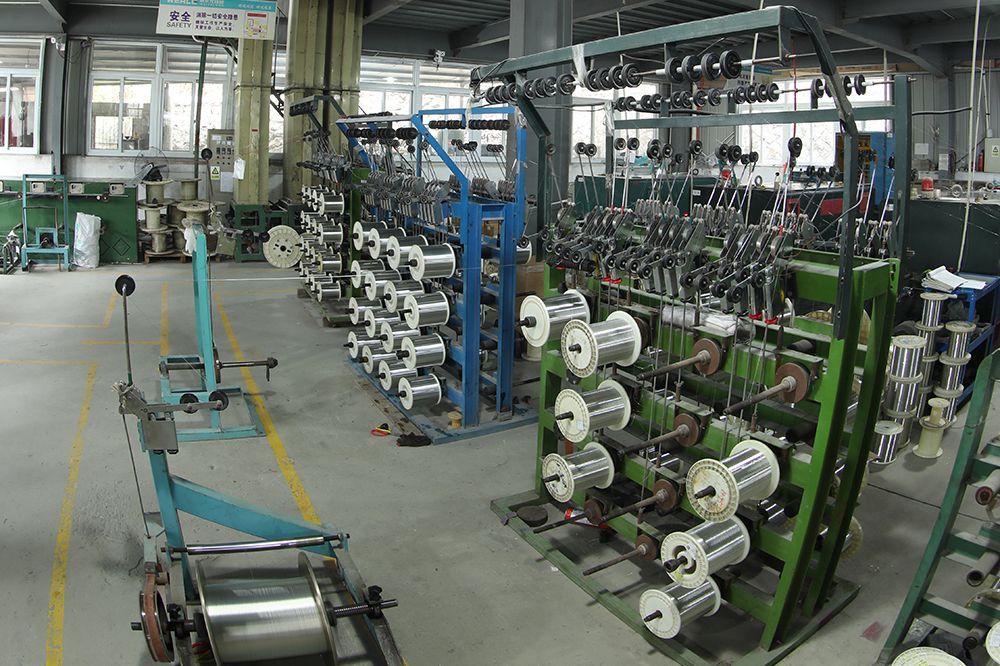

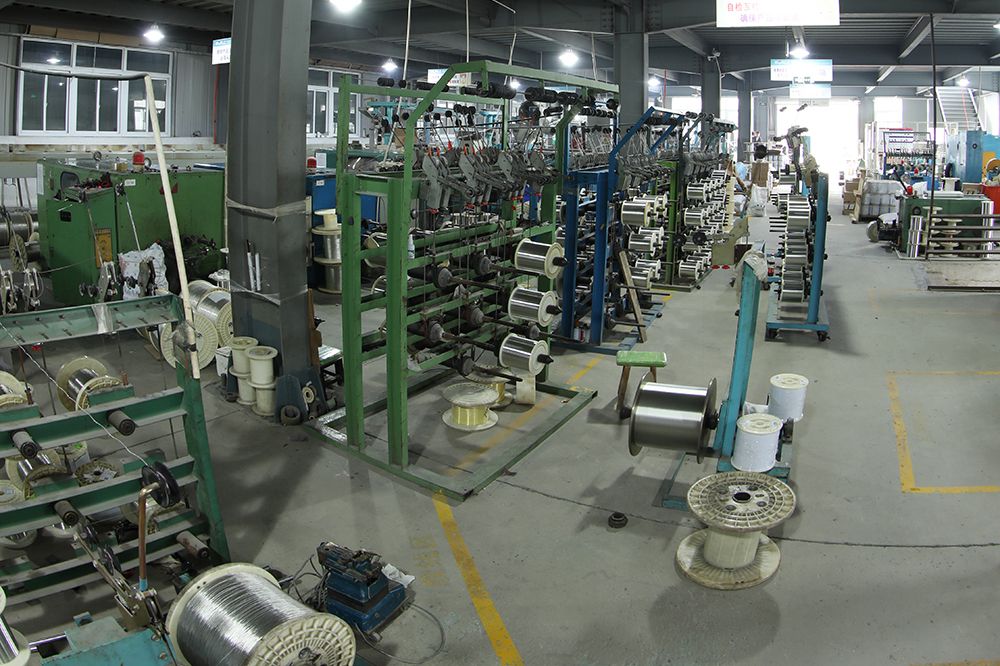

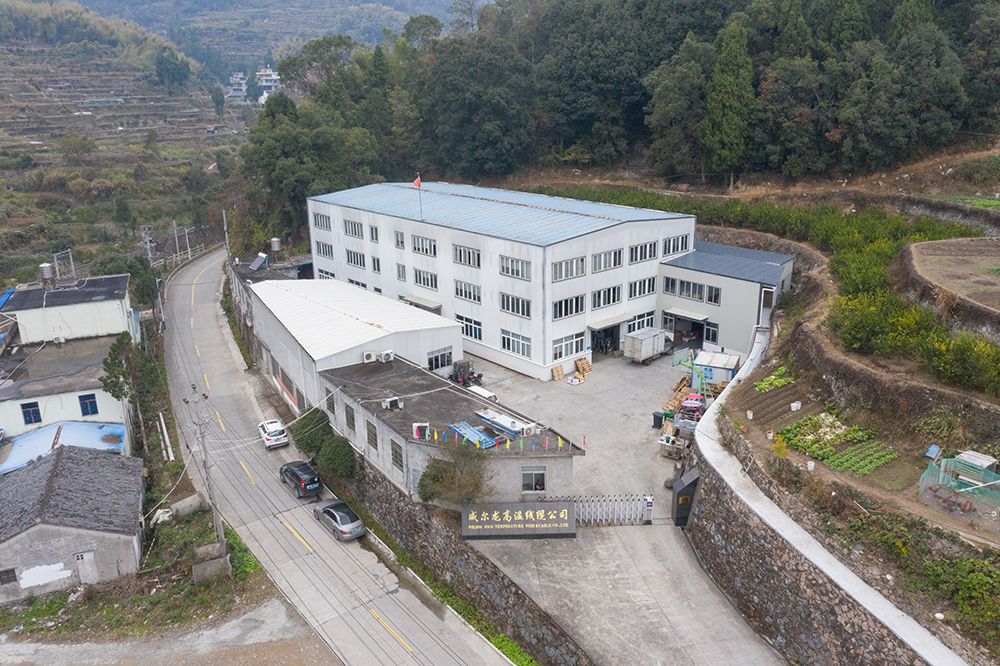

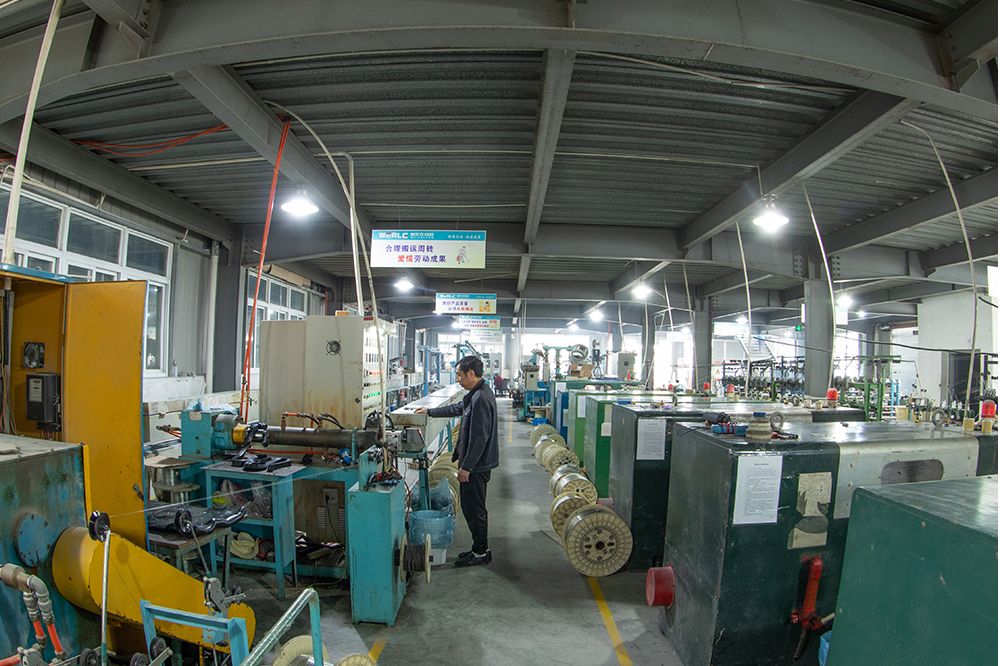

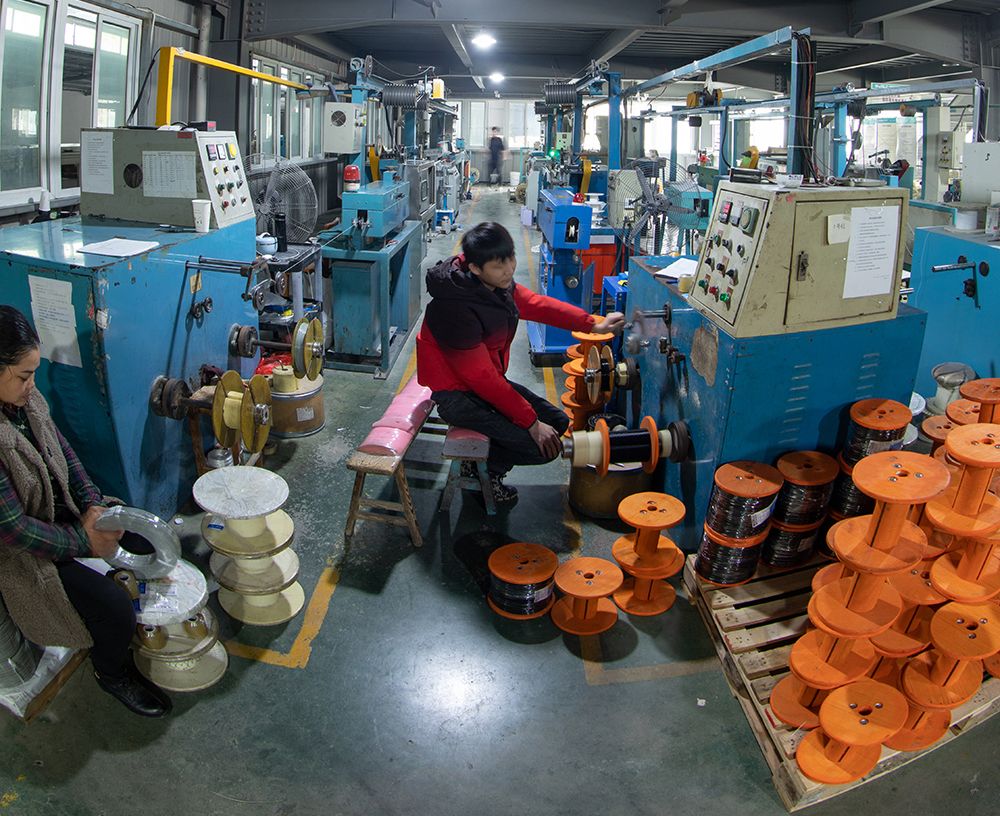

              Company Pictures

              UL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized CableUL 1007 32 AWG Black Approved PVC Insulation Copper Conductor Electrical Power Coaxial Electric Customized Cable
