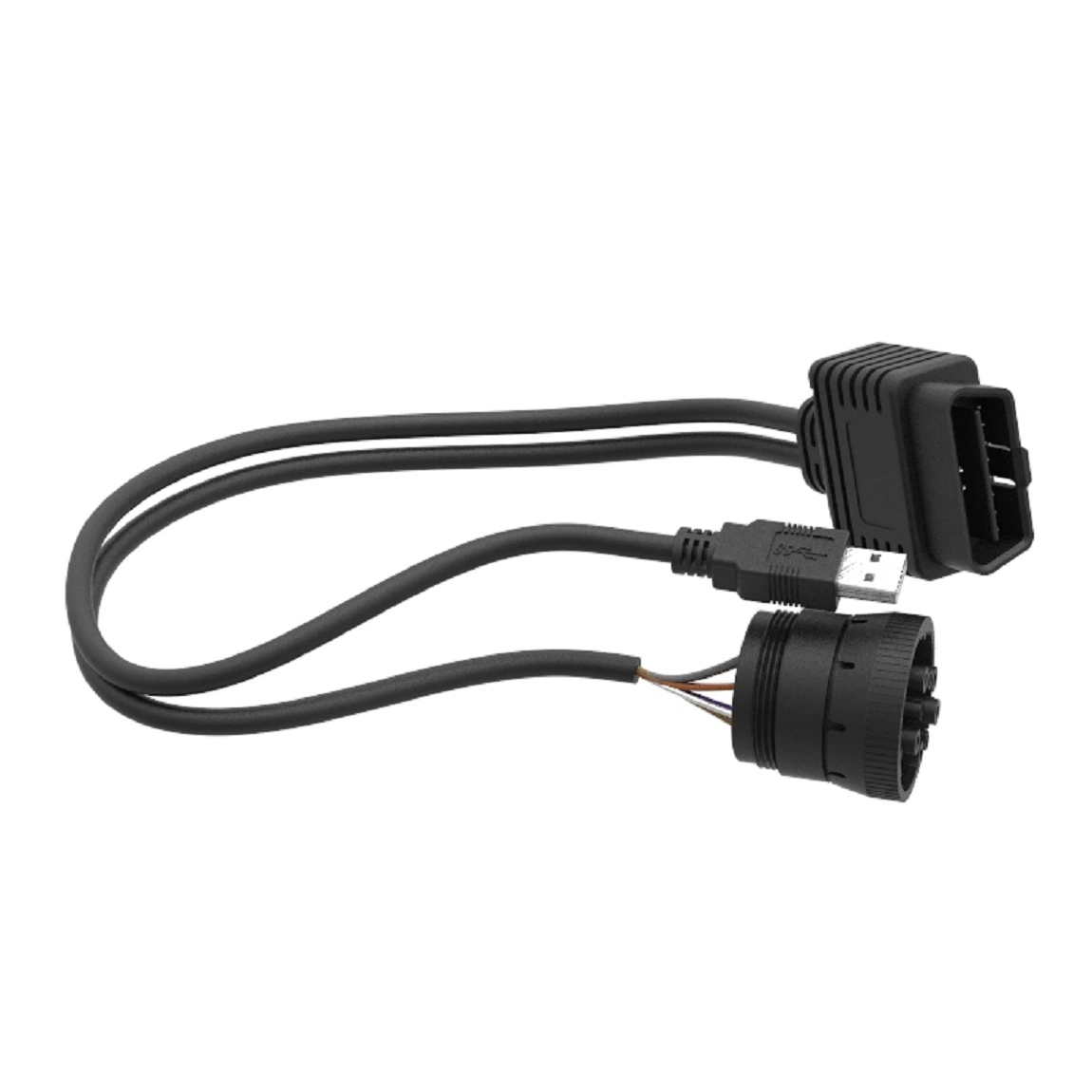

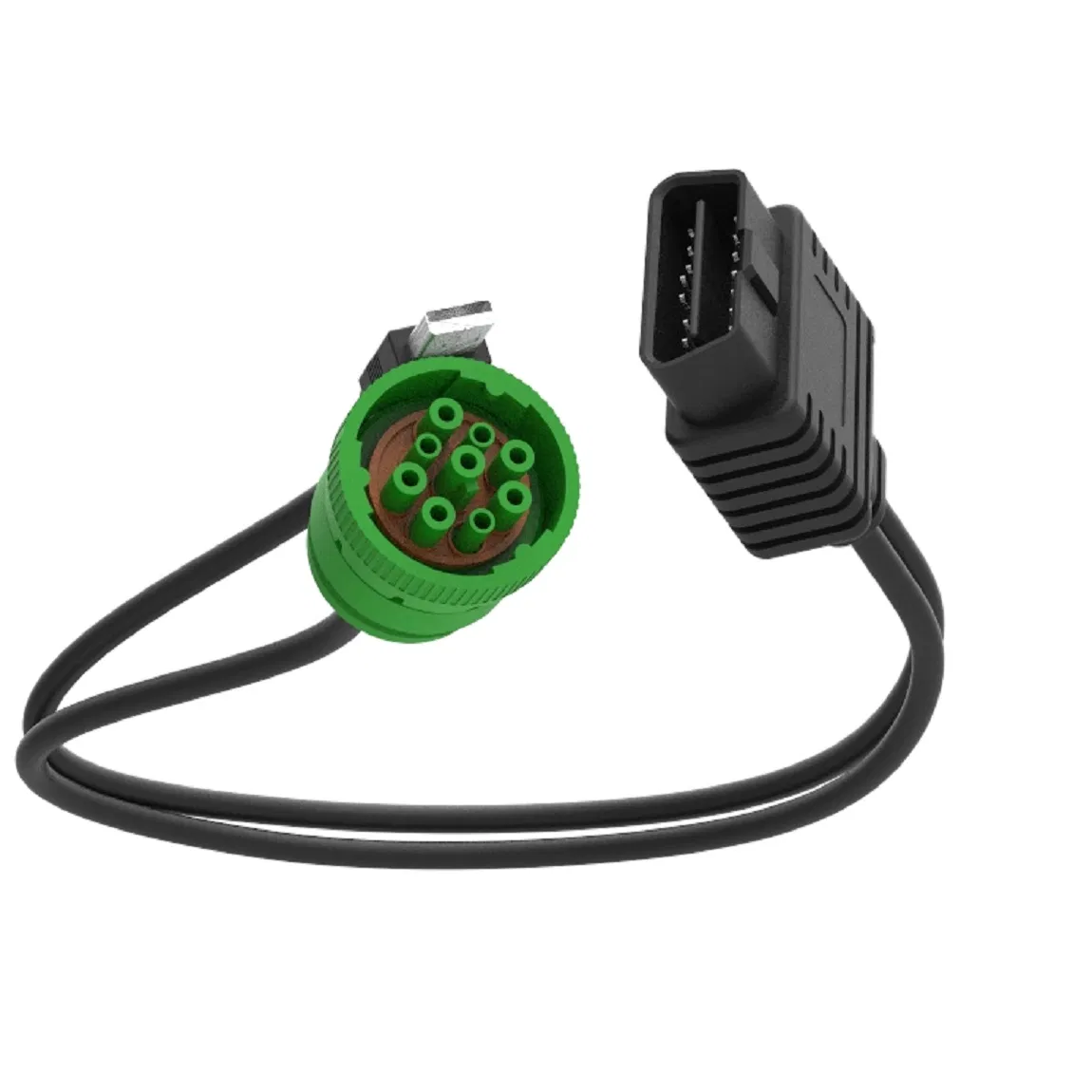

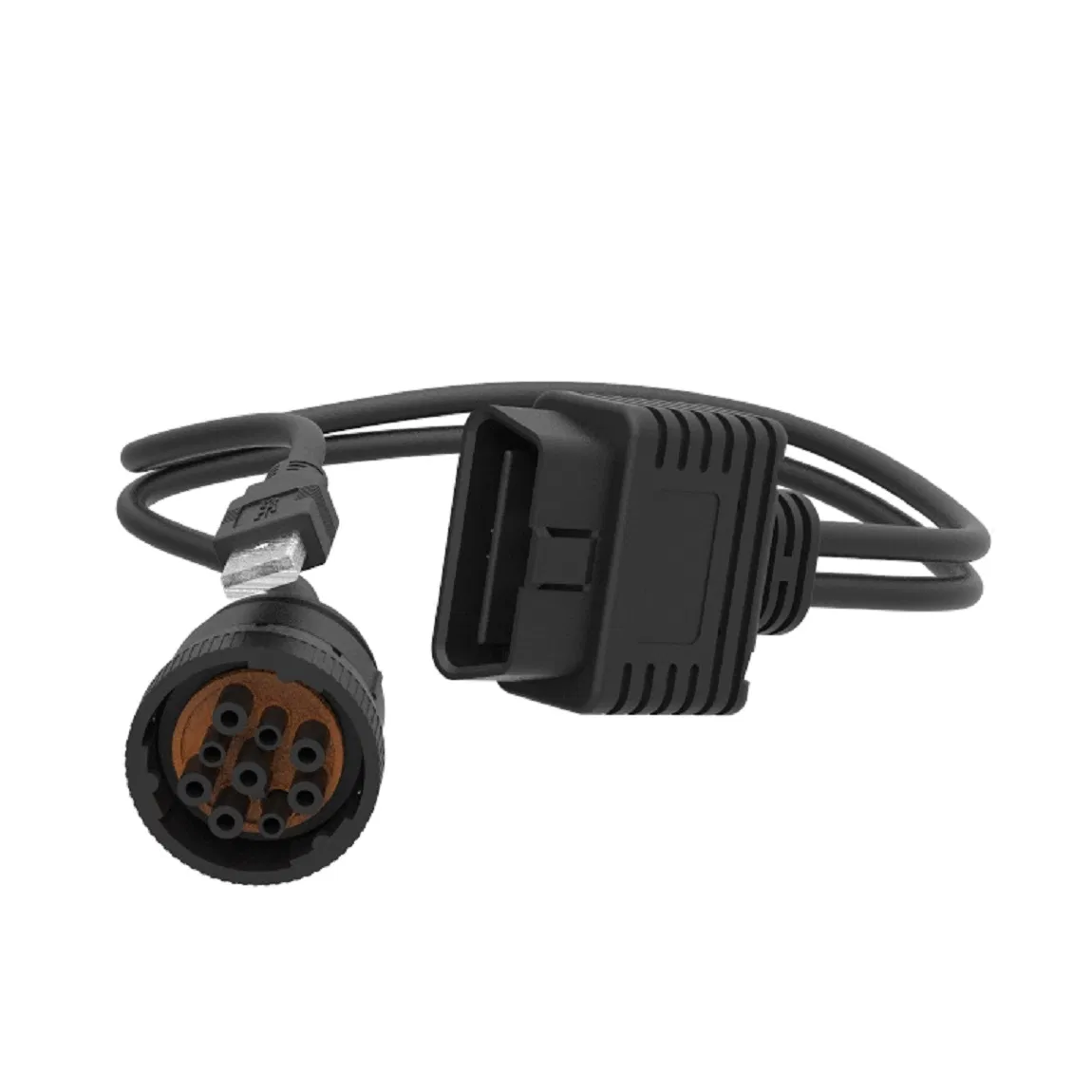

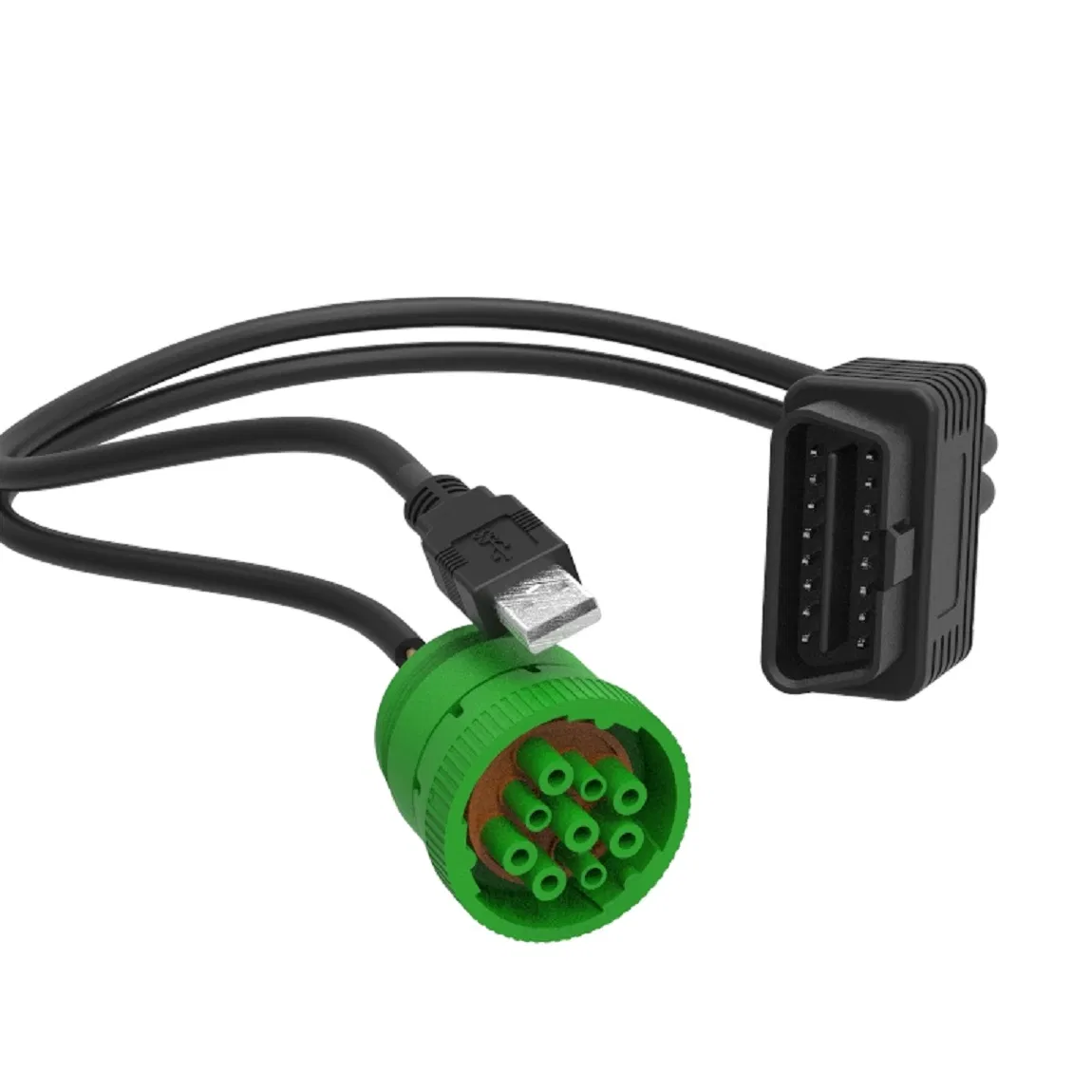

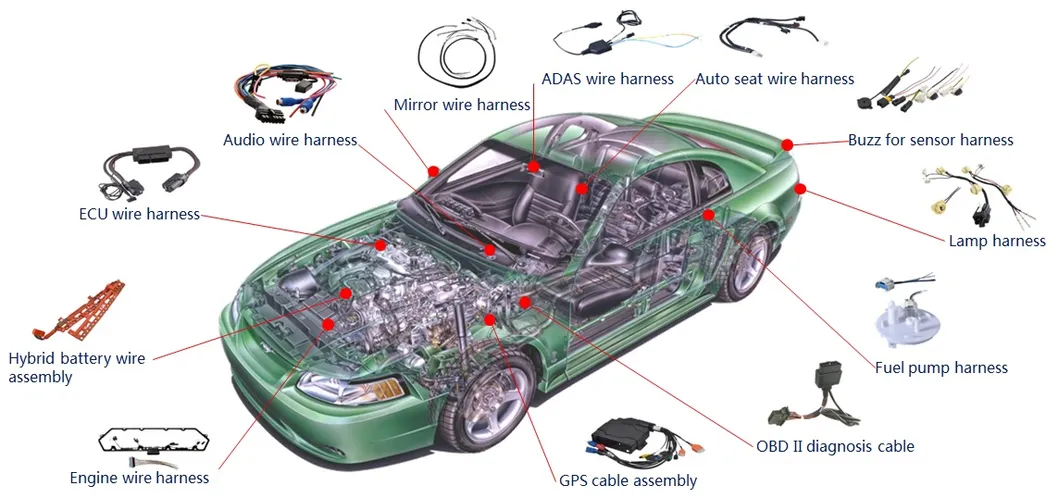

Te Connectivity HD Series J1939 to OBD II SAE J1962 Automotive Diagnostic Cable Assembly
TE connectivity HD series J1939 to OBD II SAE J1962 automotive diagnostic cable assembly1.voltage :dc 300v 5m ohm/10 ms2.contact resistance:3.0 ohm MAX3.100% open ,Short ,Mis-Wirs TestingSAE standards documents on OBD-IIJ1708 - Defines a standard used for serial communications between ECUs on a hea......
Send Inquiry
Product Description
1.voltage :dc 300v 5m ohm/10 ms
2.contact resistance:3.0 ohm MAX
3.100% open ,Short ,Mis-Wirs Testing
SAE standards documents on OBD-II
- J1708 - Defines a standard used for serial communications between ECUs on a heavy duty vehicle and also between a computer and the vehicle.
- J1850 - Defines a serial data protocol. There are two variants- 10.4 kbit/s (single wire, VPW) and 41.6 kbit/s (two wire, PWM). Mainly used by US manufacturers, also known as PCI (Chrysler, 10.4 kbit/s), Class 2 (GM, 10.4 kbit/s), and SCP (Ford, 41.6 kbit/s)
- J1939 - Defines a data protocol for heavy duty commercial vehicles
- J1962 - Defines the physical connector used for the OBD-II interface.
- J1978 - Defines minimal operating standards for OBD-II scan tools
- J1979 - Defines standards for diagnostic test modes
- J2012 - Defines standards trouble codes and definitions.
- J2178-1 - Defines standards for network message header formats and physical address assignments
- J2178-2 - Gives data parameter definitions
- J2178-3 - Defines standards for network message frame IDs for single byte headers
- J2178-4 - Defines standards for network messages with three byte headers*
- J2284-3 - Defines 500 kbit/s CAN Physical and Data link layer
- J2411 - Describes the GMLAN (single-wire CAN) protocol, used in newer GM vehicles. Often accessible on the OBD connector as PIN 1 on newer GM vehicles.

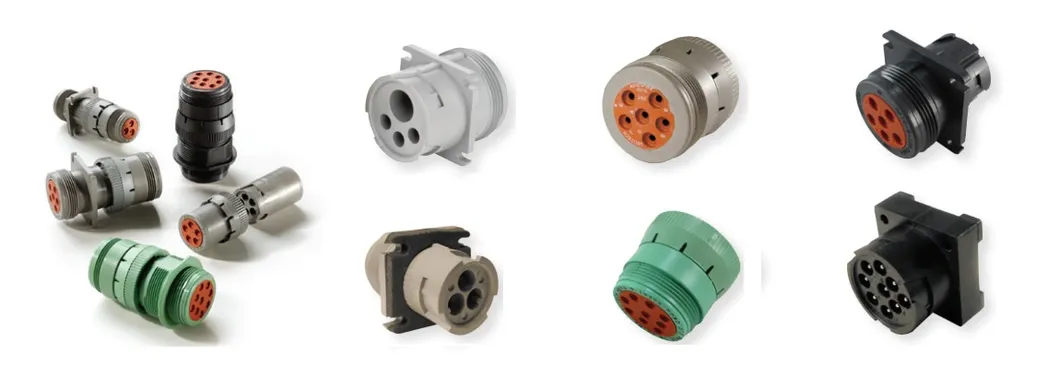

DEUTSCH HD10 series connector
The HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector, which is designed to be a faster, easier, trouble free assembly diagnostic connector in heavy-duty industry like truck, bus, cross-country vehicle,crane and forklift etc. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud and other contaminants encountered.
Operating at temperatures -40ºC to +125ºC, no Cracking, Chipping or leaking after 20 test cycles from -40ºC~+125ºC.
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000Hz in each of the three mulually perpendicular planes for 2 hours. Force testing report as below shows
IP68 rating, waterproof withstand immersion under 1.2 meter of water for 24 hours.

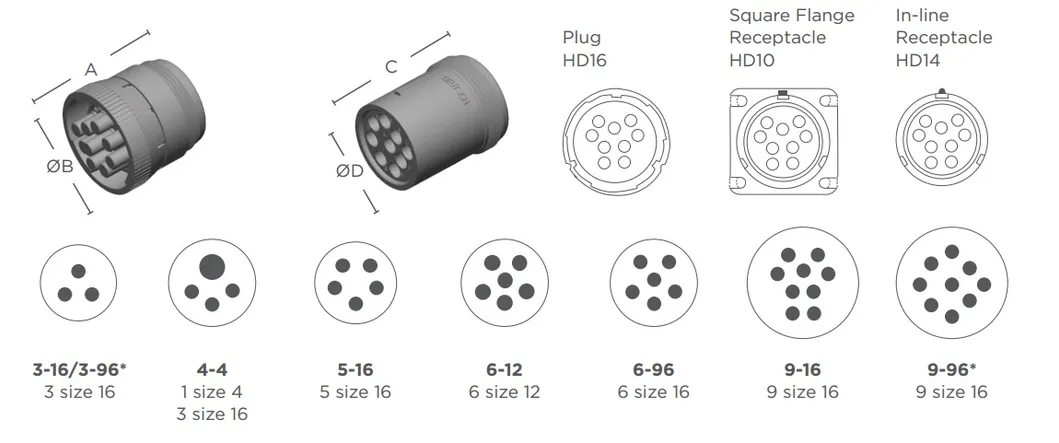

| Cavity | Overall Length A | Overall Height ØB | Overall Length C | Overall Height ØD |
| 3 | 1.609 (40.87) | 1.069 (27.15) | 1.639 (41.63) | .851 (21.62) |
| 4 | 1.639 (41.63) | 1.595 (40.51) | 1.639 (41.63) | 1.281 (32.54) |
| 5 | 1.609 (40.87) | 1.218 (30.94) | 1.639 (41.63) | 1.001 (25.43) |
| 6 | 1.619 (41.12) | 1.453 (36.91) | 1.639 (41.63) | 1.141 (28.98) |
| 9 | 1.609 (40.87) | 1.593 (40.47) | 1.639 (41.63) | 1.281 (32.54) |
HD10 series
| Position | Contact Size | Rear Threads | Plug | Receptacle Inline | Receptacle Flange |
| 3 | 16 | no | HD16-3-16S | HD14-3-16P | - |
| yes | HD16-3-96S | HD14-3-96P | HD10-3-96P | ||
| 4 | 4/16 | yes | HD16-4-4S | - | HD10-4-4P |
| 5 | 16 | no | HD16-5-16S | HD14-5-16P | HD10-5-16P |
| 6 | 16 | yes | HD16-6-96S | HD14-6-96P | HD10-6-96P |
| 6 | 12 | yes | HD16-6-12S-B010 | HD14-6-12P | HD10-6-12P |
| 9 | 16 | no | HD16-9-16S | HD14-9-16P | HD10-9-16P |
| yes | HD16-9-96S | HD14-9-96P | HD10-9-96P | ||
| 9 (J1939) | 16 | yes | HD16-9-1939S | HD14-9-1939P | HD10-9-1939P |
