Product Description

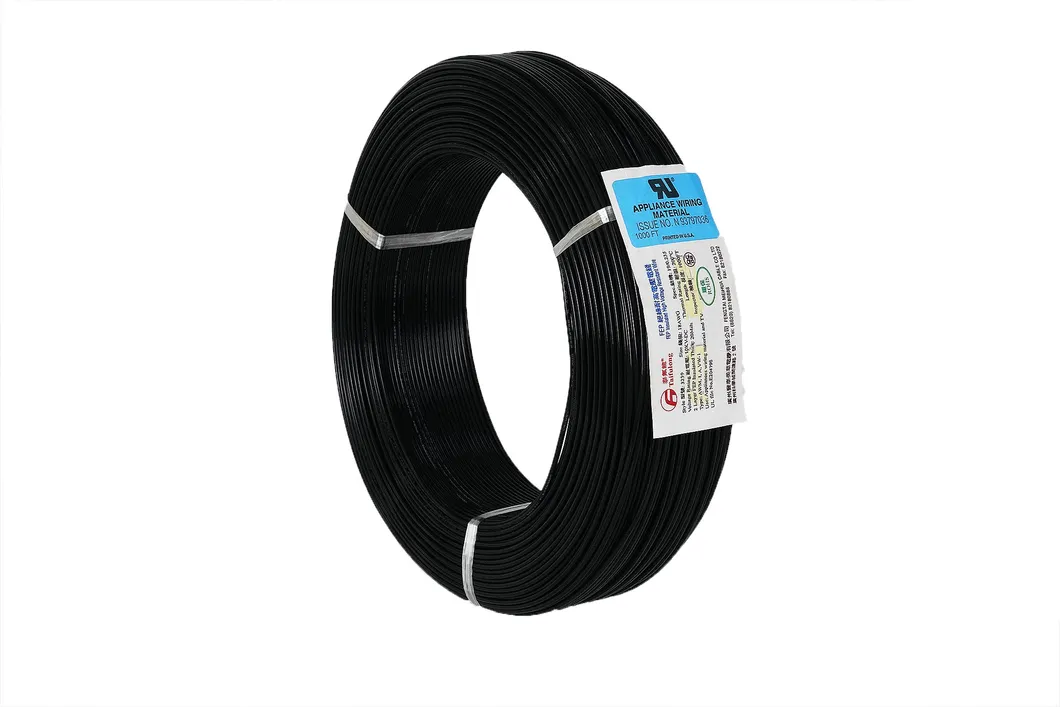

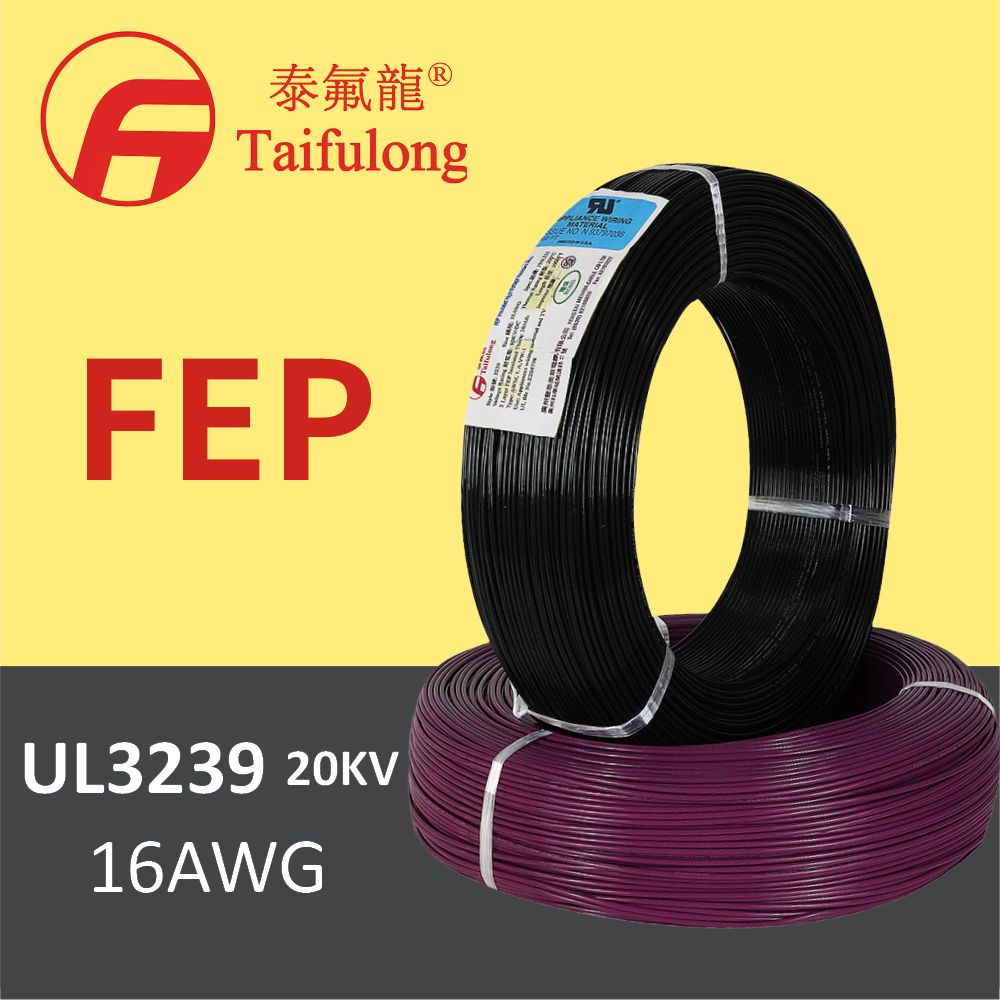

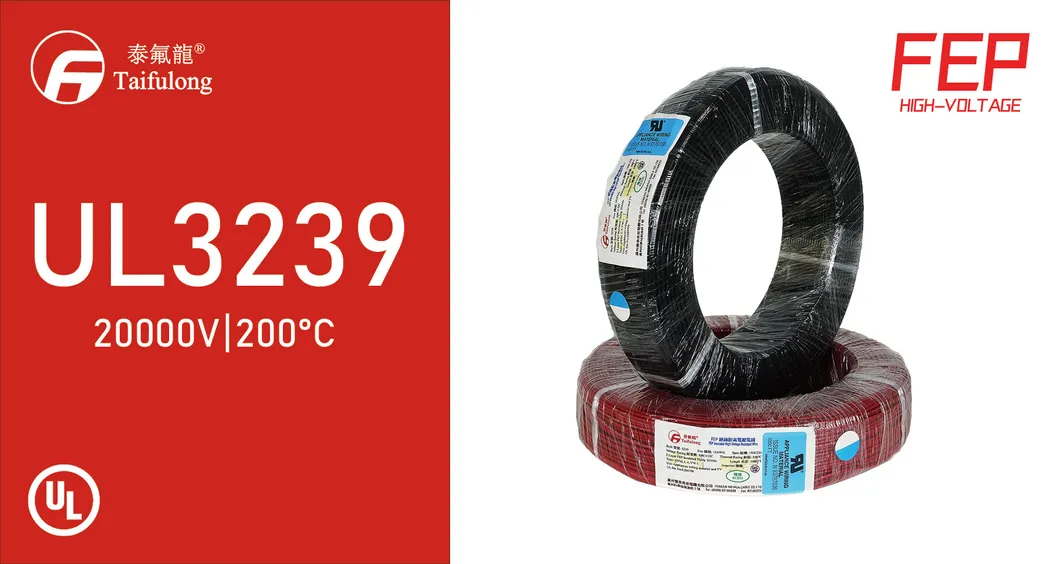

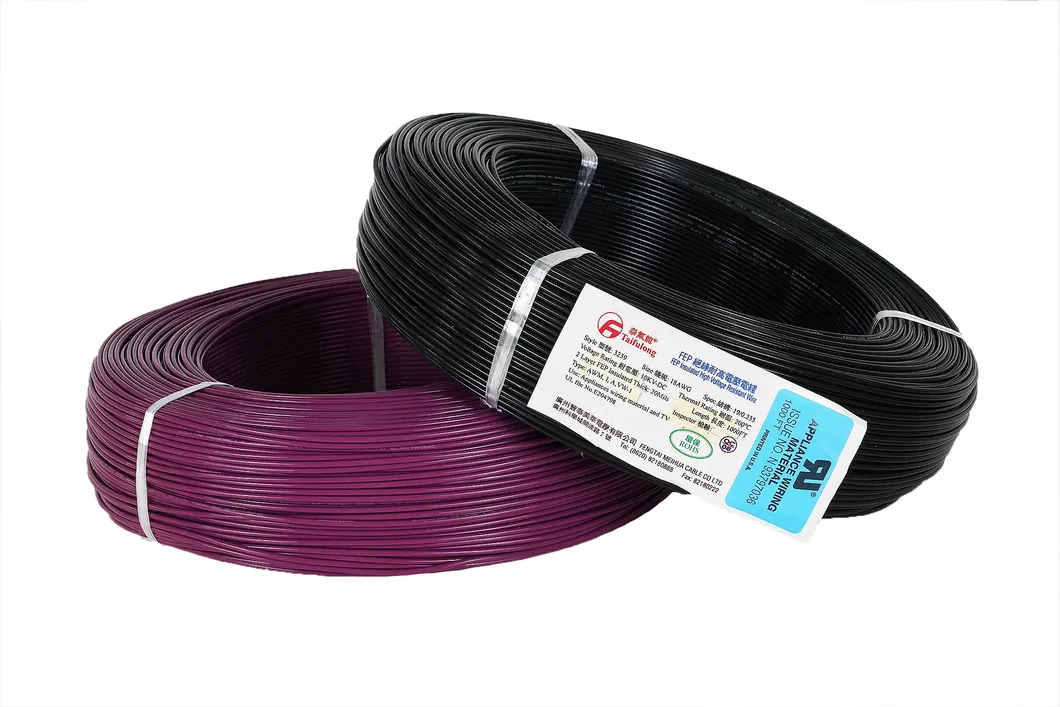

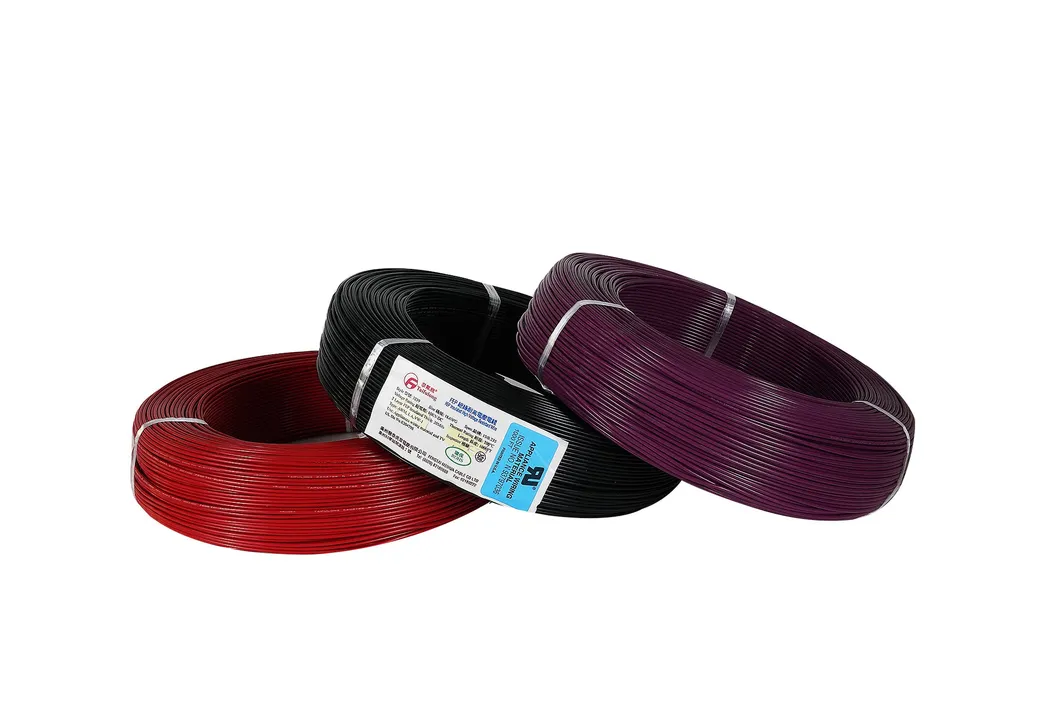

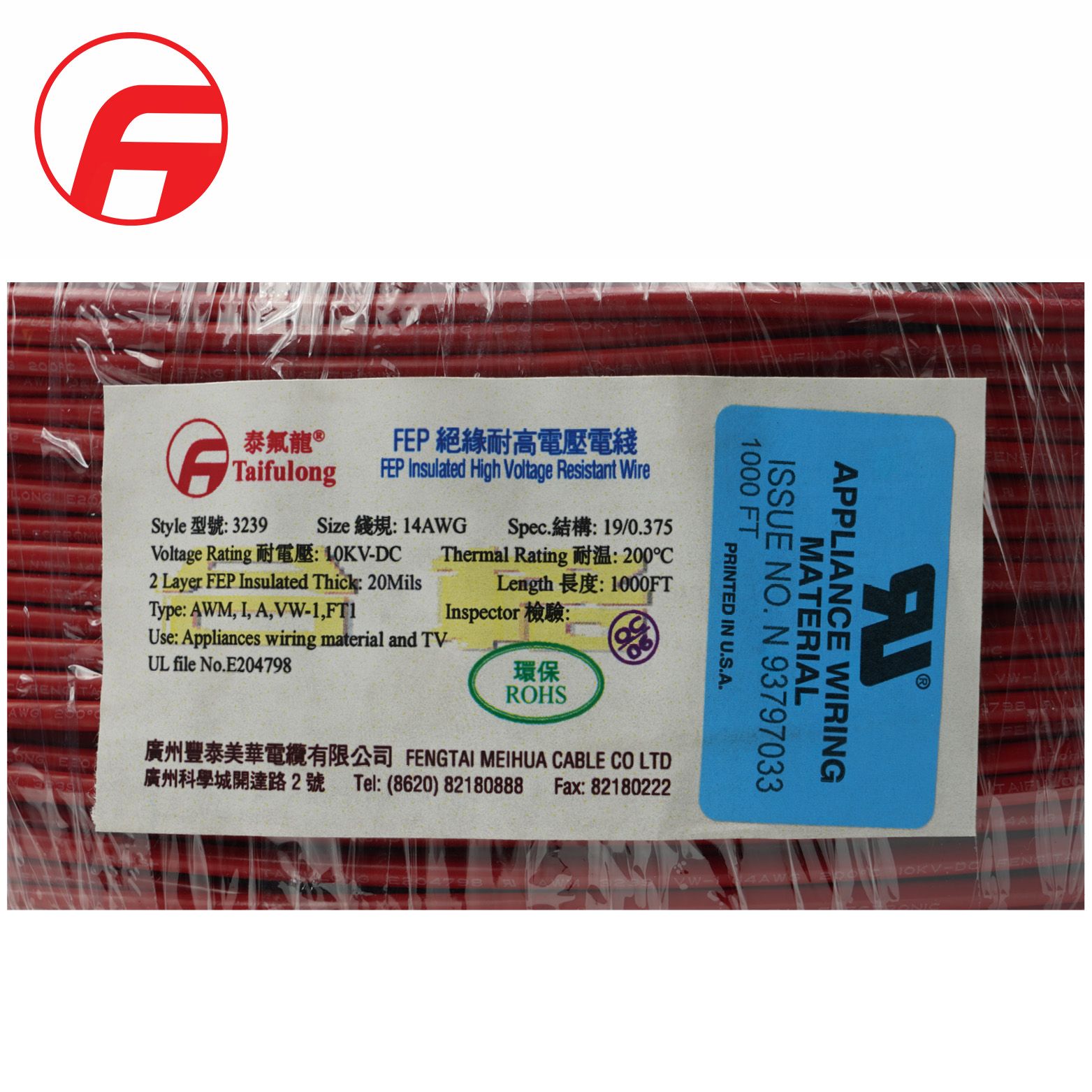

Taifulong FEP High-Voltage UL3239 16AWG 200° C 20kv-DC Tinned Copper Electric Wire Connector Teflon Wire

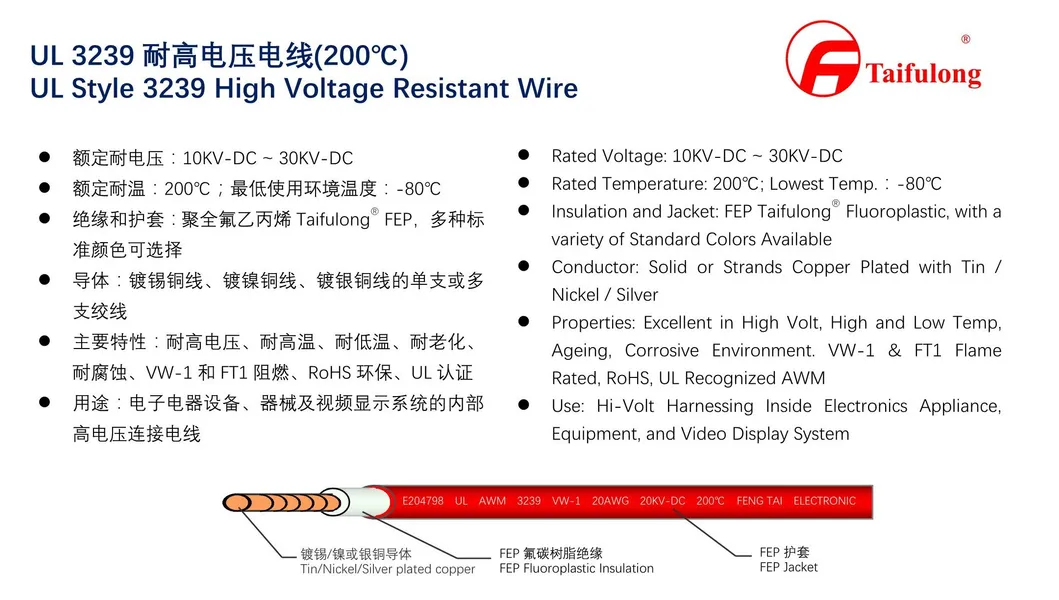

Rated Voltage	20000V
Rated Temperature	200ºC
Lowest Temperature	-80ºC
Insulation	FEP Taifulang" Fluoroplastic. with a variety of Standard Colors Available

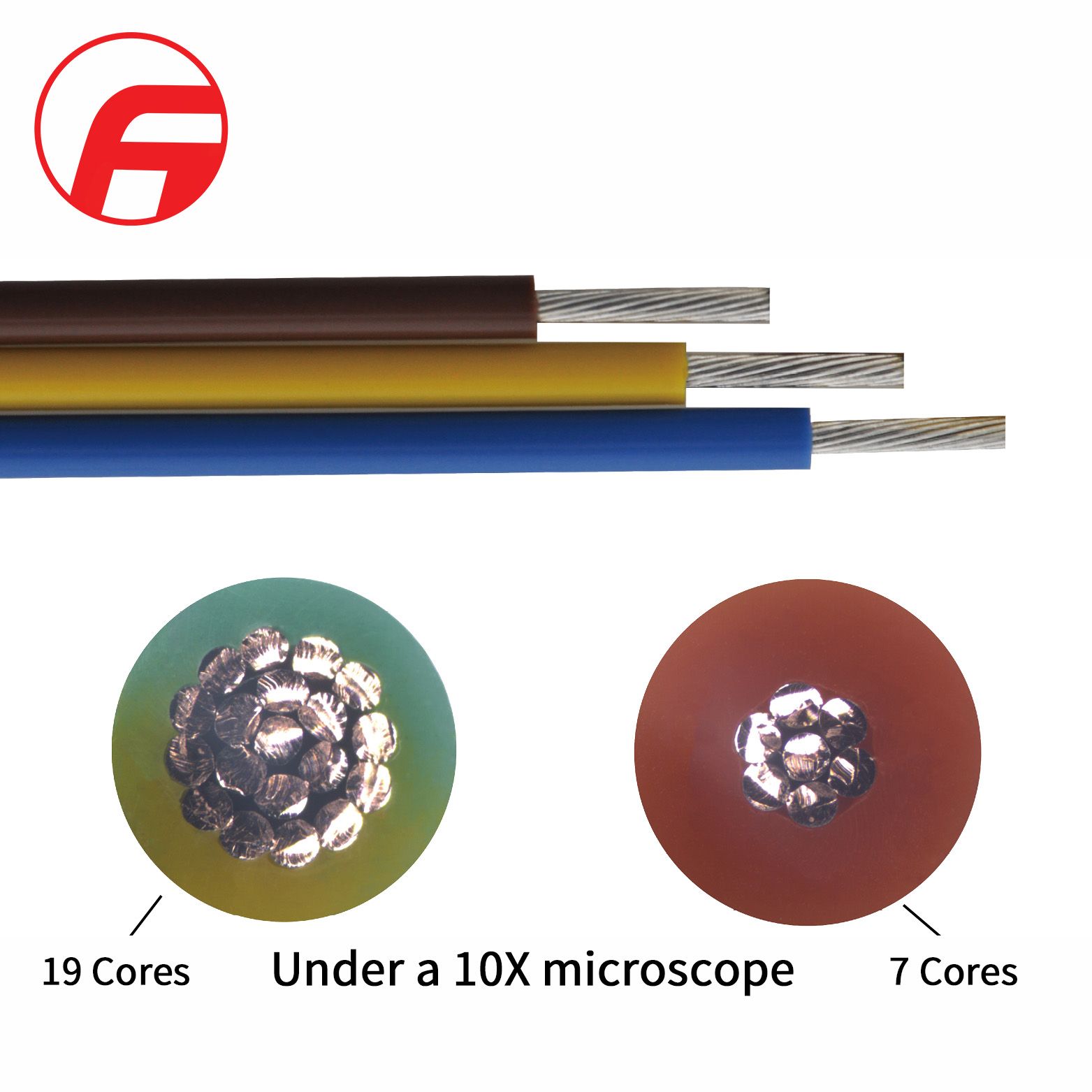

Conductor	Solid or Strands Copper Plated with Tin/Nickel / Silver

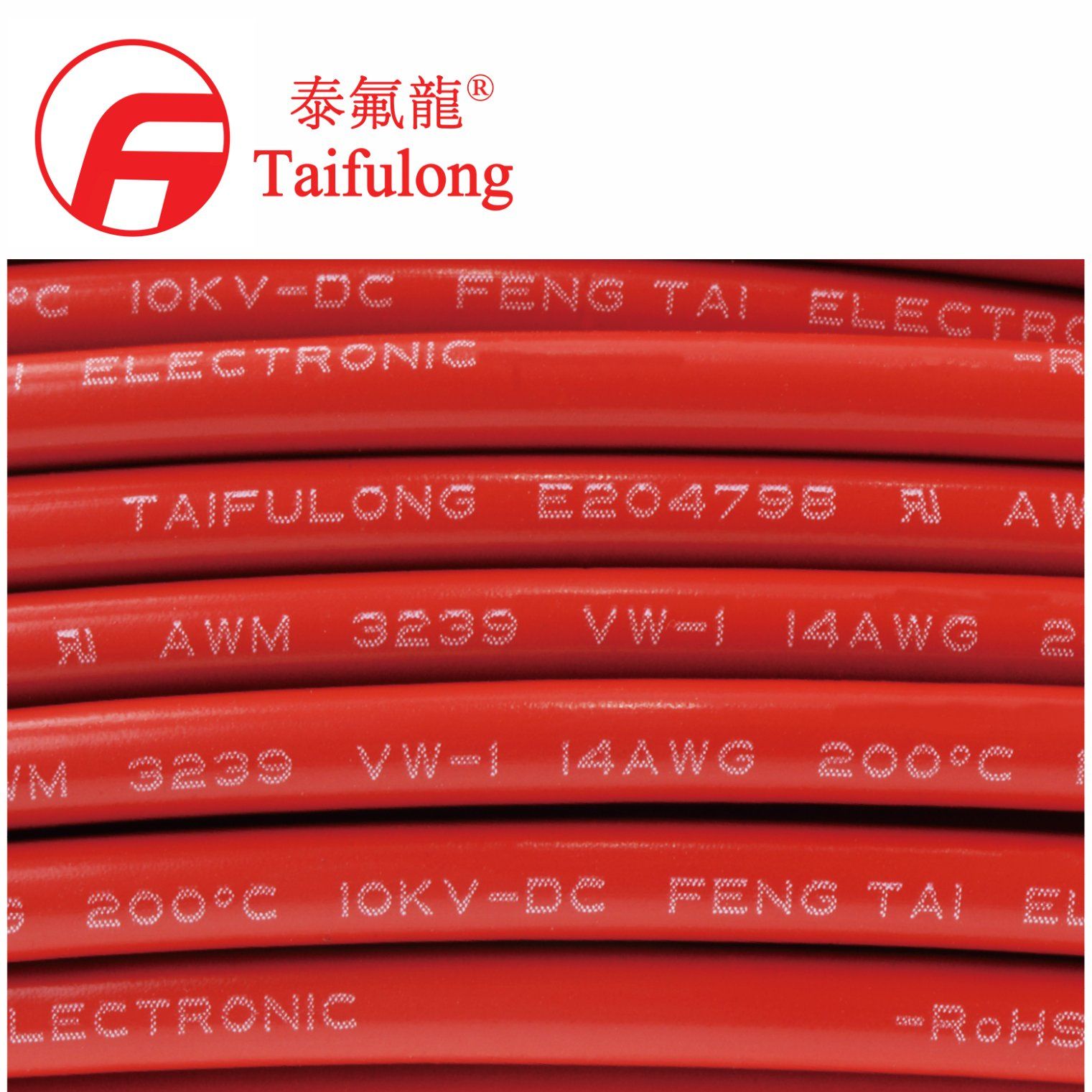

Properties	Excellent in High and Low Temp.Ageing, Corrosive Environment. WW-1 & FT1 Flame Rated, RoHS, UL Recognized AWM
Use	Hi-Volt Harnessing Inside Electronics Appliance Equipment, and Video Display System

Conductor Spec		Jacket	Overall Dia					Package ft/coil(m/coil)
AWG	Cores No./Dia.	Avg. Thick.	10KV-DC	15KV-DC	20KV-DC	25KV-DC	25KV-DC *30k	Package ft/coil(m/coil)
28	1/0.32	0.30	1.75	1.95	2.05	2.35	2.53	≥2.63mm
28	7/0.12		1.79	1.99	2.09	2.39	2.57
26	1/0.41		1.84	2.04	2.14	2.44	2.62
	7/0.16		1.91	2.11	2.21	2.51	2.69
	19/0.10		1.93	2.13	2.23	2.53	2.71
24	1/0.52		1.95	2.25	2.25	2.55	2.73
	7/0.20		2.03	2.33	2.33	2.63	2.81
	19/0.12		2.03	2.33	2.33	2.63	2.81
22	1/0.65		2.12	2.38	2.48	2.72	2.92
	7/0.254		2.23	2.49	2.59	2.83	3.03
	19/0.15		2.22	2.48	2.58	2.82	3.02
20	1/0.82		2.29	2.55	2.65	2.89	3.09
	7/0.32		2.43	2.69	2.79	3.03	3.23
	19/0.19		2.42	2.68	2.78	3.02	3.22
18	1/1.02		2.49	2.75	2.85	3.09	3.29
	7/0.39		2.64	2.90	3.00	3.24	3.44
	19/0.235		2.65	2.91	3.01	3.25	3.45
17	1/1.15		2.62	2.88	2.98	3.22	3.42
	7/0.43		2.76	3.02	3.12	3.36	3.56
	19/0.26		2.77	3.03	3.13	3.37	3.57
16	1/1.30		2.77	3.03	3.13	3.37	3.57
	7/0.50		2.97	3.23	3.33	3.57	3.77
	19/0.30		2.97	3.23	3.33	3.57	3.77
15	1/1.40		2.87	3.13	3.23	3.47	3.67
15	19/0.32		3.07	3.33	3.43	3.67	3.87
14	19/0.375		3.35	3.61	3.71	3.95	4.15

Feng Tai Electronic was founded in 1989, we are specialized in the Fluorocarbon Resin Specialty Wires and Cables - Research & Development, Manufacturing and Marketing for 30 years. Our products are commonly using in industries like Military, Nuclear Power, Aerospace and Aviation, Radio Frequency Transmission, Navigation Radar, lectric Vehicle, Automobile, Railways, Ship-building, Mining, Steel-making, Ultra-high Frequency ransmission, IT Equipment, Electronics Appliances, Lighting Fixtures and High-end Construction Building Wires etc.Our subsidiaries including Feng Tai Electronic (HK) Co., Ltd., Feng Tai Electronic International Co., Ltd., Guangzhou Feng Tai Electronic Co., Ltd. and Guangzhou Fengtai Meihua Cable Co., Ltd.

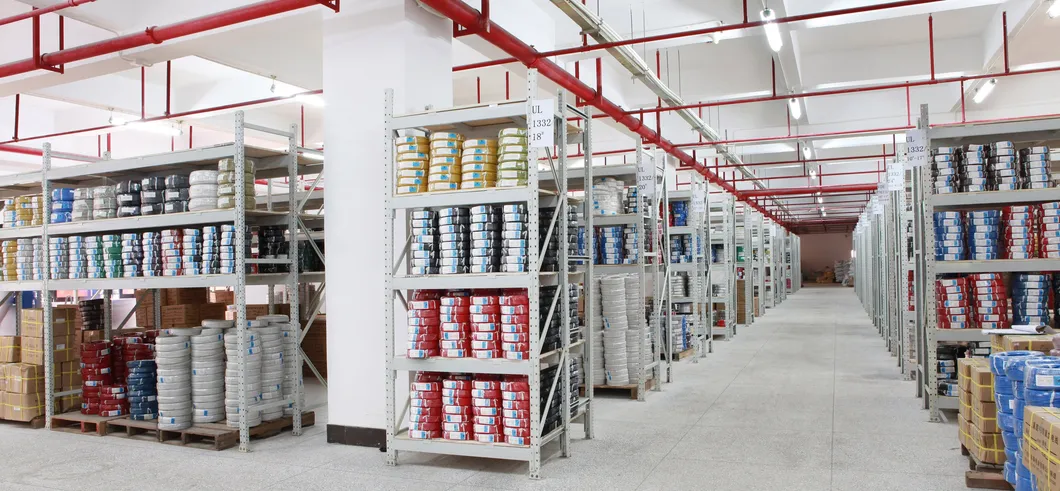

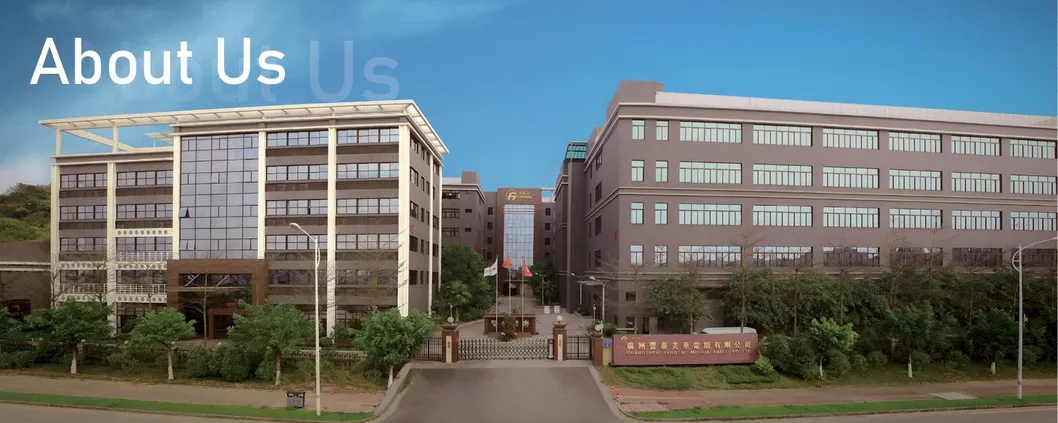

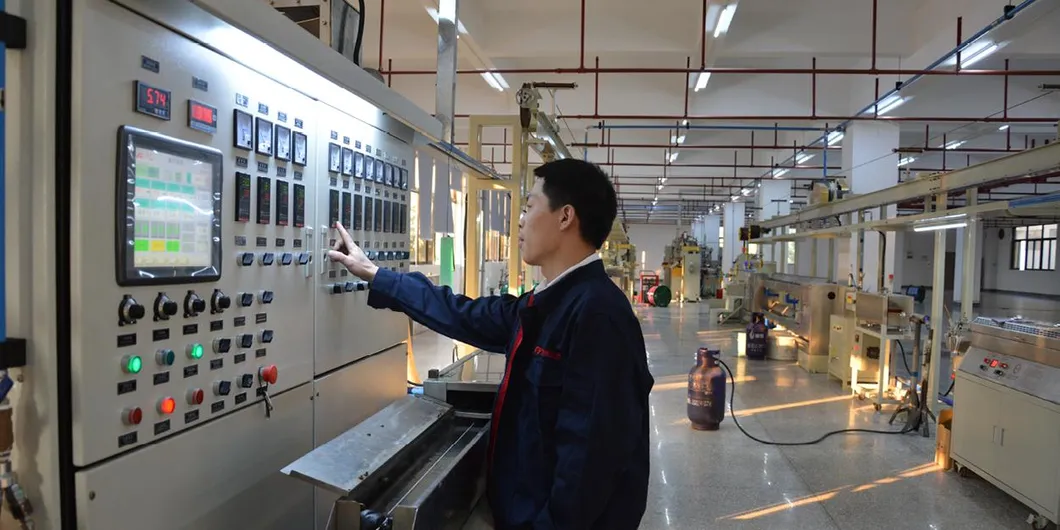

In May 2007, Feng Tai Electronic (HK) Co., Ltd. had invested Total Registered Capital of 46.8 Million HK Dollars (6 Million US Dollars) to set up Guangzhou Fengtai Meihua Cable Co., Ltd. as new production base with factory area 32,000m2 located in Guangzhou Science City Hi-tech Development Zone. It started operation in March 2010 with annual production capacity 900 million meters Specialty Wire and Cables. Up to 2019, Feng Tai Electronic has invested over 400 Million HK Dollars (51 Million US Dollars) in their production facilities. There are over 60 sets Production Lines for our High-Temperature cables, Fluoro-Rubber cables, Silicone cables, Cross-linked cables and PTFE cables Extrusion Units, associated with more than 300 sets of cable production periphery equipment. Thanks to our National Standard In-house Laboratory for the R&D and daily product test - it has been developed into our group's major R & D center and intelligent production base for our specialty wire and cable. Furthermore, Feng Tai Electronic has been recognized as 'National Hi-tech Enterprise' and 'Key Industry of Hi-tech in the China Torch Program'.
