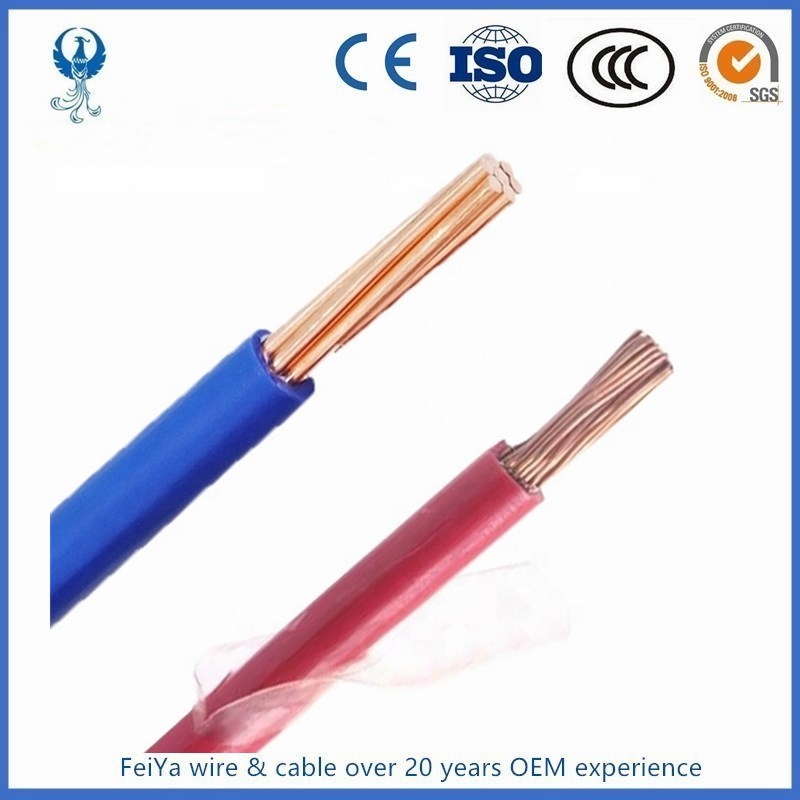

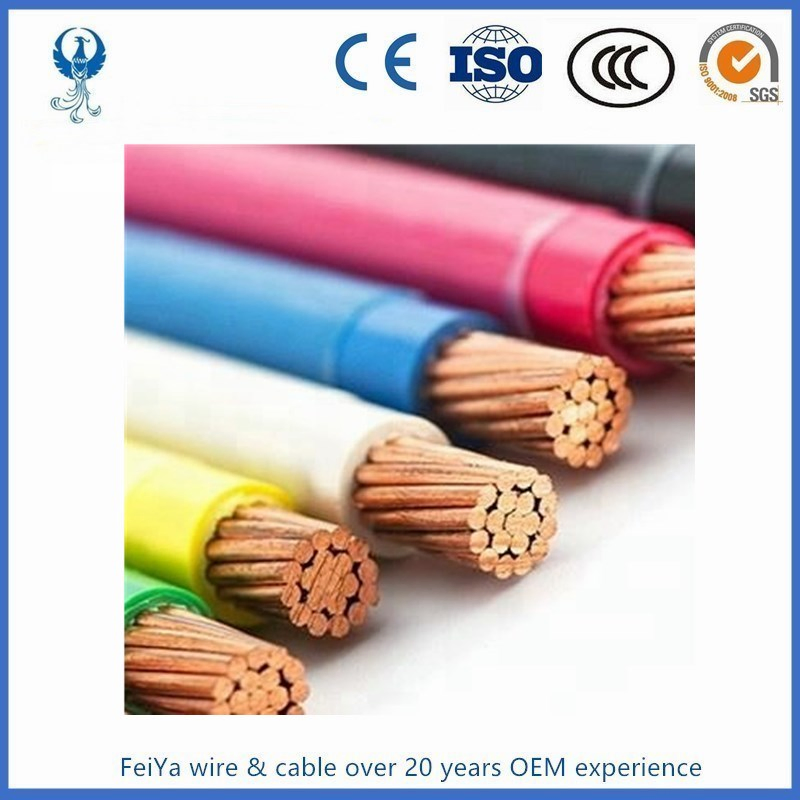

China Single-Core PVC Wire Industrial Cables H07V-K with Copper Conductor

Product Description

Introduction
1	Can be customized according to requirements.
2	Independent brand recruitment agency.
3	High quality, ISO 9001, CCC, CE, RoHS certified.
4	ODM&OEM is available.

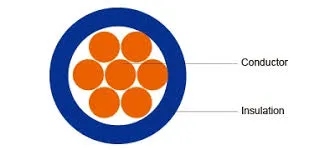

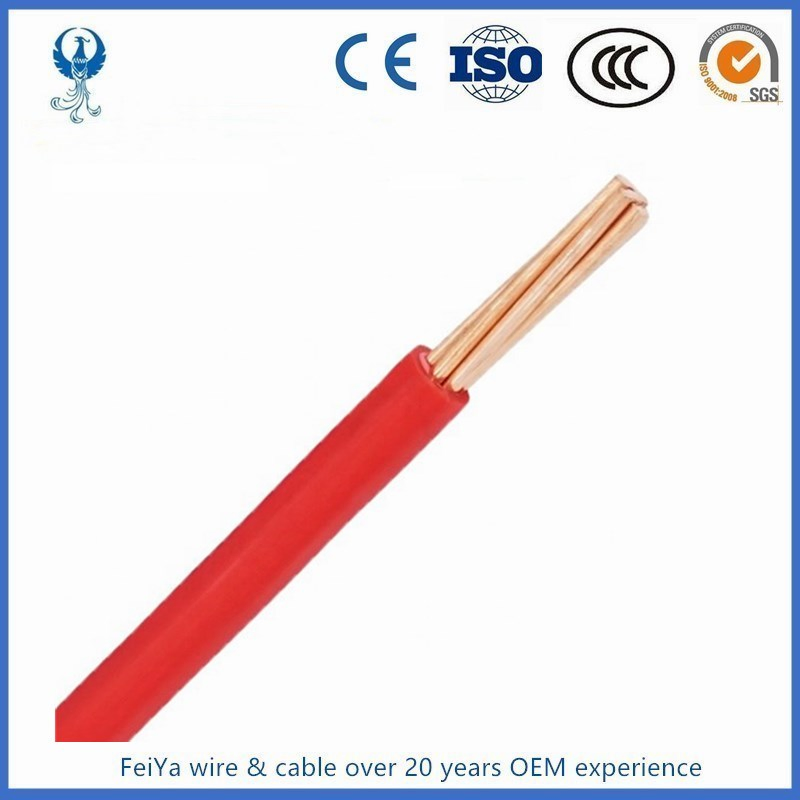

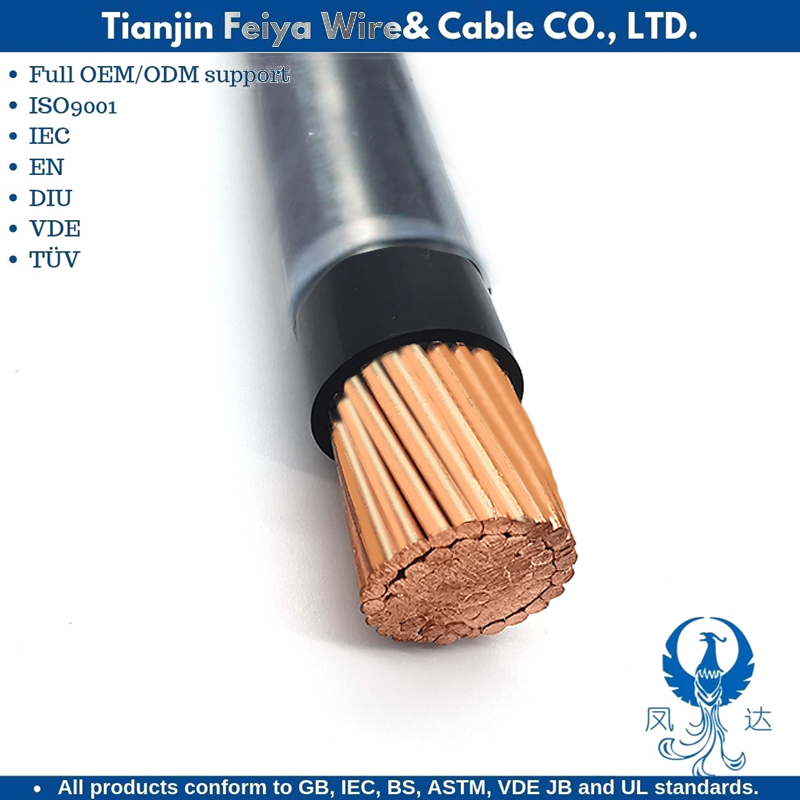

Single-Core PVC Wire Industrial Cables H07V-K with Copper Conductor

Executive standard
It is manufactured acconding to GB/T 5023-2008,JB/T 8734-2016 standards.(Equivalent national standard of IEC60227).

Application
B serie are used for fixed laying in engine devices of AC rated voltage 450/750V of lower, R serie are used for household electrical appliances ,small electrical tools, instruments and engine lighting of AC rated voltage 450/750V or lower.

Type of the cables

Voltage level (V)	Nominal section (mm²)	Number of conductors	Toplimit of overalldiameter (mm)	Maximum DC resistance (20ºC) (Ω/km)	Minium insulation resistance (20ºC) (MΩ·km)	Recommended value of carring capacity (A)	Reference weight (kg/km)
300/500	0.5	1	2.3	36	0.015	13	8.3
	0.75	7	2.6	24.5	0.012	17	10.9
	0.75	1	2.7	24.5	0.014	17	11.8
	1	7	2.8	18.1	0.011	20	13.7
	1	1	3	18.1	0.013	20	14.8
450/750	1.5	1	3.2	12.1	0.011	25	20.0
	1.5	7	3.3	12.1	0.01	25	21.3
	2.5	1	3.9	7.41	0.01	34	31.5
	2.5	7	4	7.41	0.009	34	34.4
	4	1	4.4	4.61	0.0085	44	46.8
	4	7	4.6	4.61	0.0077	44	48.1
	6	1	5	3.08	0.007	58	65.1
	6	7	5.2	3.08	0.0065	58	68.8
	10	7	6.7	1.83	0.0065	79	111
	16	7	7.8	1.15	0.005	111	166
	25	7	9.7	0.727	0.005	146	263
	35	7	10.9	0.524	0.004	180	356
	50	19	12.8	0.387	0.0045	228	487
	70	19	14.6	0.268	0.0035	281	679
	95	19	17.1	0.193	0.0035	344	932
	120	37	18.8	0.153	0.0032	397	1163
	150	37	20.9	0.124	0.0032	456	1424
	185	37	23.3	0.0991	0.0032	519	1789
	240	61	26.6	0.0754	0.0032	592	2335
	300	61	29.6	0.0601	0.003	685	2924
	400	61	33.2	0.047	0.0028	799	3750
