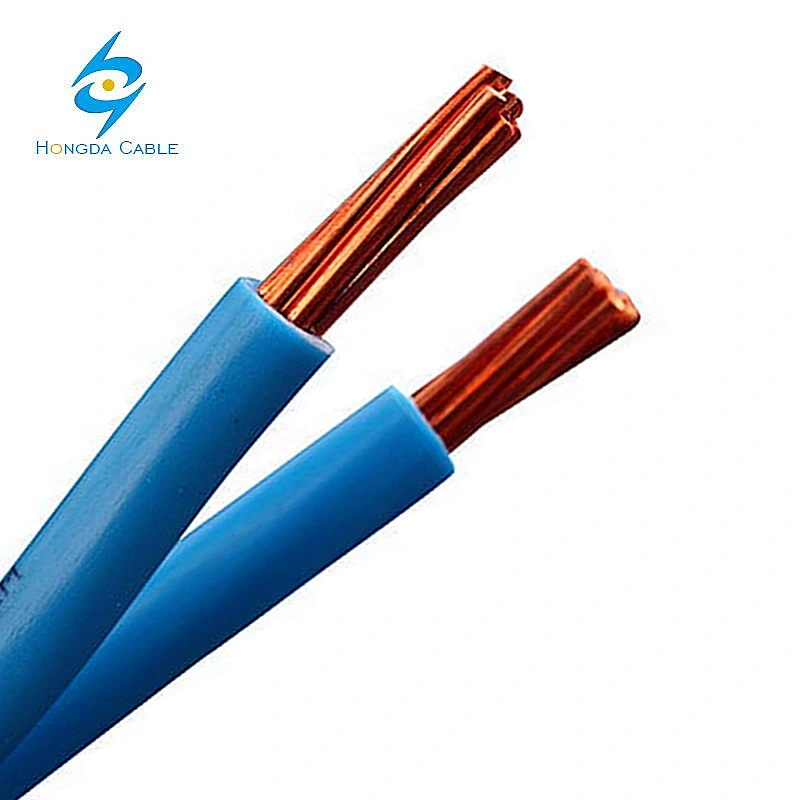

Single Core PVC Insulated Electric Wire Nya
Application and DescriptionThe NYA conductor is suitable for most current wiring solutions for residential, commercial and industrialenvironments. It is used in service entrance, feeders and branch circuits for permanent installations. NYA conductors in sizes 14 AWG to 1000 Kcmil (MCM) can be instal......
Send Inquiry
Product Description
Application and Description
The NYA conductor is suitable for most current wiring solutions for residential, commercial and industrial
environments. It is used in service entrance, feeders and branch circuits for permanent installations.
NYA conductors in sizes 14 AWG to 1000 Kcmil (MCM) can be installed in conduits and other raceways. The
temperature of installation shall not exceed 75ºC(THW), not exceed 90ºC(THW-2).

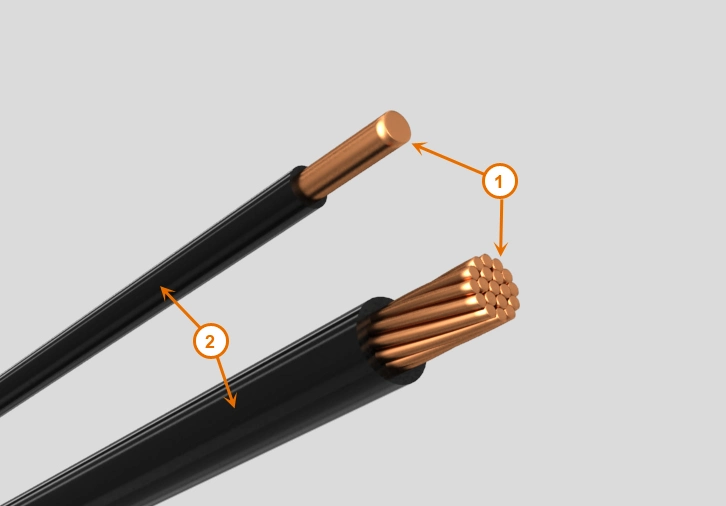

Cable Construction
Conductor:
Bare annealed copper conductor, solid or stranded
Insulation:
PVC 70°C insulation
Color:
upon request, black is preferable
Technical Compliances
- ASTM B3, B8
- IEC60502
- UL 83 - Thermoplastic-Insulated Wires and Cables
- UL 1581 - Electrical Wires, Cables and Flexible Cords
Cable Parameter
| AWG OR KCMIL | STRAND | NOMINAL INSULATION THICKNESS INCH/MM | NOMINL OVERALL DIAMETER INCH/MM | CABLE WEIGHT LBS/KFT KG/KM |
|---|---|---|---|---|
| 14 | 1 | 0.030 | 0.76 | 0.169 |
| 12 | 1 | 0.030 | 0.76 | 0.189 |
| 10 | 1 | 0.030 | 0.76 | 0.213 |
| 8 | 1 | 0.045 | 1.14 | 0.240 |
| 6 | 1 | 0.060 | 1.52 | 0.276 |
| 14 | 7 | 0.030 | 0.76 | 0.177 |
| 12 | 7 | 0.030 | 0.76 | 0.201 |
| 10 | 7 | 0.030 | 0.76 | 0.228 |
| 8 | 7 | 0.045 | 1.14 | 0.291 |
| 6 | 7 | 0.060 | 1.52 | 0.335 |
| 4 | 7 | 0.060 | 1.52 | 0.386 |
| 2 | 7 | 0.080 | 2.03 | 0.445 |
| 1 | 19 | 0.080 | 2.03 | 0.531 |
| 1/0 | 19 | 0.080 | 2.03 | 0.575 |
| 2/0 | 19 | 0.080 | 2.03 | 0.622 |
| 3/0 | 19 | 0.080 | 2.03 | 0.677 |
| 4/0 | 37 | 0.080 | 2.03 | 0.740 |
| 250 | 37 | 0.095 | 2.41 | 0.823 |
| 300 | 37 | 0.095 | 2.41 | 0.882 |
| 350 | 37 | 0.095 | 2.41 | 0.937 |
| 400 | 37 | 0.095 | 2.41 | 0.984 |
| 500 | 61 | 0.095 | 2.41 | 1.079 |
| 600 | 61 | 0.110 | 2.79 | 1.197 |
| 700 | 61 | 0.110 | 2.79 | 1.272 |
| 750 | 61 | 0.110 | 2.79 | 1.307 |
| 800 | 61 | 0.110 | 2.79 | 1.343 |
| 900 | 61 | 0.110 | 2.79 | 1.409 |
| 1000 | 61 | 0.110 | 2.79 | 1.472 |

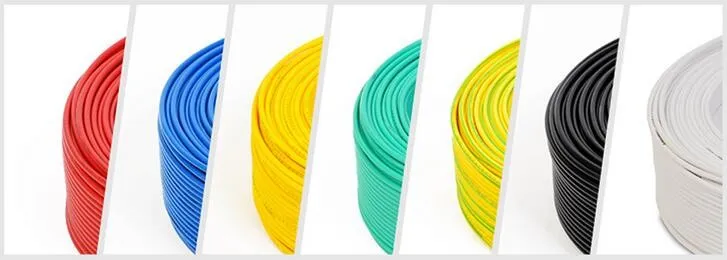

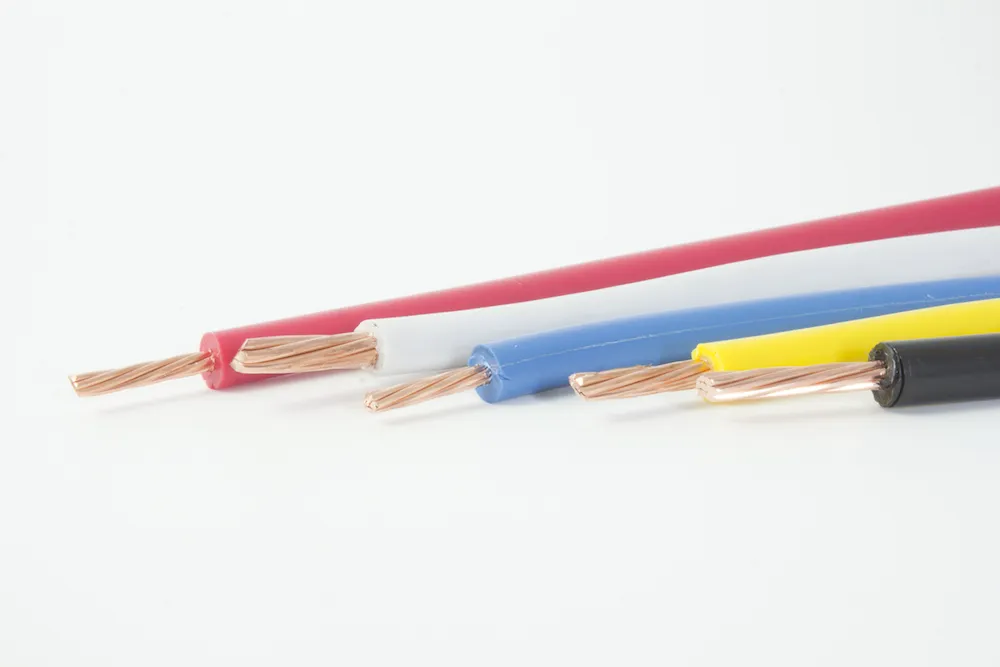

Available Color

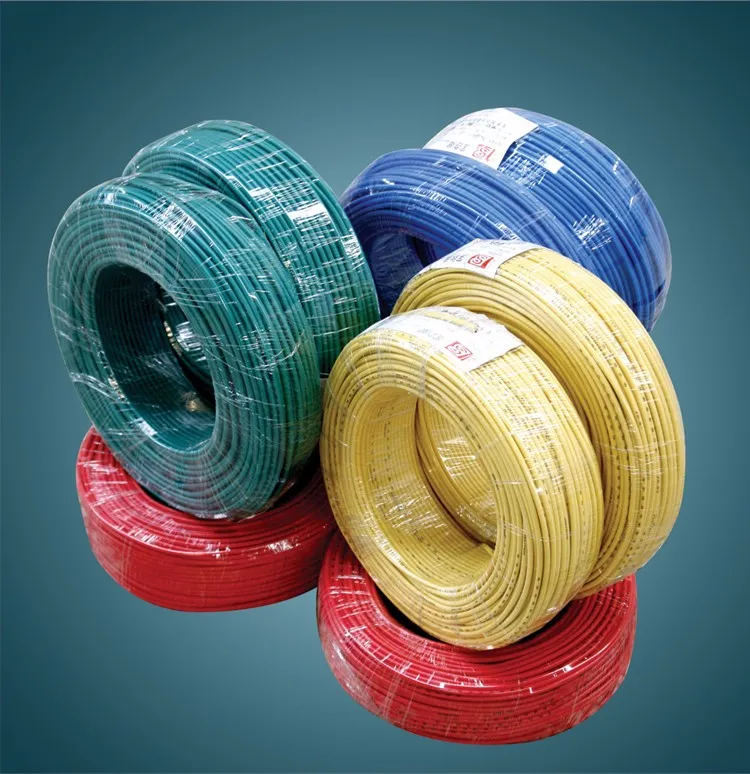

Packing shipping
Why Choose Us ?

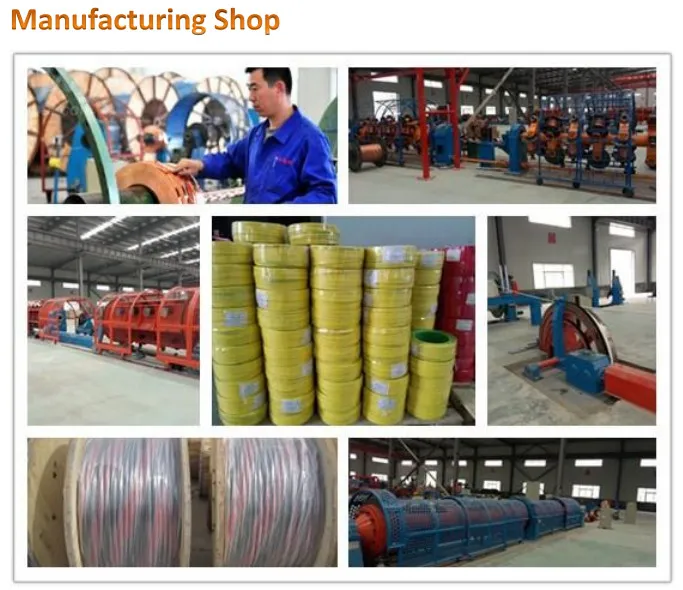

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below
