China Single Core Cable 16mm/16mm Electrical Cable Price/Copper Core Cable 16mm

Product Description

16mm power cable/16mm2 cable/16 gauge copper wire

Product Description

Single Core Cable 16mm/16mm Electrical Cable Price/Copper Core Cable 16mm

Standard

IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV (Um=1.2kV) up to 30 kV (Um=36kV).

Conductor
Plain circular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2.

Insulation

XLPE (cross-linked polyehtylene) rated at 90ºC.

Colors for core idendification

Single core - black or upon request

Two core - red, black

Three core - red, yellow, blue and black

Four core - red, yellow, blue, black and green/yellow

Five core - red, yellow, blue, black and green/yellow

Single Core Cable 16mm/16mm Electrical Cable Price/Copper Core Cable 16mm

Sheath

PVC type ST2 to IEC 60502, color black.

Application

Power Cables (Armored/Unarmored, PVC/XLPE ) are widely used in power systems of rated voltage 1000V and below such as urban
communities, office buildings, supermarkets, etc. Unarmored cables are designated for general use including burial, where they are not
likely to suffer mechniacal damage.

Specification: Cable Price 16mm 4 Core Armoured Power Cable - IEC 60502

single core cable 16mm/16mm electrical cable price/copper core cable 16mm

Product Description

single core cable 16mm/16mm electrical cable price/copper core cable 16mm

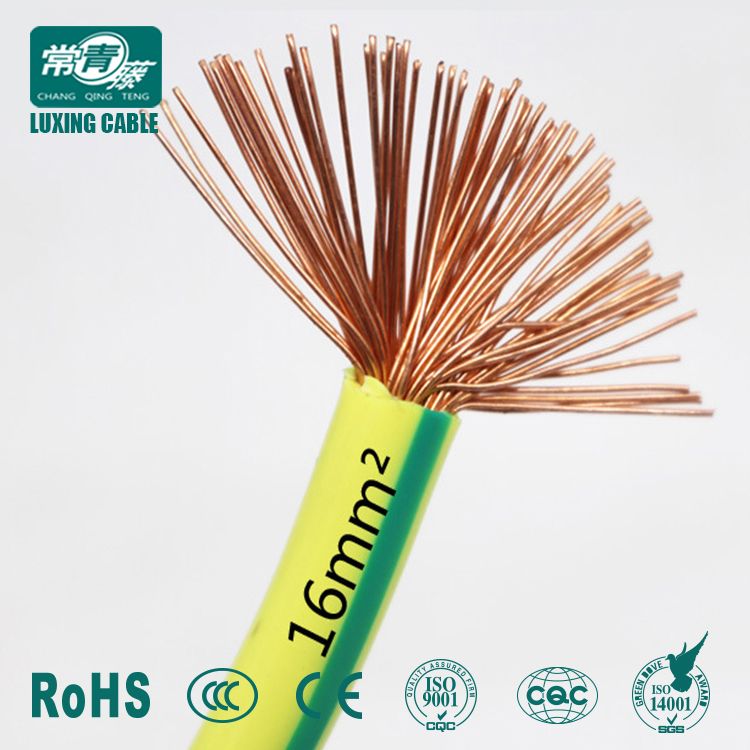

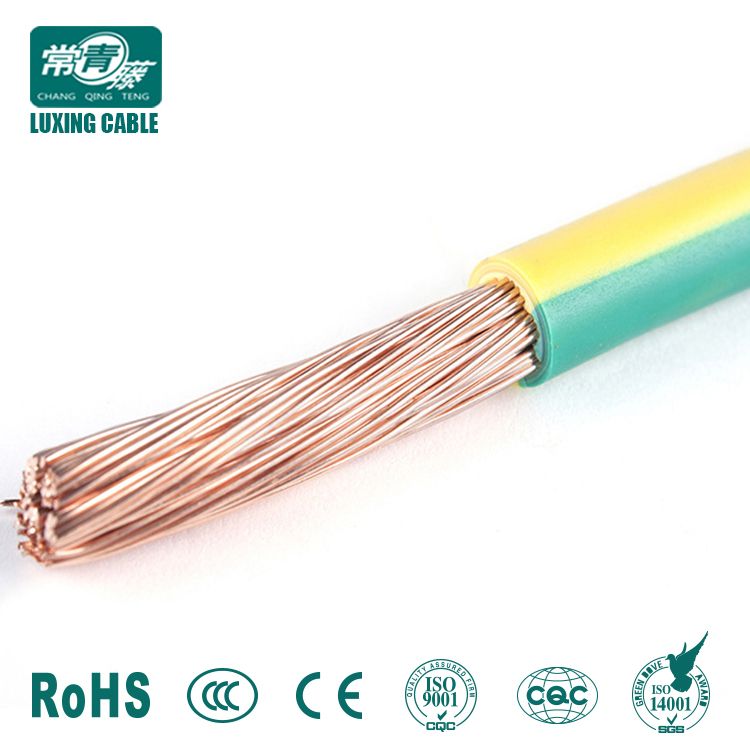

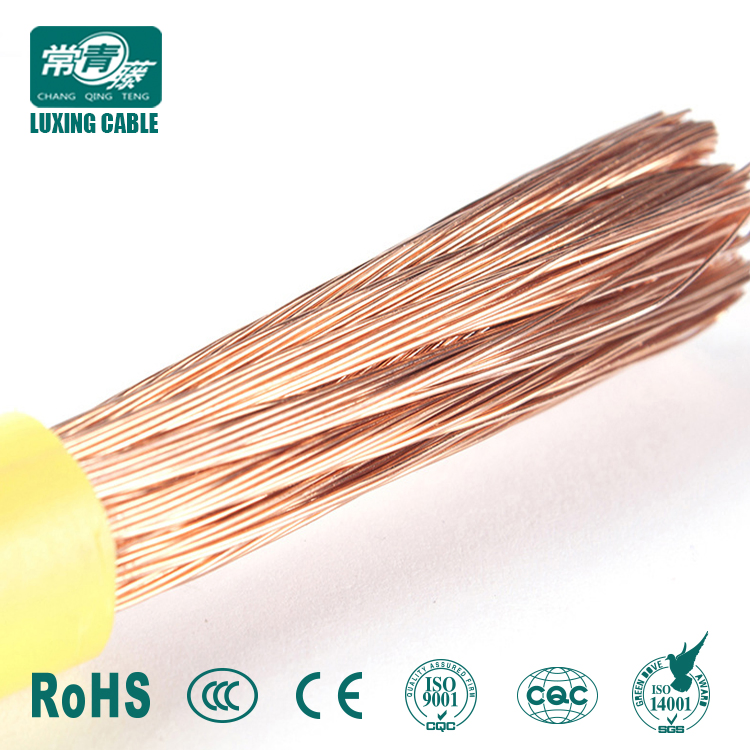

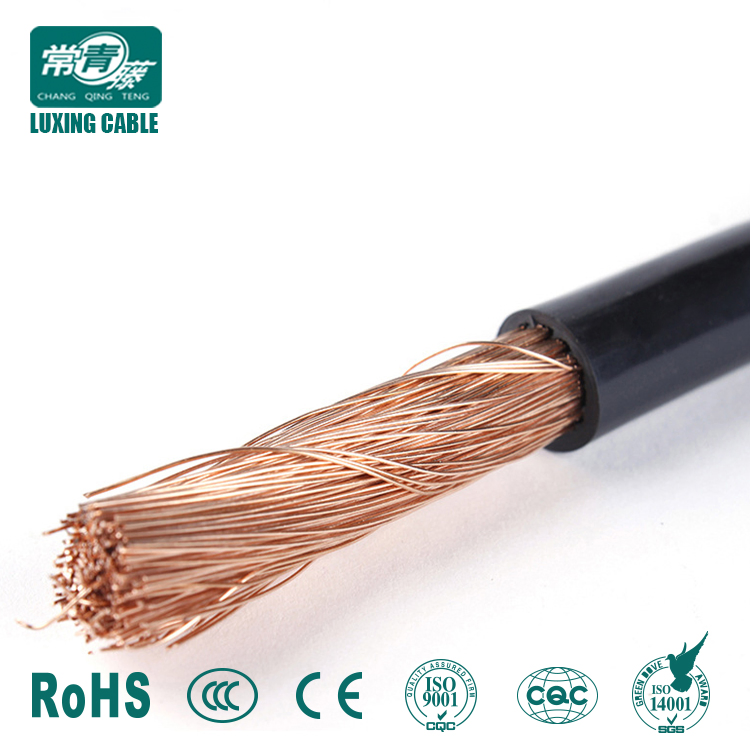

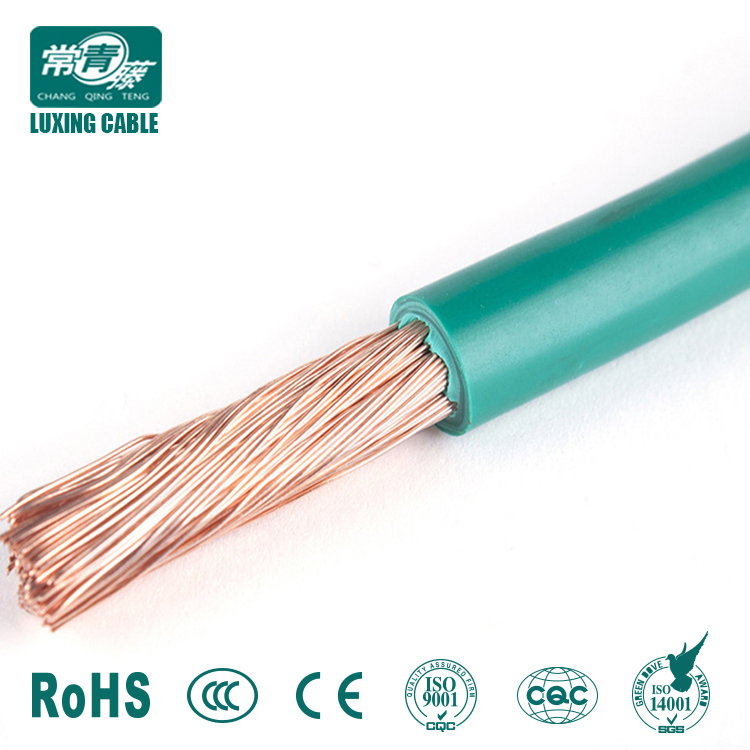

Flexible Electric Pvc Insulated Single Core Copper Cable 16Mm

Nominal Section(mm2)	Conductor Class	Insulation Thickness(mm)	Max. Ave. OD(mm)	Cable Weight(kg/km)	Conductor Max.DC resistance at 20ºC(Ω/km)		Min. Insu. resistance at 70ºC(MΩ.km)
Nominal Section(mm2)	Conductor Class	Insulation Thickness(mm)	Max. Ave. OD(mm)	Cable Weight(kg/km)	Non electroplating	Electroplating	Min. Insu. resistance at 70ºC(MΩ.km)
H07V-K 1.5	5	0.7	3.4	21.3	13.3	13.7	0.010
H07V-K 2.5	5	0.8	4.1	33.8	7.98	8.21	0.0095
H07V-K 4	5	0.8	4.8	50.3	4.95	5.09	0.0078
H07V-K 6	5	0.8	5.3	71.6	3.3	3.39	0.0068
H07V-K 10	5	1.0	6.8	122.1	1.91	1.95	0.0065
H07V-K 16	5	1.0	8.1	184.7	1.21	1.24	0.0053
H07V-K 25	5	1.2	10.2	286.2	0.78	0.795	0.0050
H07V-K 35	5	1.2	11.7	395.5	0.554	0.565	0.0043
H07V-K 50	5	1.4	13.9	539	0.386	0.393	0.0042
H07V-K 70	5	1.4	16	730	0.272	0.277	0.0036
H07V-K 95	5	1.6	18.2	900	0.206	0.21	0.0036
H07V-K 120	5	1.6	20.2	1135	0.161	0.164	0.0032
H07V-K 150	5	1.8	22.5	1410	0.129	0.132	0.0032
H07V-K 185	5	2.0	24.9	1845	0.106	0.108	0.0032
H07V-K 240	5	2.2	28.4	2270	0.0817	0.0817	0.0031
