Product Description

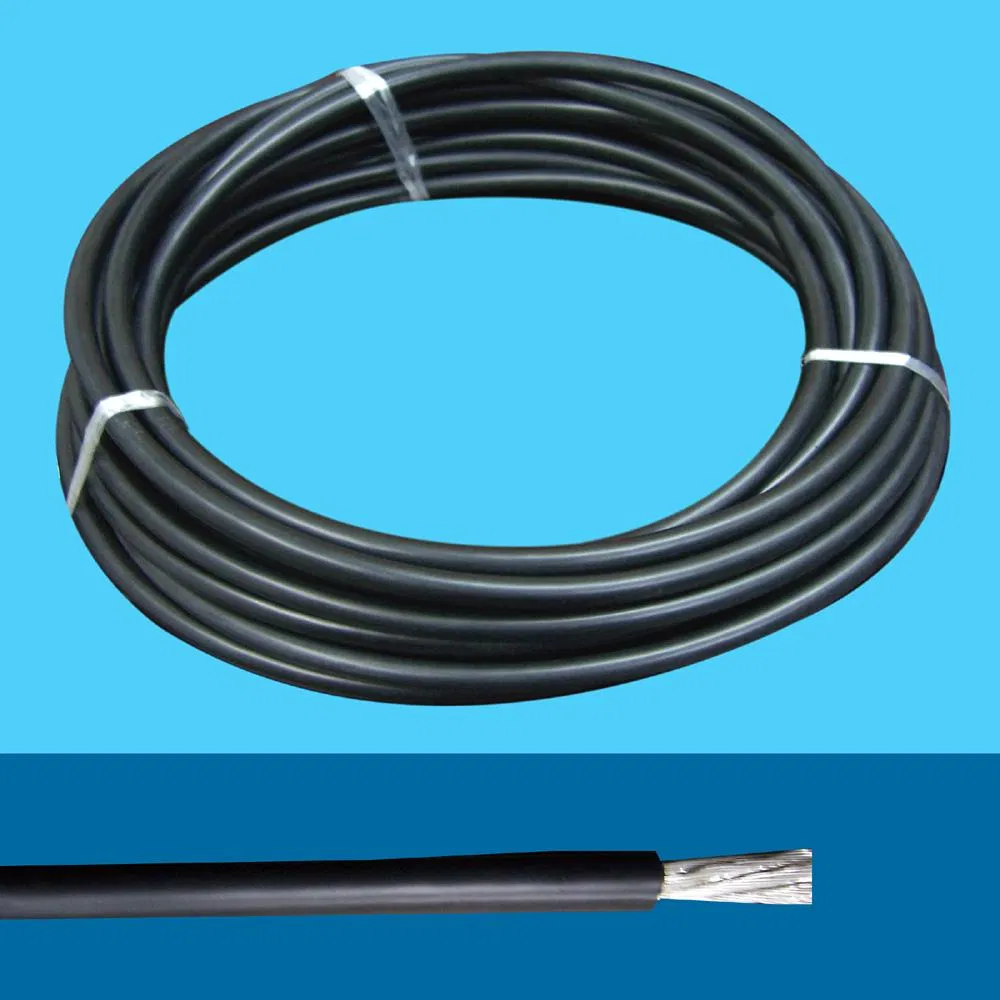

Silicone Rubber Insulated Cable with UL3123
Nominal Voltage:600V
Temperature Range:-60ºC to 150ºC
Conductor:Tinned copper
Insulator:silicone rubber
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
Nominal Voltage:600V
Temperature Range:-60ºC to 150ºC
Conductor:Tinned copper
Insulator:silicone rubber
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
| SIZE(AWG) | con.of conductor.(NO/mm) | Diameter(MM) | Thickness of insulator(MM) | over diameter (MM) | Packing(M/COILS) |
| 30 | 7/0.1 | 0.31 | 0.76 | 1.83 | 610 |
| 28 | 7/0.127 | 0.43 | 0.76 | 1.95 | 610 |
| 26 | 7/0.160 | 0.49 | 0.76 | 2.01 | 305 |
| 24 | 7/0.2 | 0.61 | 0.76 | 2.13 | 305 |
| 22 | 12/0.18 | 0.76 | 0.76 | 2.28 | 305 |
| 20 | 21/0.18 | 0.93 | 0.76 | 2.45 | 305 |
| 18 | 34/0.18 | 1.14 | 0.76 | 2.69 | 305 |
| 16 | 52/0.18 | 1.50 | 0.76 | 3.02 | 305 |
