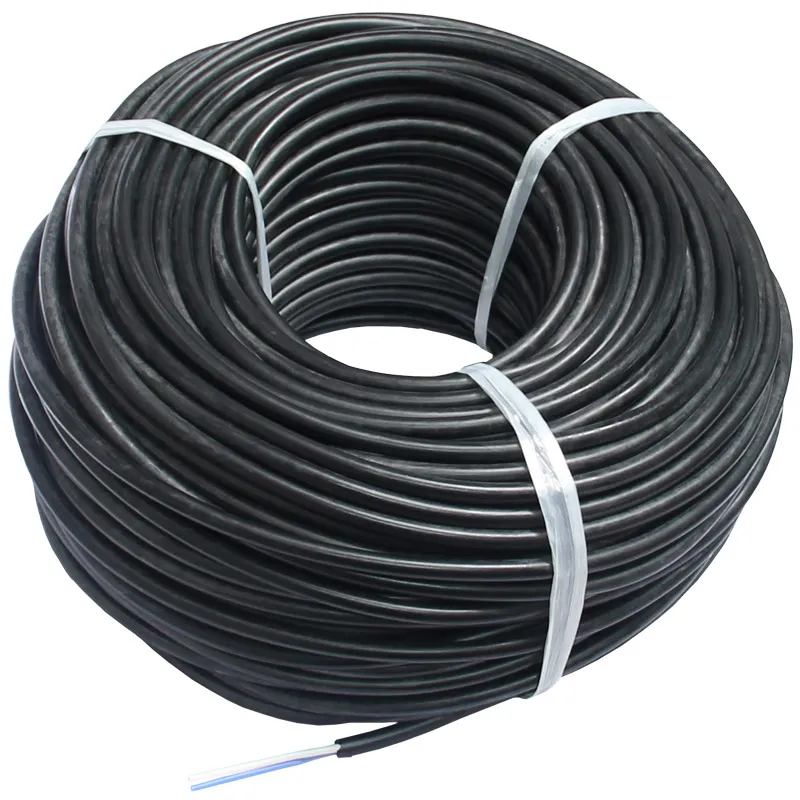

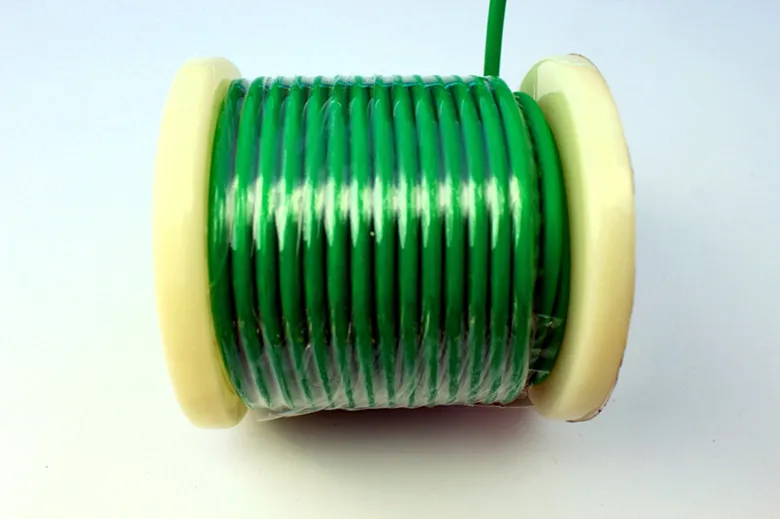

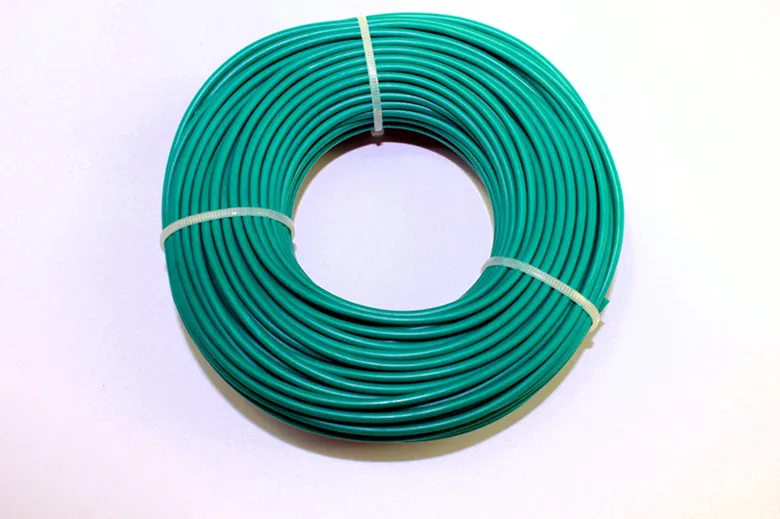

Silicone Rubber High Voltage Wire 26AWG with UL3239
Silicone rubber High Voltage wire 26AWG with UL3239Nominal Voltage: 3KV, 6KV, 10KV, 20KV, 30KVTemperature Range: -60ºC to 150/200ºCConductor: Tinned copperInsulator: Silicone rubberO. D. Tolerance: ±0.10mmColor: Black-brown-red-orange-yellow-green-blue-violet-gray-whit......
Send Inquiry
Product Description
Silicone rubber High Voltage wire 26AWG with UL3239
Nominal Voltage: 3KV, 6KV, 10KV, 20KV, 30KV
Temperature Range: -60ºC to 150/200ºC
Conductor: Tinned copper
Insulator: Silicone rubber
O. D. Tolerance: ±0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 7/0.16
Diameter: 0.48mm
In the 3kv Voltage:
Insulation thickness: 0,.5mm
Over diameter: 1.49mm
In the 6kv Voltage:
Insulation thickness: 0, 7mm
Over diameter: 1.89mm
In the 10kv Voltage:
Insulation thickness: 1.0mm
Over diameter: 2.49mm
In the 20kv Voltage:
Insulation thickness: 1.3mm
Over diameter: 3.09mm
In the 30kv Voltage:
Insulation thickness: 1.7mm
Over diameter: 3.89mm
Packing: 305m/ROLL
Nominal Voltage: 3KV, 6KV, 10KV, 20KV, 30KV
Temperature Range: -60ºC to 150/200ºC
Conductor: Tinned copper
Insulator: Silicone rubber
O. D. Tolerance: ±0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 7/0.16
Diameter: 0.48mm
In the 3kv Voltage:
Insulation thickness: 0,.5mm
Over diameter: 1.49mm
In the 6kv Voltage:
Insulation thickness: 0, 7mm
Over diameter: 1.89mm
In the 10kv Voltage:
Insulation thickness: 1.0mm
Over diameter: 2.49mm
In the 20kv Voltage:
Insulation thickness: 1.3mm
Over diameter: 3.09mm
In the 30kv Voltage:
Insulation thickness: 1.7mm
Over diameter: 3.89mm
Packing: 305m/ROLL
