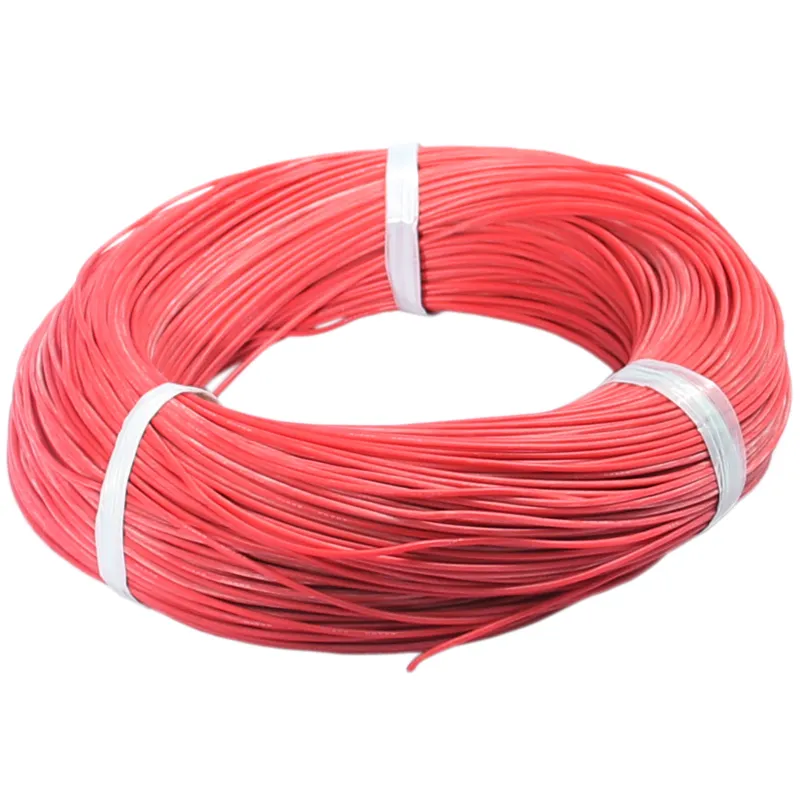

Silicone Rubber Cable 16AWG with UL3239

Product Description

Silicone Rubber Cable 16AWG with UL3239
Niminal Voltage:3KV to 30KV
Temperature range:-60ºC to 200ºC
Conductor :Tinned copper
O.D Allowance:±0.10mm
Colour:Black-brown-red- orange-yellow-green-blue-violet-gray-white-green/yellow,etc
Appy to Household appliance,Illumination &Lighting&Headlamp,electric machines ,temperatuer sensor,Military series,Metallurgy Chemical series ,Motor Cars &ships , Electrical Installatinon. etc

AWG	con.of conductor.		3KV		6KV		10KV		20KV		30KV
	con.of conductor.	Diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	packing
	NO/mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mt/coils
28#	7/0.127	0.38	0.5	1.37	0.7	1.77	1.0	2.37	1.3	2.97	1.7	3.77	305
26#	7/0.16	0.48	0.5	1.49	0.7	1.89	1.0	2.49	1.3	3.09	1.7	3.89	305
24#	7/0.2	0.60	0.5	1.60	0.7	2.00	1.0	2.60	1.3	3.20	1.7	4.00	305
22#	22/0.14	0.76	0.5	1.76	0.7	2.16	1.0	2.76	1.3	3.36	1.7	4.16	305
20#	21/0.18	0.91	0.5	1.91	0.7	2.31	1.0	2.91	1.3	3.51	1.7	4.31	305
18#	34/0.18	1.17	0.5	2.17	0.7	2.57	1.0	3.17	1.3	3.77	1.7	4.57	305
16#	52/0.18	1.50	0.5	2.50	0.7	2.90	1.0	3.50	1.3	4.10	1.7	4.90	200
14#	41/0.254	1.83	0.6	3.03	0.8	3.43	1.2	4.23	1.5	4.83	2.0	5.83	100
