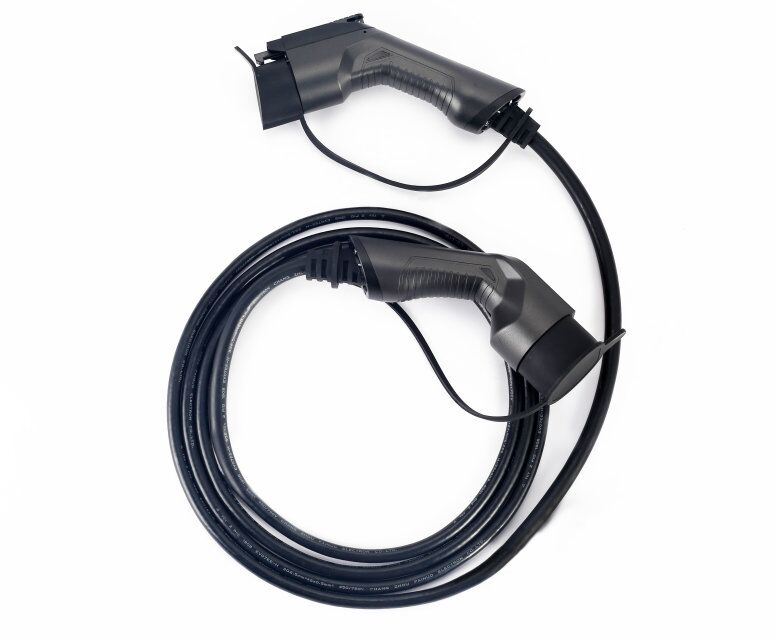

SAE J1772 16A Single Phase EV Electric Car Charging Cable
16A Single Phase IEC 62196 EV Charger Type 2 Female To Male for Electric Vehicle (EV) Charging Cord lenght: 3m, 5m or customizedMeet IEC 62196-2 (Mennekes, Type 2) EU European standardNice shape and easy to use, protection class IP66(in mated conditions) Apply to Vehiclefor Audi A3 e-Tron,for BMW ......
Send Inquiry
Product Description

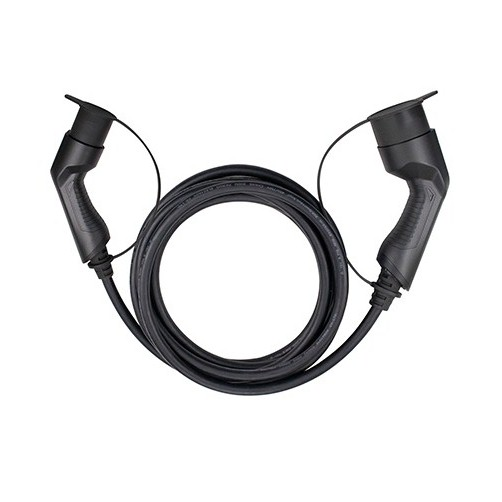

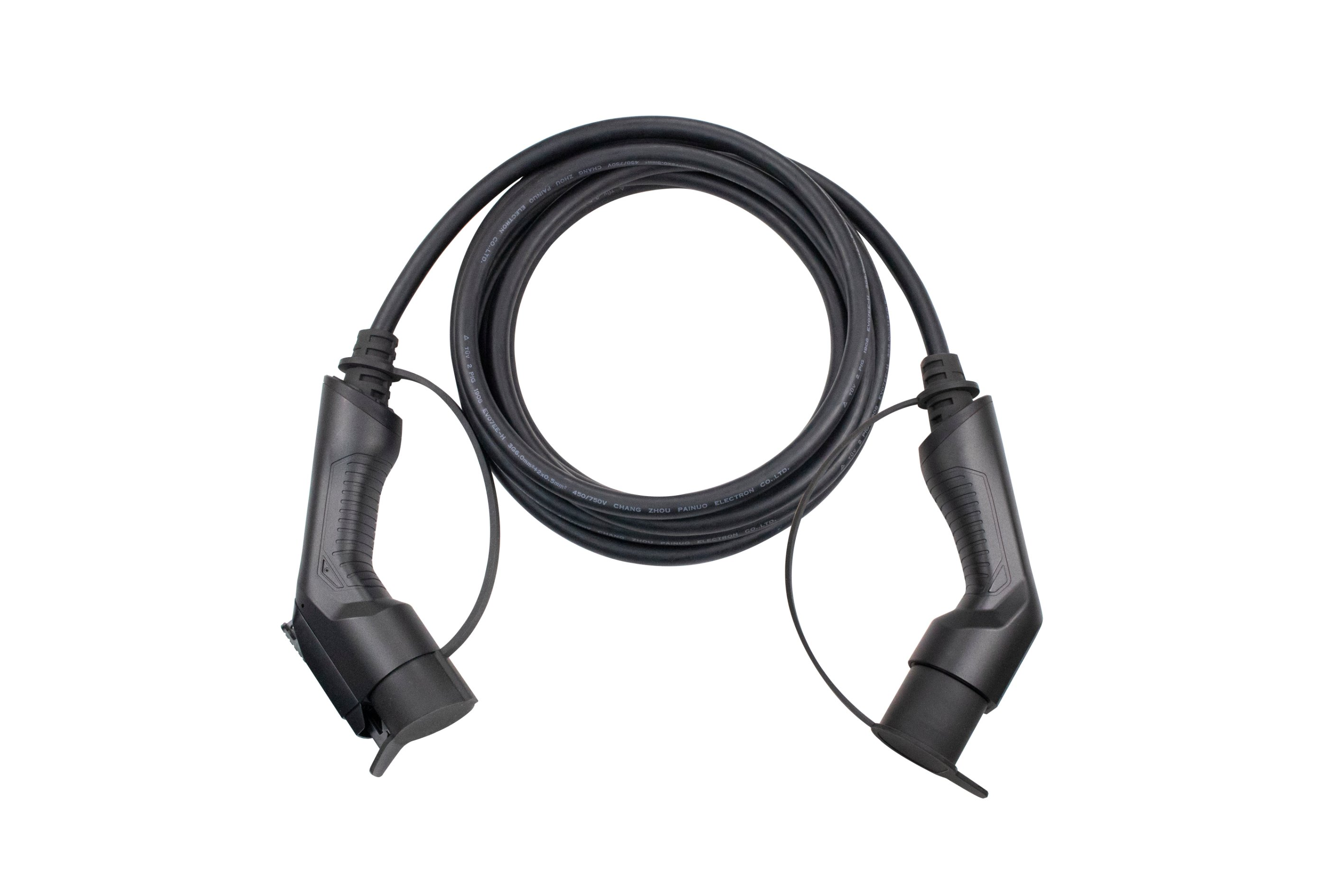

16A Single Phase IEC 62196 EV Charger Type 2 Female To Male for Electric Vehicle (EV) Charging
Cord lenght: 3m, 5m or customized
Meet IEC 62196-2 (Mennekes, Type 2) EU European standard
Nice shape and easy to use, protection class IP66(in mated conditions)
Apply to Vehicle
for Audi A3 e-Tron,for BMW i3,for BMW i8, for Chevrolet Spark, Mercedes B Class E-Celi, for Mercedes S500 PHEV, for Mercedes SLS EV,for Mercedes Vito E-Cell Van, Porsche Panamera S PHEV, Renault Zoe, Renault Zoe 2013, Volkswagen e-Up,Volkswagen e-Golf, Volvo V60 PHEV...
Parameters
Model: BS-CHC001
Reted current: 16A, SINGLE Phase
Working voltage: 240V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
CE, TUV approved
Charging Cable Spec
TUV 5*6.0mm2+2*0.5mm2
Cord lenght: 3m, 5m or customized
Orange or Black
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
.

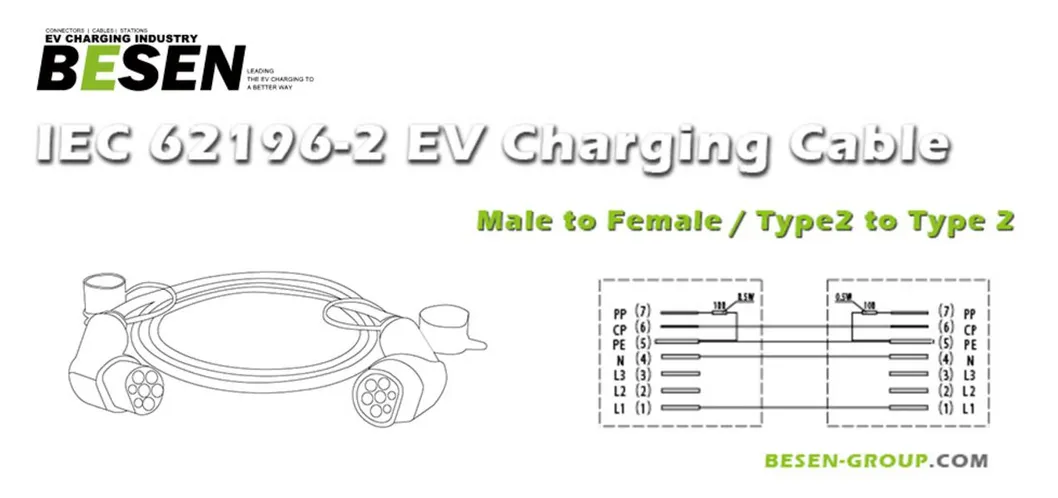

Modle Selection & The Standard Wiring :
Model | Number of inserts | Cable Spec. | Color | Remark |
BS-CHC002 16A3P Type2-Type2 | 7 | 5*2.5mm2+2*0.5mm2 |
Black orOrange | The length of the cable can be customized |
BS-CHC004 32A 3P Type2- Type2 | 7 | 5*6.0mm2+2*0.5mm2 |
.

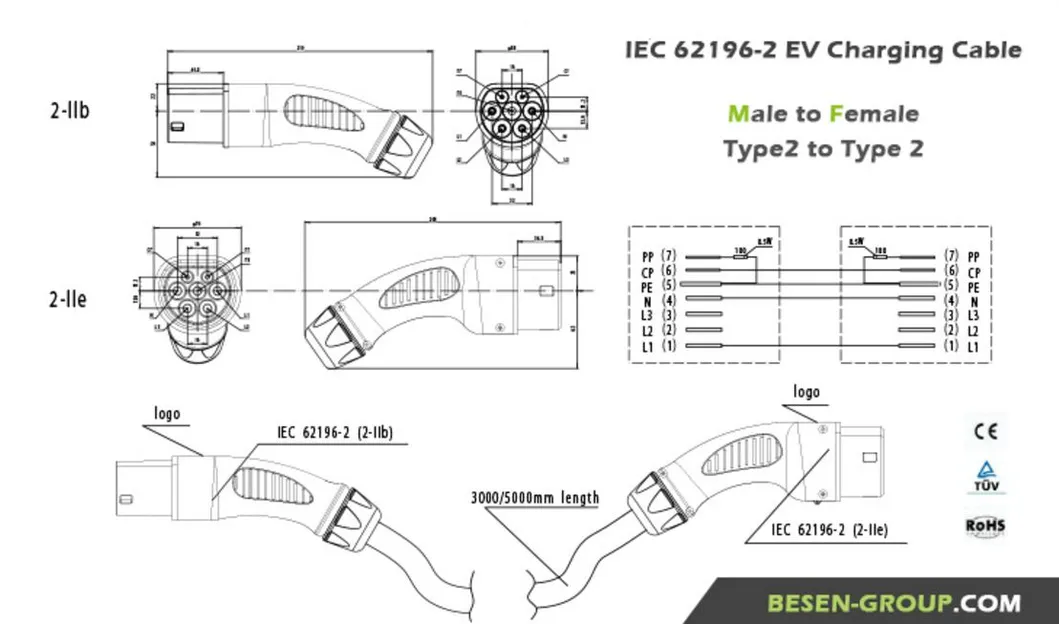

Drawing Interpretation :
Company Information
-ABOUT BESEN GROUP--
As one of the largest manufacturers of charging equipment and components in China, BESEN possesses 12 years of expertise in the field of electric vehicle charging. We have participated in setting up the EV Charging Standard of China (GB). We are the supplier of State Grid Corporation of China. We have cooperated with many EV Manufacturers and Distributors in Europe and US.
All of our charging connectors has obtained CE, TUV and UL certifications. From cold Norway to hot Saudi Arabia, from Thailand whose EV market is just getting started to America whose EV market are tending to be mature, our products are known by more and more customers.
We believe in that diligent service is the soul of an outstanding company. No matter if you are our regular customers or new customers who just find us in the first time, any questions of you will be replied within the shortest time. And we have conscientious after-sale services, any problems of products will be followed up responsibly by our professionals until be solved perfectly.
We would like to show our honesty, top quality, competitive prices and high efficiency to establish business relationships with you. Our goal is to provide not only products, but also a complete solution including product design, tooling, fabrication and service to our customers to achieve their upmost satisfaction.
Welcome to walk into BESEN : )

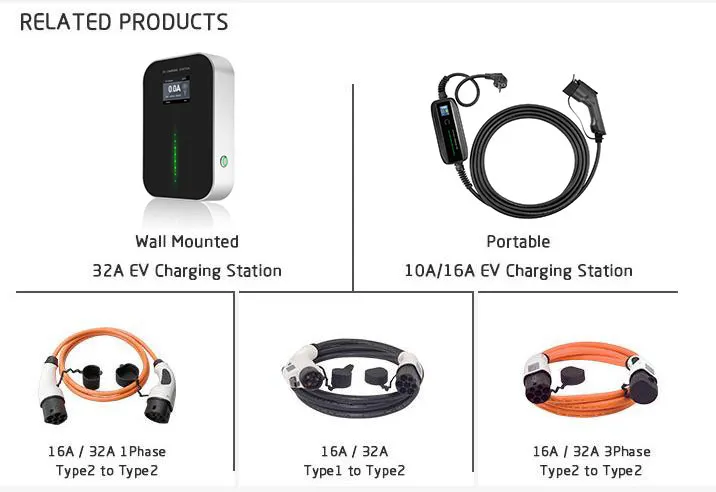

--OUR MAIN PRODUCTS--
BESEN deliver the most innovative, safest, and smartest electric vehicle components, including EV plugs, sockets, mode 2 cables, mode 3 cables, and charging stations to our customers from all over the world.

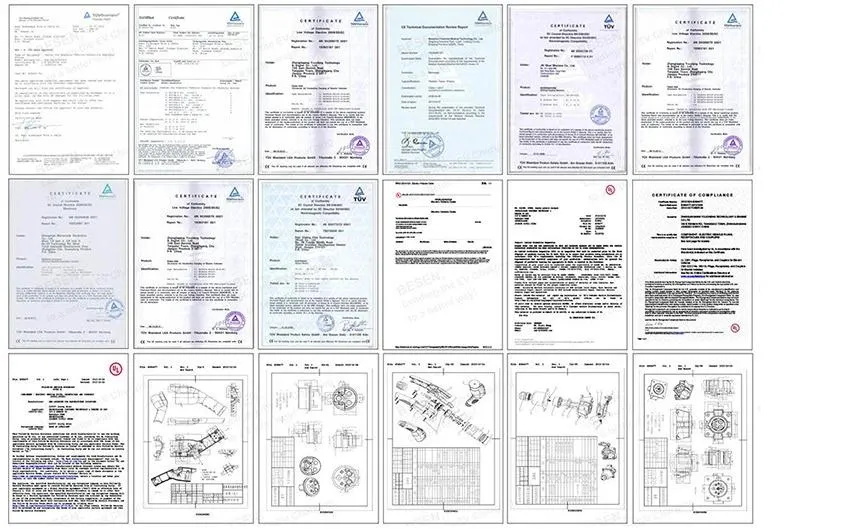

--CERTIFICATE--
Our EV products all have CE, TUV, UL certifications. All our products have to pass strict inspections and repeated texts before they leave factory. Please contact us for detailed certificates.
