Rosh3 Ultrasound Special Medical Equipment Coaxial Cable

Product Description

Products are used in electrocardiograph instrument, ultrasound image forming, CT and medical diagnostic devices.

	Conductor				Insulation		Shield		Jacket		Character
Product Number	AWG	Material	Construction	Dia. mm	Material	Nom. Dia. mm	Material	Dia. mm	Material	Nom. Dia. mm	Impedance Ω	Max resistance Ω/km
HTMMC0001	36	TC	7/0.05	0.15	PFA	0.38	TC	0.03	FEP	0.54	45	1569
HTMMC0002	38	SPTCA	7/0.04	0.12	PFA	0.3	TC	0.025	FEP	0.44	45	3300
HTMMC0003	38	SPTCA	7/0.04	0.12	FEP	0.35	TC	0.03	PET	0.44	50	3300
HTMMC0004	38	SPTCA	7/0.04	0.12	PFA	0.46	TPTCA	0.025	PET	0.54	80	3300
HTMMC0005	40	SPTCA	7/0.03	0.09	PFA	0.22	TC	0.025	FEP	0.36	45	5000
HTMMC0006	40	TC	7/0.03	0.09	PFA	0.25	TC	0.03	PET	0.34	50	5000
HTMMC0007	40	SPTCA	7/0.03	0.09	PFA	0.38	TPTCA	0.025	PET	0.46	80	5000
HTMMC0008	42	SPTCA	7/0.025	0.08	PFA	0.175	TC	0.025	PFA	0.30	45	7500
HTMMC0009	42	SPTCA	7/0.025	0.08	PFA	0.345	TPTCA	0.025	PET	0.43	80	7500
HTMMC0010	44	SPTCA	3/0.03	0.06	PFA	0.175	TPTCA	0.025	PFA	0.29	50	12000

Application: Internal wiring of medical diagnostic devices.
Product Charater:
Small diameter, light weight, good strength and bending resistance.
Especially helo internal connection of medical devices.
PFA insulation material has excellent heat resistance and stable electronical performance.

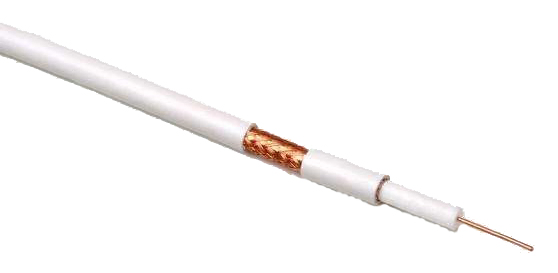

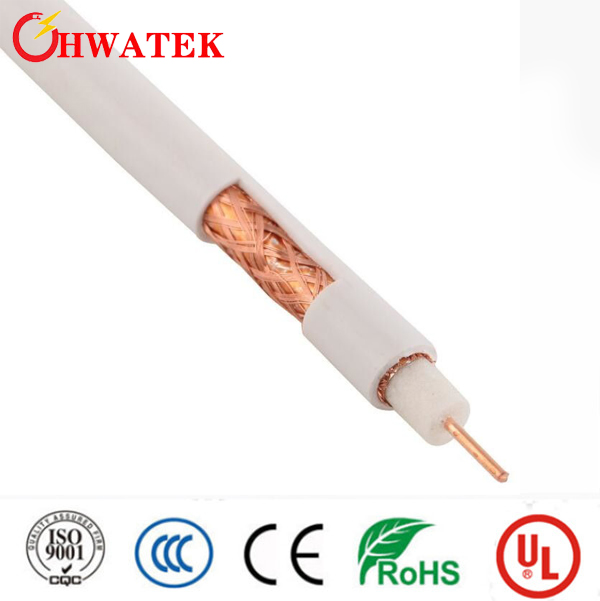

Structure:
Straned or silver-plated or tinned alloy copper conductor, 30-46AWG
PFA insulation
Spiral shielding with tinned copper
PFA or PET Jacket
Technical Parameter:
Rated temperature: 80ºC
Rated Voltage: 30V
Rosh3 Ultrasound Special Medical Equipment Coaxial Cable

Company Profiles

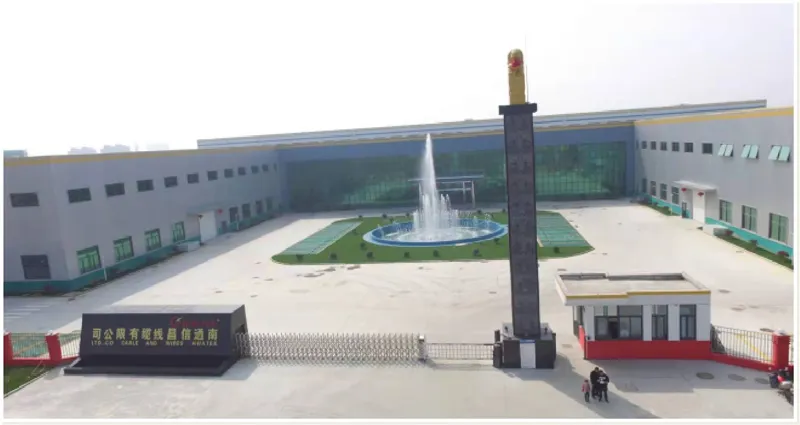

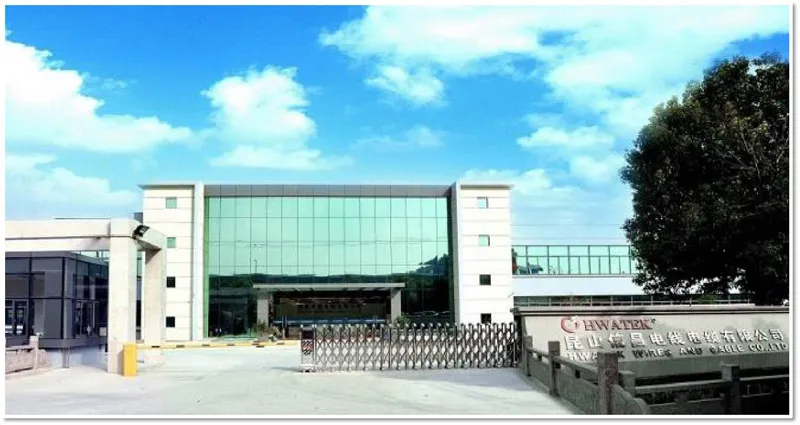

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Multi-Pair Flexible Braiding Shield PU Jacket Cable

Multi-Pair Flexible Braiding Shield PU Jacket Cable

Certificates

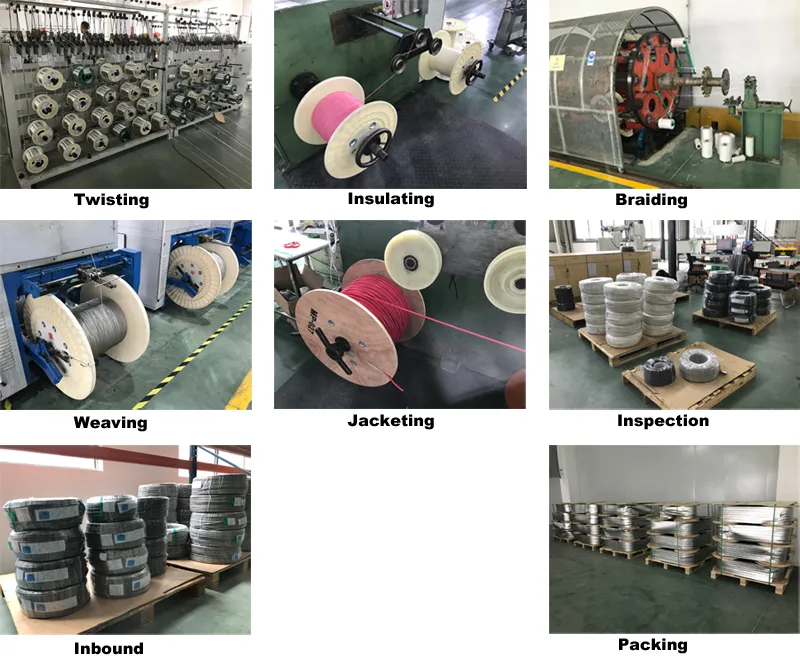

Production Progress
Shipping
FAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
