RoHS Guarantee Environmental Flexible Electric Wire Cable
American standar UL 1061 lighting flexible cable PRODUCT DESCRIPTION:Rated Temperature80ºC Conductor Solid or Stranded,tinned or bare copper conductor 30-16AWGStandardUL subject 758,UL 1581Application Internal wiring of appliances or electronic equipment UL TYPEGaugeConstructionConductorIns......
Send Inquiry
Product Description

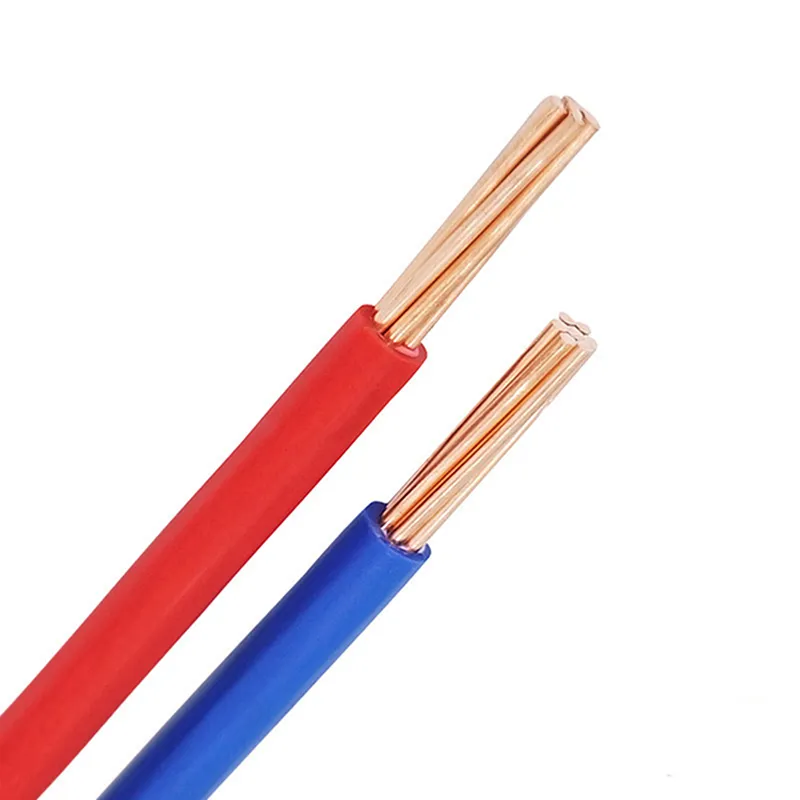

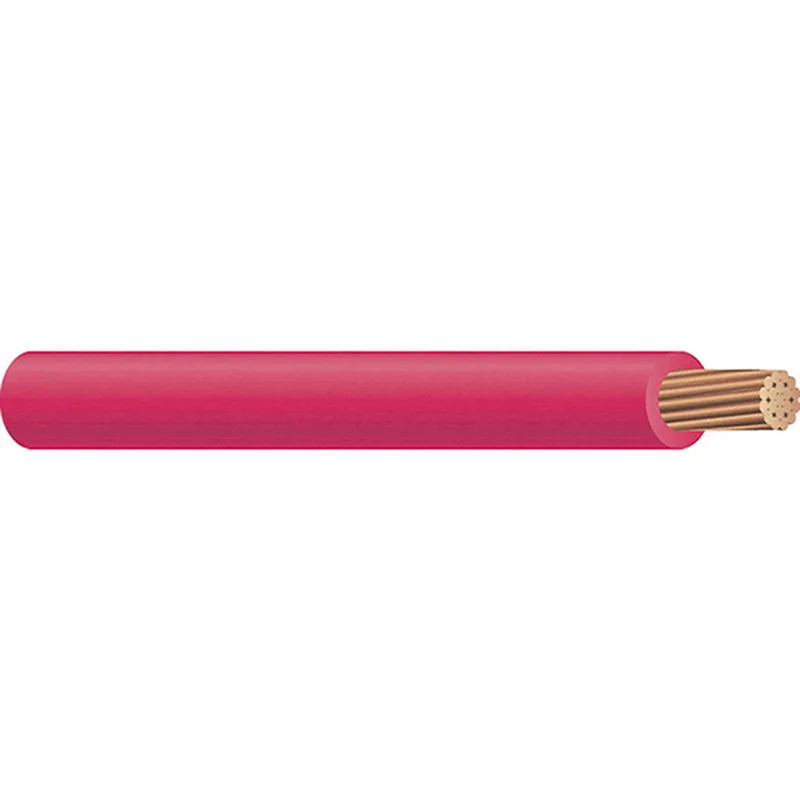

American standar UL 1061 lighting flexible cable
PRODUCT DESCRIPTION:
PRODUCT DESCRIPTION:
| Rated Temperature | 80ºC | Conductor | Solid or Stranded,tinned or bare copper conductor 30-16AWG |
| Standard | UL subject 758,UL 1581 | Application | Internal wiring of appliances or electronic equipment |
| UL TYPE | Gauge | Construction | Conductor | Insulation | Wire O.D | Max Cond | Standard Package | ||
| (AWG) | (no/mm) | Outer | Thickness | (mm) | Resistance | ||||
| Diameter (mm) | (mm) | (Ω/kft,20ºC) | FT/ROLL | ROLL | |||||
| UL1095 | 26 | 7/0.16 | 0.48 | 0.3 | 1.1 | 45.8 | 2000 | 610 | |
| 24 | 11/0.16 | 0.61 | 1.25 | 28.7 | |||||
| 22 | 17/0.16 | 0.76 | 1.4 | 18.1 | |||||
| 20 | 21/0.178 | 0.94 | 1.6 | 11.2 | |||||
| 18 | 16/0.254 | 1.17 | 1.8 | 7.06 | 1000 | 305 | |||
| 16 | 26/0.254 | 1.49 | 2.1 | 4.45 | |||||
