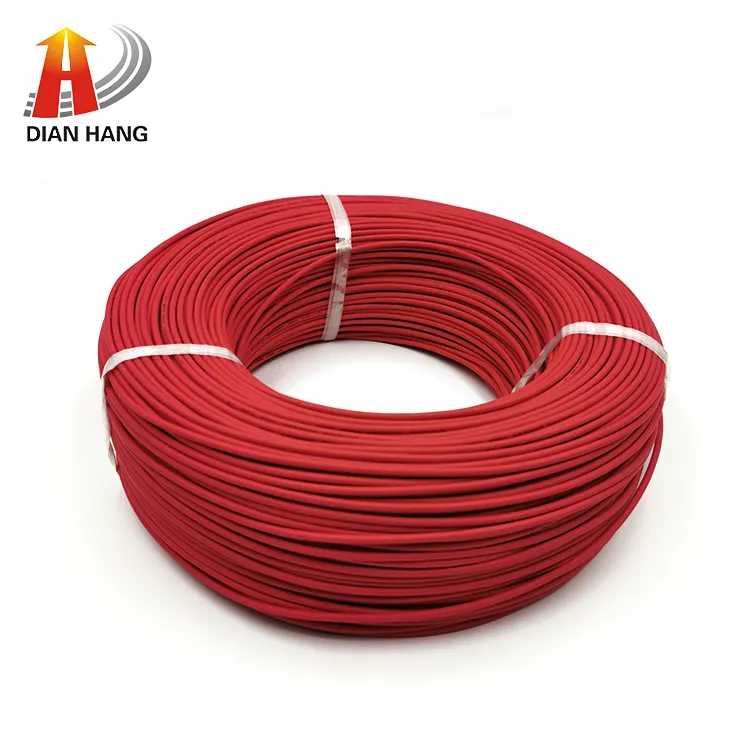

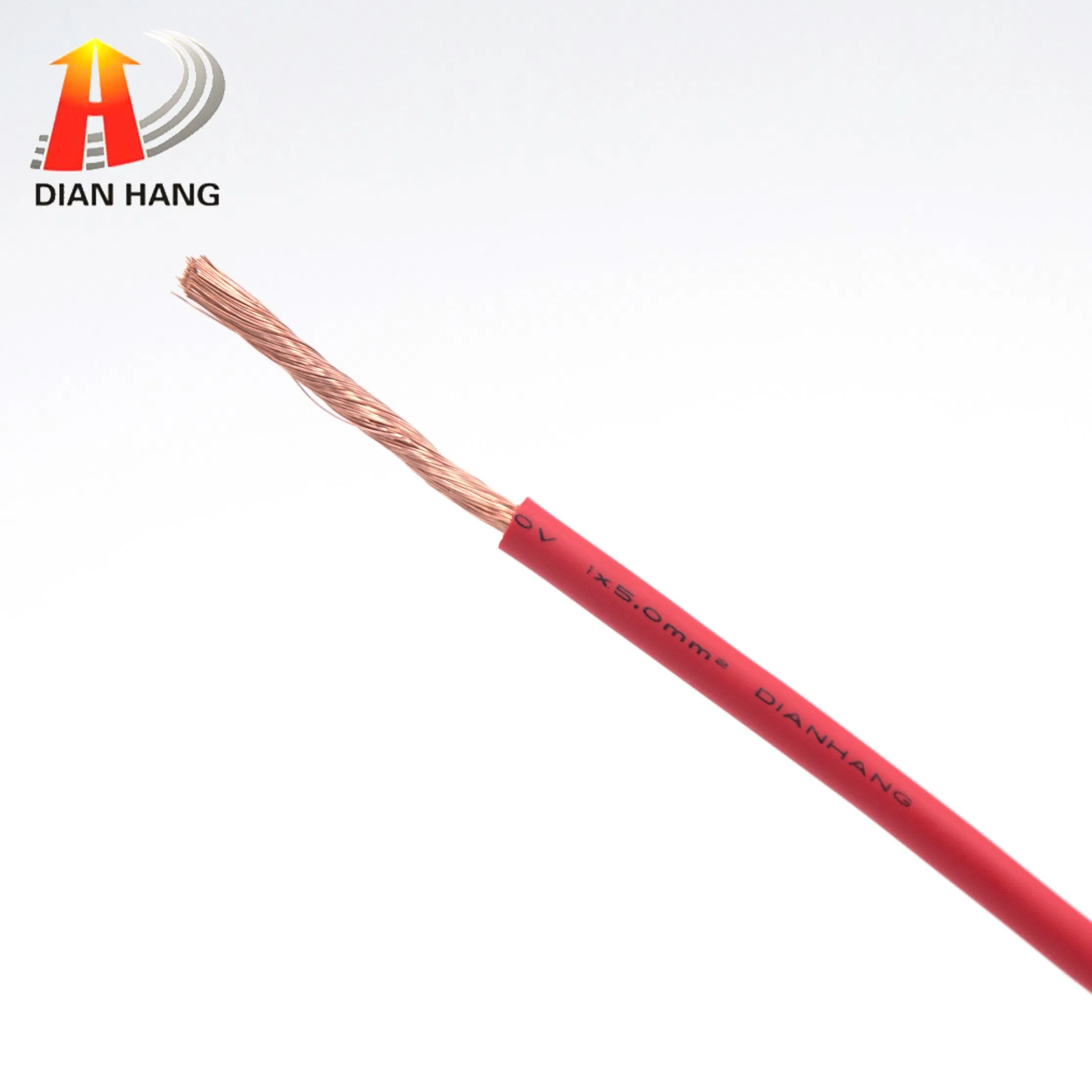

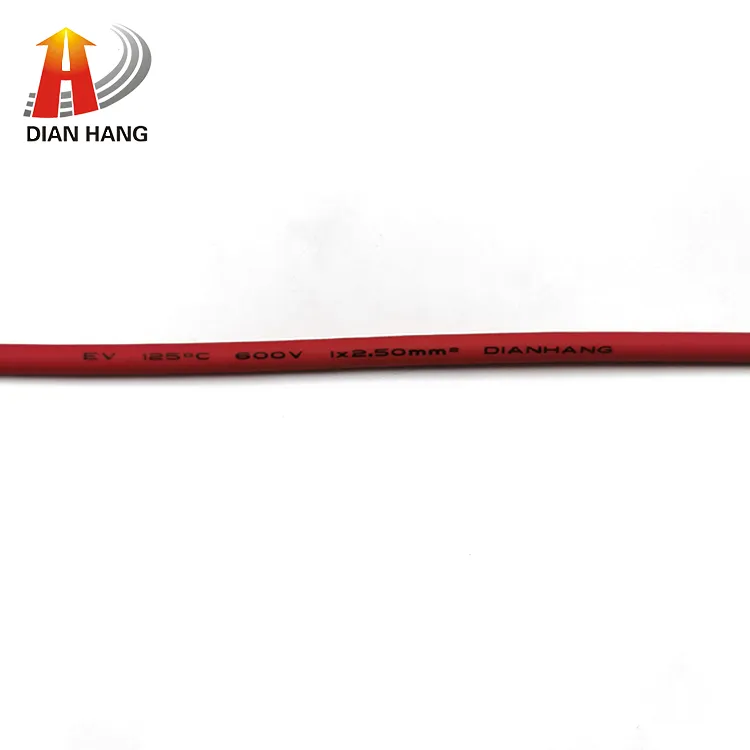

Resistance Scratching Motor Connection Wire Controller Battery Power Output PVC Thinned Coppe R Wire
Product DescriptionTemperature:-40~+125ºC/150ºCRated voltage:1500vHalogen: Halogen freeInsulated: XLPEJacket: XLPE/TPUFlame retardant: in accordance with ISO6722-2011This wire has good resistance to scratching and hydrolysis.EV electric vehicle high voltage line is suitable for bat......
Send Inquiry
Product Description
Temperature:-40~+125ºC/150ºC
Rated voltage:1500v
Halogen: Halogen free
Insulated: XLPE
Jacket: XLPE/TPU
Flame retardant: in accordance with ISO6722-2011
This wire has good resistance to scratching and hydrolysis.
EV electric vehicle high voltage line is suitable for battery power output, controller connection,
motor connection, charging pile, car charger and so on.

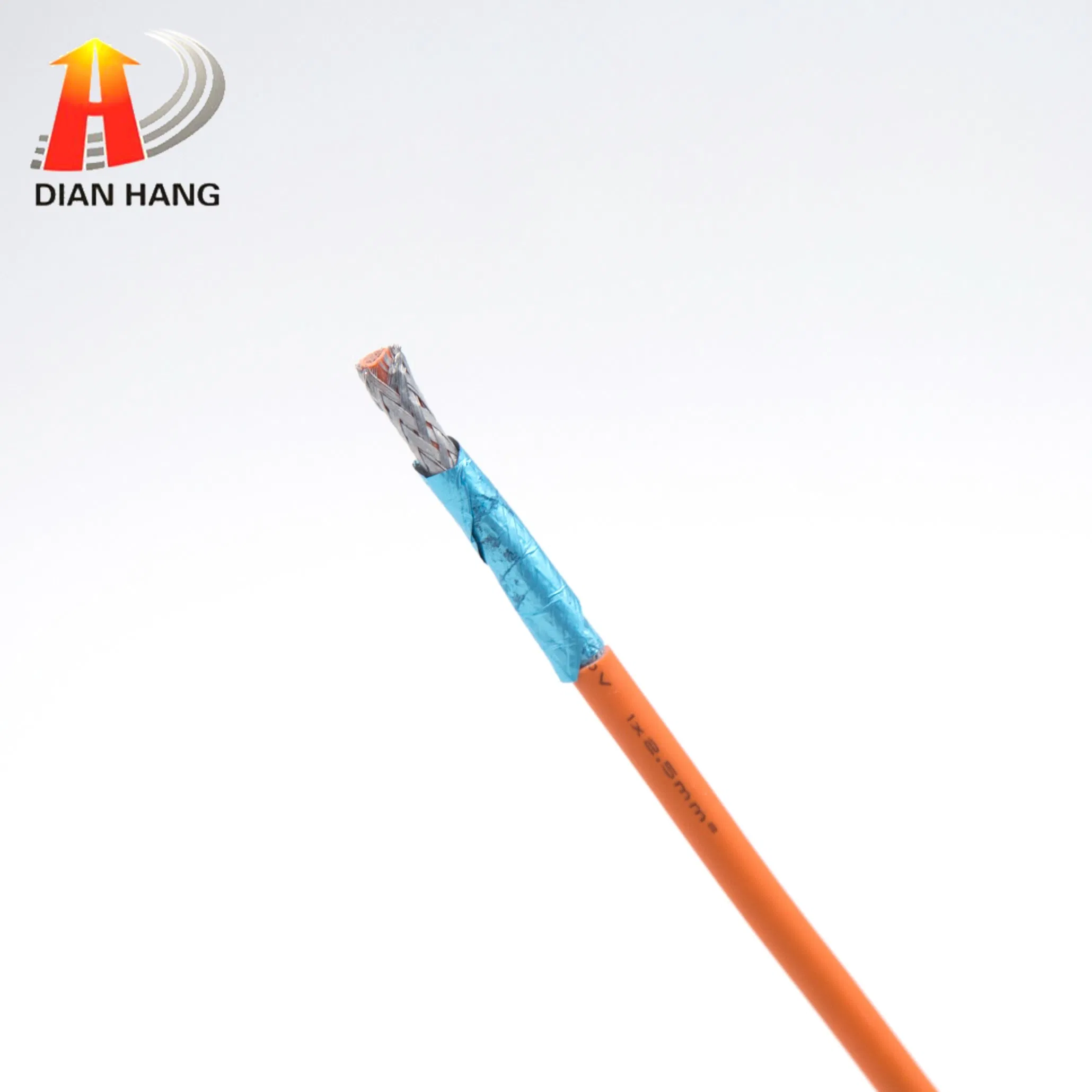

Product Type | Conductor | Insulation | Jacket | Max.cond. Resistance | |||
EV shielded | mm2 | Construction (No./mm) | OD (mm) | Shielded | Material | OD (mm) | (Ω/Km,20ºC,Dc)
|
0.5 | 16/0.20 | 2.90 | Shield braid | AL-Mylar | 5.50 | 37.1 | |
0.75 | 24/0.20 | 3.10 | Shield braid | AL-Mylar | 5.70 | 24.2 | |
1.0 | 32/0.20 | 3.70 | Shield braid | AL-Mylar | 6.30 | 18.5 | |
| 1.5 | 49/0.20 | 4.00 | Shield braid | AL-Mylar | 6.60 | 12.7 | |
| 2.0 | 64/0.20 | 4.10 | Shield braid | AL-Mylar | 6.80 | 9.42 | |
2.5 | 79/0.20 | 4.30 | Shield braid | AL-Mylar | 7.00 | 7.60 | |
3.0 | 7/14/0.20 | 4.90 | Shield braid | AL-Mylar | 7.50 | 6.15 | |
| 4.0 | 7/18/0.20 | 5.20 | Shield braid | AL-Mylar | 7.80 | 4.71 | |
| 5.0 | 7/23/0.20 | 5.40 | Shield braid | AL-Mylar | 8.00 | 3.70 |
6.0 | 7/27/0.20 | 5.60 | Shield braid | AL-Mylar | 8.30 | 3.14 | |
8.0 | 7/37/0.20 | 6.50 | Shield braid | AL-Mylar | 9.30 | 2.52 | |
