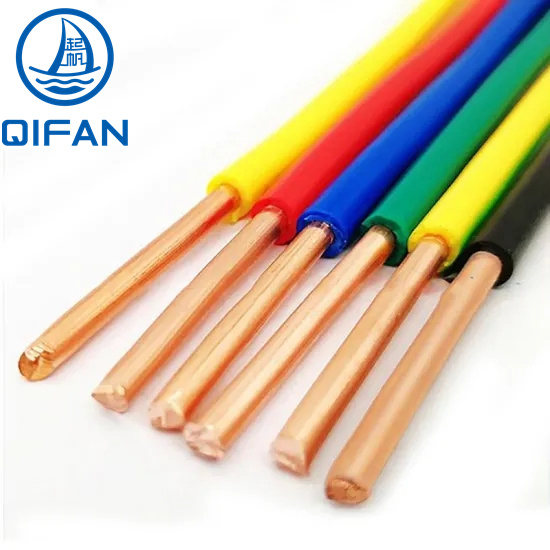

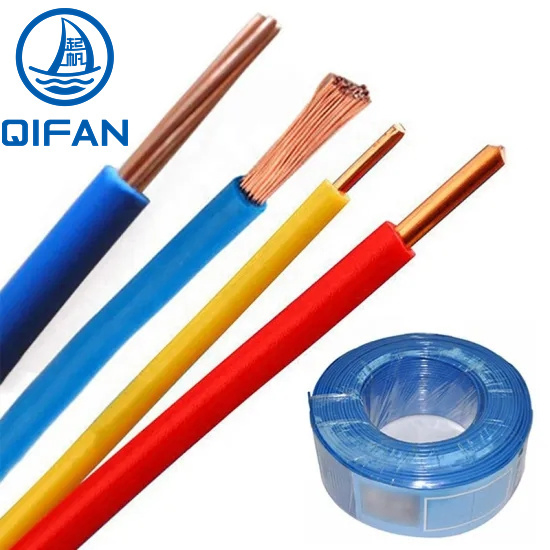

China Red/Green/Yellow/ Blue/Black 12AWG 14AWG 16AWG 22AWG UL1007 Wire Electronic Cable Solid Flat Electrical Wire

Product Description

Red/Green/Yellow/ Blue/Black 12AWG 14AWG 16AWG 22AWG UL1007 Wire Electronic Cable Solid Flat Electrical Wire

1.Application:
Fixed wiring,civil power,mobile equipment

2.Construction

Conductor type:
IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5~400mm²
We can according to our client's need and also provide technical data

3.Characteristic

Rated Voltage:
450/750V More-than 1.5mm2 single core conductor
300/500V Less-than 1.5mm2 single core and multicore conductor
300/300VLess-than 1.5mm2 multicore conductor

Test Voltage:
AC 1500V/5Min for 0.5~1mm2 multicore conductor
AC 2000V/5Min for 0.5~1mm2 single core and multicore conductor
AC 2500V/5Min Other.

Color of Insulation:
Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green.

Notes
1, Ambient temperature for insulation shall not be lower than 0ºC.
2, At nominal conditions, the conductor's operating temperature is -15ºC to +70ºC
3, Fire resistant wire conform to IEC 60331-2009, Flame resistant wire conform to IEC 60332-2004.

4.Standard
IEC 60227-2007 or as per customer's request
Some Type (Remarks: we can design and produce according to customer's request.)

Construction:
CU/PVC/PVC (NYM) 300/500 VOLT

CU/PVC/PVC (NYMHY) - 300/500 VOLT

CU/PVC/PVC (NYY) - 0.6/1 kV

CU/PVC/PVC (NYYHY) - 450/750 VOLT

CU/PVC (NYA) - 450/750 VOLT

CU/PVC (NYAF) - 450/750 VOLT

H07V-U/H07V-R/H07V-K PVC Flexible Cable

H05V-U/H05V-K/H05V-R PVC Cable

H03VV-F/H05VV-F PVC/PVC Flexible Cable

Type	Name	Laying Site and Requirements	Long-time Permissible Working Temperature of Conductor(ºC)

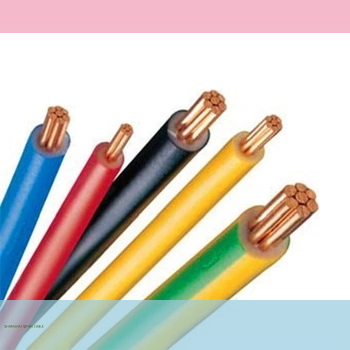

227IEC01/05 BV BLV	Copper Conductor,PVC Insulated Wire	Fixed laid in the circumstance of indoor, conduit etc.	70
227IEC01/05 BV BLV	Aluminium Conductor,PVC Insulated Wire	Fixed laid in the circumstance of indoor, conduit etc.	70
227IEC 07 BV-90	Heat Resistant Copper Conductor,PVC Insulated Wire at 90ºC	Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc.	90
BVR	Copper Conductor,PVC Insulated Flexible Wire	Fixed laid where flexibility is required.	70
227-IEC10 BVV	Copper Conductor PVC Insulated and PVC Sheathed Round Wire	Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground.	70
BLVV	Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire
BVVB	Copper Conductor PVC Insulated and PVC Sheathed Flat Wire
BLVVB	Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire
227IEC 02 RV227 IEC 06 RV	Copper Conductor,PVC Insulated Flexible Connector	Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required.	70
227IEC 42 RVB	Copper Conductor,PVC Insulated Flat Flexible Connector
RVS	Copper Conductor,PVC Insulated Flexible Twisting Connector

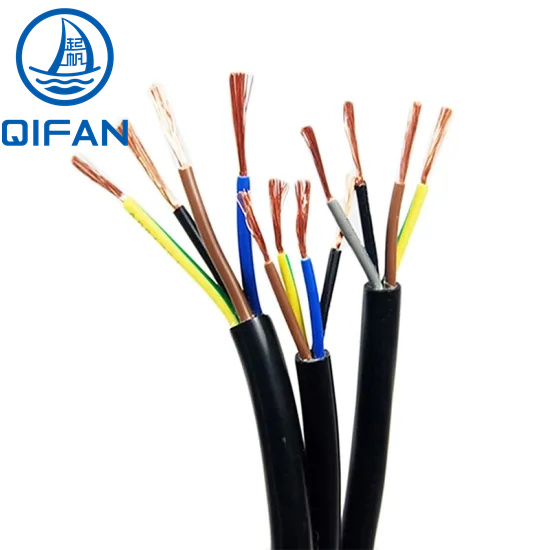

227IEC52 RVV 227IEC53 RVV	Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type)

------Our Feature------

Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
Perfect Production system

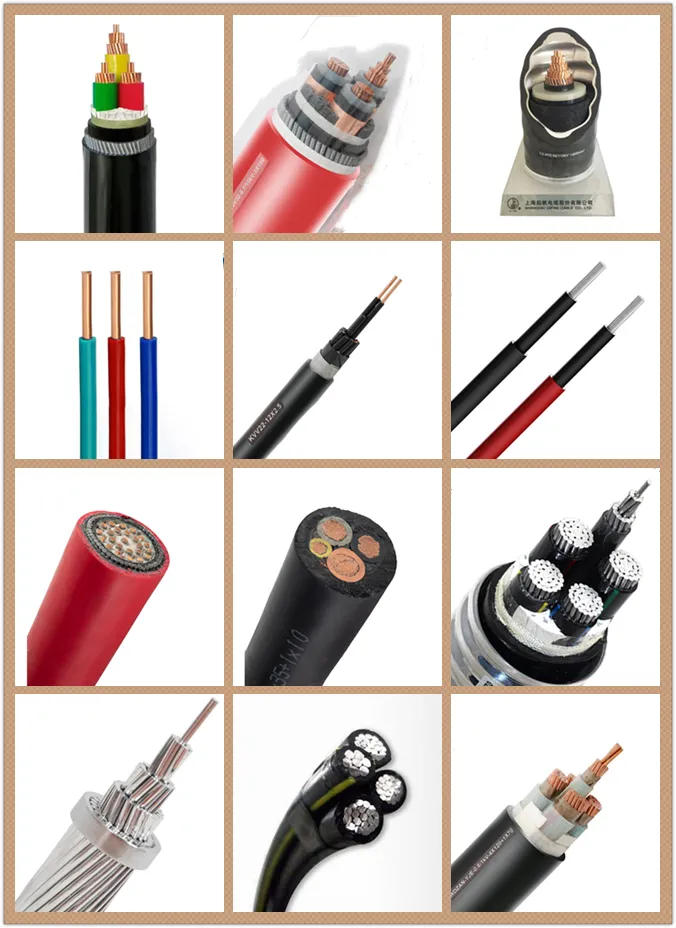

Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
