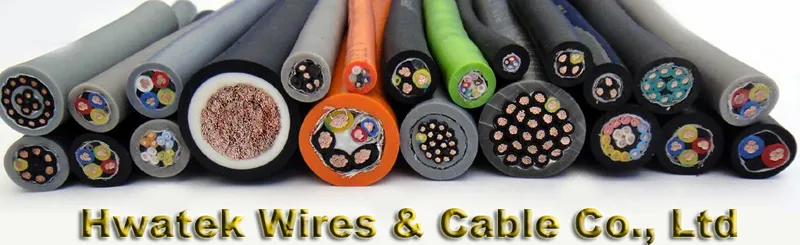

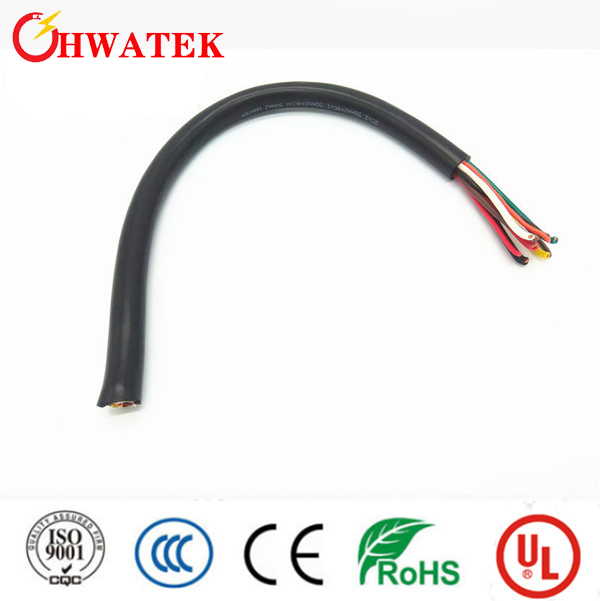

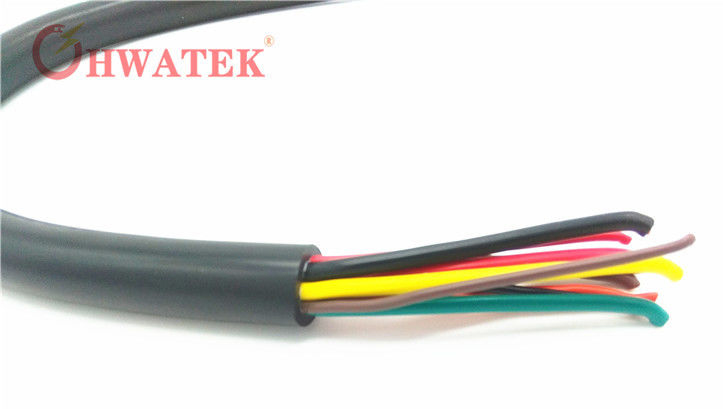

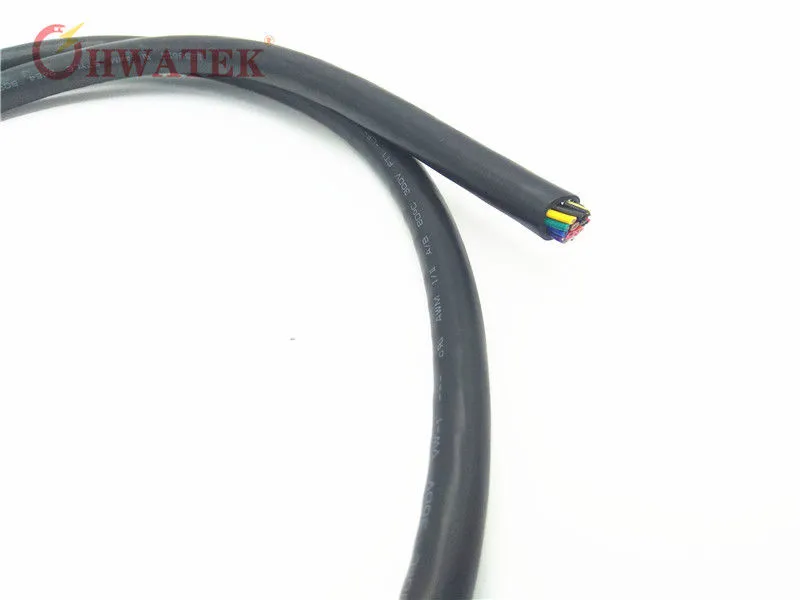

PVC Sheath FT2 Flame 26AWG Multicore Flexible Cable
Product IntroductionThe wiring inside the elevator shaft with a rated voltage of 300V-the control signal cable is composed of copper conductor, insulation, filling, tape, shielding and outer sheath. The cable has the characteristics of high flexibility, high temperature resistance, oil resistance, f......
Send Inquiry
Product Description
Product Introduction
The wiring inside the elevator shaft with a rated voltage of 300V-the control signal cable is composed of copper conductor, insulation, filling, tape, shielding and outer sheath. The cable has the characteristics of high flexibility, high temperature resistance, oil resistance, flame retardancy, etc. At the same time, all materials of the cable comply with the latest environmental protection standards of RoHS&Reach.
Characteristic
Application field
Mainly used for fixed installation of signal transmission cables in elevator shafts.
| Scope of application | Rated voltage | Recommended specifications | Recommended number of cores |
| Control cabinet → hoistway switch wiring | |||
| Safety circuit switch hoistway cable | 300V | 26AWG-14AWG | 7+1 |
| Upper forced switch, lower forced switch, upper limit switch, lower limit switch, ladder lock switch, fire return switch | 300V | 26AWG-14AWG | 2+1 |
| Door lock trunk cable and door lock branch cable in hoistway | 300V | 26AWG-14AWG | 2+1 |
| Control cabinet → hoistway floor display wiring | |||
| Floor display main line cable, floor display branch cable | 300V | 26AWG-14AWG | Number of layers +N+PE |
| Note: The number of layers is 7 and above | |||
Structure diagram

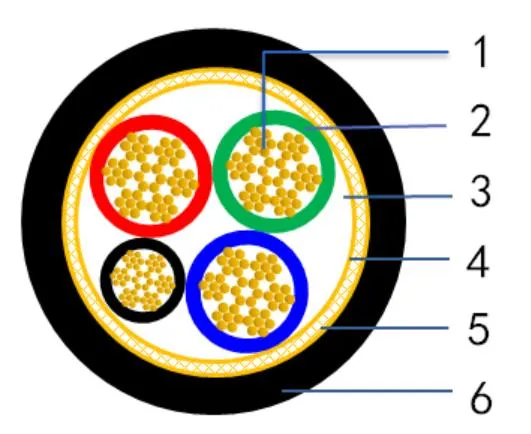

1- conductor,2- insulation,3- filling,4- Strap,5- shield(Optional),6- Outer sheath
Printing:E258652 AWM STYLE 2517 ***AWG 105ºC 300V VW-1- c AWM I/II A/B 105ºC 300V FT1 -LF- HWATEK
Basic Information
Conductor : Solid or Stranded
Insulation: Special mixed PVC
Shield or Braid: optional
Jacket: Special mixed PVC
Implementing standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature:-40ºC-105ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.0kV/1min
| Number of cores*Specifications | Conductor structure | Conductor outer diameter | Average insulation thickness | Insulation outer diameter | Average thickness of sheath | Finished outer diameter | Cable net weight | Maximum conductor DC resistance (20ºC) |
| (mm) | (mm) | (mm) | (mm) | (mm) | kg/km | Ω/km | ||
| 2C*26AWG | 7/0.16 | 0.48 | 0.30 | 1.2±0.05 | 0.76 | 4.3±0.20 | 19.2 | 150 |
| 2C*24AWG | 7/0.20 | 0.60 | 0.30 | 1.3±0.05 | 0.76 | 4.5±0.20 | 21.9 | 94.2 |
| 2C*22AWG | 7/0.254 | 0.76 | 0.30 | 1.5±0.05 | 0.76 | 4.9±0.20 | 27.0 | 59.4 |
| 2C*20AWG | 7/0.32 | 0.96 | 0.30 | 1.7±0.10 | 0.76 | 5.3±0.20 | 33.7 | 36.7 |
| 2C*18AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 5.7±0.20 | 41.2 | 23.0 |
| 2C*16AWG | 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 0.76 | 6.4±0.30 | 55.2 | 14.6 |
| 2C*14AWG | 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 0.76 | 7.2±0.30 | 75.7 | 8.96 |
| 2C*18AWG+16AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 6.2±0.20 | 57.4 | 23.0 |
| 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 14.6 | ||||
| 2C*18AWG+14AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 6.6±0.30 | 66.7 | 23.0 |
| 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 8.96 | ||||
| 3C*26AWG | 7/0.16 | 0.48 | 0.30 | 1.2±0.05 | 0.76 | 4.5±0.20 | 22.0 | 150 |
| 3C*24AWG | 7/0.20 | 0.60 | 0.30 | 1.3±0.05 | 0.76 | 4.7±0.20 | 25.8 | 94.2 |
| 3C*22AWG | 7/0.254 | 0.76 | 0.30 | 1.5±0.05 | 0.76 | 5.1±0.20 | 32.0 | 59.4 |
| 3C*20AWG | 7/0.32 | 0.96 | 0.30 | 1.7±0.10 | 0.76 | 5.6±0.20 | 41.4 | 36.7 |
| 3C*18AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 6±0.20 | 51.4 | 23.0 |
| 3C*16AWG | 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 0.76 | 6.8±0.30 | 71.0 | 14.6 |
| 3C*14AWG | 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 0.76 | 7.6±0.30 | 98.2 | 8.96 |
| Number of cores*Specifications | Conductor structure | Conductor outer diameter | Average insulation thickness | Insulation outer diameter | Average thickness of sheath | Finished outer diameter | Cable net weight | Maximum conductor DC resistance (20ºC) |
| (mm) | (mm) | (mm) | (mm) | (mm) | kg/km | Ω/km | ||
| 3C*18AWG+16AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 6.8±0.30 | 69.7 | 23.0 |
| 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 14.6 | ||||
| 3C*18AWG+14AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 7±0.30 | 78.1 | 23.0 |
| 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 8.96 | ||||
| 4C*26AWG | 7/0.16 | 0.48 | 0.30 | 1.2±0.05 | 0.76 | 4.8±0.20 | 25.9 | 150 |
| 4C*24AWG | 7/0.20 | 0.60 | 0.30 | 1.3±0.05 | 0.76 | 5±0.20 | 30.4 | 94.2 |
| 4C*22AWG | 7/0.254 | 0.76 | 0.30 | 1.5±0.05 | 0.76 | 5.5±0.20 | 38.7 | 59.4 |
| 4C*20AWG | 7/0.32 | 0.96 | 0.30 | 1.7±0.10 | 0.76 | 6±0.20 | 50.2 | 36.7 |
| 4C*18AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 6.6±0.30 | 63.4 | 23.0 |
| 4C*16AWG | 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 0.76 | 7.3±0.30 | 88.0 | 14.6 |
| 4C*14AWG | 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 0.76 | 8.3±0.30 | 124.3 | 8.96 |
| 5C*26AWG | 7/0.16 | 0.48 | 0.30 | 1.2±0.05 | 0.76 | 5.1±0.20 | 29.6 | 150 |
| 5C*24AWG | 7/0.20 | 0.60 | 0.30 | 1.3±0.05 | 0.76 | 5.4±0.20 | 35.7 | 94.2 |
| 5C*22AWG | 7/0.254 | 0.76 | 0.30 | 1.5±0.05 | 0.76 | 6±0.20 | 46.3 | 59.4 |
| 5C*20AWG | 7/0.32 | 0.96 | 0.30 | 1.7±0.10 | 0.76 | 6.6±0.30 | 59.9 | 36.7 |
| 5C*18AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 7.1±0.30 | 75.6 | 23.0 |
| 5C*16AWG | 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 0.76 | 7.9±0.30 | 106.0 | 14.6 |
| 5C*14AWG | 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 0.76 | 9±0.30 | 150.8 | 8.96 |
| Number of cores*Specifications | Conductor structure | Conductor outer diameter | Average insulation thickness | Insulation outer diameter | Average thickness of sheath | Finished outer diameter | Cable net weight | Maximum conductor DC resistance (20ºC) |
| (mm) | (mm) | (mm) | (mm) | (mm) | kg/km | Ω/km | ||
| 5C*18AWG+16AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 7.9±0.30 | 95.7 | 23.0 |
| 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 14.6 | ||||
| 5C*18AWG+14AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 8.1±0.30 | 104.3 | 23.0 |
| 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 8.96 | ||||
| 6C*26AWG | 7/0.16 | 0.48 | 0.30 | 1.2±0.05 | 0.76 | 5.5±0.20 | 34.4 | 150 |
| 6C*24AWG | 7/0.20 | 0.60 | 0.30 | 1.3±0.05 | 0.76 | 5.8±0.20 | 41.3 | 94.2 |
| 6C*22AWG | 7/0.254 | 0.76 | 0.30 | 1.5±0.05 | 0.76 | 6.5±0.30 | 53.2 | 59.4 |
| 6C*20AWG | 7/0.32 | 0.96 | 0.30 | 1.7±0.10 | 0.76 | 7.1±0.30 | 70.0 | 36.7 |
| 6C*18AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 7.7±0.30 | 89.2 | 23.0 |
| 6C*16AWG | 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 0.76 | 8.6±0.30 | 125.7 | 14.6 |
| 6C*14AWG | 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 0.76 | 9.9±0.40 | 179.0 | 8.96 |
| 6C*18AWG+16AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 8±0.30 | 104.3 | 23.0 |
| 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 14.6 | ||||
| 6C*18AWG+14AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 8.4±0.30 | 115.3 | 23.0 |
| 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 8.96 | ||||
| 7C*18AWG+16AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 8.3±0.30 | 115.4 | 23.0 |
| 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 14.6 | ||||
| 7C*18AWG+14AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 8.4±0.30 | 123.0 | 23.0 |
| 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 8.96 | ||||
| 8C*18AWG+2C*16AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 10.3±0.40 | 157.6 | 23.0 |
| 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 14.6 | ||||
| 12C*18AWG+2C*16AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 10.9±0.40 | 196.2 | 23.0 |
| 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 14.6 |
Remark 1: The detailed dimensions and technical parameters are subject to our product specifications.
The above products are non-shielded standard models, and can also be customized according to customer requirements or actual usage.
Company Profiles

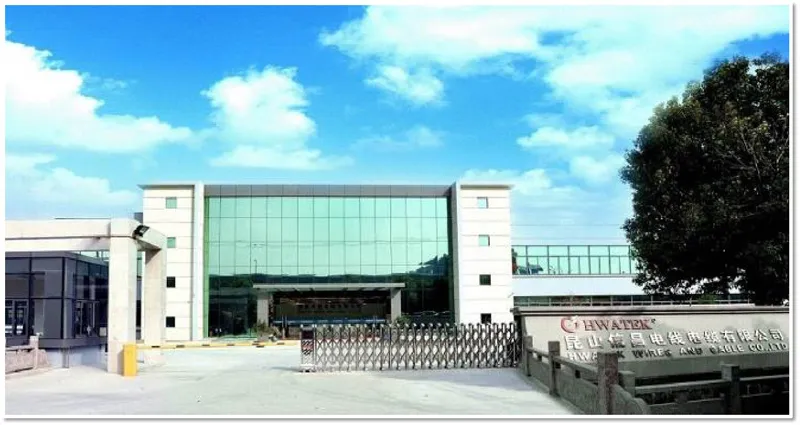

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

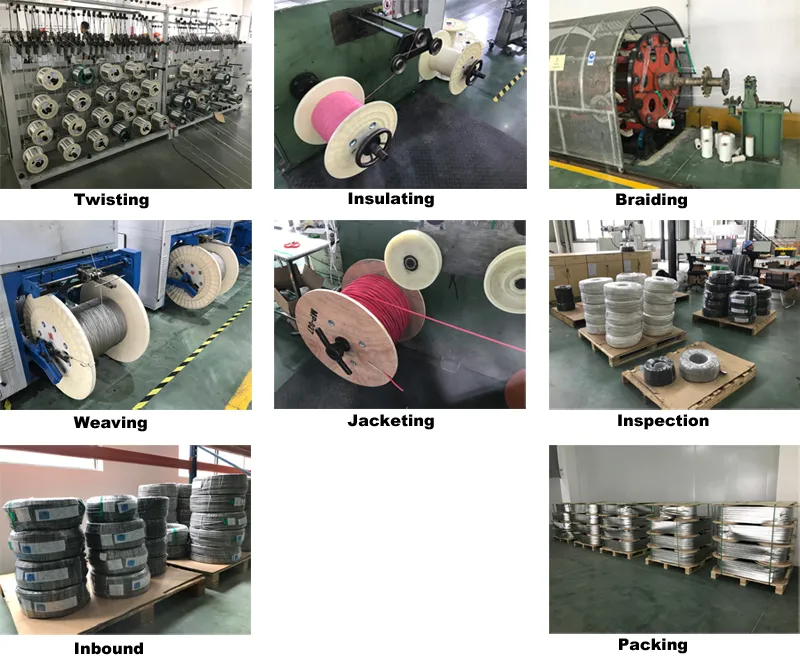

Production Progress
