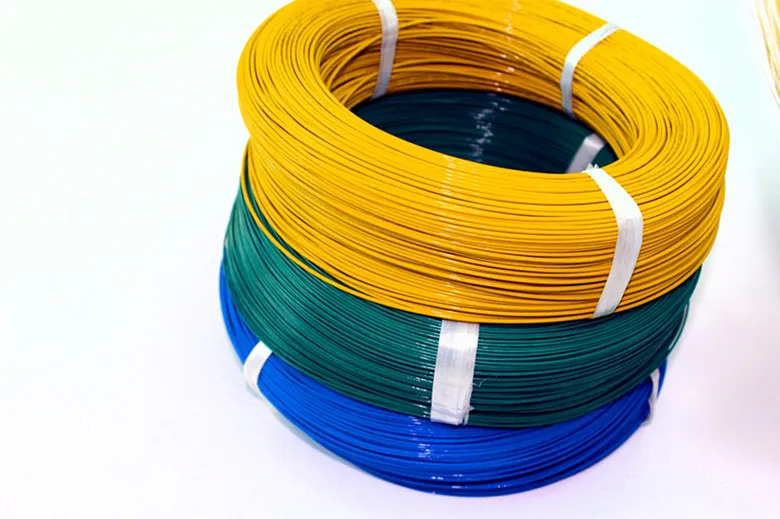

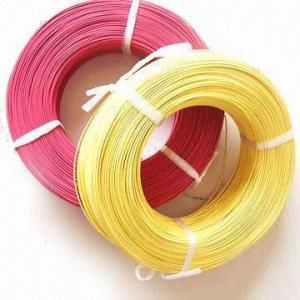

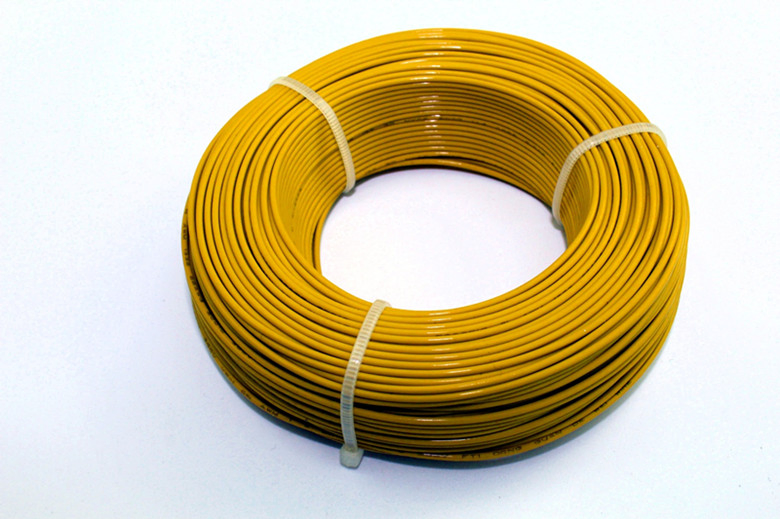

PVC Insulated Cable 26AWG with UL1007
Insulated Flexible PVC Cables(UL1007)--26AWGNominal Voltage:300VRated Temperature :80ºCConductor:Tinned copper&bare copperInsulator:PVCO.D.Tolerance:±0.10mmColor:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ectcon.of conductor.:7/0.16Thickness of in......
Send Inquiry
Product Description
Insulated Flexible PVC Cables(UL1007)--26AWG
Nominal Voltage:300V
Rated Temperature :80ºC
Conductor:Tinned copper&bare copper
Insulator:PVC
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
con.of conductor.:7/0.16
Thickness of insulator:0.41MM
over diameter:1.35MM
Packing:610M/COIL
Max.con.resistance at 20ºC:45.2ohm/kft/20ºC
Nominal Voltage:300V
Rated Temperature :80ºC
Conductor:Tinned copper&bare copper
Insulator:PVC
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect
con.of conductor.:7/0.16
Thickness of insulator:0.41MM
over diameter:1.35MM
Packing:610M/COIL
Max.con.resistance at 20ºC:45.2ohm/kft/20ºC
