PVC Insulated and PVC Jacket BVV Electrical Cable Wire. 2core, 3 Core, 4core, 5 Core X1.5sqmm, 2.5sqmm to 6sqmm
DescriptionsLight PVC Sheathed Cable for fixed wiring.Code designation: 60227 IEC 10 (International), BVV 300/500V(China)Constructions1 Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1Plain circular stranded copper conductor, comform to IEC 60228 class 22 Insulation: PV......
Send Inquiry
Product Description
Descriptions
Light PVC Sheathed Cable for fixed wiring.
Code designation: 60227 IEC 10 (International), BVV 300/500V(China)
Constructions
1 Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
Plain circular stranded copper conductor, comform to IEC 60228 class 2
2 Insulation: PVC/C
3Inner Covering
4 Overall Sheath: PVC type ST4
Note: Insulation color as per standards or at request
Applications
Used as fixed wiring cable of rated voltage 300/500V.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V
Max. Conductor Temp. in normal use: 70ºC
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 1x0.75 | 1x1/0.97 | 4.3 | 23 |
| 1x1.0 | 1x1/1.13 | 4.5 | 26.4 |
| 1x1.5(A) | 1x1/1.38 | 4.9 | 34.6 |
| 1x1.5(B) | 1x7/0.52 | 5.2 | 36.5 |
| 1X2.5(A) | 1x1/0.85 | 5.8 | 46.4 |
| 1X4(A) | 1x1/2.25 | 6.4 | 65.9 |
| 1X4(B) | 1x7/0.85 | 6.8 | 73.7 |
| 1X6(A) | 1x1/2.76 | 7.0 | 91.6 |
| 1X10 | 1x7/1.35 | 8.8 | 152.0 |
| 2X1.5(A) | 2x1/1.38 | 10.0 | 109 |
| 2X1.5(B) | 2x7/0.52 | 10.5 | 123 |
| 2X2.5(A) | 2x1/1.78 | 11.5 | 157 |
| 2X2.5(B) | 2x7/0.68 | 12.0 | 172 |
| 2X4(A) | 2x1/2.25 | 12.5 | 205 |
| 2X4(B) | 2x7/0.85 | 13.0 | 222 |
| 2X6(A) | 2x1/2.76 | 13.5 | 265 |
| 2X6(B) | 2x7/1.04 | 14.0 | 286 |
| 2X10 | 2x7/1.35 | 17.5 | 471 |
| 3X1.5(A) | 3x1/1.38 | 10.5 | 136 |
| 3X1.5(B) | 3x7/0.52 | 11.0 | 146 |
| 3X2.5(A) | 3x1/1.78 | 12.0 | 190 |
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 3x2.5(B) | 3X7/0.68 | 12.5 | 207 |
| 3X4(A) | 3X1/2.25 | 13.0 | 252 |
| 3X4(B) | 3X7/0.85 | 13.5 | 272 |
| 3X6(A) | 3X1/2.76 | 14.5 | 344 |
| 3X10 | 3X7/1.35 | 19.0 | 574 |
| 4X1.5(A) | 4X1/1.38 | 11.5 | 164 |
| 4X1.5(B) | 4X7/0.52 | 12.0 | 174 |
| 4X2.5(B) | 4X7/0.68 | 13.5 | 252 |
| 4X4(A) | 4X1/2.25 | 14.5 | 321 |
| 4X4(B) | 4X7/0.85 | 15.0 | 346 |
| 4X6(A) | 4X1/1.04 | 16.0 | 470 |
| 4X6(B) | 4X7/2.76 | 17.0 | 439 |
| 5X1.5(A) | 5X1/1.38 | 12.0 | 192 |
| 5X1.5(B) | 5X7/0.52 | 12.5 | 205 |
| 5X2.5(A) | 5X1/1.78 | 14.0 | 272 |
| 5X2.5(B) | 5X7/0.68 | 14.5 | 292 |
| 5X4(A) | 5X1/2.25 | 16.0 | 397 |
| 5X4(B) | 5X7/0.85 | 17.0 | 418 |
| 5X6(A) | 5X1/2.76 | 17.5 | 518 |
| 5X6(B) | 5X7/1.04 | 18.5 | 550 |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always
the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

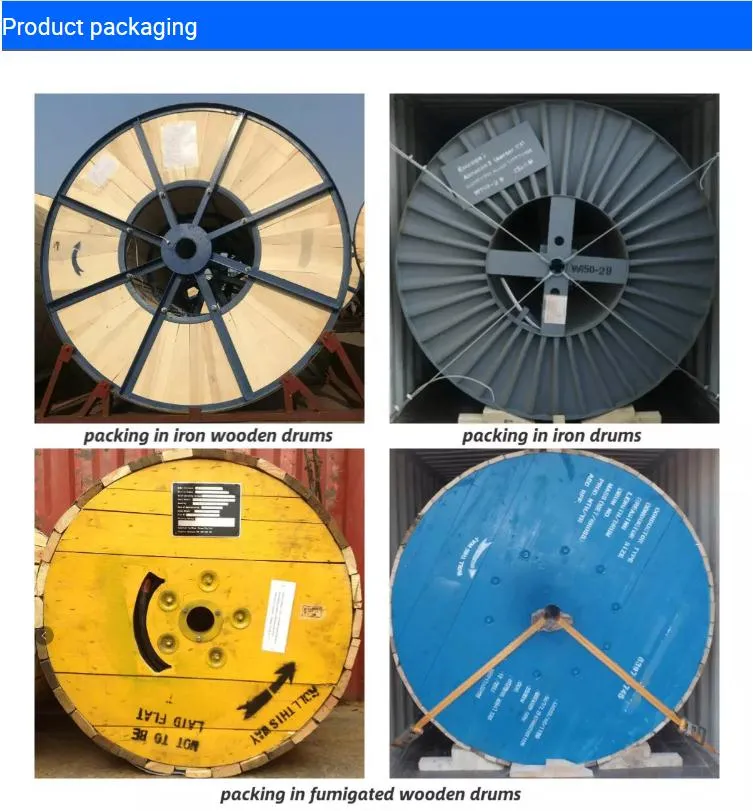

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non
-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof
material on the outsides of drum according to customer's requirement.
Till now, TDDL has obtained a series of certifications covering ISO9001 quality management, ISO14001 environmental ,
management system certification, OHSAS18001 occupational health and safety management system, China CCC, PCCC,
CRCC, CE etc.

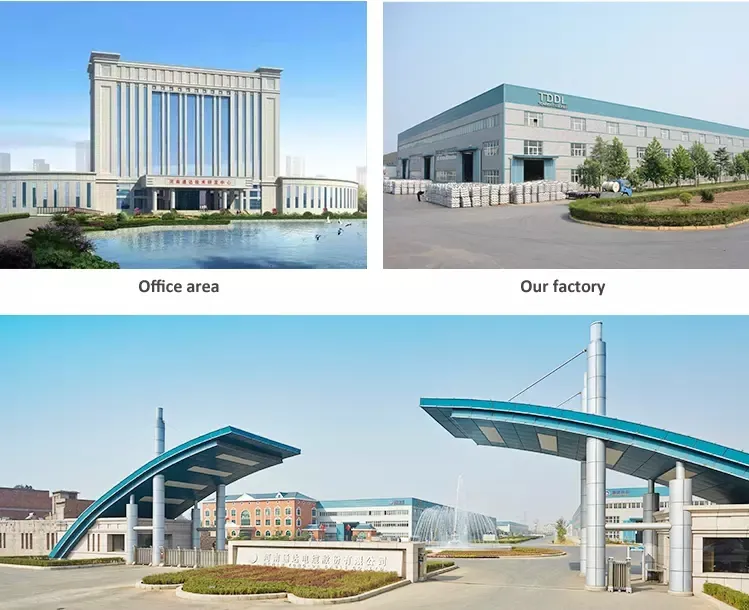

Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation:
Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than
30 years.
of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, enviro
nmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control
cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and
etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and
others,on the basis of customers' requirements.
occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product
certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely
usedin smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than
60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from
numerous customers.
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60
countries and regions, and enjoys a certain reputation among users.
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable
(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,
Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay ,
Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our
workshops are equipped with advanced production and inspection equipment and the products strictly according to internati
onal standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the sim
ilar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
