China PVC Coated Single Core Electric Copper Cable 26AWG UL Awm 1571 Wire

Product Description

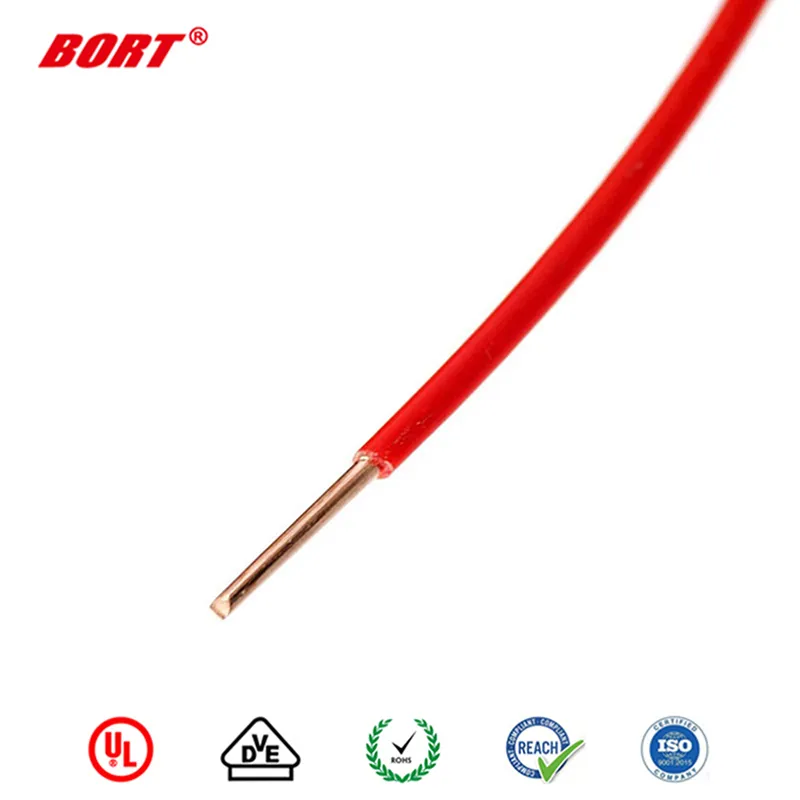

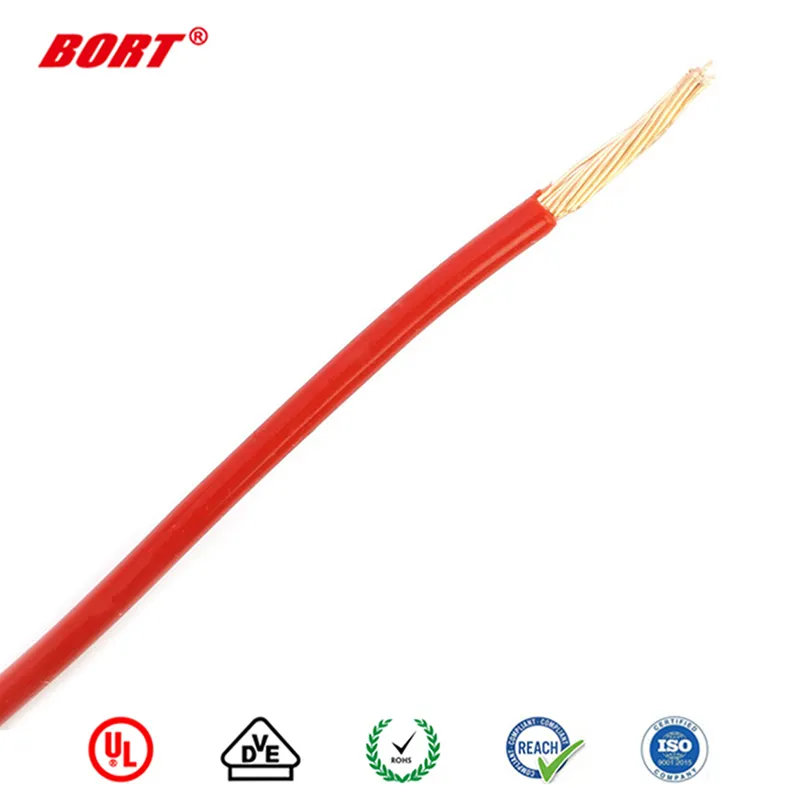

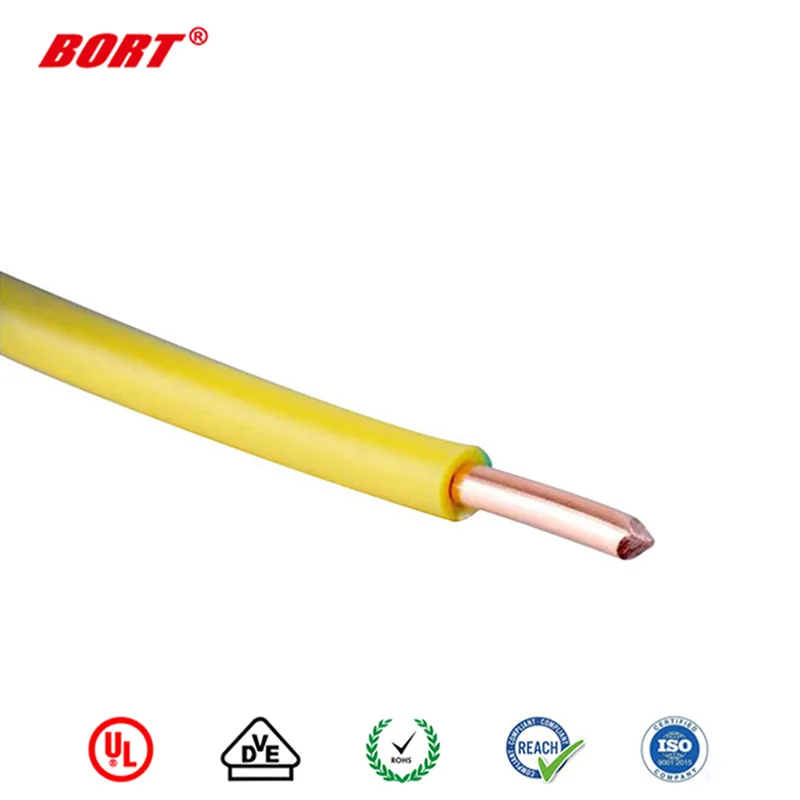

PVC coated single core electric copper cable 26AWG ul awm 1571 wire

★ Rated temperature: 80ºC
Rated voltage: 30V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded, Top coated, Over coated copper wire or solid copper conductor
copper wire, 50 AWG minimum
★ Colour-coded lead free PVC or SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Ultra fine version are available
★ Application: For internal wiring of electronic and electrical equipment, and power
adaptor for portable PC

Conductor		Finished product			Maximum Resistance at 20ºC
AWG	No.of Cond	Insulation Nom.Thick.	Insulation Nom. Thick.	Jacket Nom. Dia.	Maximum Resistance at 20ºC
AWG	mm	mm	mm	mm	Ω/mm
36	7/0.05	0.45	^_	^_	1490
34	7/0.065	0.50	^_	^_	908
32	7/0.08	0.70	^_	^_	597
30	7/0.1	0.90	0.35		354.0
30	7/0.1	0.70	^_	^_	354.0
28	7/0.127	0.90	0.35	1.80	223.0
28	7/0.127	0.90	^_	^_	223.0
26	7/0.16	1.00	^_	^_	139.0
24	7/0.2	1.10	^_	^_	88.9
22	7/0.16	1.40	0.58	2.8	57.5
22	17/0.16	1.25	^_	^_	57.5
20	26/0.16	1.80	0.56	3.1	34.6
18	65/0.127	1.78	0.59	3.2	23.3
16	54/0.18	2.15	0.61	3.6	15.1

FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.

Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service

Why choose us?
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
