Product Description
Solar PV Cable 10mm2
This cable is specifically designed for connecting photovoltaic system components inside and outside of building and equipment.
Standard: TŰV 2Pfg 1169 08.07
| Technical Specification For Cable | |||||||||||||||
| Cable Type | |||||||||||||||
| 2 PFG 1169 PV1-F 1×10,0mm2 | |||||||||||||||
| Application | |||||||||||||||
| This cable is specifically designed for connecting photovoltaic system components inside and outside of building and equipment. . | |||||||||||||||
| standard | |||||||||||||||
| TŰV 2PfG 1169 08.07 | |||||||||||||||

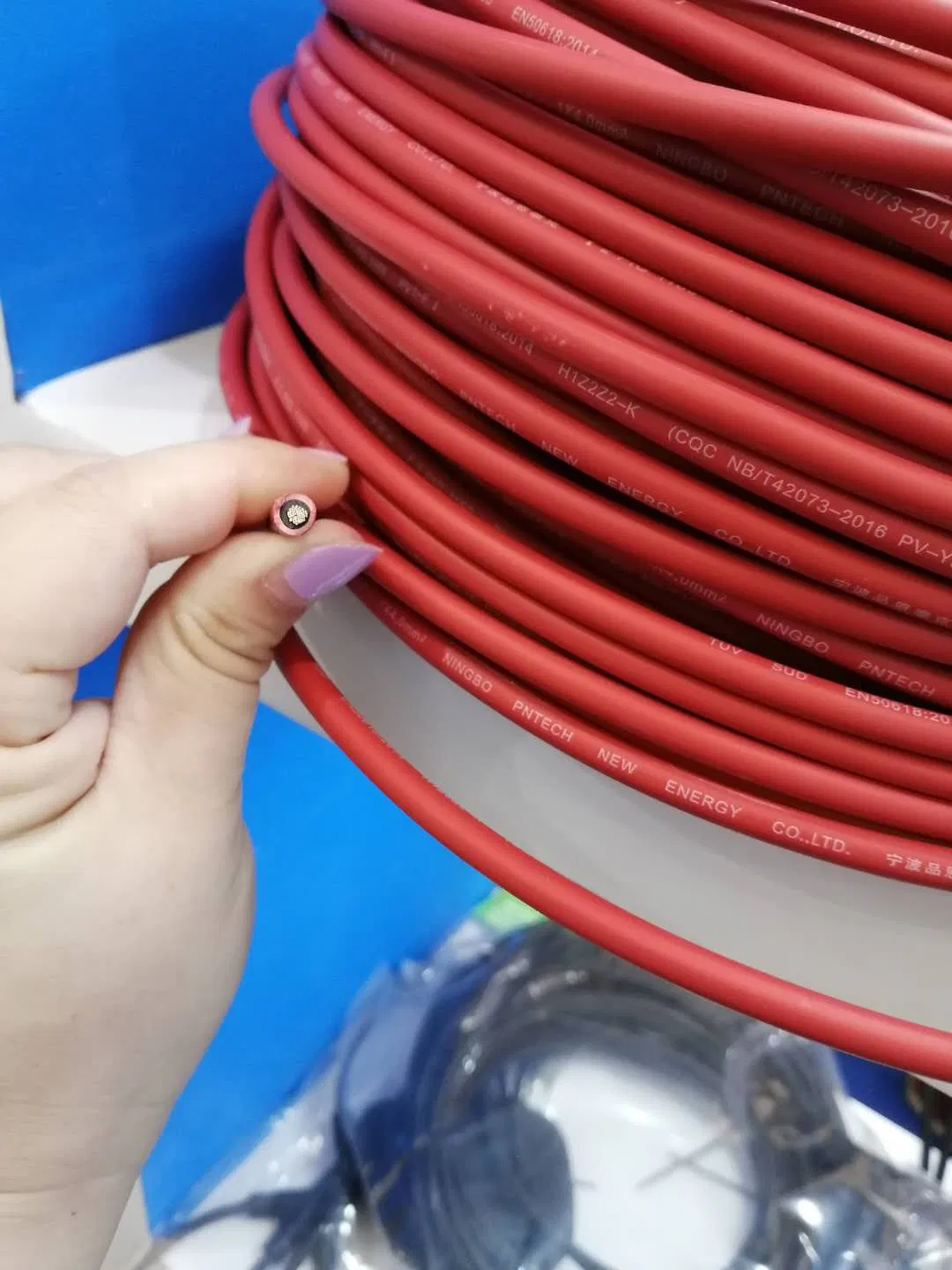

| Conductor | Conductor Material | Stranded tinned copper | |||||||||||||
| Constitute Structure | 84/0.3(±0.005)mm | ||||||||||||||
| Insulation | Insulation Material | XLPE | |||||||||||||
| Insulation mean Thickness | 0.85 | ||||||||||||||
| lay) | / | / | |||||||||||||
| Jacket | Jacket Material | XLPE | |||||||||||||

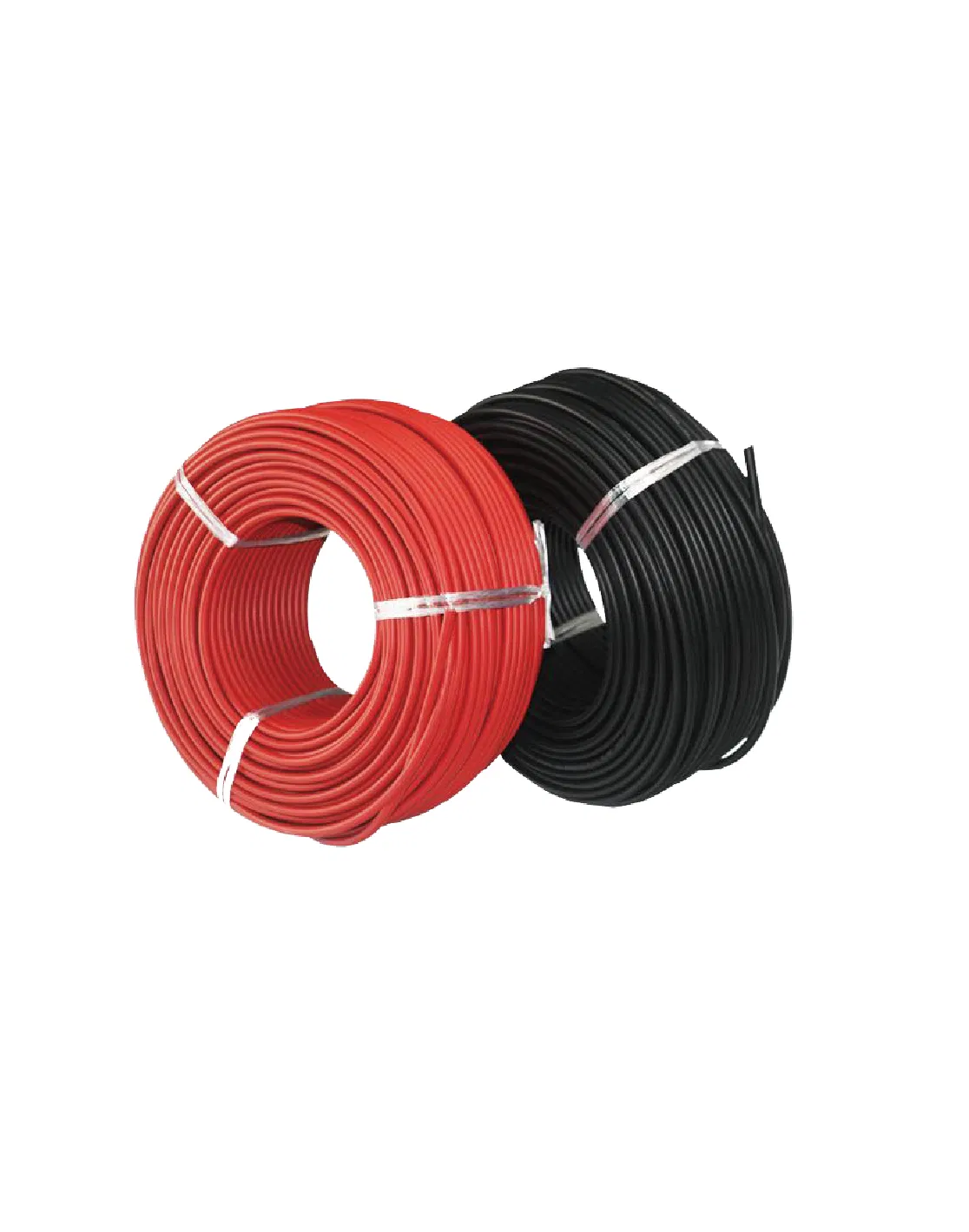

| Jacket Colour | (black or red)() | ||||||||||||||
| Jacket mean Thickness | 0.77 | ||||||||||||||
| Jacket Diameter(mm) () | 7.1±0.2 | ||||||||||||||

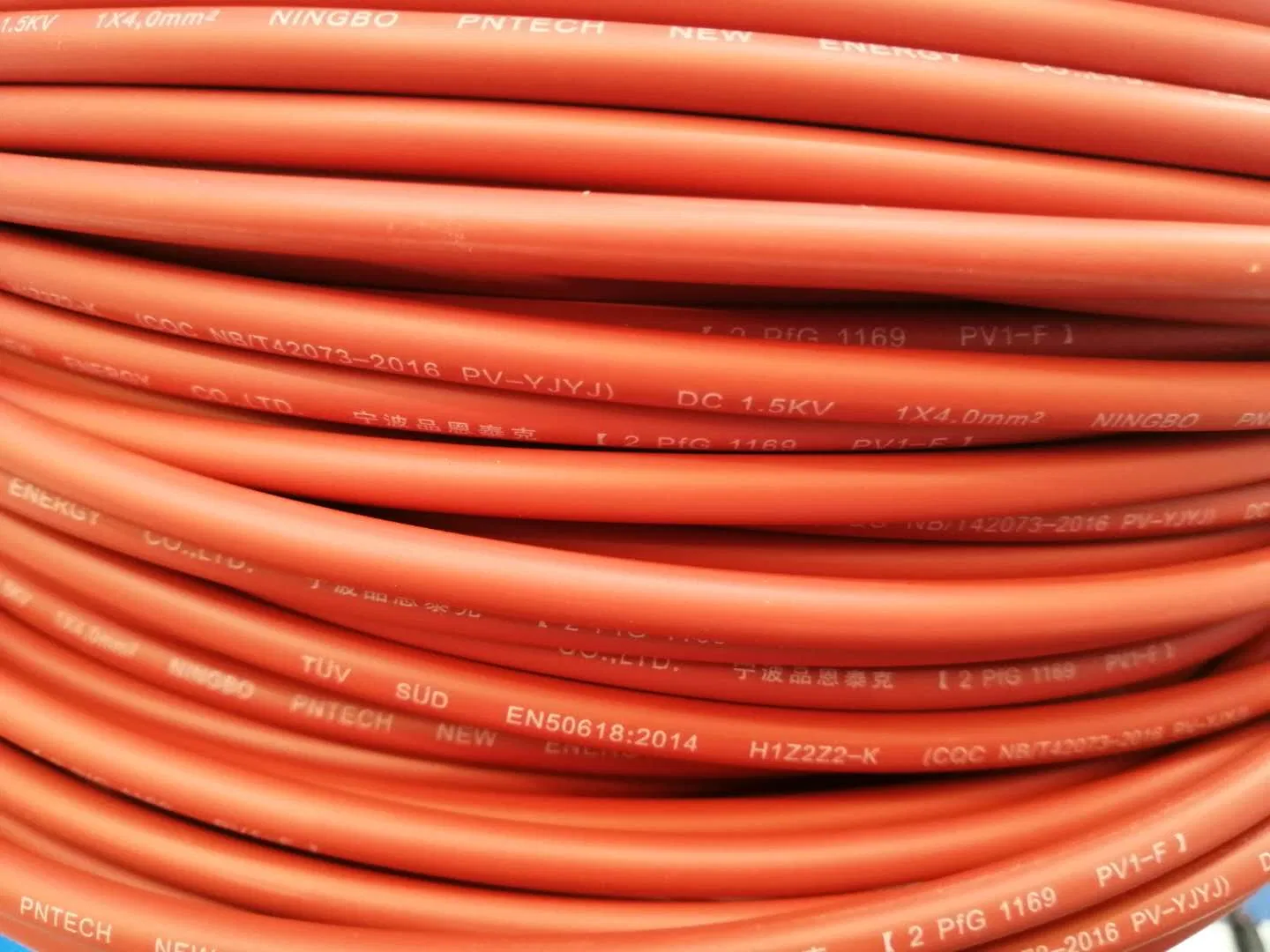

| mark | 2 PfG 1169 PV1-F 1×... AC 0.6/1.0KV DC 1.8KV NINGBO PNTECH NEW ENERGY CO.,LTD. | ||||||||||||||
| Electrical Characteristics | Properties | ||||||||||||||
| Conductor dc resistance (Ω /KM) | ≤3.39(Ω/KM) | Temperature range: | -40ºC~+90ºC | ||||||||||||
| Rated Voltage (V) | AC Uo/U0.6~1.0KV , DC1.8KV | 20 '000 hours conductor maximum working temperature:20′000 : | 120ºC | ||||||||||||
| The service life of the theory: | 25 | ||||||||||||||
