PT100 Rtd Extension Wire 20AWG

1. Introduction:
Thermocouple Extension wire is usually used to connect thermocouple and display-controled meters in order to lower the inaccuracy caused by temperature change on the connections.

2. Construction:
Conductor: original thermocoupole alloy material, in solid wire or strand wires
Insulation Layer:
Fiberglass              (ambient temperature range 0-300ºC
 PVC                       (ambient temperature range 0-105ºC)
 Telflon                  (ambient temperature range 0-350ºC)
 Silicone rubber   (ambient temperature range 0-180ºC)
Jacket layer materials: fiberglass, PVC, teflon, silicone rubber
Galvanized layer: stainless steel, tinned brass

3.Standard: conforms to IEC584 standard.

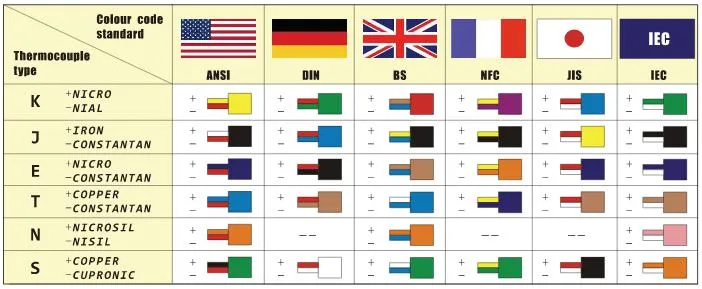

4. Color Code:Table 1


1, SUBJECT
This specification covers the requirements for fiberlass insulated, Stainless steel braided
thermocouple extension cable, 2×20AWG, stranded wire, standard tolerance and color code.


A. Conductors:
Stranded thermocouple extension wire

B. Insulation:
Braided fiberglass (400ºC)


C. Assembly:
Two conductors (positive and negative) parallel construction.

D. Overall Jacket
Silicone rubber ( 200ºC)


3, DIMENSIONS AND TOLERANCES


4, CALIBRATION TOLERANCE

Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other compensating
cable like KCA, KCB and so on.
Besides those wires, we can also produce according to your demand.

7. How to select:Order Code: e.g.  1                           2                                  3                                     4                          5                       6

1  Thermocouple Types: K, J, E, T, N, S          RTD: Cu, Ni

2  Conductot dimension:
2*7/0.3 means 2 cores,  each core includes 7 strands wire,
each wire diameter is 0.3mm, more example: 2×7/0.2, 2×4/0.65, 2×1/0.3 etc.
Other way to symbol the conductor dimensions:
Conductor square meter: 0.25mm²
AWG standard (see*Table 2)

3 Insulated layer materials:
FG: fiberglass   PVC: PVC      TF: teflon        SR: silicone rubber

4 Jacket layer material
FG: fiberglass   PVC: PVC      TF: teflon        SR: silicone rubber

5 Galvanized Layer material:   SS: stainless steel  TB: tinned brass

6Color Code:
ANSI: American standard   DIN: Germany standard    BS:Britain standard
NFC: France Standard          JIS: Japan Standard           IEC: IEC standard

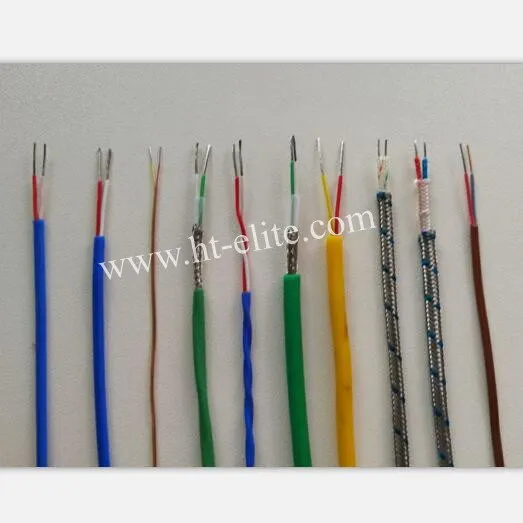

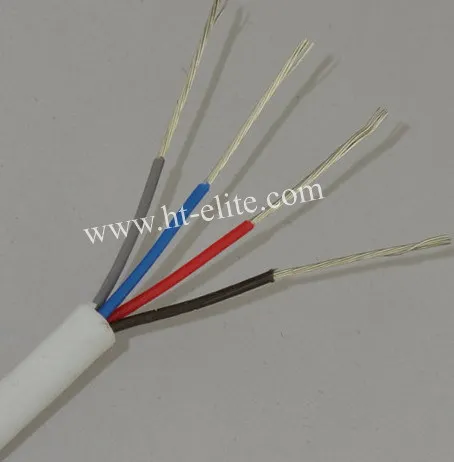

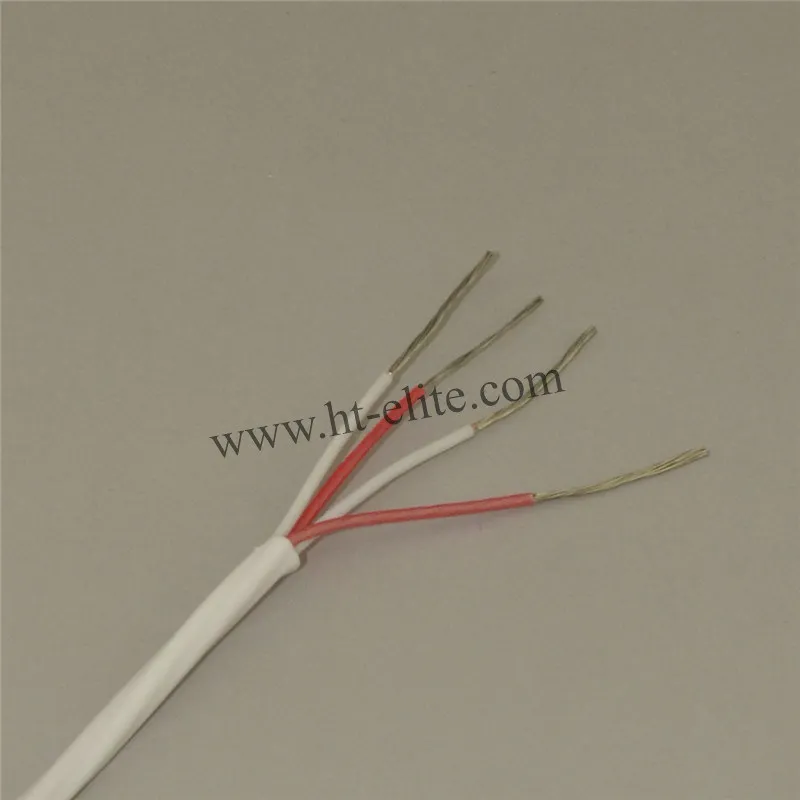

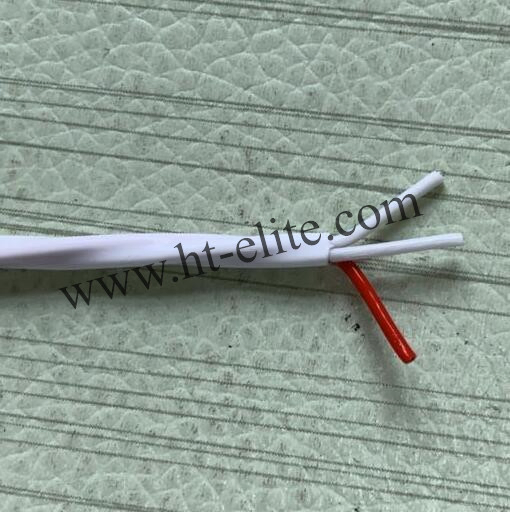

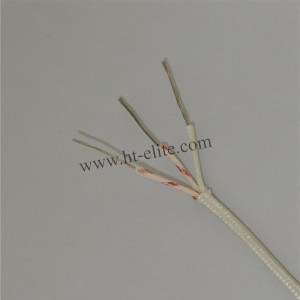

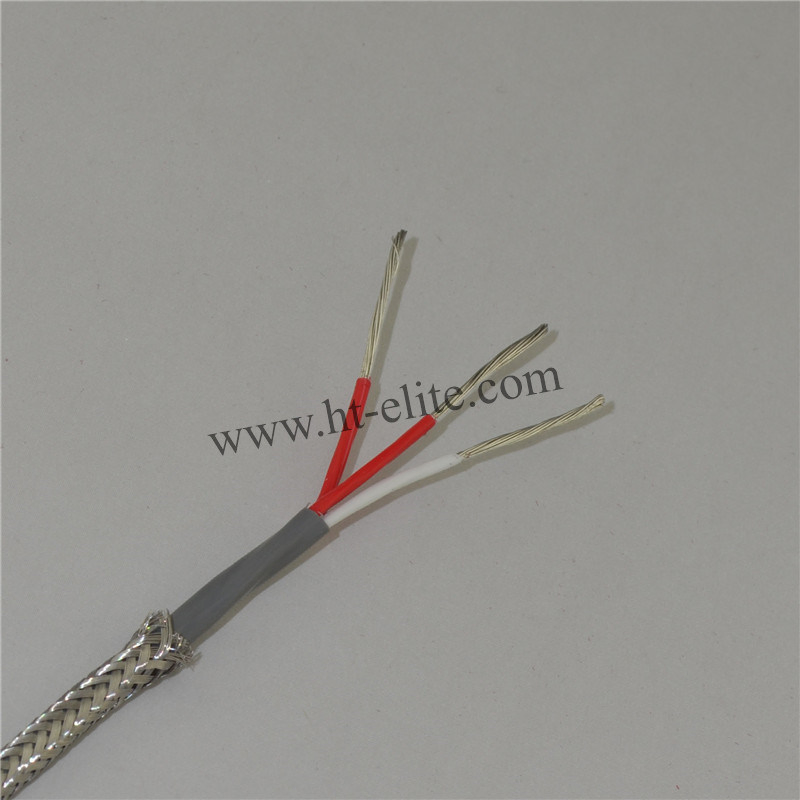

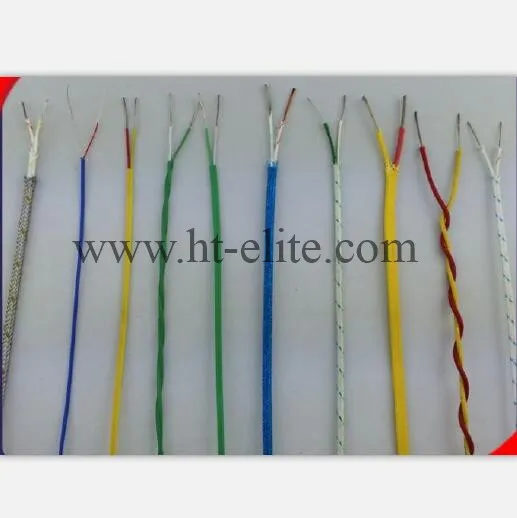

8. Photos for reference.
