Price 3 Core 4mm Flexible Cable
Price 3 core 4mm flexible cable1. Standard: made complying with the standard of IEC60227,BS6004,GB/T5023 .2. Application: electric wire cable for household,building light,installation.3. Service Conditions: not more than 105 oC , Installation temperature of electric wire no lower than -20oC.4. The w......
Send Inquiry
Product Description
1. Standard: made complying with the standard of IEC60227,BS6004,GB/T5023 .
2. Application: electric wire cable for household,building light,installation.
3. Service Conditions: not more than 105 oC , Installation temperature of electric wire no lower than -20oC.
4. The working temperature of electric wire cable is no more than 105 oC.
5. We can also customize electric wire cable as your request.
This product is used as hanging cable, drawing cable and installation for field line, electric appliances and instruments, electronic equipment and automatic devices for electric power, chemical and so on. It is specially soft, easily folded and movable, smooth and aging resistant, high pulse staring current resistant.
6. Specification, Size and Technical Date( electric wire cable):
H07V-U Specification
| 450/750V,Copper Conductor PVC Insulated Wire | |||||
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter | Approx. Net Weight | |
| mm2 | No. | Diameter | mm | mm | kg/km |
| 1 X 1.5 | 1 | 1.38 | 0.7 | 2.78 | 19.7 |
| 1 X2.5 | 1 | 1.78 | 0.8 | 3.38 | 31.2 |
| 1 X4.0 | 1 | 2.25 | 0.8 | 3.85 | 46.1 |
| 1 X6.0 | 1 | 2.76 | 0.8 | 4.36 | 65.7 |
| 1 X10 | 1 | 3.55 | 1.0 | 5.55 | 108.0 |
| 450/750V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC | |||||
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter | Approx. Net Weight | |
| mm2 | No. | Diameter | mm | mm | kg/km |
| 1 X 0.5 | 1 | 0.8 | 0.6 | 2.00 | 8.16 |
| 1 X 0.75 | 1 | 0.97 | 0.6 | 2.17 | 10.71 |
| 1 X 1.0 | 1 | 1.13 | 0.6 | 2.33 | 13.48 |
| 1 X 1.5 | 1 | 1.38 | 0.7 | 2.78 | 19.70 |
| 1 X 2.5 | 1 | 1.78 | 0.8 | 3.38 | 31.20 |
H07V-R Specification
| 450/750V,Copper Conductor PVC Insulated Wire | |||||
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter | Approx. Net Weight | |
| mm2 | No. | Diameter | mm | mm | kg/km |
| 1 X 1.5 | 7 | 0.52 | 0.7 | 2.96 | 20.4 |
| 1 X2.5 | 7 | 0.67 | 0.8 | 3.61 | 32.3 |
| 1 X4.0 | 7 | 0.85 | 0.8 | 4.15 | 47.8 |
| 1 X6.0 | 7 | 1.04 | 0.8 | 4.72 | 67.7 |
| 1 X10 | 7 | 1.35 | 1.0 | 6.05 | 113.1 |
| 1 X 16 | 7 | 1.70 | 1.0 | 7.1 | 170.9 |
| 1 X 25 | 7 | 2.14 | 1.2 | 8.82 | 268.5 |
| 1 X 35 | 7 | 2.52 | 1.2 | 9.96 | 362.8 |
| 1 X 50 | 19 | 1.78 | 1.4 | 11.7 | 492.2 |
| 1 X 70 | 19 | 2.14 | 1.4 | 13.5 | 694.2 |
| 1 X 95 | 19 | 2.52 | 1.6 | 15.8 | 959.2 |
| 1 X 120 | 37 | 2.03 | 1.6 | 17.41 | 1197.1 |
| 1 X 150 | 37 | 2.25 | 1.8 | 19.35 | 1472.9 |
| 1 X 185 | 37 | 2.52 | 2.0 | 21.64 | 1846.1 |
| 1 X 240 | 61 | 2.25 | 2.2 | 24.65 | 2416.5 |
| 1 X 300 | 61 | 2.52 | 2.4 | 27.48 | 3023.6 |
| 1 X 400 | 61 | 2.85 | 2.6 | 30.85 | 3851.7 |

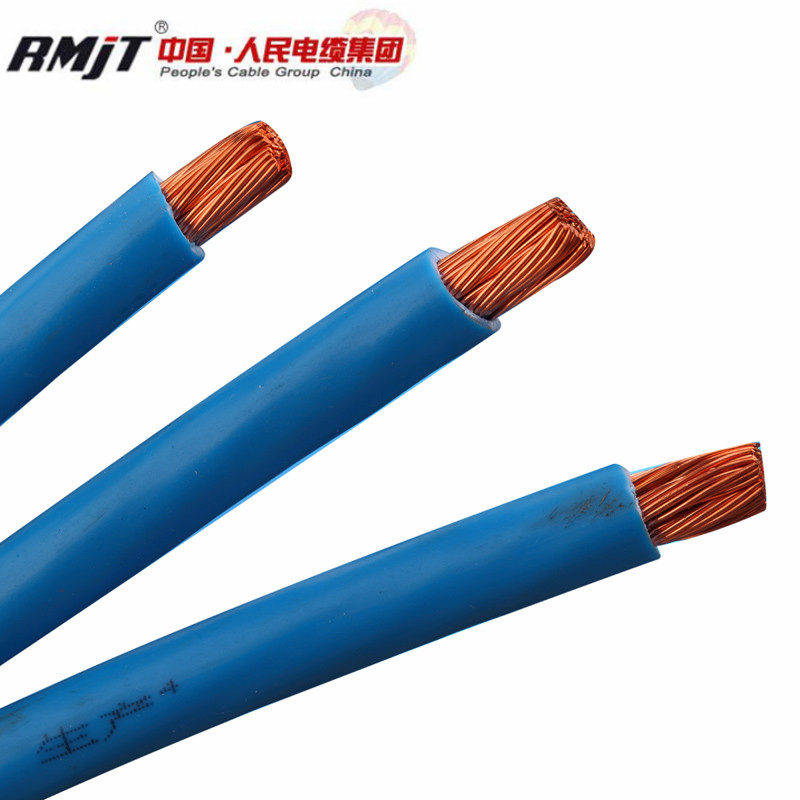

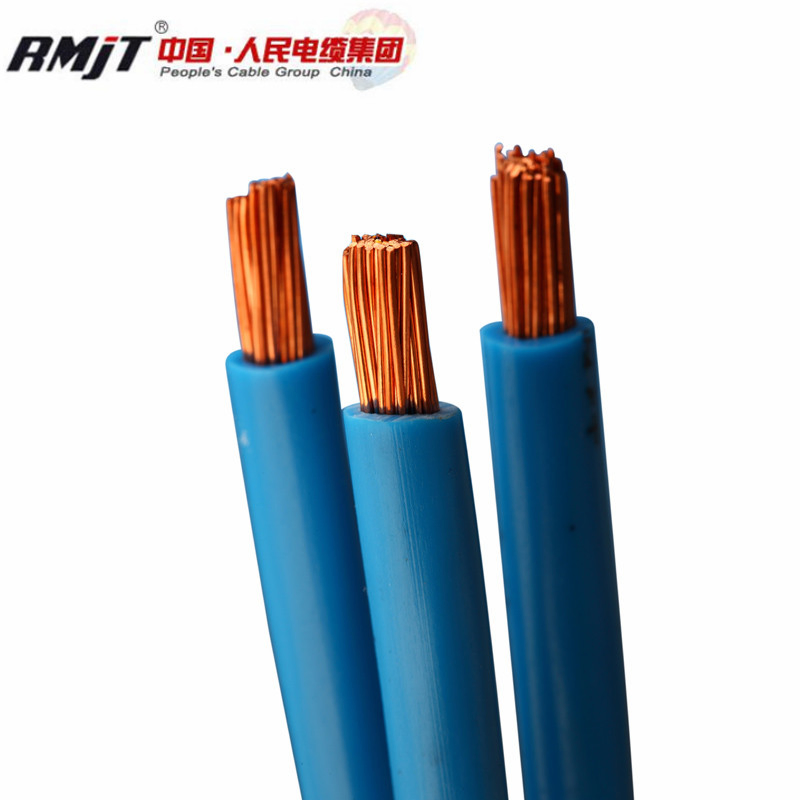

H07V-K Specification
| 450/750V,Copper Conductor PVC Insulated Flexible Wire | |||||
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Overall Diameter | Approx. Net Weight | |
| mm2 | No. | Diameter | mm | mm | kg/km |
| 1 X 1.5 | 30 | 0.25 | 0.7 | 3.00 | 20.6 |
| 1 X2.5 | 49 | 025 | 0.8 | 3.70 | 32.2 |
| 1 X4.0 | 56 | 0.30 | 0.8 | 4.21 | 48. |
| 1 X6.0 | 84 | 0.30 | 0.8 | 5.57 | 71.2 |
| 1 X10 | 84 | 0.40 | 1.0 | 7.30 | 124.4 |
| 1 X 16 | 126 | 0.40 | 1.0 | 8.00 | 175.8 |
| 1 X 25 | 196 | 0.40 | 1.2 | 10.10 | 272.5 |
| 1 X 35 | 276 | 0.40 | 1.2 | 11.87 | 373.9 |
| 1 X 50 | 396 | 0.40 | 1.4 | 13.93 | 532.8 |
| 1 X 70 | 360 | 0.50 | 1.4 | 16.12 | 737.9 |
| 1 X 95 | 475 | 0.50 | 1.6 | 19.24 | 978.1 |
| 1 X 120 | 608 | 0.50 | 1.6 | 19.95 | 1222.5 |
| 1 X 150 | 756 | 0.50 | 1.8 | 23.34 | 1529.7 |
| 1 X 185 | 925 | 0.50 | 2.0 | 25.54 | 1870.1 |
| 1 X 240 | 1221 | 0.50 | 2.2 | 27.85 | 2443.4 |
| 1 X 300 | 1525 | 0.50 | 2.4 | 32.49 | 3032.9 |
| 1 X 400 | 2013 | 0.50 | 2.6 | 35.35 | 3958.6 |

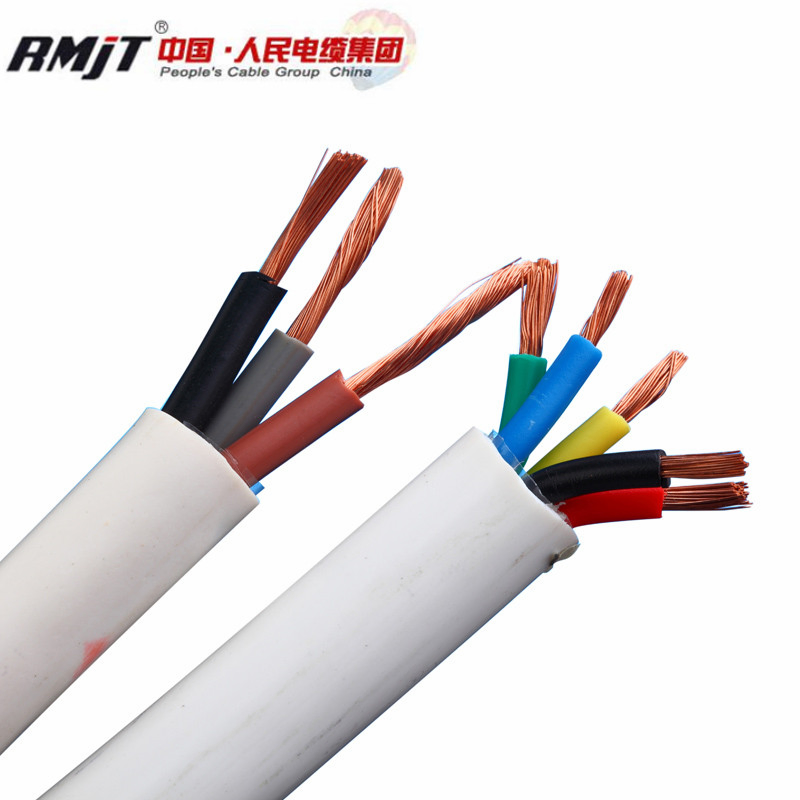

HO3VV-F and AO3VV-F Specification
| Rated Voltage | Copper Conductor PVC Insulated PVC Sheathed Round Flexible Connecting Wire | ||||||
| Nominal Cross Section | Conductor Construction | Insulation Thickness | PP Tape | Sheath Thickness | Overall Diameter | Approx. Net Weight | |
| mm2 | No./mm | mm | No./mm | mm | mm | kg/km | |
| 300/300V | 2 X0.5 | 16/0.20 | 0.5 | 1/0.05 | 0.6 | 5.87 | 34.80 |
| 2 X 0.75 | 24/0.20 | 0.5 | 1/0.05 | 0.6 | 6.50 | 43.40 | |
| 3 X 0.5 | 16/0.20 | 0.5 | 1/0.05 | 0.6 | 6.22 | 44.01 | |
| 3 X 0.75 | 24/0.20 | 0.5 | 1/0.05 | 0.6 | 6.90 | 55.64 | |
| 300/500V | 2 X 0.5 | 16/0.20 | 0.6 | 1/0.05 | 0.7 | 5.78 | 36.69 |
| 2 X 0.75 | 24/0.20 | 0.6 | 1/0.05 | 0.8 | 6.78 | 47.02 | |
| 2 X 1.0 | 32/0.20 | 0.6 | 1/0.05 | 0.8 | 6.78 | 54.79 | |
| 2 X 1.5 | 30/0.25 | 0.7 | 1/0.05 | 0.8 | 7.71 | 72.31 | |
| 2 X 2.5 | 49/0.25 | 0.8 | 1/0.05 | 0.8 | 9.51 | 111.90 | |
| 3 X 0.5 | 16/0.20 | 0.6 | 1/0.05 | 0.7 | 6.11 | 46.72 | |
| 3 X 0.75 | 24/0.20 | 0.6 | 1/0.05 | 0.8 | 6.74 | 59.71 | |
| 3 X 1.0 | 32/0.20 | 0.6 | 1/0.05 | 0.8 | 7.17 | 71.03 | |
| 3 X 1.5 | 30/0.25 | 0.7 | 1/0.05 | 0.8 | 8.17 | 95.26 | |
| 3 X 2.5 | 49/0.25 | 0.8 | 1/0.05 | 1.2 | 10.48 | 156.81 | |
| 3 X 4.0 | 50/0.30 | 0.8 | 1/0.05 | 1.2 | 11.38 | 199.81 | |
| 4 X 1.0 | 32 X 0.20 | ||||||
| 4 X 1.5 | 48 X 0.20 | ||||||
| 4 X 2.5 | 77 X 0.20 | ||||||
| 4 X 4.0 | 56 X 0.30 | ||||||
| 4 X 6.0 | 84 X 0.30 | ||||||
| 4 X 10 | 84 X 0.40 | ||||||
| 4 X 16 | 126 X 0.40 | ||||||
| 5 X 1.5 | 48 X 0.20 | ||||||
| 5 X 2.5 | 77 X 0.20 | ||||||
| 5 X 4.0 | 56 X 0.30 | ||||||
| 5 X 6.0 | 84 X 0.30 | ||||||
| 5 X 10 | 84 X 0.40 | ||||||
| 5 X 16 | 126 X 0.40 | ||||||

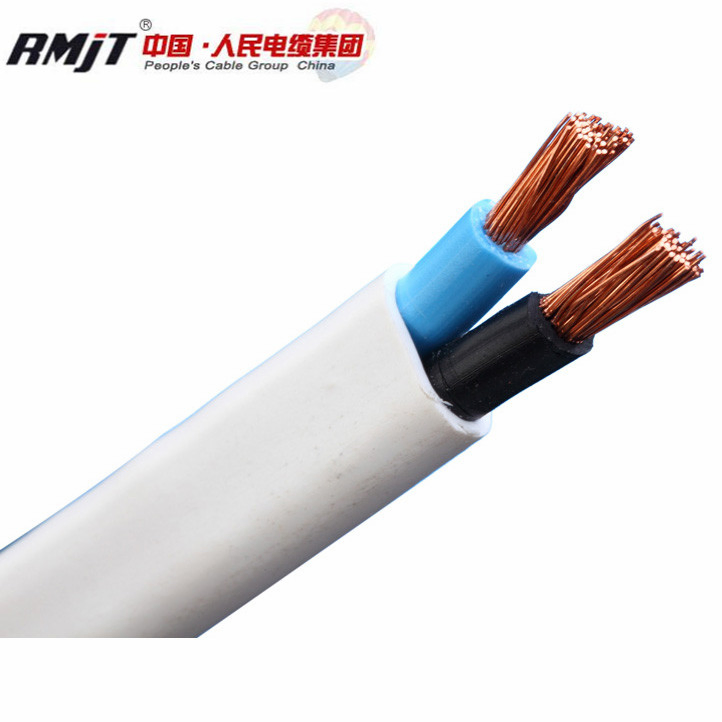

H03VVH2-F Specification
| 300/500V,Copper Conductor PVC Insulated PVC Sheathed Flat Wire | |||||
| Nominal Cross Section | Conductor Construction | Insulation Thickness | Sheath Thickness | Overall Diameter | Approx. Net Weight |
| mm2 | No./mm | mm | mm | mm x mm | kg/km |
| 2 X 0.75 | 1/0.97 | 0.6 | 0.9 | 3.97 x 6.14 | 39.0 |
| 2 X 1.0 | 1/1.13 | 0.6 | 0.9 | 4.13 x6.46 | 45.6 |
| 2 X1.5 | 1/1.37 | 0.7 | 0.9 | 4.57x7.34 | 60.5 |
| 2 X2.5 | 1/1.76 | 0.8 | 1.0 | 5.36x8.72 | 89.9 |
| 2 X4 | 1/2.24 | 0.8 | 1.0 | 5.84x9.68 | 123.5 |
| 2 X4 | 7/0.85 | 0.8 | 1.0 | 6.15x10.30 | 130.6 |
| 2 X6 | 1/2.74 | 0.8 | 1.1 | 6.54x10.88 | 169.4 |
| 2 X6 | 7/1.04 | 0.8 | 1.1 | 6.92x11.64 | 179.2 |
| 2 X10 | 7/1.35 | 1.0 | 1.2 | 9.45x14.50 | 286.5 |
| 2 X16 | 7/1.70 | 1.0 | 1.2 | 9.50x16.60 | 412.3 |
| 3 X0.75 | 1/0.97 | 0.6 | 0.9 | 3.97x8.31 | 55.2 |
| 3 X1.0 | 1/1.13 | 0.6 | 0.9 | 4.13x8.79 | 65.0 |
| 3 X1.5 | 1/1.38 | 0.7 | 0.9 | 4.58x10.14 | 87.7 |
| 3 X2.5 | 1/1.76 | 0.8 | 1.0 | 5.36x12.08 | 129.9 |
| 3 X4 | 1/2.24 | 0.8 | 1.1 | 6.04x13.72 | 184.7 |
| 3 X 4 | 7/0.85 | 0.8 | 1.1 | 6.35x14.65 | 195.4 |
| 3 X6 | 1/2.74 | 0.8 | 1.1 | 6.54x15.22 | 247.7 |
| 3 X 6 | 7/1.04 | 0.8 | 1.1 | 6.92x16.36 | 262.0 |
| 3 X10 | 7/1.35 | 1.0 | 1.2 | 8.45x20.55 | 420.8 |
| Type | Name | Laying place and requirement | Crated voltage | Nominal Section (mm2 |
| 227IEC01(BV) | Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires | Fixed laid indoors Conduit etc. | 450/750 300/500 450/750 | 1.5...185 |
| 227IEC05 (BV) | 0.5...1 | |||
| BLV | 2.5...185 | |||
| 227IEC07(BV-90) | Heat resistant copper conductor PVC insulated wire at 90 0C | Mainly be laid at the places of high temperature environment and can be laid indoors, conduits. | 300/500 | 0.5...2.5 |
| BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 450/750 | 2.5...150 |
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | | |
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires | 300/500 | 1...10 | |
| BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires | 300/500 | 2.5...10 | |
| 227IEC02(RV) 227IEC06(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 450/750 300/500 | 1.5...240 0.3...1 |
| 227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire | 300/300 | 0.3...1.5 | |
| RVS | Copper conductor PVC insulated flexible twisting connector wire | 300/300 | 0.3...1.5 | |
| 227IEC52(RVV) 227IEC53(RVV) | Copper conductor PVC insulated PVC sheathed round flexible connector wire | 300/300 300/500 | 0.5...6 0.3...4 | |
| 227IEC08(RV-90) | Cu conductor heat resistant PVC insulated flexible connector wire at 90 0C | Mainly used at the places where heat resistance is required | 300/500 | 0.5...2.5 |
7. Packing and Shipping:
Packing
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Delivery
Port: Tianjin, or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

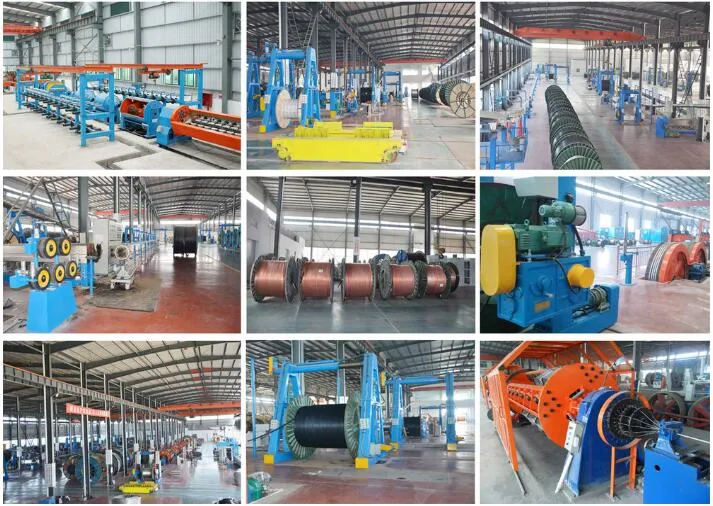

8. Production Line:

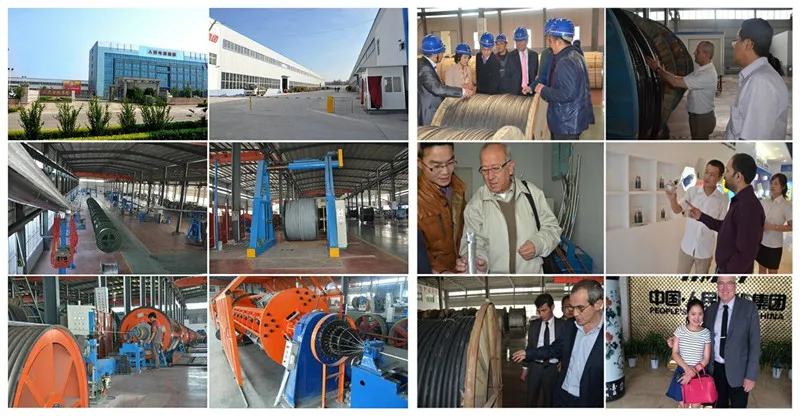

9. Our company:
People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
10. Our advantages:
1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.
9. 12 months quality guarantee after delivery.
11. FAQ and Contect information:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country
