China Pass UL VW-1 & CSA FT1 Flame Test Electrical Wire UL1569 Diameter 1.3mm 26AWG 7/016mm Ts or Bare Copper Conductive

Product Description

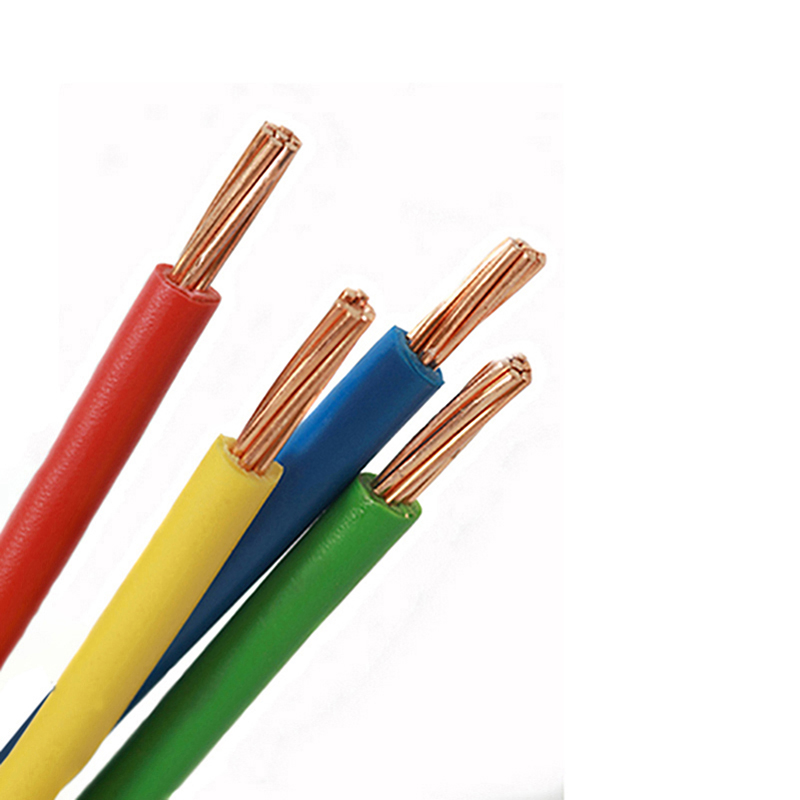

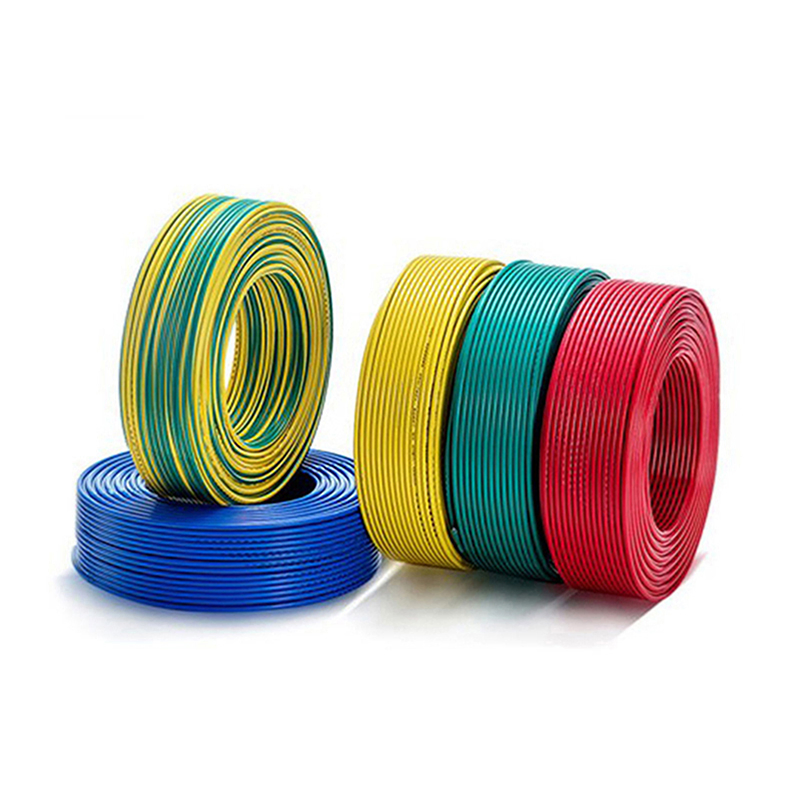

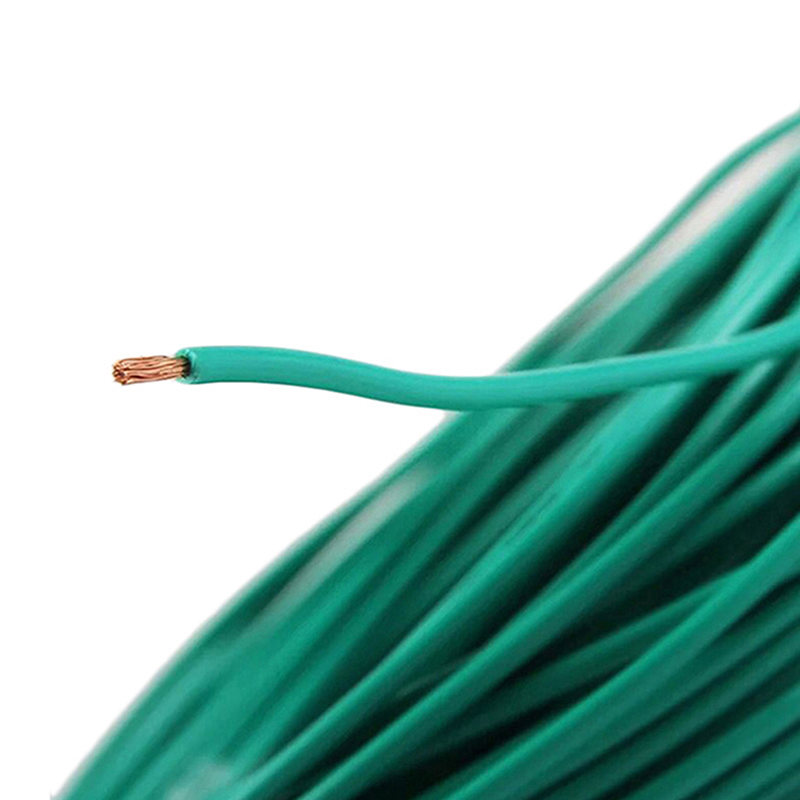

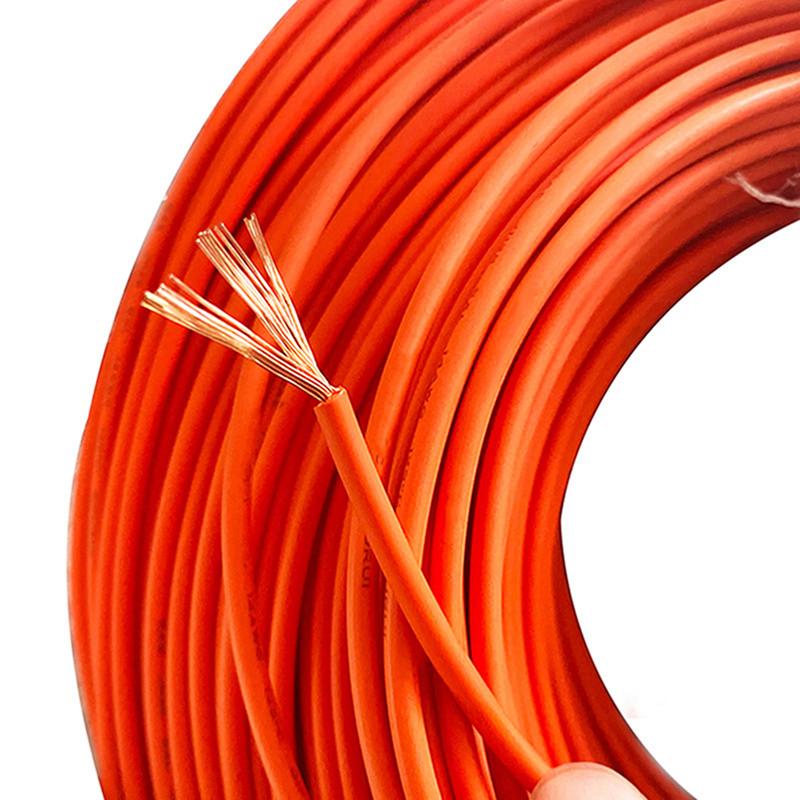

Pass UL VW-1 & CSA FT1 flame test electrical wire UL1569 diameter 1.3mm 26AWG 7/016mm TS or bare copper conductive

Product Description:
★ Rated temperature: 80ºC or 90ºC or 105ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-10 AWG
★ Colour-coded lead free PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of appliances and electronic equipment

Conductor			Insulation		Maximum Resistance at 20 ºC Ω/km
AWG	No./mm	Dia. mm	Nom. Thick. mm	Nom.Dia. mm	Maximum Resistance at 20 ºC Ω/km
26	7/0.16	0.48	0.41	1.30	139
24	11/0.16	0.61	0.41	1.43	88.9
22	17/0.16	0.76	0.41	1.58	57.5
20	7/0.32	0.96	0.41	1.78	34.6
18	41/0.16	1.18	0.41	2.00	23.3
16	26/0.254	1.49	0.41	2.32	15.1
14	41/0.254	1.87	0.41	2.70	9.2
