Product Description

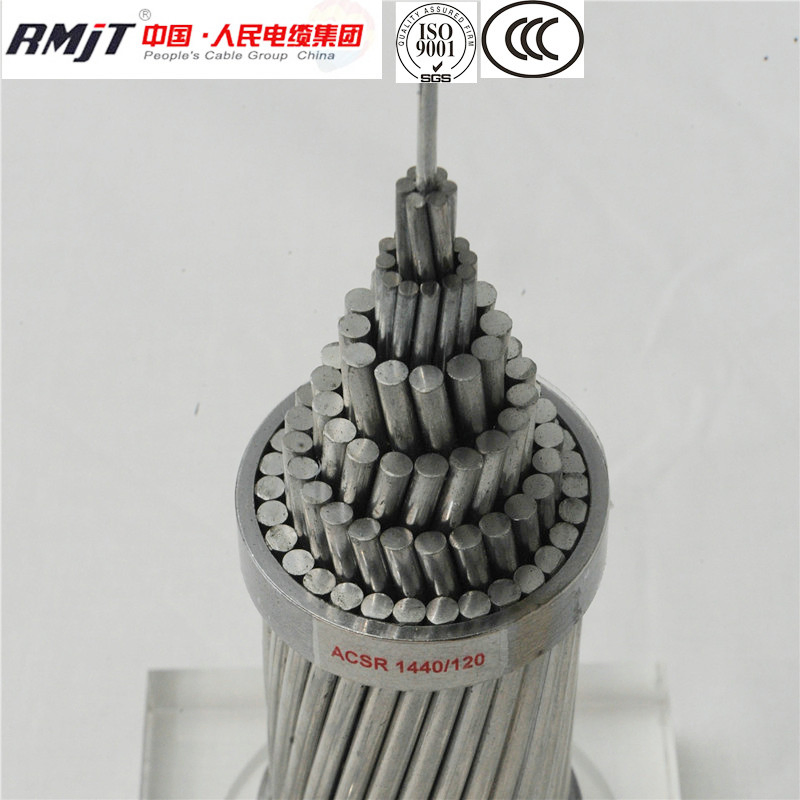

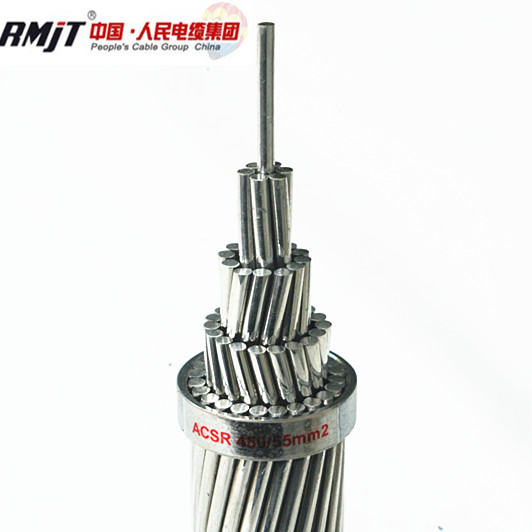

_{Overhead Bare AAC AAAC ACSR Aluminum Conductor Cable

Producing and providing the products according to Chinese standard GB/T3954-2001,and consulting and following the American standard ASTM B233:1997 and German DIN standard EN 17152:1997.}

_{The Component of Material}

_{Note: When the mechanics function and electric function of products are qualifedthe component of chemistry elementmay not be the
total checking date.}

^{Name of Element}	^Si	^Fe	^Cu	^V+Ti+Mn+Cr	^Other	^Al
^{Percentage %}	^<=0.11	^{^0.25}	^{^0.01}	^{^0.02}	^{^0.03}	^{^>=99.61}

^{_{The Quanlity on Surface}}

^{_{a. lt should be neat and well-distributed in dimension on surface of aluminum rod}}

^{_{b. Aluminum rod surface should be clean and not be flaw, wrinkle, wrong round,crackle,mess kink and no other shortcoming for using but it is permitted for permissible slightly mechanical rub speck, pit,losing leather or fing borde}}

^{_{Features:
a. high tensile strength
b. better sag properties
c. economic design
d. best suited for transmission lines with long spans

Working Conditions:
Ambient temperature: Above -20 °C
Working temperature: Not exceed 80 °C
Laying bending radius: Not less than 30 times the cables outer diameter}}

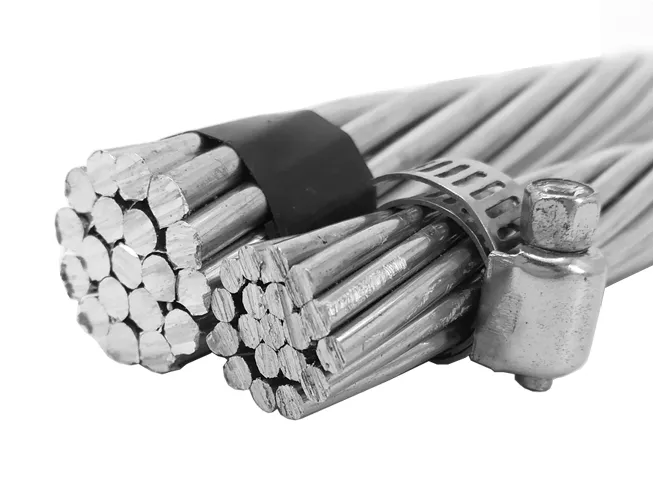

^{_{AAAC Aluminum Conductor}}

^{_{AAAC aluminum alloy conductor is 1% higher than the steel core aluminum stranded wire of the same cross-section, without power loss. It is widely used in overhead power distribution and transmission lines, close to the ocean coastline.}}

^{_{The AAAC-400 wire has a pull-to-weight ratio of 11.67km, which can generally be used on a large-span line of about 1000m.}
^{Characteristics of the aluminum conductor}
_{1. No power loss}}

^{_{2. High current carrying capacity}}

^{_{3. More High fatigue strength}}

^{_{4. More corrosion resistant}
_{AAAC Material}
1. Aluminum stranded wire: consists of 7, 19, 37, 91, 127 concentric strands
2. Aluminum alloy: heat-treated magnesium silicate high-strength 6201T81 aluminum alloy}

^Application:

^{Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

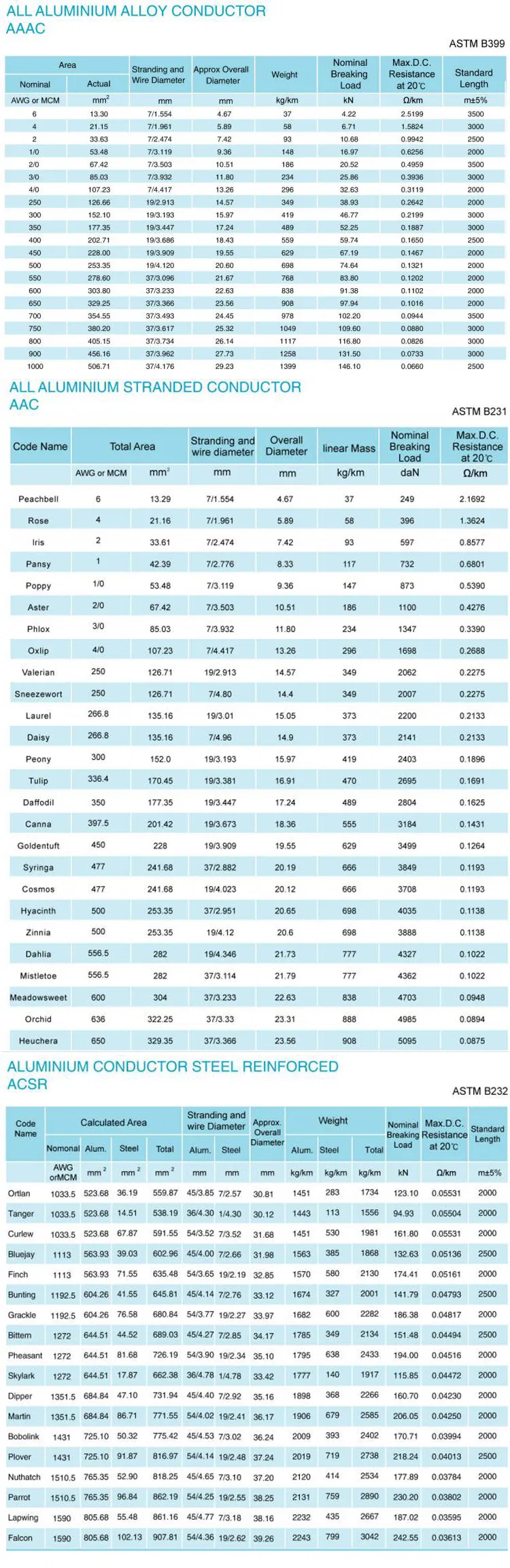

_Standard
_{(1). IEC 61089: Round wire concentric lay overhead electrical stranded conductors
(2). DIN 48 201-5: All Aluminium Conductors
(3). BS 215-1: Aluminium strander conductors
(4). ASTM B231: Stranded Specification for Concentric-Lay-Stranded Aluminium 1350 Conductors
(5). AS 1531: Conductors-Bare overhead-Aluminium and aluminium alloy
We can also manufacture AAC Cable according to customers special requirements.}}

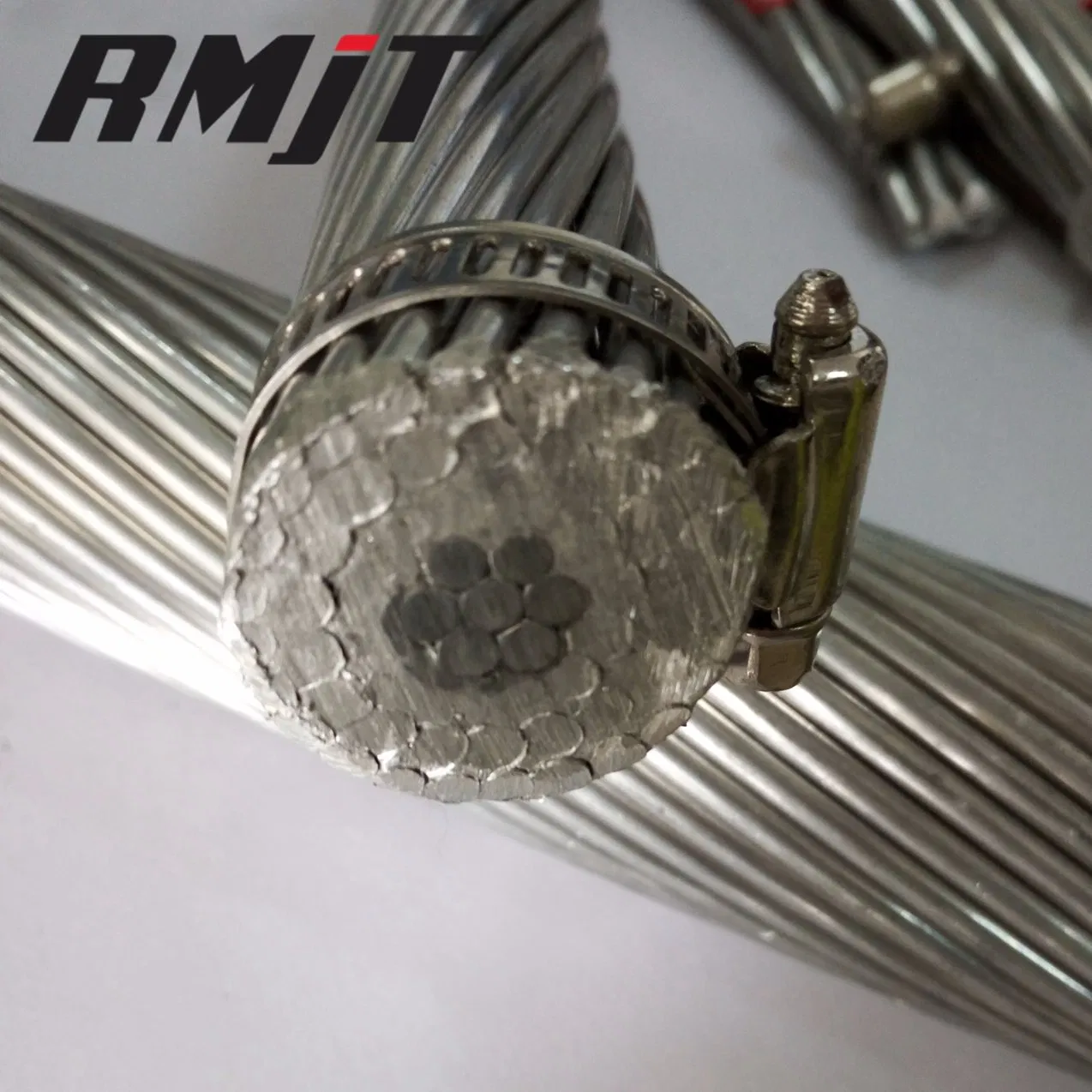

Overhead Bare AAC AAAC ACSR Aluminum Conductor Cable

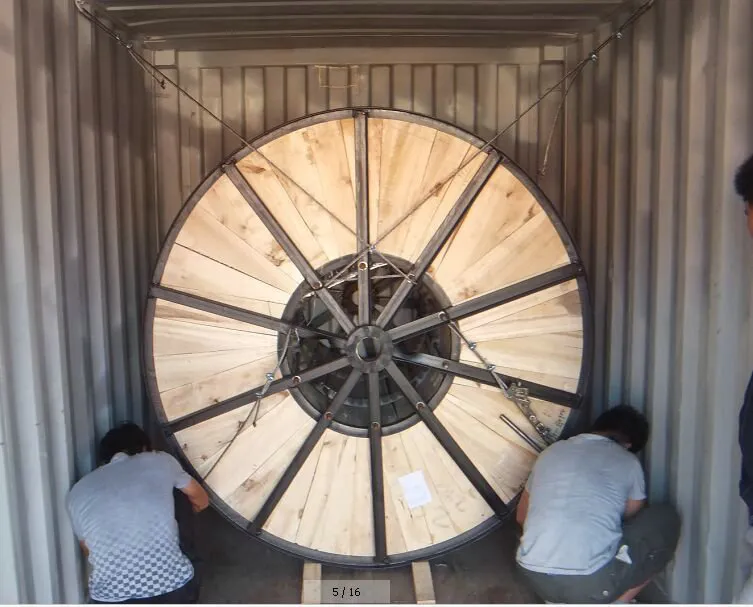

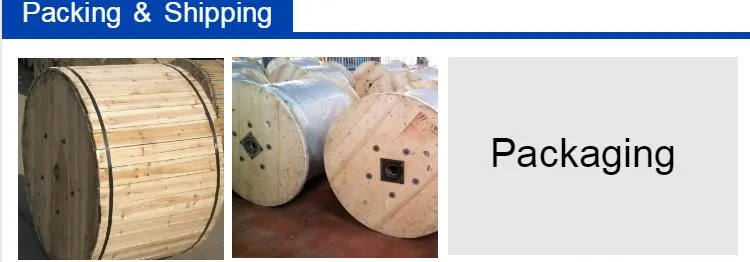

^Packing

^{_{Material:

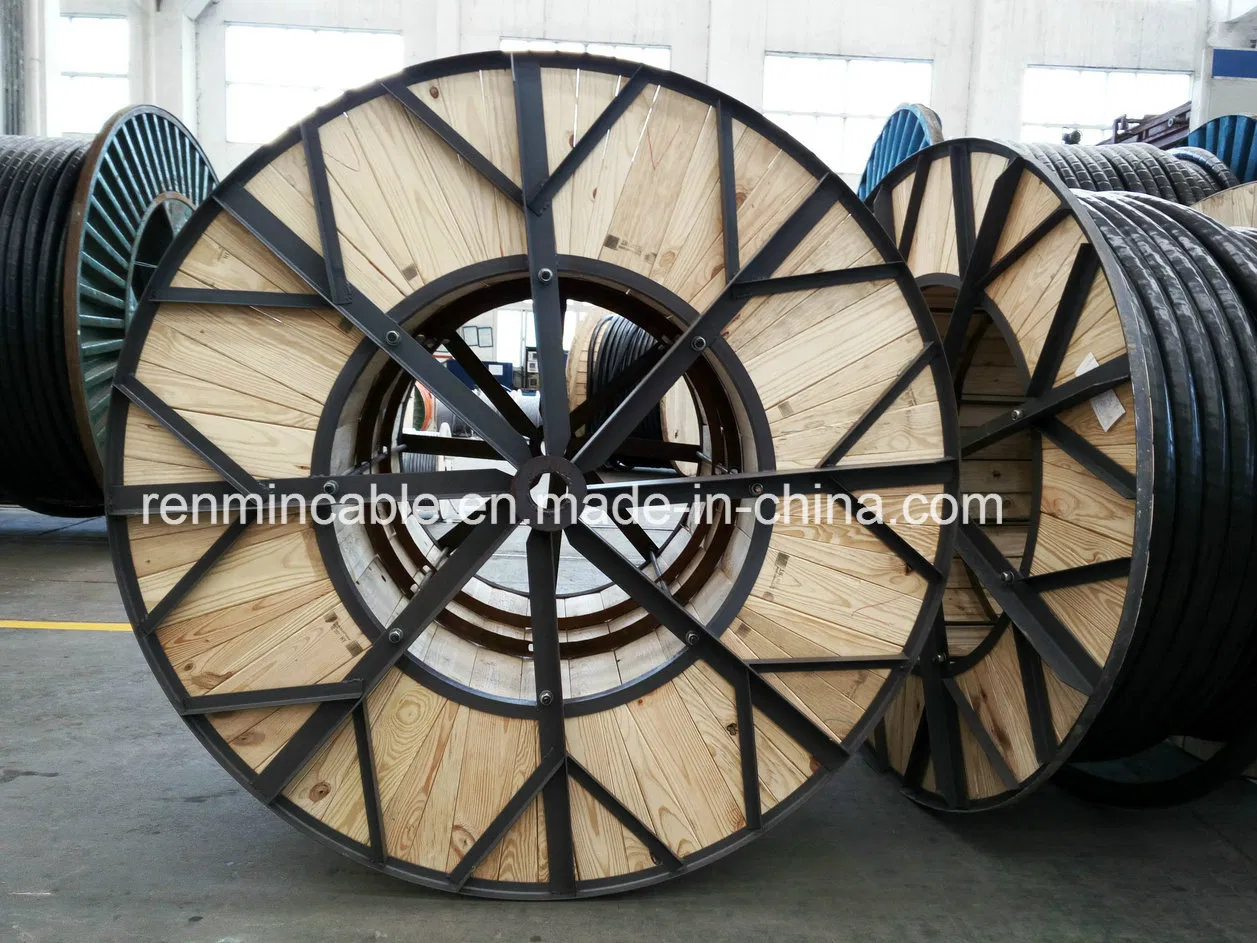

Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!}}

^Delivery

^{Port: Tianjin, or other ports as per your requirements.}

^{_{Sea freight: FOB/C&F/CIF quotation are all available.
* For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get
from local shipping agency.}}

^Delivery

^{Port: Tianjin, or other ports as per your requirements.}

^{_{Sea freight: FOB/C&F/CIF quotation are all available.
* For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get
from local shipping agency.}}

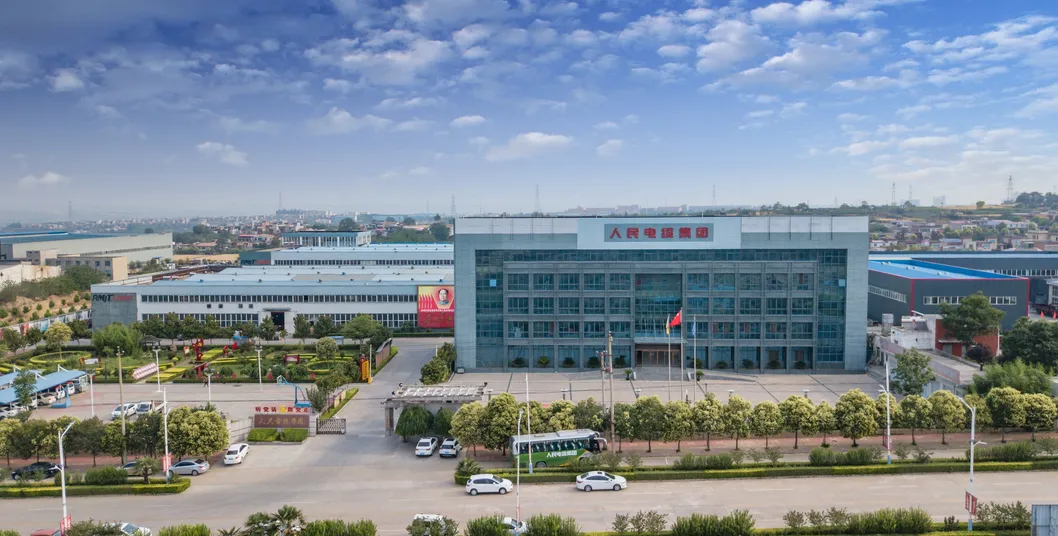

^{About us

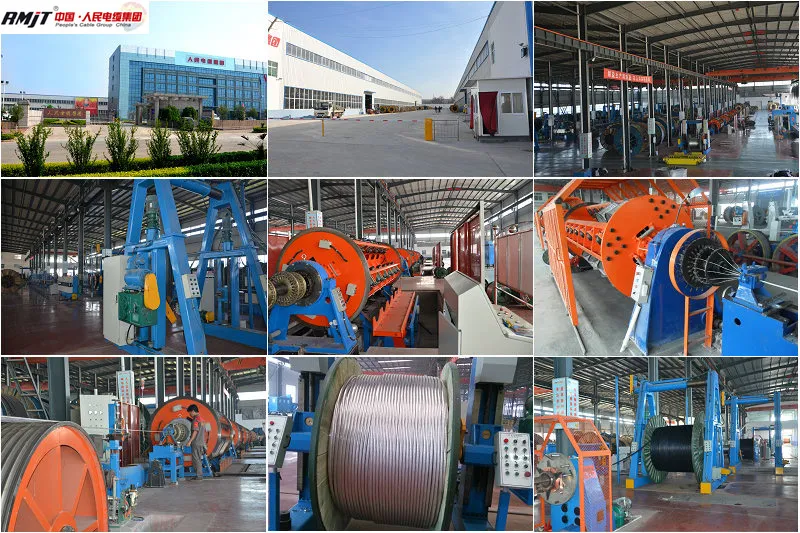

^{_{People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.}}

_{People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.}

Certificate
_{People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.}}

^{FAQ

_{Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we}
_{will regard your inquiry priority.}
_{Q2.How can I get a sample to check your quality?}
^{_{After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.}}
_{Q3.How long can I expect to get the sample?}
^{_{After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.}
_{The samples will be sent to you via express and arrive in 3~5 days.}}
_{Q4.What about the lead time for mass production?}
^{_{Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.}}}
