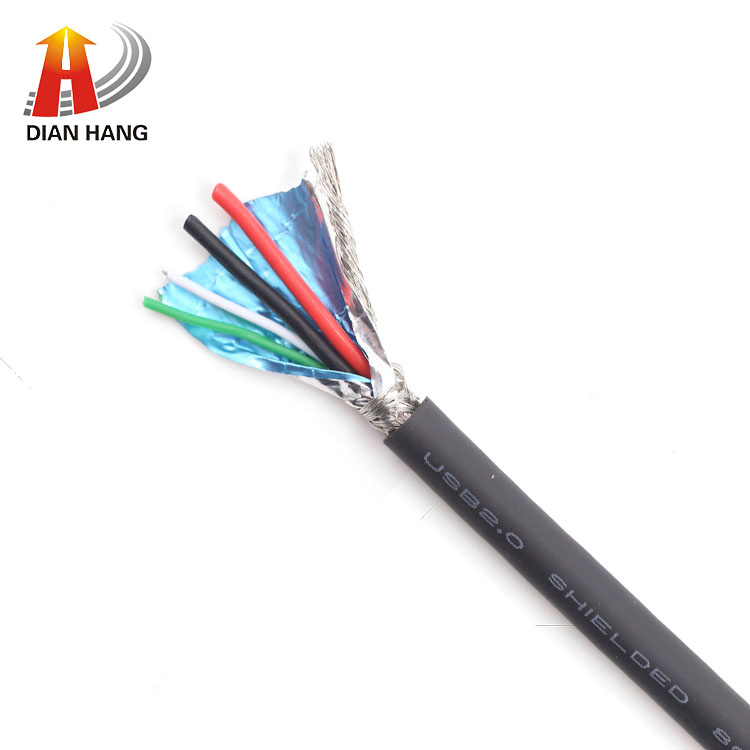

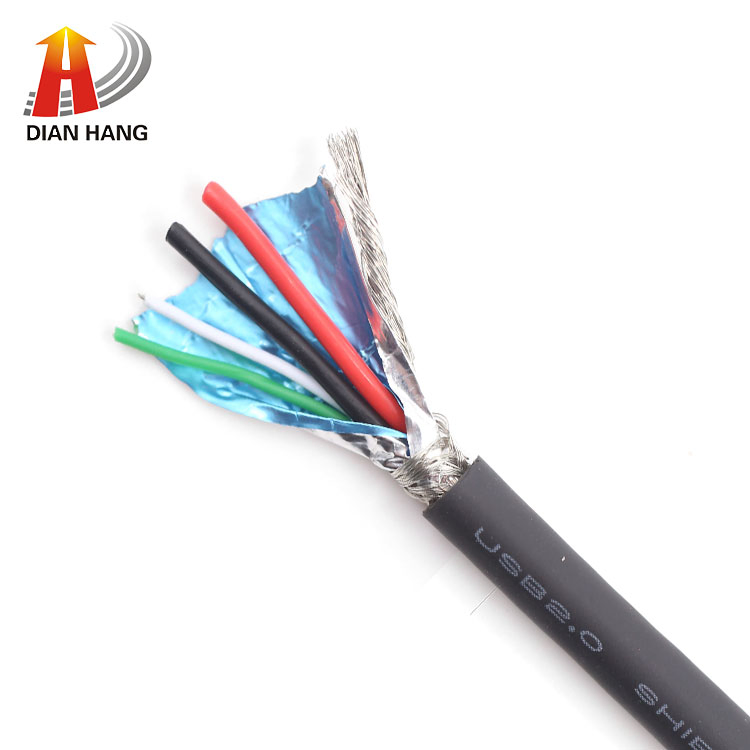

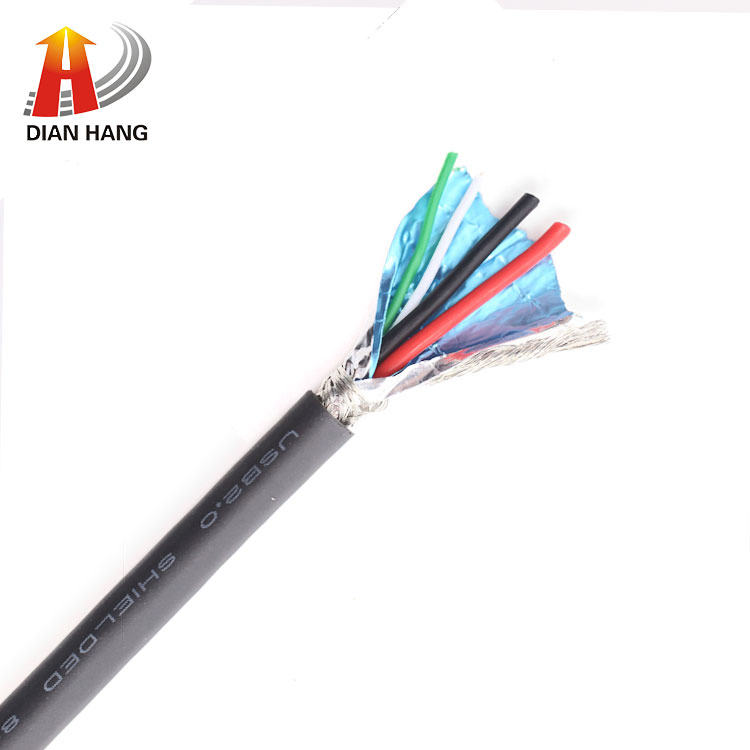

Multiple Core Control USB Charging Wire Cable PVC Insulation Flexible Copper Electronic Wire Cable 28AWG Wire Copper Cable
Product DescriptionHot sale USB cable 30v awm 2725 4C 28awg+26awg usb cable OD4.2MM data cable wireRated temperature:80ºCRated voltage:300VReference standard:UL758,UL1581,CSA C22.2No.210.2Solid or stranded, tinned or bare copper conductor 32~16AWGSR-PVC insulation, comply with ROHS, REACH ......
Send Inquiry
Product Description

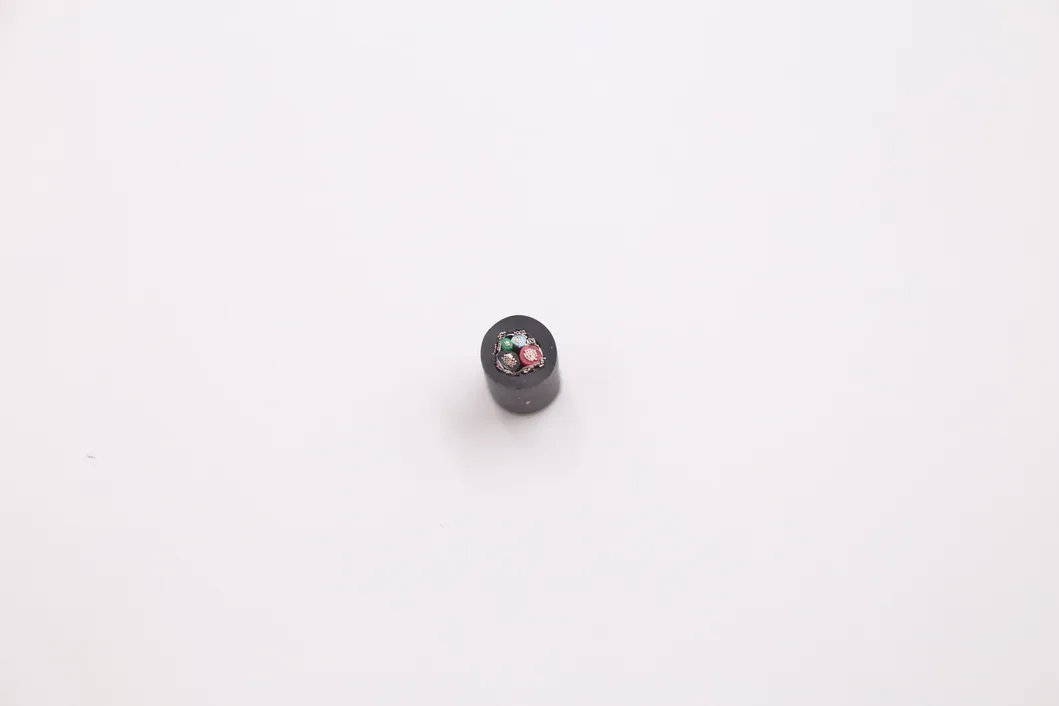

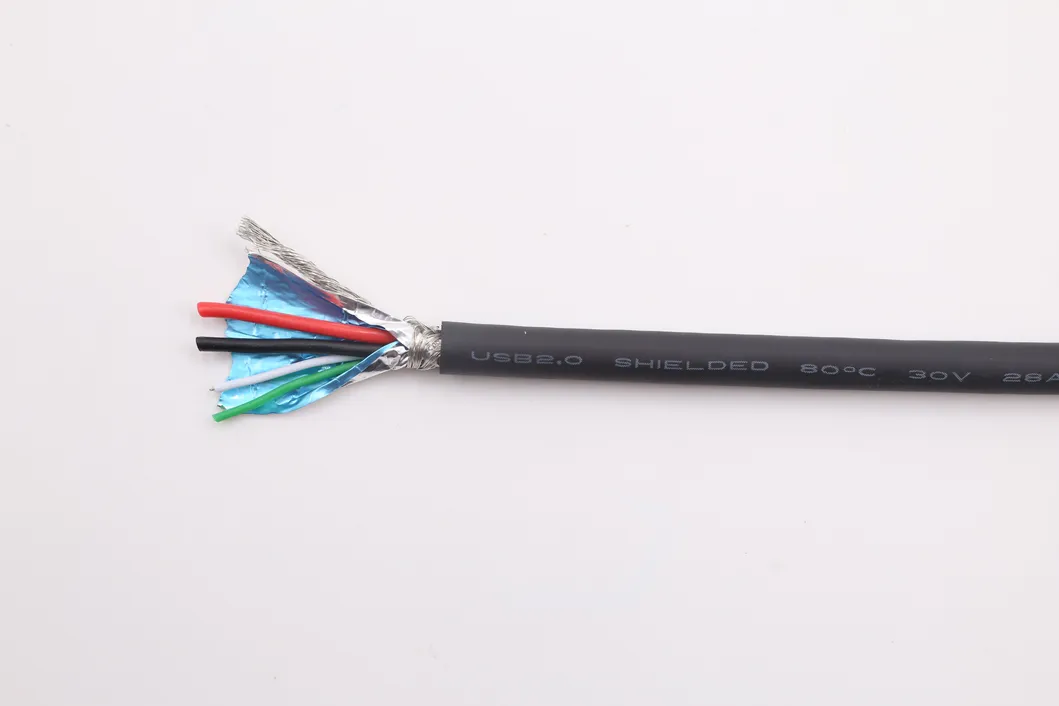

Hot sale USB cable 30v awm 2725 4C 28awg+26awg usb cable OD4.2MM data cable wire
Rated temperature:80ºC
Rated voltage:300V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
SR-PVC insulation, comply with ROHS, REACH environmental standard
Tinned or bare copper wire braid shield
PVC jacket, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FT1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:Internal wiring or external interconnection of electronic equipment
UL Type | Conductor | Insulation | Shielded | Draid | Jacket | |||
2725 |
(AWG) | Construction (No./mm) | Cores.No
| Thickness (mm) | OD (mm) | Construction | No./No./mm
| OD |
28+28
| 7/0.127 | 2cores | 0.21 | 0.80 |
AL-mylar |
16/5/0.10TD |
4.10
| |
7/0.127 | 2cores | 0.26 | 0.90 | |||||
28+26 | 7/0.127 | 2cores | 0.21 | 0.80 | AL-mylar | 16/5/0.10TD | 4.20 | |
7/0.16 | 2cores | 0.26 | 1.00 | |||||
28+24
| 7/0.127 | 2cores | 0.21 | 0.80 | AL-mylar | 16/5/0.10TD | 4.70 | |
11/0.16 | 2cores | 0.25 | 1.10 | |||||
28+20 | 7/0.127 | 2cores | 0.26 | 0.80 | AL-mylar | 16/5/0.10TD | 5.10 | |
