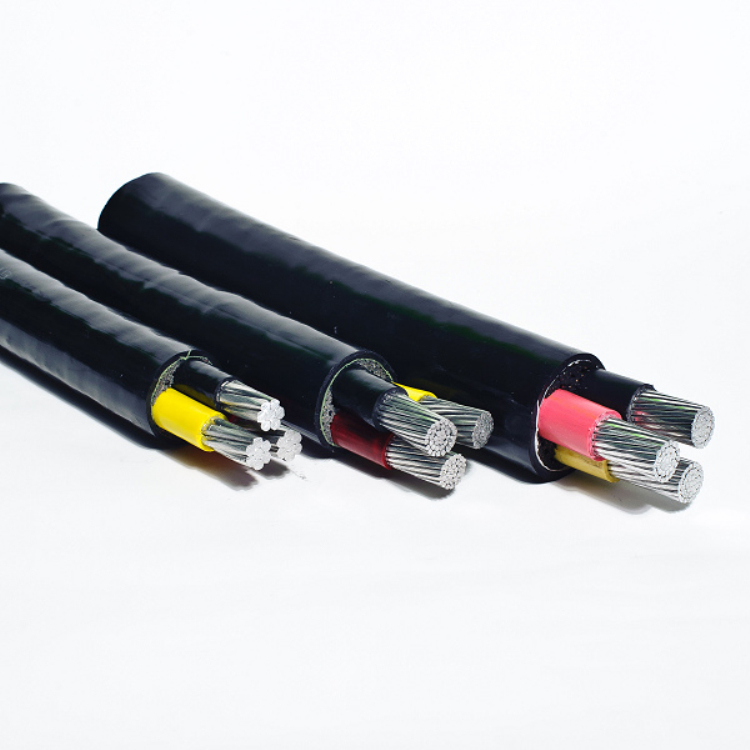

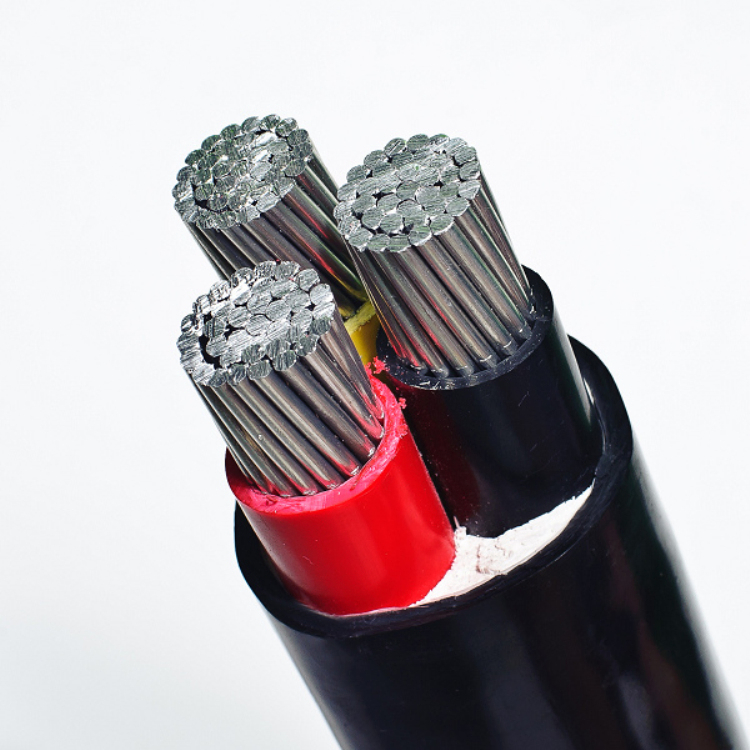

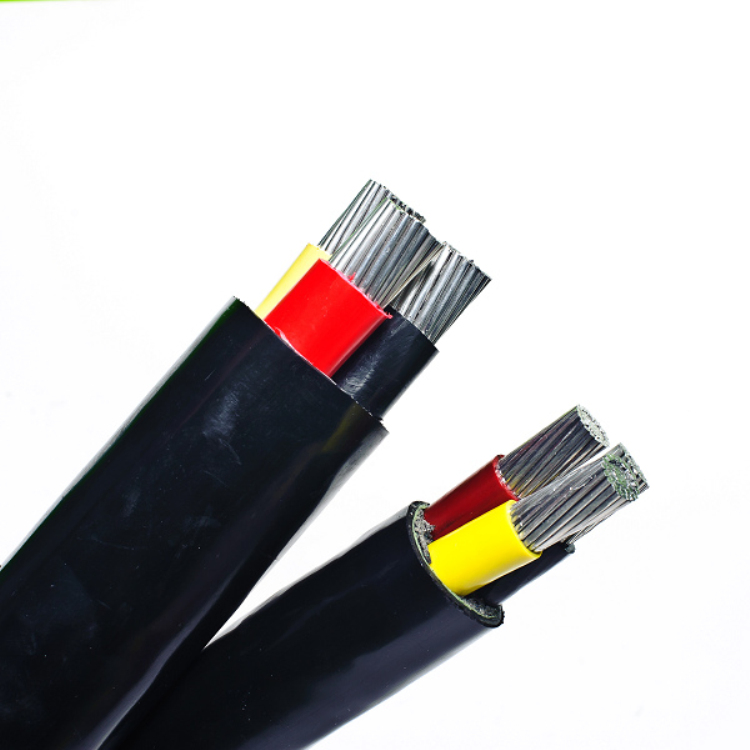

Lowest Price and Competitive Quality PVC Aluminum Conductor Insulated Cable
Product Display Function and characteristics: (1).The long-time permissible operation temperture of conductor shall not be higher than 70oC.(2).Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.(3).The power cable is not limited by drop in level when......
Send Inquiry
Product Description
Function and characteristics:
(1).The long-time permissible operation temperture of conductor shall not be higher than 70oC.
(2).Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.
(3).The power cable is not limited by drop in level when being laid,and the ambient temperature shall not be lower than 0 oC.
(4).Perfect chemical stability,resistant against acids,alkalis,grease and organic solvents,and flame.
(5).Light weight,perfect bending properties,installed and maintained easily and conveniently.
1.Product Performance
(1).The long-time permissible operation temperture of conductor shall not be higher than 70oC.
(2).Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.
(3).The power cable is not limited by drop in level when being laid,and the ambient temperature shall not be lower than 0 oC.
(4).Perfect chemical stability,resistant against acids,alkalis,grease and organic solvents,and flame.
(5).Light weight,perfect bending properties,installed and maintained easily and conveniently.
Voltage rating:0.6/1kV3.6/6kV.
Conductors:copper or aluminum.
Number of cable cores:one core(Single core),two cores(Double cores),three cores,four cores(Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),five cores(Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).We provide armoured trpe and non-armored type for the power cables above.
Our company has been carrying out Chinese national standard GB 12706 and GB 12666.6(equivalent to IEC 60502 and IEC 60331)for PVC insulated power cable and fire resistant cable needed by domestic customer,and for foreign customers we can manufacture in accordance with BS,DIN and other countries,standards.In addition,we can design and manufacture PVC insulated power cable with special characteristics according to needs of customers.
Technical Requirements
Cu Core | AL Core | Description |
VV VH-VV | VLV NH-VLV | Cu(Al)Core PVC Insulated PVC Sheathed Power Cable Cu(Al)Core PVC Insulated PVC Sheathed Fire Resistant Cable |
VY NH-VY | VLY NH-VLY | Cu(Al)Core PVC Insulated PE Sheathed Power Cable Cu(Al)Core PVC Insulated PE Sheathed Fire Resistant Cable |
VV22 NH-VV22 | VLV22 NH-VLV22 | Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable |
VV23 NH-VV23 | VLV23 NH-VLV23 | Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Power Cable Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Fire Resistant Cable |
VV32 NH-VV32 | VLV32 NH-VLV32 | Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Power Cable Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Fire Resistant Cable |
VV33 NH-VV33 | VLV33 NH-VLV33 | Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Power Cable Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Fire Resistant Cable |
VV42 VH-VV42 | VLV42 NH-VLV42 | Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Power Cable Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Fire Resistant Cable |
VV43 VH-VV43 | VLV43 NH-VLV43 | Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Power Cable Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Fire Resistant Cable |
Nominal Cross-Section AreaofConductor Core
Master Core | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
3+1Neutral Core | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 16 | 25 | 35 | 50 | 70 | 70 | 95 |
3+2Neutral Core | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 16 | 25 | 35 | 50 | 70 | 70 | 95 |
4+1Neutral Core | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 16 | 25 | 35 | 50 | 70 | 70 | 95 |
Nominal Thickness of Insulation
| Cross Section(mm2)/KV | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
0.6/1 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 2.0 |
3.6/6 | - | - | - | - | - | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
DC Resistance of Insulation(mm)
Nominal section Area (mm2) | Resistance not More than (Ω/km) | Nominal section Area (mm2) | Resistance not More than (Ω/km) | Resistance not More than (Ω/km) | Nominal section Area (mm2) | Resistance not More than (Ω/km) | ||||
Cu | Al | Cu | Al | Cu | Al | Cu | Al | |||
1.5 | 12.1 | 18.1 | 25 | 0.727 | 1.20 | 0.124 | 0.206 | 630 | 0.0283 | 0.0469 |
2.5 | 7.41 | 12.1 | 35 | 0.524 | 0.868 | 0.0991 | 0.164 | 800 | 0.0221 | 0.0369 |
4 | 4.61 | 7.41 | 50 | 0.387 | 0.641 | 0.0754 | 0.125 | 1000 | 0.0176 | 0.0291 |
6 | 3.08 | 4.61 | 70 | 0.268 | 0.443 | 0.0601 | 0.100 | - | - | - |
10 | 1.83 | 3.08 | 90 | 0.193 | 0.320 | 0.0470 | 0.0778 | - | - | - |
16 | 1.15 | 1.91 | 120 | 0.153 | 0.253 | 0.0366 | 0.0605 | - | - | - |

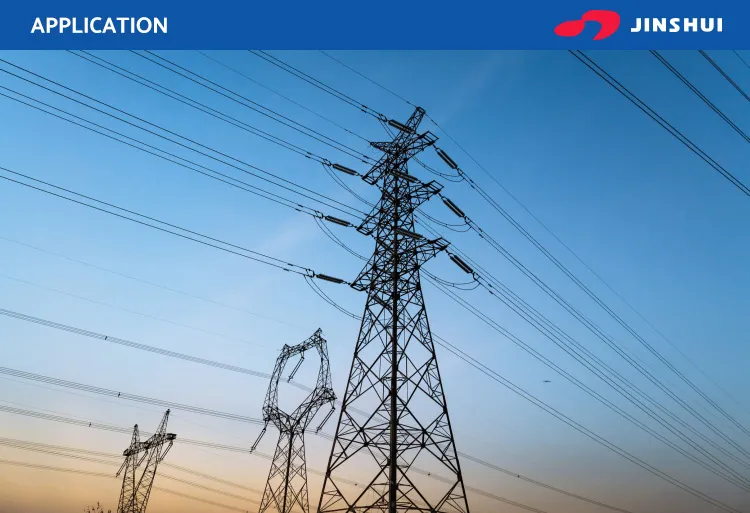

Overhead bare conductor has been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

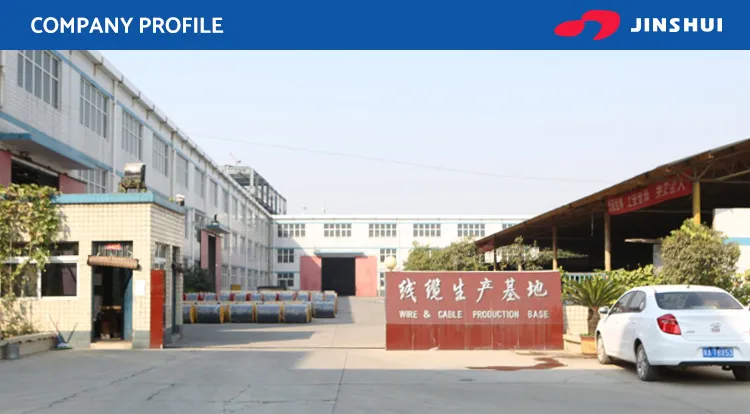

Jinshui Wire & Cable Group
is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou ,Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management System ,ISO 14001 Environmental Management System ,OHSAS18001 occupational Heath Management System ,ISO 10012 Measurement Management System and others from China and abroad.
We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier in alibaba. And we are confident that we can offer the best service and quality for you.
1. Are you the factory or trading company?
We are the manufacturer and 13 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
2. When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
4. What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
