Low Smoke Halogen Free XLPE Flexible Cable UL3290
125 degree UL3290 Heating Element Use Electric WireProduct Description:· Insulation: XlPE· Conductor: Tinned copper wire· Rated voltage:600V· Rated temperature:125°C Also Customize ConductorInsulationMax.cond resistance(Ω/km)Unit Length(......
Send Inquiry
Product Description

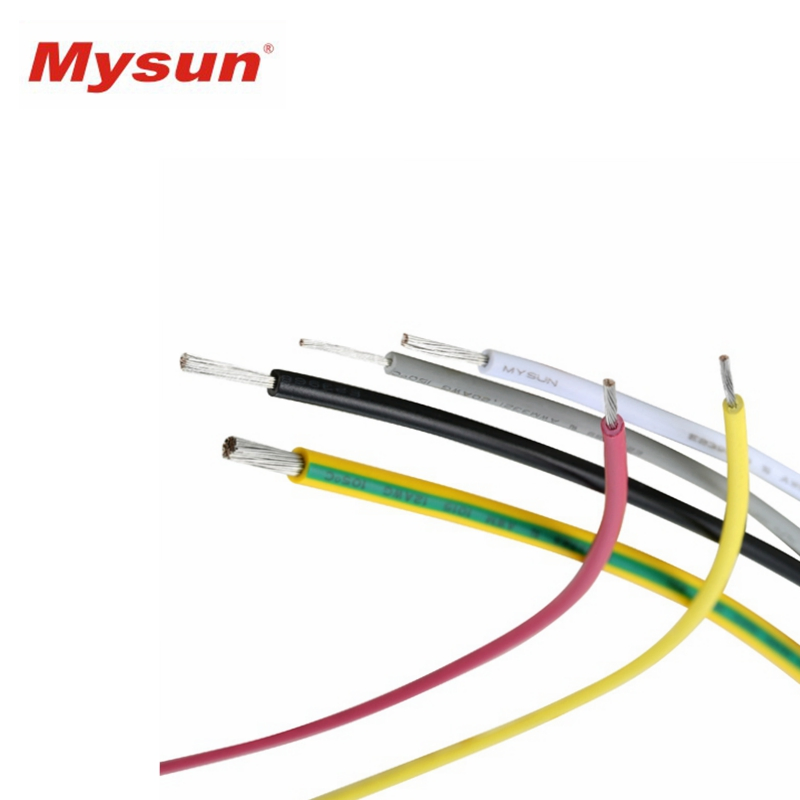

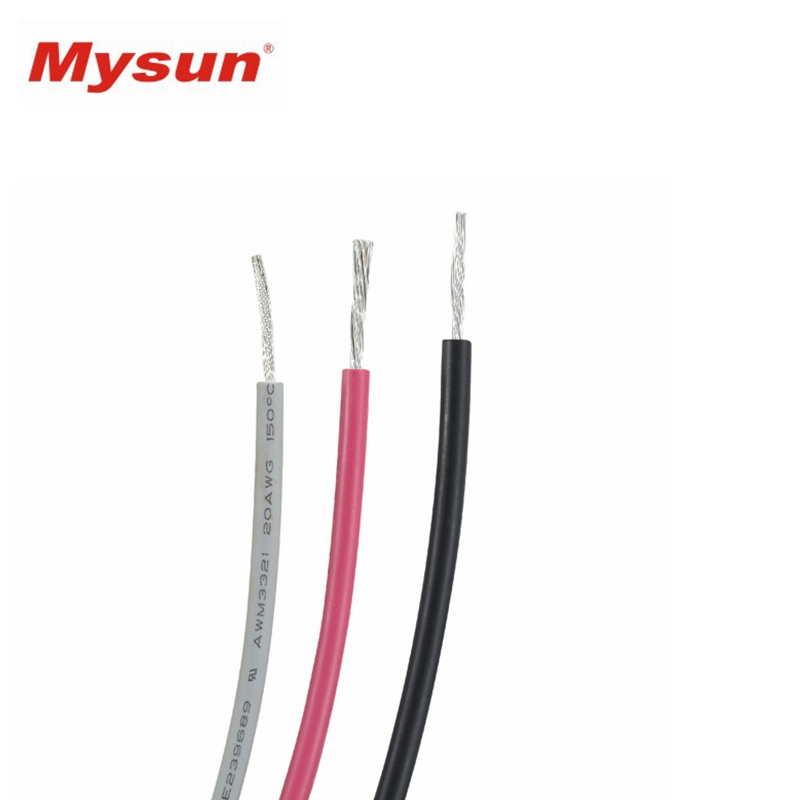

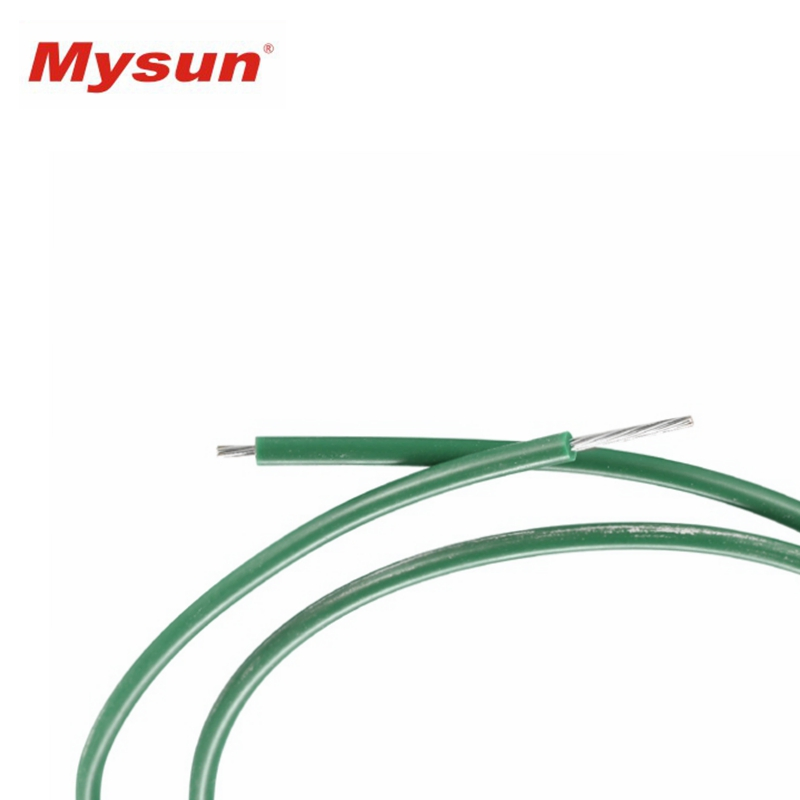

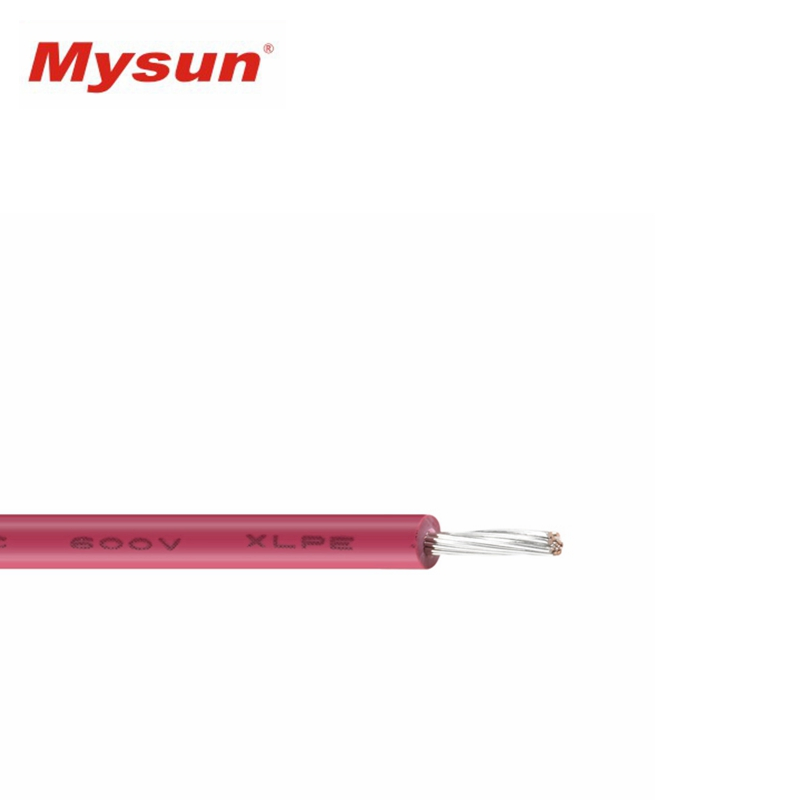

125 degree UL3290 Heating Element Use Electric Wire
Product Description:
· Insulation: XlPE
· Conductor: Tinned copper wire
· Rated voltage:600V
· Rated temperature:125°C
Also Customize
| Conductor | Insulation | Max.cond resistance (Ω/km) | Unit Length (m)(Ft) | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Inside thickness(mm) | Diameter (mm) | ||
| 30 | 7/0.10 | 0.30 | 0.78 | 1.86 | 361 | 305/1000 |
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 227 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 610/2000 |
| 24 | 11/0.16 | 0.60 | 0.78 | 2.16 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | 305/1000 |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.49 | 35.2 | 305/1000 |
| 18 | 16/0.254 | 1.18 | 0.78 | 2.73 | 22.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.05 | 14 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.78 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.53 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.476 | 305/1000 |
| 9 | 133/0.254 | 3.36 | 1.15 | 4.92 | 2.73 | 100/328 |
| 8 | 133/0.28 | 3.75 | 1.15 | 6.05 | 2.16 | 100/328 |
| 7 | 65/0.45 | 4.21 | 1.53 | 7.27 | 1.716 | 100/328 |
| 6 | 84/0.45 | 4.79 | 1.53 | 7.85 | 1.361 | 100/328 |
| 4 | 133/0.45 | 6.02 | 1.53 | 9.08 | 0.8559 | 100/328 |
| 2 | 212/0.45 | 7.60 | 1.53 | 10.66 | 0.5384 | 100/328 |
Company Information

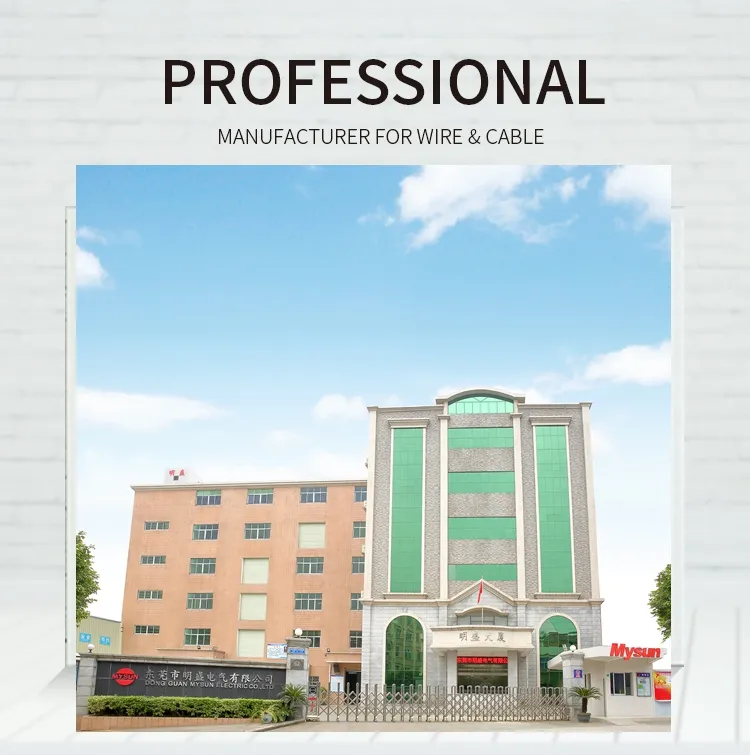

Shenzhen Mysun Insulation Materials Co.Ltd. is a comprehensive enterprise integrated with manufacture,distribution and trade.Wespecialize in production of all sorts of wire of high temperature and connecting which have been subjected to tests of UL,cUL,VDE,CE,CCC,SGS and TUV,and supply enterprises such as home appliance,electronics,lighting,medical unit,communication and office equipment with connecting wiring harness and processing service.
With the development and devote us into special materials field as an expert, our product lines are
now covering:
1)FEP/PFA/ETFE/PTFE wires;
2)Silicone rubber wires;
3)XLPE wires;
4)Special electrical wires;
5)PVC&XLPVC wires;
6)High temperature insulation tubing;
7)wiring harnesses.
"Quality is guarantee forexistence" is the guideline the the company always upholds.To realize own value and servethe society is our target and also our advancing power.
Service
Packaging : Hard cardboard carton ( Customizable)
Shipment:
1. by express
2. by sea
3. by air plane
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have a good cooperation!
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
