Liyy Data Cable Used in The Electronics of Computers Systems
LIYY data cable used in the electronics of computers systems Flexing temperature:70ºC Working voltage: 300/500V Reference standard: VDE 0245, VDE 0812 Stranded bare copper conductor PVC insulation , comply with ROHS environmental standard Uniform insulation thickness to ensure easy strippin......
Send Inquiry
Product Description

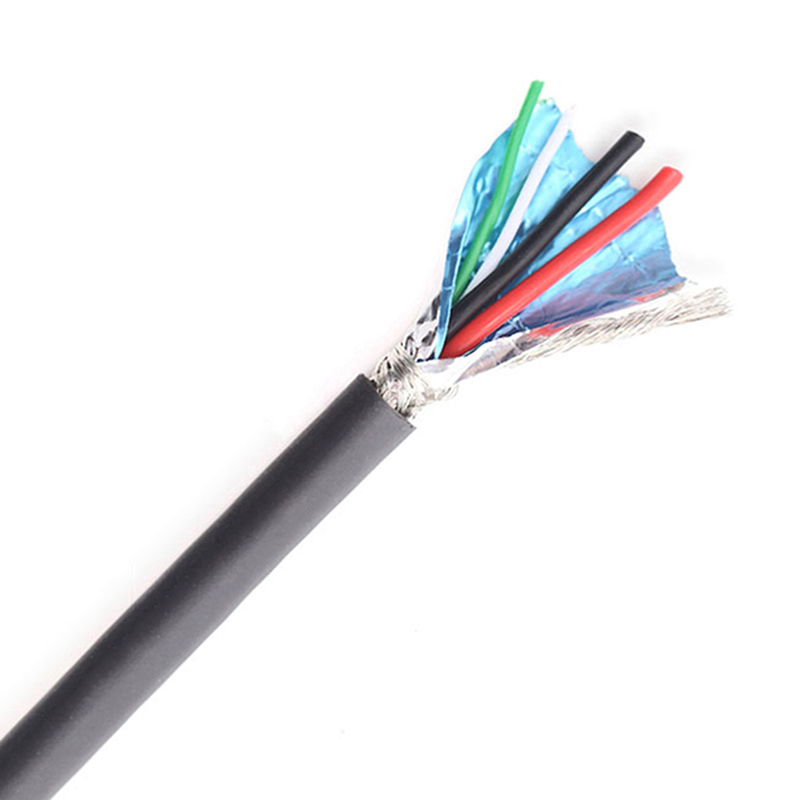

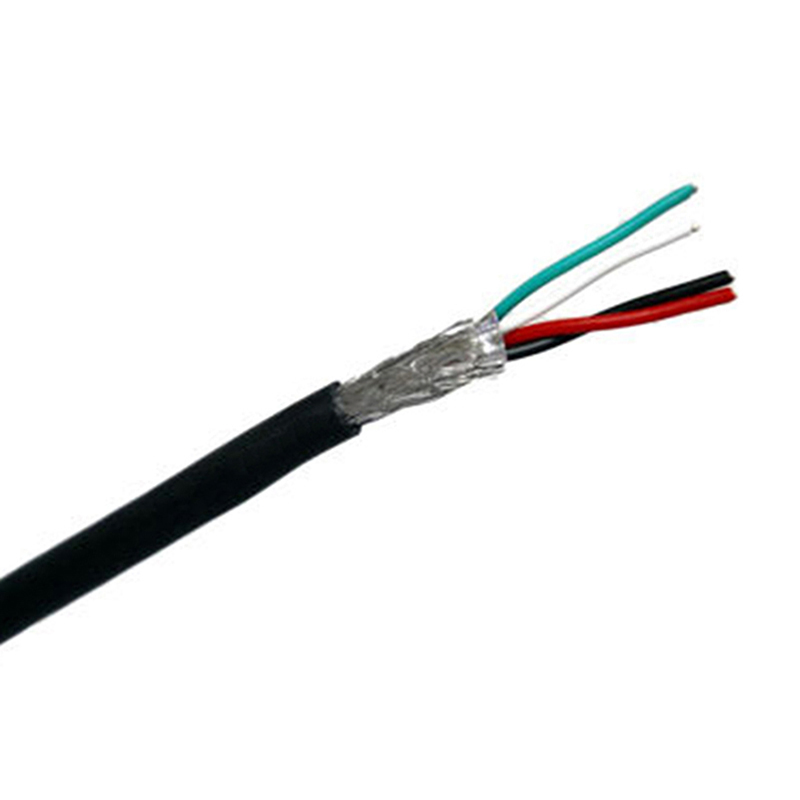

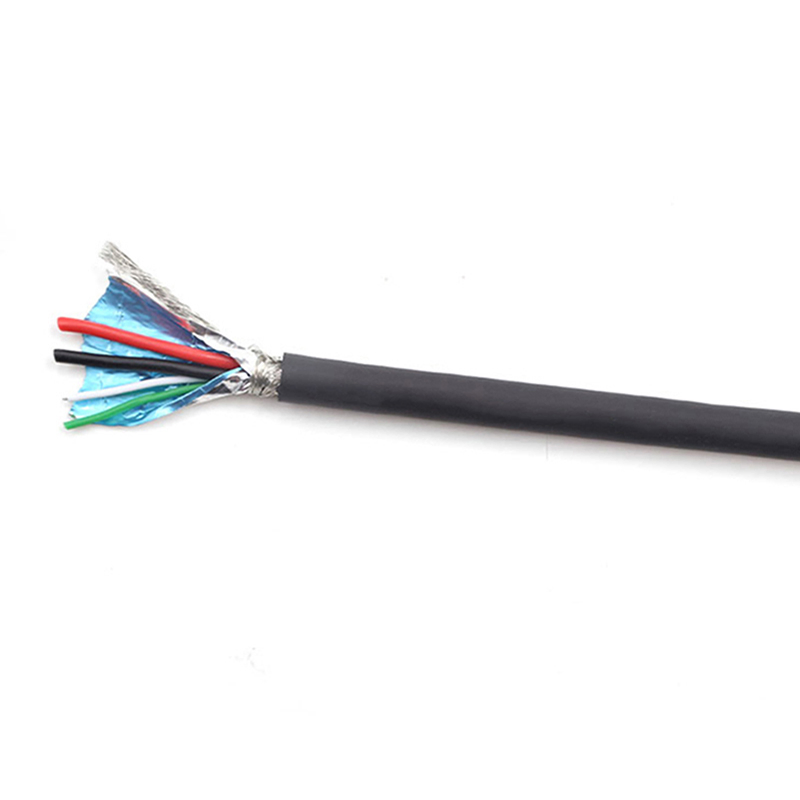

LIYY data cable used in the electronics of computers systems
★ Flexing temperature:70ºC
★ Working voltage: 300/500V
★ Reference standard: VDE 0245, VDE 0812
★ Stranded bare copper conductor
★ PVC insulation , comply with ROHS environmental standard
★ Uniform insulation thickness to ensure easy stripping and cutting
★ used as control and signal cables in the electronics of computers systems, electronic control equipment, office machines and measurement devices in the tool making and machine industries.recommended when a small outer diameter is required.
| Conductor | Nominal Overall Diameter mm | copper | cable | |
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | |||
| mm | kg/km | kg/km | ||
| 26(18/38) | 2*0.14 | 3.2 | 2.7 | 13.0 |
| 26(18/38) | 3*0.14 | 3.2 | 4.0 | 16.0 |
| 26(18/38) | 4*0.14 | 3.5 | 5.4 | 19.0 |
| 26(18/38) | 5*0.14 | 4.0 | 6.7 | 22.0 |
| 26(18/38) | 6*0.14 | 4.3 | 8.1 | 25.0 |
| 26(18/38) | 7*0.14 | 4.3 | 9.4 | 28.0 |
| 26(18/38) | 8*0.14 | 4.6 | 10.7 | 35.0 |
| 26(18/38) | 10*0.14 | 5.3 | 13.4 | 41.0 |
| 26(18/38) | 12*0.14 | 5.6 | 16.1 | 48.0 |
