We made the plastic mold of this 9-Pin J1939 female connector by ourselves because we have a full set of machines and equipments and a good team of staff for making plastic molds. We also have injection molding machines which can manufacture these 9-Pin J1939 female connectors according to the mold.
 Remember that this is a female connector because it is with terminals. The 9-Pin J1939 male connector is with pins.

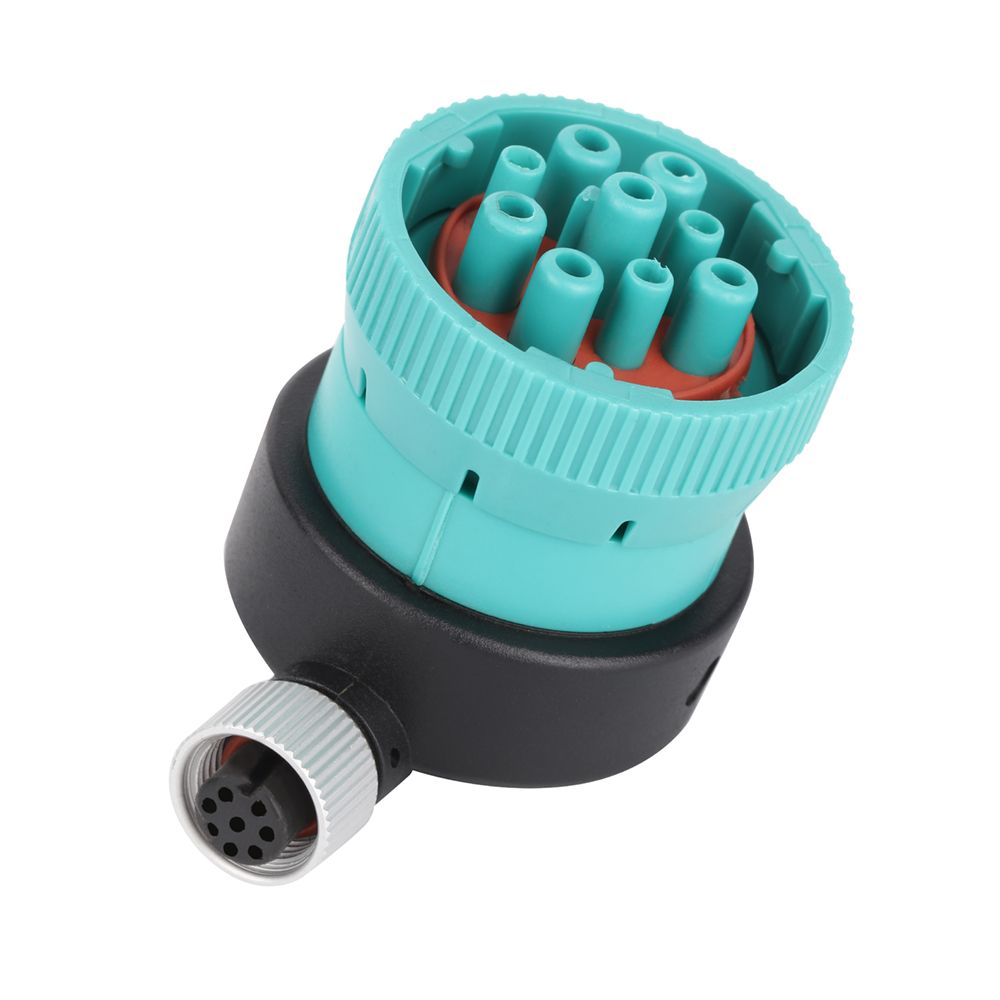

 The 9-Pin J1939 female socket is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won't come unplugged accidentally.
The Deutsch 9 Pin J1939 female connector is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 9-Pin female connectors can be inserted into Type 1 or Type 2 J1939 9-Pn male receptacles.

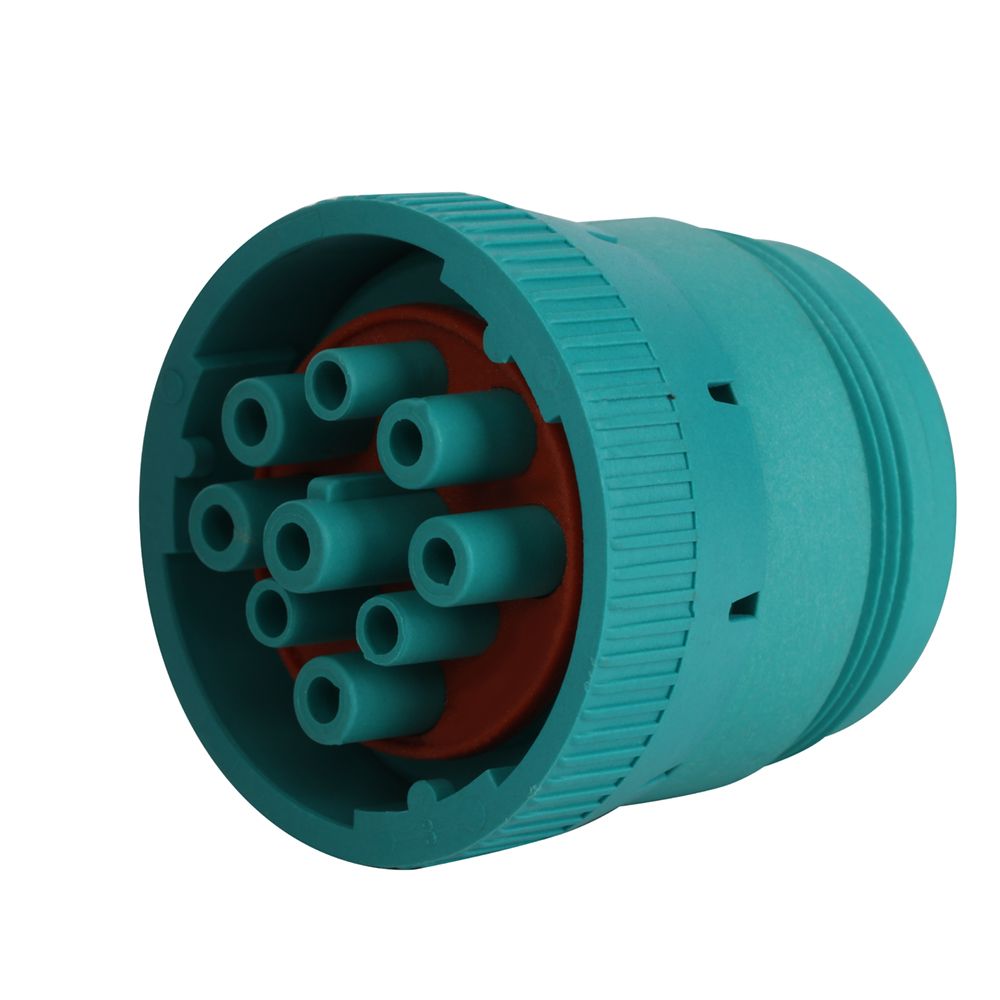

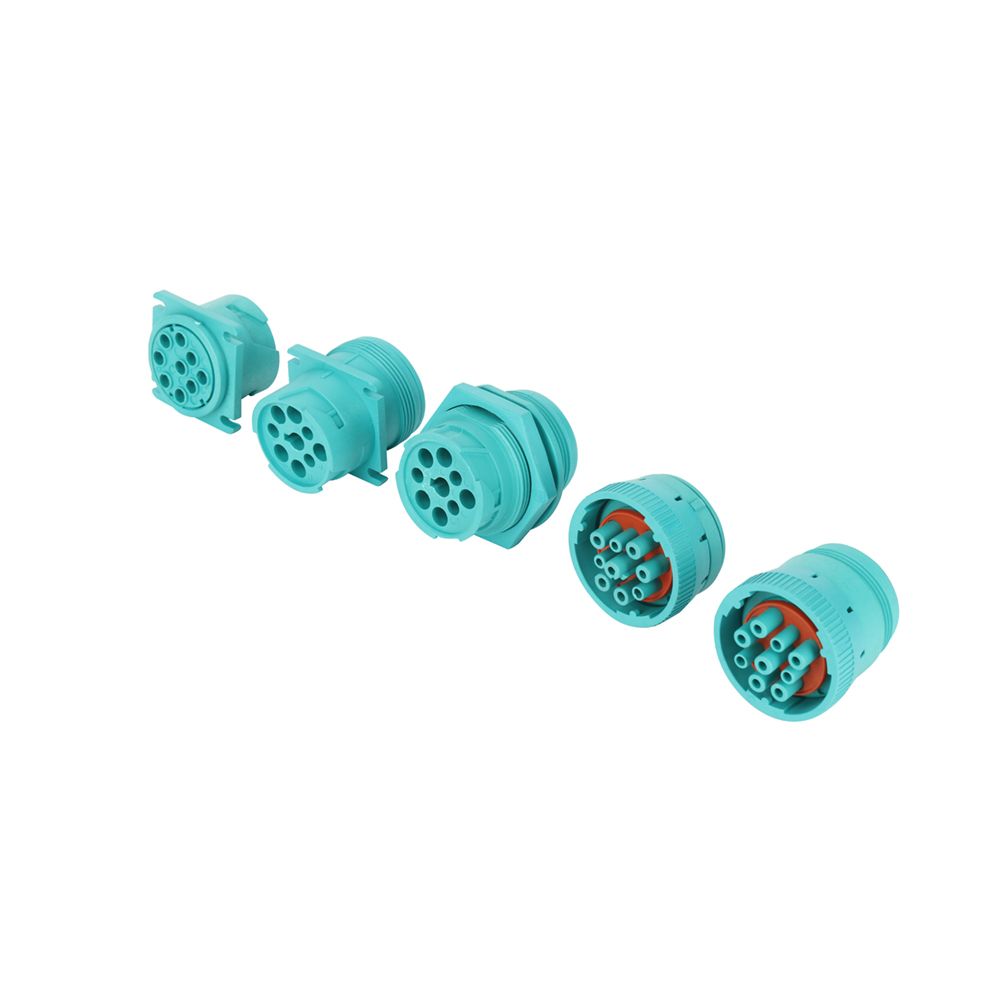

 Green Type 2 Female J1939 9 Pin Connector , J1939 Deutsch Connector
 These Type 2 J1939 9-Pin female connectors can mate with the following J1939 9-Pin male plugs:
 original or equivalent of Deutsch HD10-9-1939P-P080
original or equivalent of Deutsch HD10-9-1939PE-P080
original or equivalent of Deutsch HD10-9-1939P
original or equivalent of Deutsch HD16-9-1939PE
original or equivalent of Deutsch HD10-9-1939P-B022
original or equivalent of Deutsch HD10-9-1939PE-B022
original or equivalent of Deutsch HD10-9-1939P-BP03
original or equivalent of Deutsch HD10-9-1939PE-BP03
original or equivalent of Deutsch HD14-9-1939P-P080
original or equivalent of Deutsch HD14-9-1939PE-P080
original or equivalent of Deutsch HD14-9-1939P
original or equivalent of Deutsch HD14-9-1939PE
original or equivalent of Amphenol AHD17-9-1939PES80
original or equivalent of Amphenol AHD17-9-1939PES
Pin assignment or pinout
The pin assignment or pinout of 9-Pin J1939 female connector is like this:
Green Type 2 Female J1939 9 Pin Connector , J1939 Deutsch Connector
 The central pin is Pin A. The pin that the key tab of PIn A faces to is Pin F. The sequence of the pins B to J is clockwise.
Application
These 9-Pin J1939 female connectors can be used to manufacture 9-Pin J1939 cables and adapters.
