ISO9001 RoHS and Reach Compliant UL2725 Electric Wires Cables
ISO9001 rohs and reach compliant UL2725 electric wires cablesModel: UL2725 Multi-conductor CableRated Voltage: 30VRated Temperature: 60°C or 80°CReference standard: Subject UL758, UL1581Stranded, bare or tinned copper conductorLead free PVC jacketPasses UL VW-1 & CSA FT1 vertical......
Send Inquiry
Product Description
ISO9001 rohs and reach compliant UL2725 electric wires cables

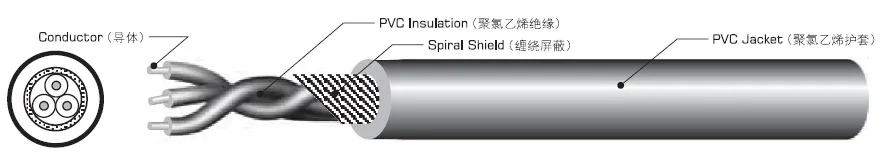

- Model: UL2725 Multi-conductor Cable
- Rated Voltage: 30V
- Rated Temperature: 60°C or 80°C
- Reference standard: Subject UL758, UL1581
- Stranded, bare or tinned copper conductor
- Lead free PVC jacket
- Passes UL VW-1 & CSA FT1 vertical flame test
- For internal or external wiring of Class 2 systems equipment and electronic equipment
| Cores | Stranded Conductor | Insulation | Drain Wire | Overall Shield | Jacket | Maximum Resistance at 20ºC Ω/km | |||||
| AWG | No./mm | Dia. | Nom.Thick. | Nom.Dia. | No./mm | Material | Spiral No./mm | Nom.Thick. | Nom.Dia. | ||
| mm | mm | mm | mm | Braid No./No./mm | mm | mm | |||||
| 2 | 30 | 7/0.1 | 0.30 | 0.25 | 0.80 | - | - | 45/0.1 | 0.50 | 2.70 | 354.00 |
| 2 | 28 | 19/0.08 | 0.40 | 0.15 | 0.70 | - | - | - | 0.40 | 2.20 | 220.00 |
| 4 | 30 | 7/0.1 | 0.30 | 0.25 | 0.80 | - | - | 59/0.1 | 0.39 | 2.90 | 354.00 |
| 4 | 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | - | AL | 16/5/0.12 | 0.87 | 5.00 | 139.00 |
| 8 | 30 | 7/0.1 | 0.30 | 0.13 | 0.56 | - | AL | 58/0.1 | 0.70 | 3.50 | 354.00 |
| 11 | 28 | 7/0.127 | 0.38 | 0.22 | 0.82 | 7/0.16 | AL | 16/7/0.12 | 0.60 | 5.20 | 223.00 |
| 11 | 28 | 7/0.127 | 0.38 | 0.14 | 0.66 | - | - | 16/6/0.12 | 0.38 | 3.65 | 223.00 |
| 13 | 28 | 7/0.127 | 0.38 | 0.14 | 0.66 | 7/0.127 | AL | 16/5/0.12 | 0.53 | 4.50 | 223.00 |
AVAILABILITY:
Twisting, sprial striping, cut & strip, dyeing, custom printing.
Q1: Can I get free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6:Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation
4. Professional service
WHY CHOOSE US
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
