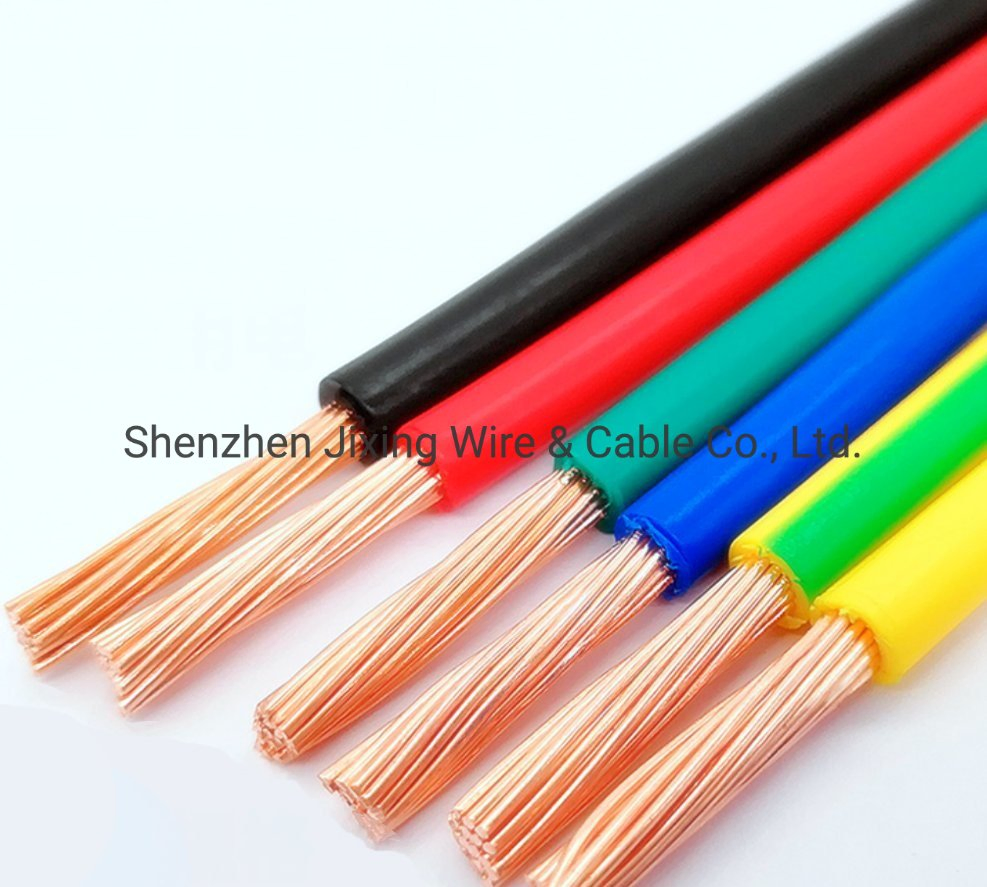

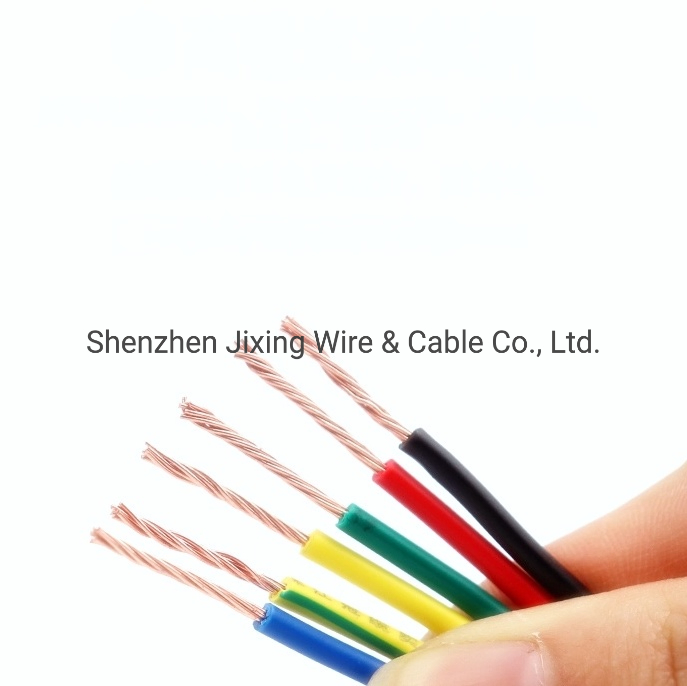

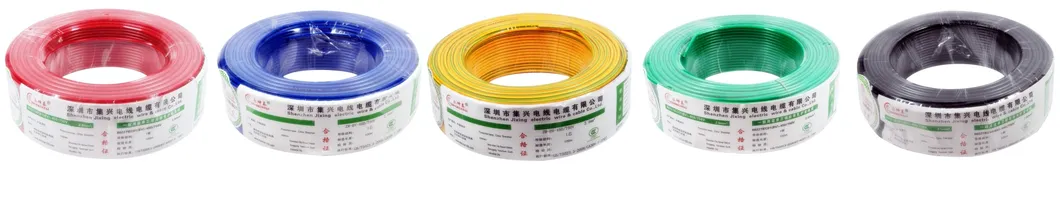

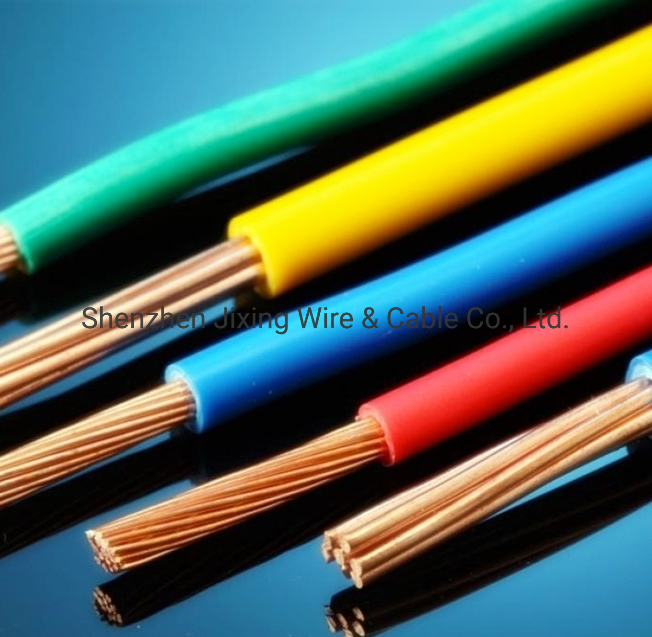

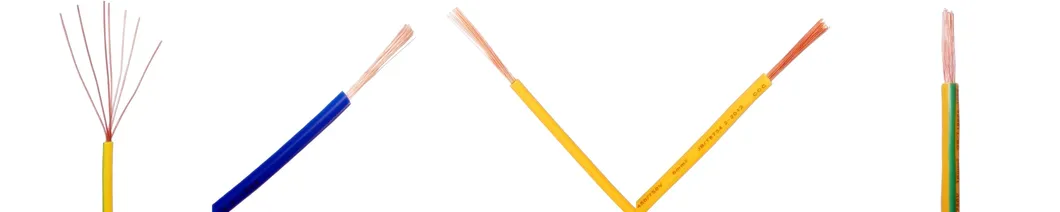

Household Copper PVC Insulated Standard Wire ACSR Conductor Electrical Power Cable
Product Description:Code Designation by IECCode Designation by GBRated VoltageNameApplication Rated Temperature60227 IEC 01 BV300/500VCopper conductor PVC insulated rigid cable (electrical wire)Fixed laid indoorsInstrument etc.0°C~70°C60227 IEC 05BV450/750V BLV450/750VAlumi......
Send Inquiry
Product Description
Product Description:
| Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
| 60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. | 0°C~70°C |
| 60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | |||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. | 0°C~70°C | |
| 60227 IEC10 | BVV | 300/500V | Copper Core PVC insulating PVC sheathed round cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 0°C~70°C |
| | BLVV | 300/500V | Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V | Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | |||
| BLVVB | 300/500V | Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | |||
| 60227 IEC 02 | RV | 450/750V | Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 0°C~70°C |
| 60227 IEC 06 | RV | 300/500V | |||
| 60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V | Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | |||
| 60227 IEC 52 | RVV | 300/300V | Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
| 60227 IEC 53 | RVV | 300/500V |
Specification:
BV(60227 IEC01 05 )
( Including flame retardant fire resistance )
| Rated Voltage (V) | Nominal crosssection(mm²) | Condutor type | Upper limit of O.D.(mm) | Max D.C. resistance at 20ºC(Ω/km) | Max insulation resistance at 70ºC(MΩ/km) | Recommended ampacity(A) | Reference weight of cable(kg/km) |
| 300/500 | 0.5 | 1 | 2.4 | 36.0 | 0.015 | 13 | 8.3 |
| 0.75 | 1 | 2.6 | 24.5 | 0.012 | 17 | 10.9 | |
| 0.75 | 2 | 2.8 | 24.5 | 0.014 | 17 | 11.8 | |
| 1.0 | 1 | 2.8 | 18.1 | 0.011 | 20 | 13.7 | |
| 1.0 | 2 | 3.0 | 18.1 | 0.013 | 20 | 14.8 | |
| 450/750 | 1.5 | 1 | 3.3 | 12.1 | 0.011 | 25 | 20.0 |
| 1.5 | 2 | 3.4 | 12.1 | 0.010 | 25 | 21.3 | |
| 2.5 | 1 | 3.9 | 7.41 | 0.010 | 34 | 31.5 | |
| 2.5 | 2 | 4.2 | 7.41 | 0.009 | 34 | 34.4 | |
| 4.0 | 1 | 4.4 | 4.61 | 0.0085 | 44 | 46.8 | |
| 4.0 | 2 | 4.8 | 4.61 | 0.0077 | 44 | 50.0 | |
| 6.0 | 1 | 4.9 | 3.08 | 0.0070 | 58 | 66.7 | |
| 6.0 | 2 | 5.4 | 3.08 | 0.0065 | 58 | 71.0 | |
| 10 | 2 | 6.8 | 1.83 | 0.0065 | 79 | 118.0 | |
| 16 | 2 | 8.0 | 1.15 | 0.0050 | 111 | 178.0 | |
| 25 | 2 | 9.8 | 0.727 | 0.0050 | 146 | 280.0 | |
| 35 | 2 | 11.0 | 0.524 | 0.0040 | 180 | 378 | |
| 50 | 2 | 13.0 | 0.387 | 0.0045 | 282 | 508 | |
| 70 | 2 | 15.0 | 0.268 | 0.0035 | 281 | 717 | |
| 95 | 2 | 17.0 | 0.193 | 0.0035 | 344 | 991 | |
| 120 | 2 | 19.0 | 0.153 | 0.0032 | 397 | 1228 | |
| 150 | 2 | 21.0 | 0.124 | 0.0032 | 456 | 1511 | |
| 185 | 2 | 23.5 | 0.0991 | 0.0032 | 519 | 1894 | |
| 240 | 2 | 26.5 | 0.0754 | 0.0032 | 592 | 2468 | |
| 300 | 2 | 29.5 | 0.0601 | 0.0030 | 685 | 3089 | |
| 400 | 2 | 33.5 | 0.0470 | 0.0028 | 799 | 3935 |
| Nominal crosssection(mm²) | Upper limit of O.D.(mm) | Max D.C. resistance at 20ºC(Ω/km) | Max insulation resistance at 70ºC(MΩ/km) | Recommended ampacity(A) | Reference weight of cable(kg/km) |
| 0.5 | 2.4 | 36.0 | 0.015 | 13 | 9.3 |
| 0.75 | 2.6 | 24.5 | 0.013 | 17 | 12.0 |
| 1.0 | 2.8 | 18.1 | 0.012 | 20 | 15.0 |
| 1.5 | 3.3 | 12.1 | 0.011 | 25 | 20.0 |
| 2.5 | 3.9 | 7.41 | 0.009 | 34 | 32 |
| 4.0 | 4.4 | 4.60 | 0.008 | 44 | 47 |
| 6.0 | 4.9 | 3.08 | 0.007 | 58 | 6 |
Our Company:

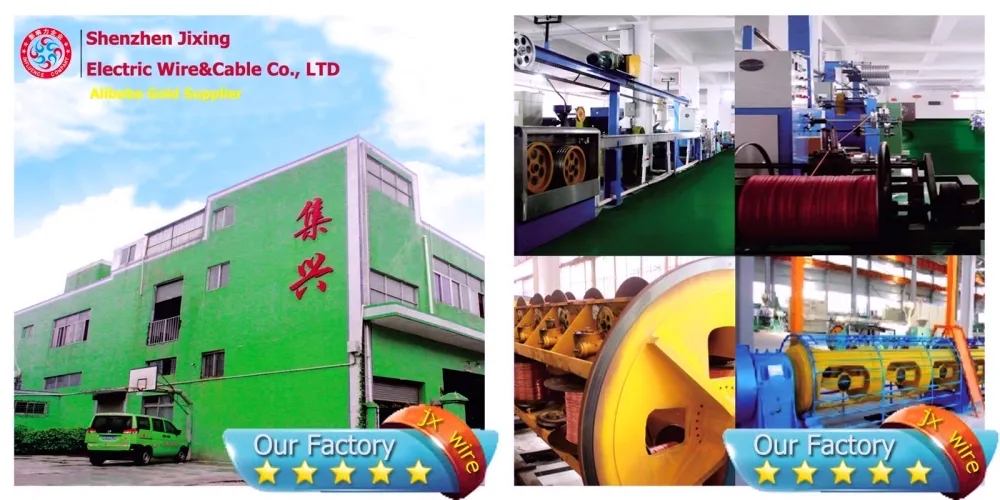

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retar
dant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friendly LSOH 28 varieties, more than 6400 specifications, products are sold to foreign markets, the majority of users praise.
Our company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Certification:
Our Customers:
Why choose us?
1.We're a manufacturer which has 36years experience in producing electric wire & cable.
2.OEM&ODM are available.
3.All our products have ISO 9001, CCC, CE, ROHS certifications
4.Fast delivery(5~20days)
5.Best after-sales service
