High Temperature Oven Lamp Braiding Wire UL 3074 20AWG
Product DescriptionUL3071, UL3074, UL3075 Silicone Fiberglass Braid WireDescriptionName: Silicone Fiberglass Braid WireModel: UL3071, UL3074, UL3075Size: 18~10AWGFeatureRatings Voltage: 600VRated Temperature: 200CStructureConductor: Tinned CopperInsulation: Silicone RubberJacket: Fiberglass Braid wi......
Send Inquiry
Product Description

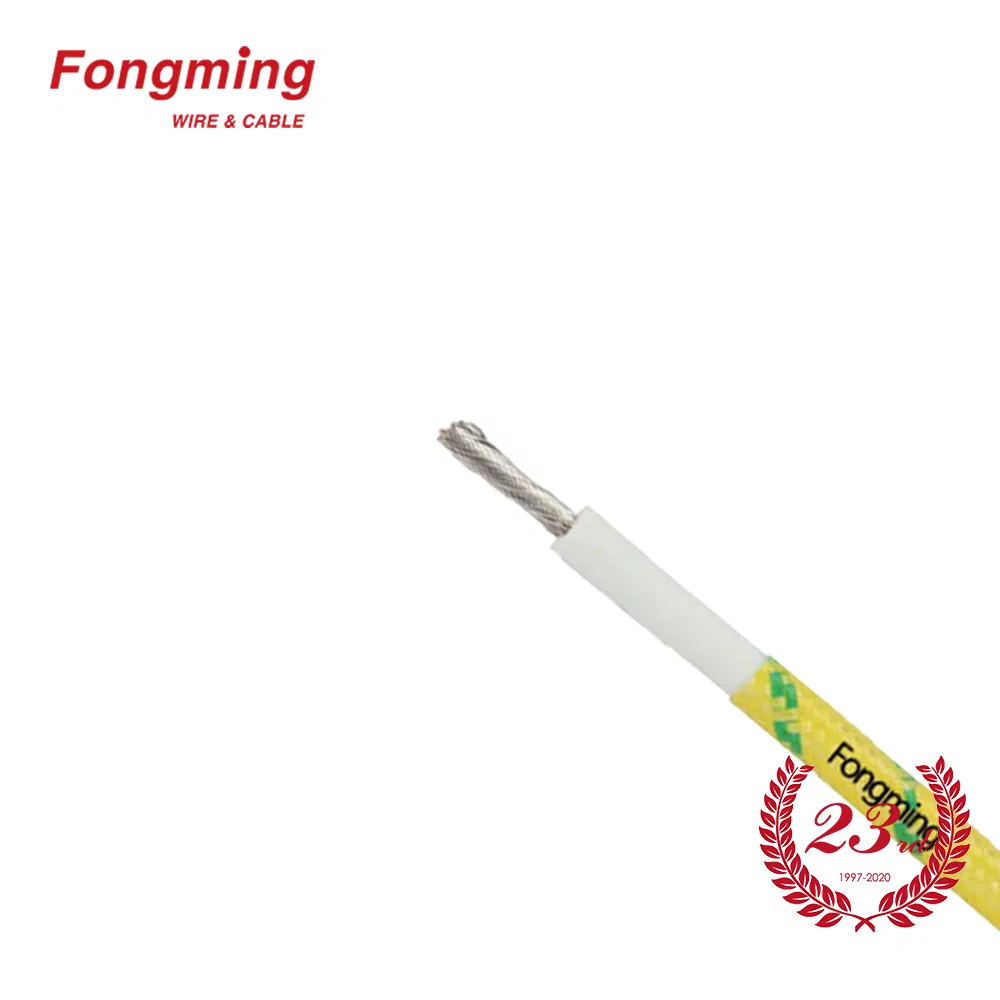

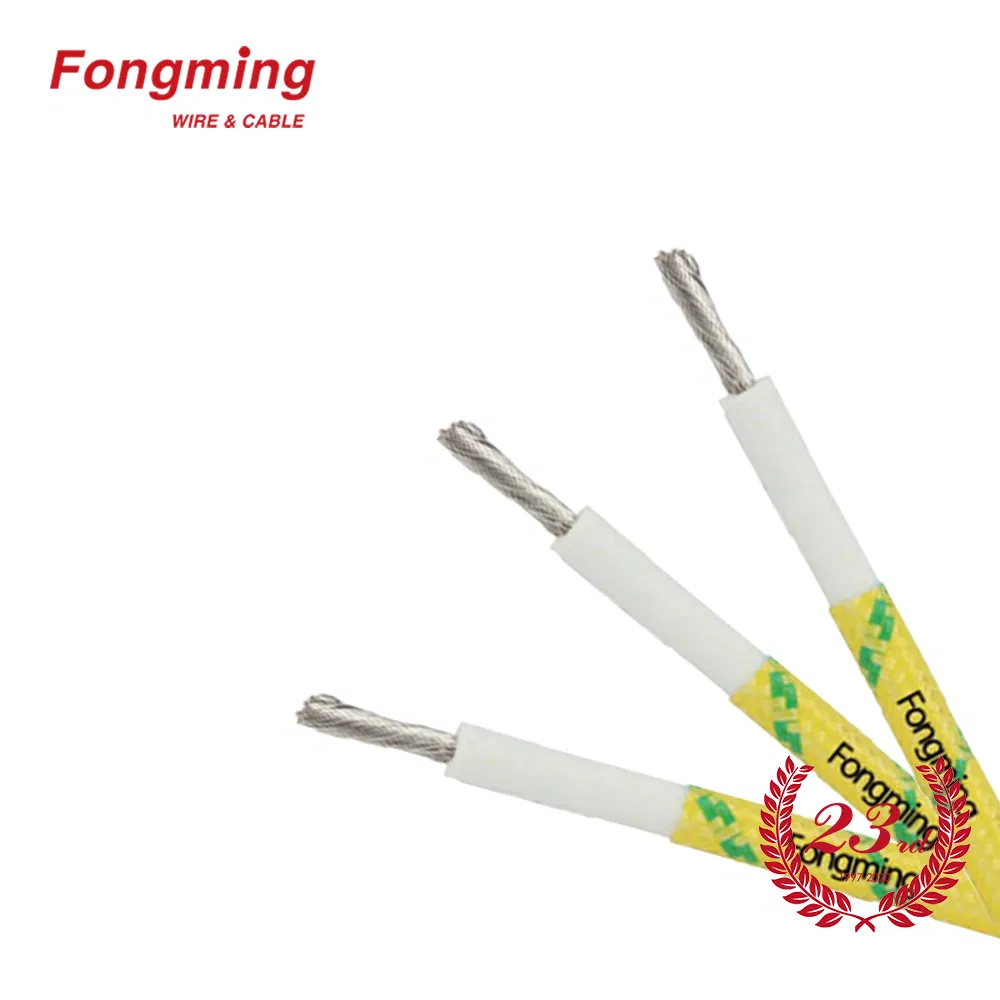

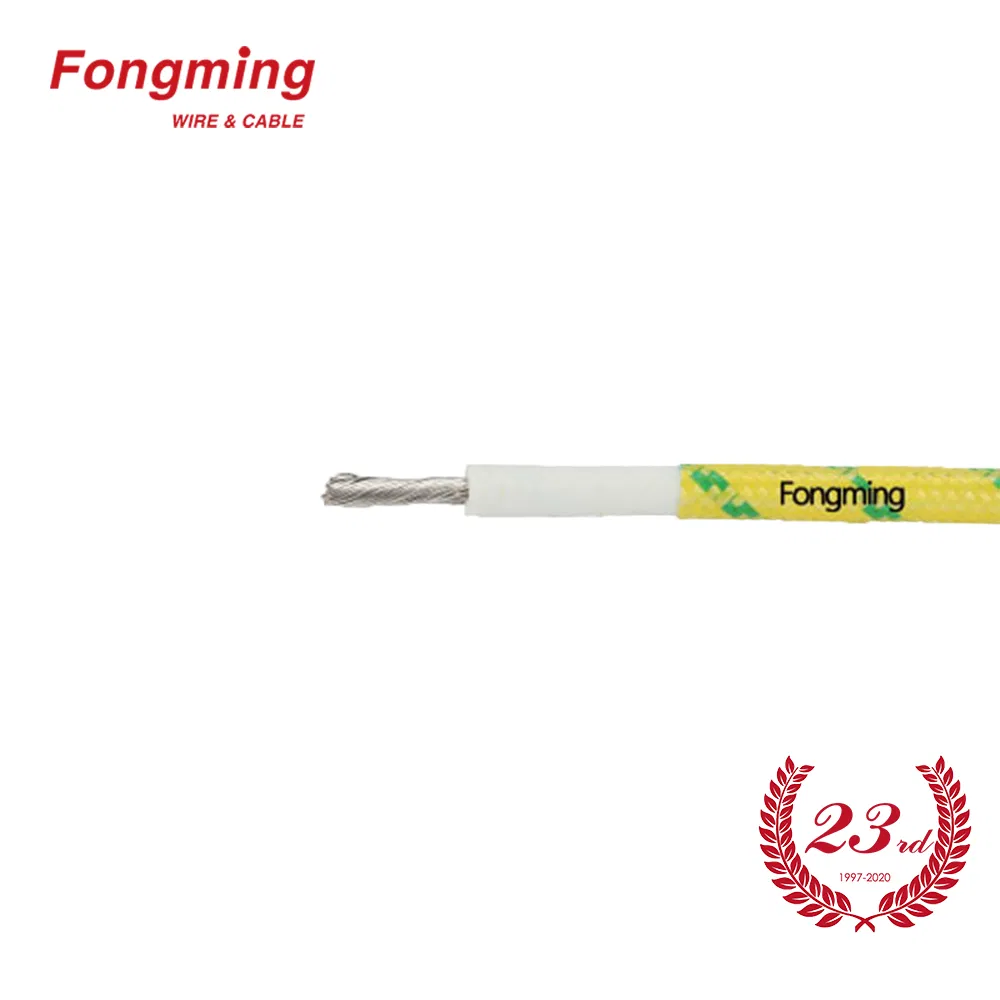

UL3071, UL3074, UL3075 Silicone Fiberglass Braid Wire
Description
Name: Silicone Fiberglass Braid Wire
Model: UL3071, UL3074, UL3075
Size: 18~10AWG
Feature
Ratings Voltage: 600V
Rated Temperature: 200C

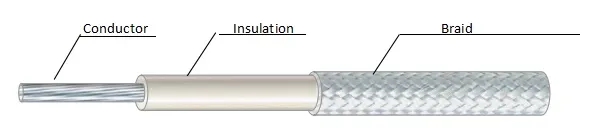

Structure
Conductor: Tinned Copper
Insulation: Silicone Rubber
Jacket: Fiberglass Braid with High Temperature Finish
| Conductor | Insulation | Max. Conductor Resistance (at 20ºC)(Ω/km) | ||||
| Style | Size (AWG) | Conductor Structure (No./mm) | Nominal Thickness (mm ) | Braid Thickness (mm) | Nominal Diameter (mm) | |
| 3071 | 18 | 16/0.254 | ≥0.76 | ≥0.2 | 3.2±0.1 | 23.5 |
| 16 | 26/0.254 | 3.5±0.1 | 14.6 | |||
| 14 | 41/0.254 | 3.9±0.1 | 8.96 | |||
| 3074 | 12 | 65/0.254 | ≥0.76 | ≥0.2 | 4.5±0.2 | 5.64 |
| 3075 | 10 | 103/0.254 | ≥1.14 | ≥0.25 | 6.0±0.2 | 3.54 |
Certifications

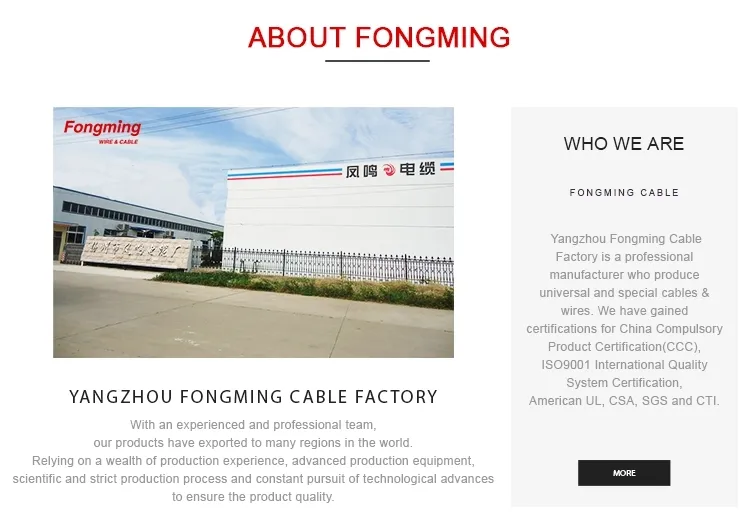

Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
