High Quality 450/750V PVC Insulated Building Copper Wire
Conductor:Copper/Aluminum/Copper clad aluminumInsulation:PVC/PE/HDPE/XLPEApply voltage:300/300V 300/500V 450/750VAmbient Temperature:Above 0°COperation temperature: For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08. Type 08 will allow 105&......
Send Inquiry
Product Description
Conductor:
Copper/Aluminum/Copper clad aluminum
Insulation:
PVC/PE/HDPE/XLPE
Apply voltage:
300/300V 300/500V 450/750V
Ambient Temperature:
Above 0°C
Operation temperature:
For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08.
Type 08 will allow 105°C.

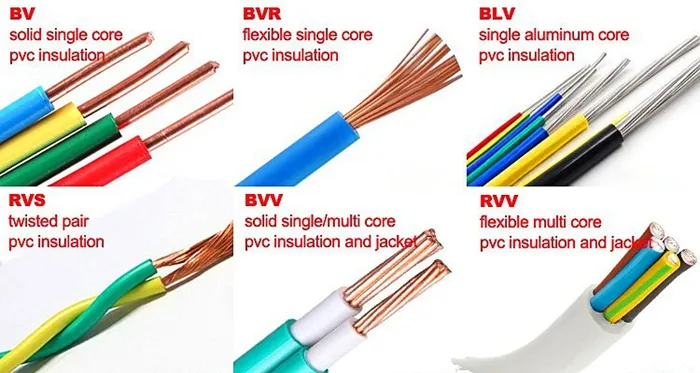

Category | Descriptions | Type | Rated voltage | No. of cores | Nominal Cross .section mm2. |
Non-sheathed cables and wires for fixed wiring | Single core solid conductor non-sheathed cables for common uses | 60227IEC01 (BV) | 450/750 | 1 | 1.5~400 |
Aluminum conductor PVC insulated cables | BLV | 450/750 | 1 | 2.5~400 | |
Copper conductor PVC insulated flexible cables | BVR | 450/750 | 1 | 2.5~70 | |
Copper conductor PVC insulated wires | BV | 300/500 | 1 | 0.75~1.0 | |
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C | 60227IEC05 (BV) | 300/500 | 1 | 0.5~1.0 | |
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C | 60227IEC07 (BV-90) | 300/500 | 1 | 0.5~2.5 | |
Single core flexible conductor non-sheathed cables for common uses | 60227IEC02 (RV) | 450/750 | 1 | 1.5~240 | |
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C | 60227IEC06 (RV) | 300/500 | 1 | 0.5~1.0 | |
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C | 60227IEC08 (RV-90) | 300/500 | 1 | 0.5~2.5 | |
Sheathed cables for fixed wiring | Light-duty PVC sheathed cables | 60227IEC10(BVV) | 300/500 | 1,2,3, 4,5 | 1.5~35 |
Copper conductor PVC insulated PVC sheathed flat cables | BVVB | 300/500 | 2,3 | 0.75~10 | |
Aluminum conductor PVC insulated PVC sheathed circular cables | BLVV | 300/500 | 1 | 2.5~10 | |
Aluminum conductor PVC insulated PVC sheathed flat cables | BLVVB | 300/500 | 2,3 | 2.5~10 | |
Flexible cables(cords) | Non-sheathed flat cords | 60227IEC42(RVB) | 300/300 | 2 | 0.5~0.75 |
Cords for indoor illumination loops | 60227IEC43 (SVR) | 300/300 | 1 | 0.5~0.75 | |
Light-duty PVC sheathed cords | 60227IEC52(RVV) | 300/300 | 2,3 | 0.5~0.75 | |
Ordinary PVC sheathed cords | 60227IEC53(RVV) | 300/500 | 2,3,4,5 | 0.75~2.5 | |
Copper conductor PVC insulated stranded cords for connecting | RVS | 300/300 | 2 | 0.5~0.75 |
Technical Parameters:
| Nominal Section(mm2) | Number /diameter of core (mm) | Thickness of insulation(mm) | outer diameter (mm) | BV weight (kg/km) | BLV weight (kg/km) | Thickness of sheath(mm) |
| 1.5 | 1/1.38 | 0.70 | 2.78 | 20.07 | / | 0.80 |
| 2.5 | 1/1.78 | 0.80 | 3.38 | 31.72 | 16.32 | 0.80 |
| 4 | 1/2.25 | 0.80 | 3.85 | 46.70 | 22.09 | 0.90 |
| 6 | 1/2.76 | 0.80 | 4.36 | 66.43 | 29.39 | 0.90 |
| 10 | 7/1.35 | 1.00 | 6.05 | 113.15 | 50.71 | 0.90 |
| 16 | 7/1.70 | 1.00 | 7.10 | 170.56 | 71.55 | 0.90 |
| 25 | 7/2.14 | 1.20 | 8.82 | 267.85 | 110.96 | 1.20 |
| 35 | 7/2.52 | 1.20 | 9.96 | 361.34 | 143.78 | 1.20 |
| 50 | 19/1.78 | 1.40 | 11.70 | 490.78 | 195.74 | 1.40 |
| 70 | 19/2.14 | 1.40 | 13.50 | 691.22 | 264.77 | 1.40 |
| 95 | 19/2.52 | 1.60 | 15.80 | 954.92 | 363.58 | 1.60 |
| 120 | 37/2.03 | 1.60 | 17.41 | 1191.27 | 443.70 | 1.60 |
| 150 | 37/2.25 | 1.80 | 19.35 | 1465.85 | 547.47 | 1.80 |
| 185 | 37/2.52 | 2.00 | 21.64 | 1837.14 | 685.12 | 2.00 |
| 240 | 61/2.24 | 2.20 | 24.56 | 2384.59 | 883.48 | 2.20 |
| 300 | 61/2.50 | 2.40 | 27.30 | 2963.24 | 1093.44 | 2.40 |

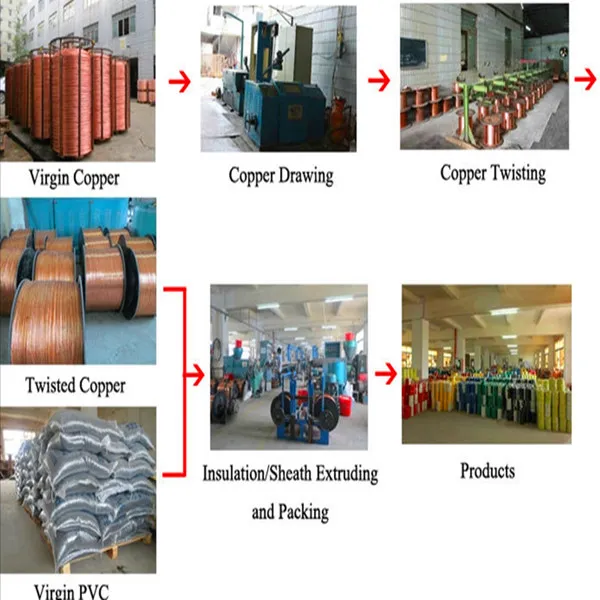

Electric Wire Production Progress

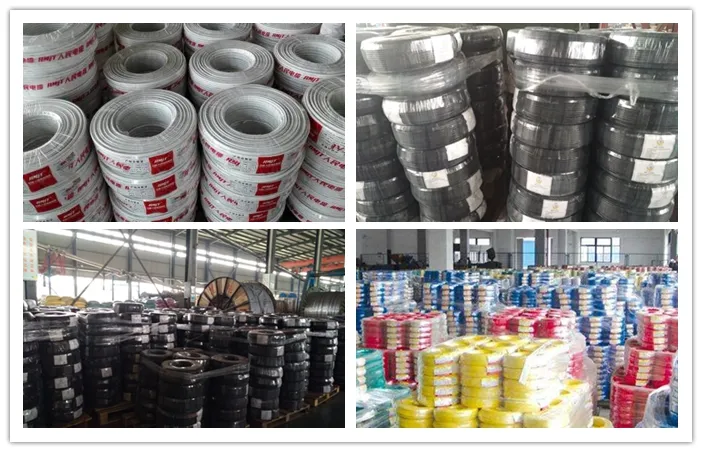

Electric Wire Package
About Us
Henan Kingyear Aluminum Industrial Co., Ltd was founded in 2006, located in Gongyi industry area of Henan Province. Our company consists of 3 main subsidiaries, business specialized in develop, manufacture and distribution of Aluminum products. Our factories zone occupies more than 1200,000 square meters and the employees' number has exceeded 200.
We, Kingyear, dedicate ourselves to be a manufacturer of providing comprehensive solutions and customized services to help our customer to solve their problems and improve their profit.
We have a professional sales team with each of them has engaged in this job for 10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
Our Service:
1.10 years production experience and 10 years export experience .
2.Products certification :ISO,SGS,CE,BV
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback,Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
FAQ
Q:I didn't find the product which I need in this page?
A:If you didn't find the species of the produxts you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 5 tons.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the product which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include size, color, material, processing requirement etc.
Welcome your inquiry! Any question please feel free to contact me .
