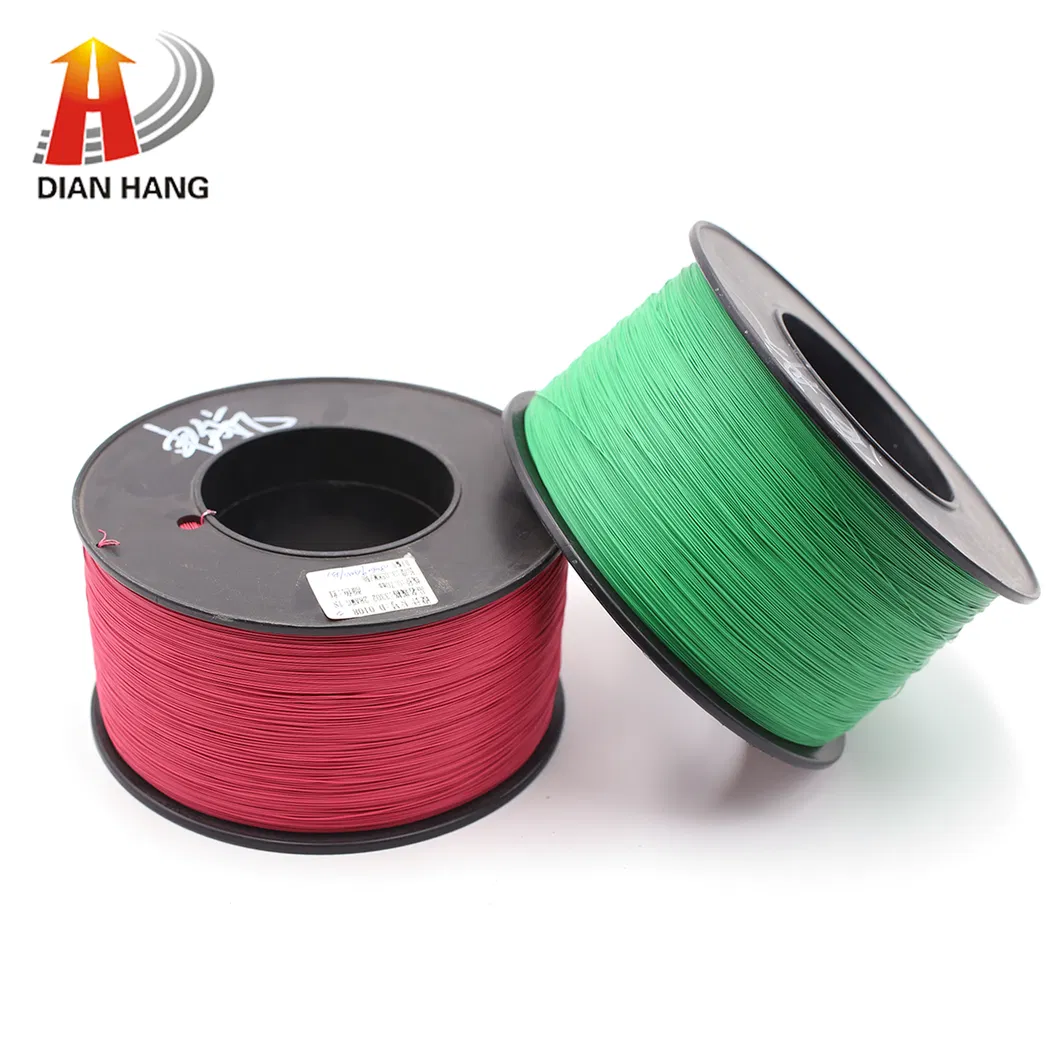

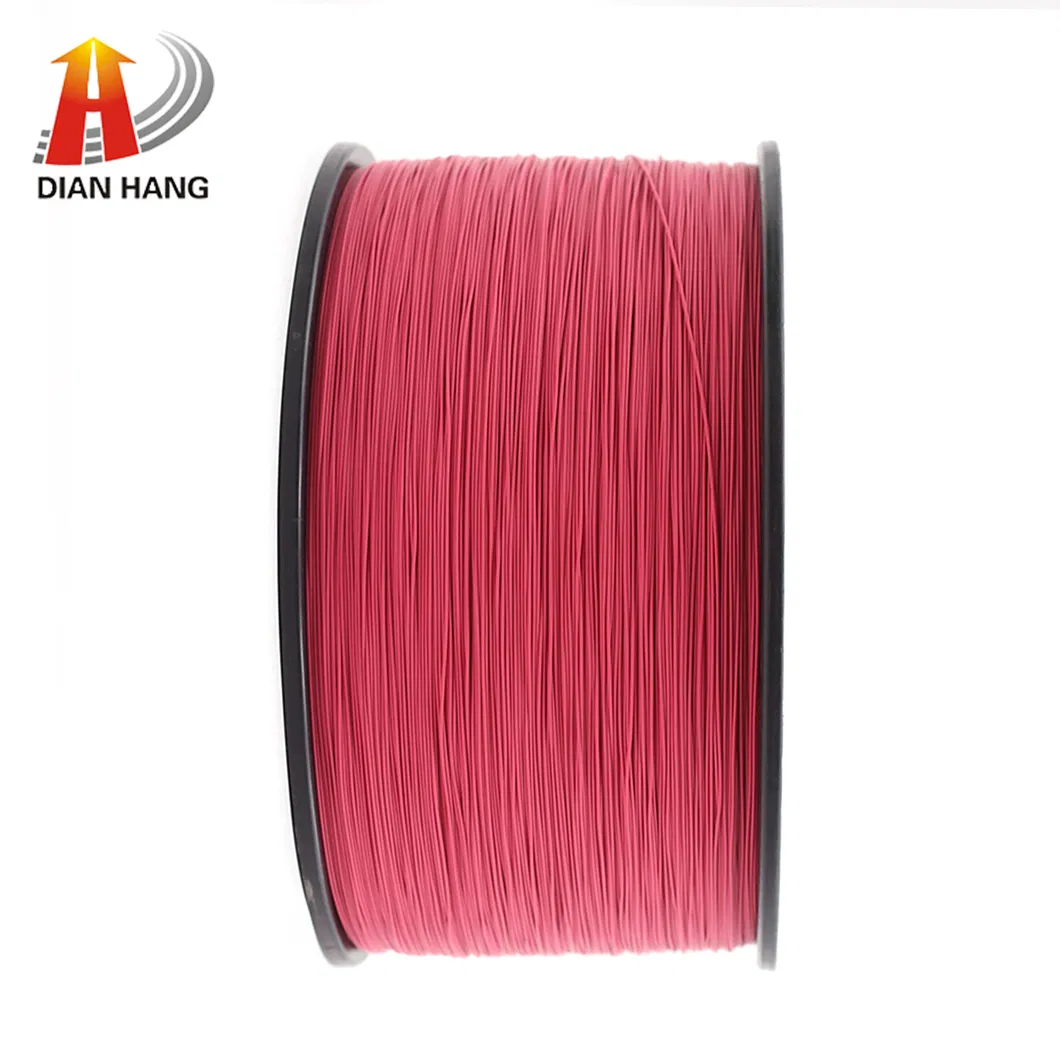

Halogen Free Wire RF-XLPE Insulation UL3173 UL3265 UL3266 UL3271 UL3272 UL3302 UL3321 UL3364 24AWG 22AWG 20AWG PVC Electrical Solid Cable
Product DescriptionHigh quality wire ul 3302 awg 28 awg LSZH XLPE insulation cableRated temperature: 105 ºCRated voltage: 30vReference standard: UL758, UL1581, CSA C22.2No.210.2Solid or standed, tinned or bare copper conductor 40AWG minXLPE insulation: comply with ROHS. REACH environmental ......
Send Inquiry
Product Description

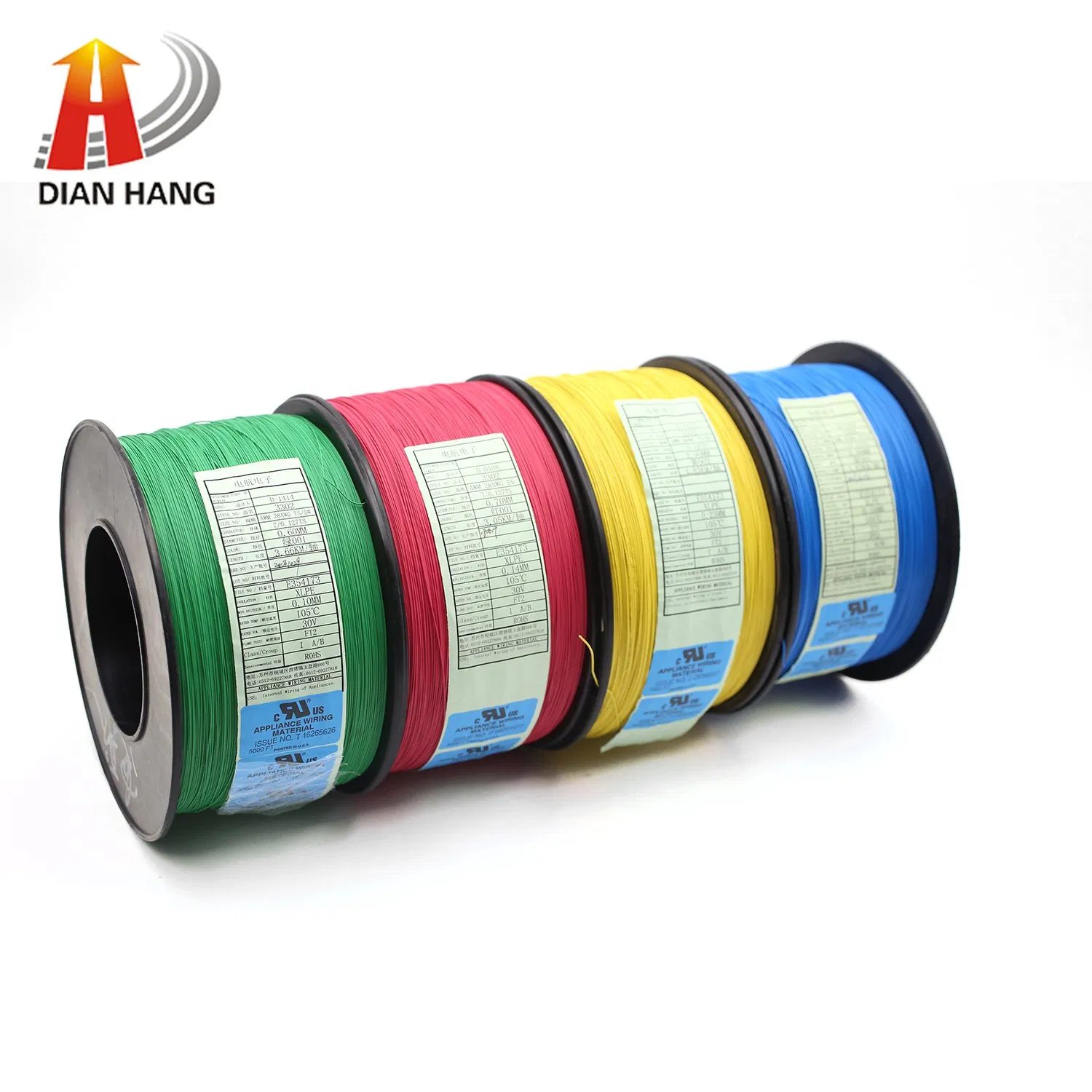

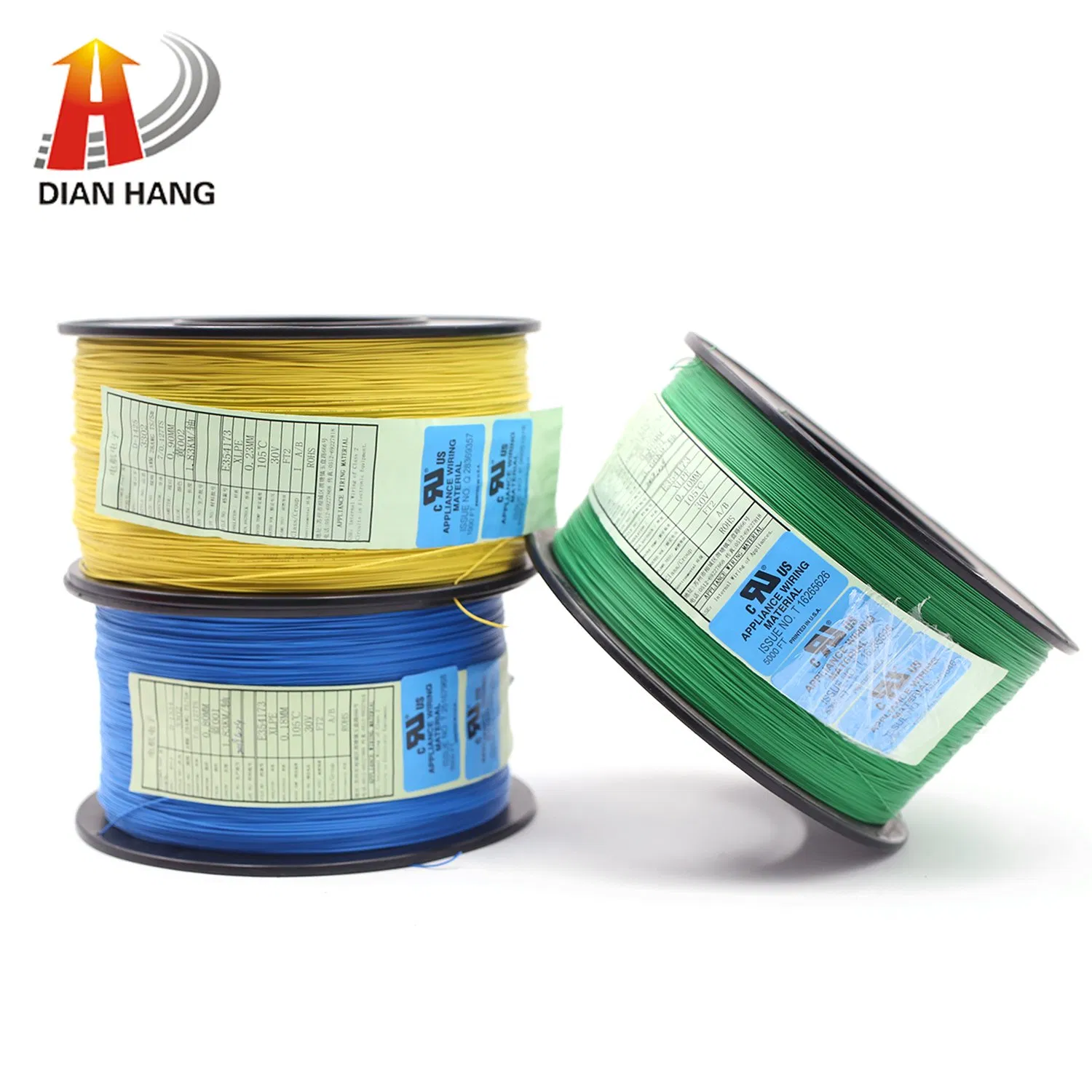

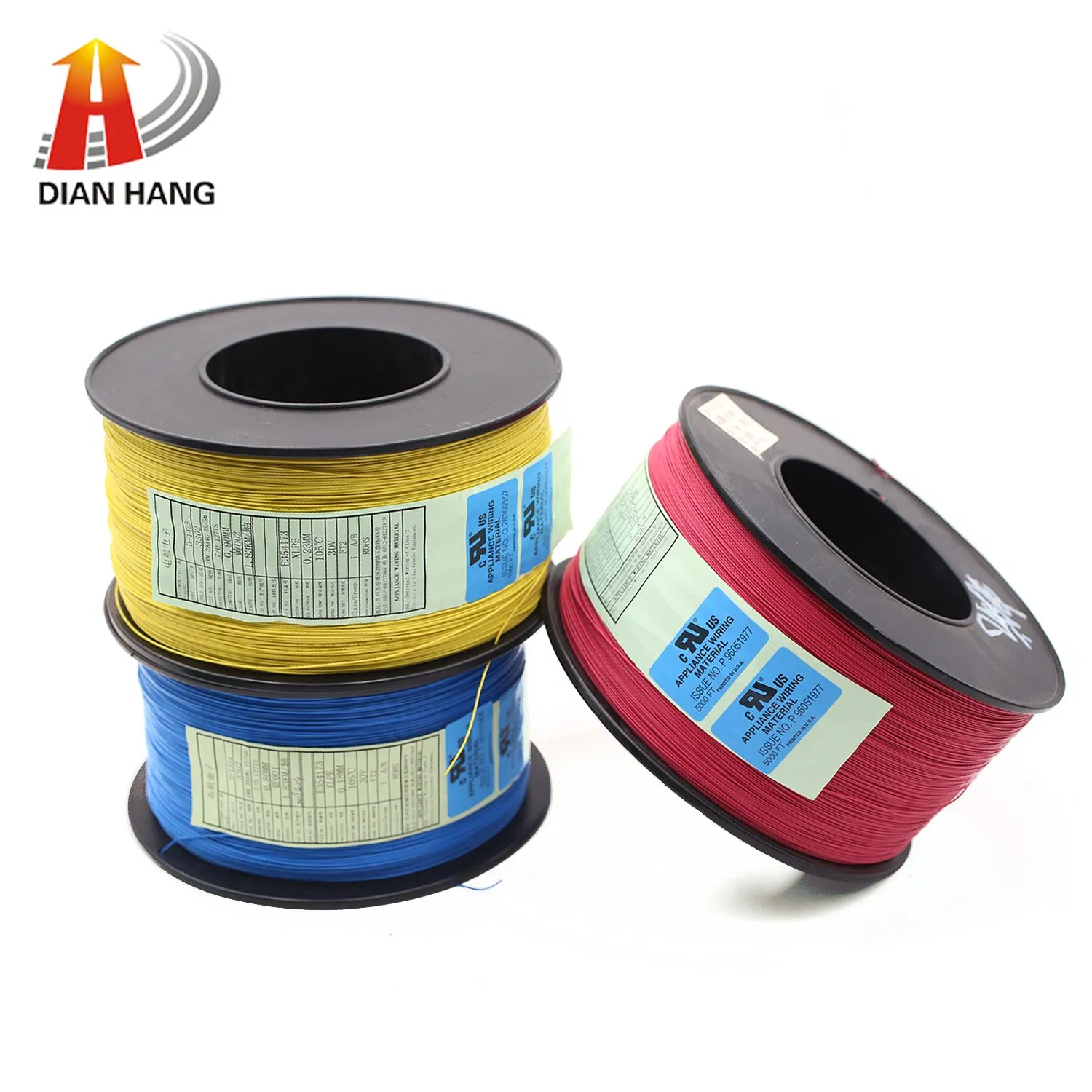

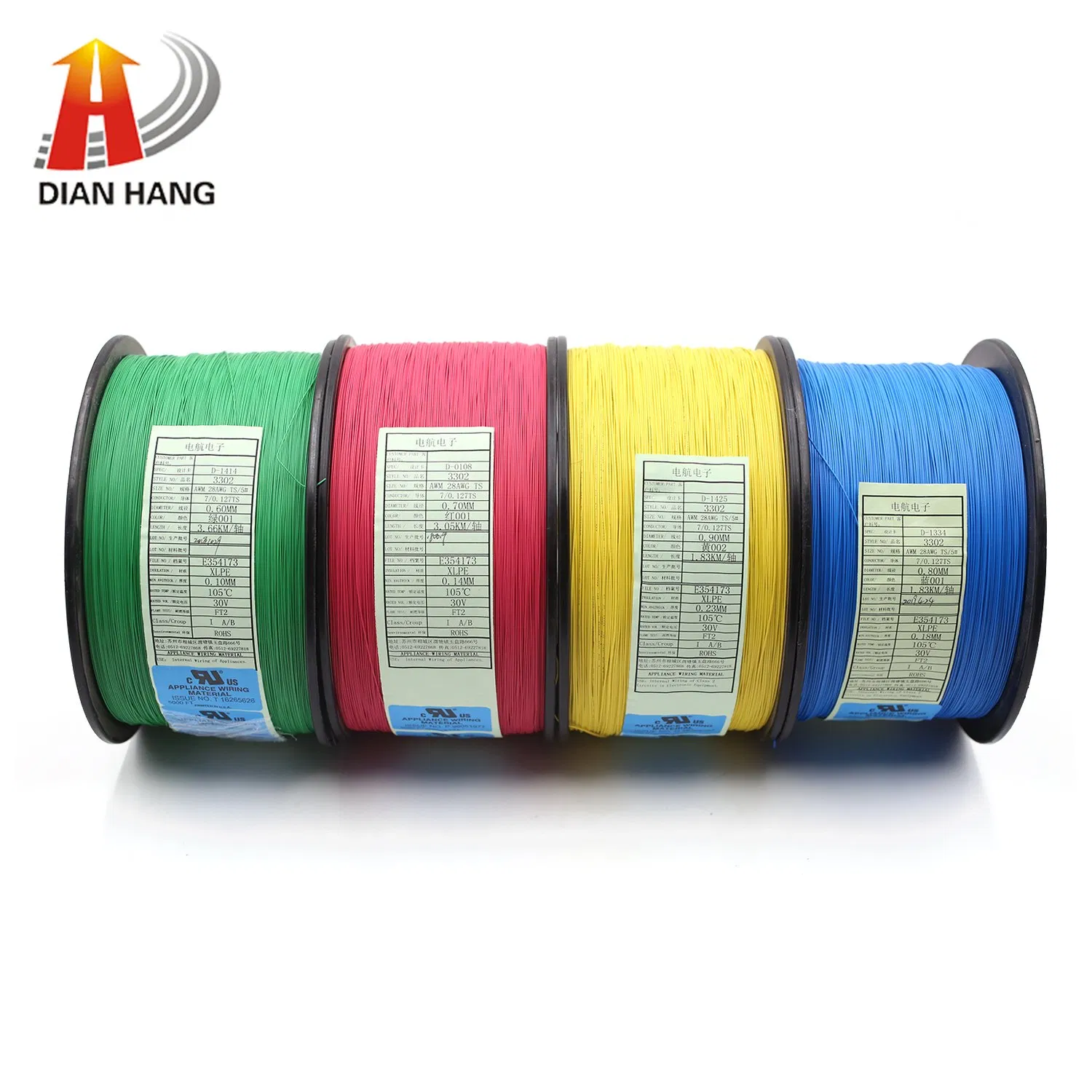

- High quality wire ul 3302 awg 28 awg LSZH XLPE insulation cable
- Rated temperature: 105 ºC
- Rated voltage: 30v
- Reference standard: UL758, UL1581, CSA C22.2No.210.2
- Solid or standed, tinned or bare copper conductor 40AWG min
- XLPE insulation: comply with ROHS. REACH environmental standard
- Passes UL VW-1 and JQA F-Mark flame test
- Uniform insulation thickness to ensure easy stripping and cutting
- Application: For general purpose internal wiring of applian
UL model conductor insulation maximum conductor
resistance
compressive strength 3302 specification(AWG) construction outside diameter thickness outside
diameter
(Ω/Km,20ºC,Dc) (Vac,1min) (mm) (mm) (mm) 36 7/0.05 0.15 0.15 0.45 1549 500 34 7/0.064 0.19 0.15 0.50 966 500 32 7/0.08 0.24 0.18 0.60 588.85 500 30 7/0.10 0.30 0.20 0.70 381 500 28 7/0.127 0.38 0.21 0.80 239 500 26 7/0.16 0.48 0.26 1.00 150 500 24 11/0.16 0.61 0.25 1.10 94.2 500 22 17/0.16 0.76 0.27 1.30 59.4 500
