H07rnf 7g1.5-50 Hose Cable H07rn-7 X 1.5 mm2 50m with PE
450/750V EPR insulated Neoprene sheath flexible HO7RN-F/Rubber cable H07RN-F Cable Construction:Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1Conductor Color Coding: acc. to HD 308 (VDE 0293-308)Co......
Send Inquiry
Product Description

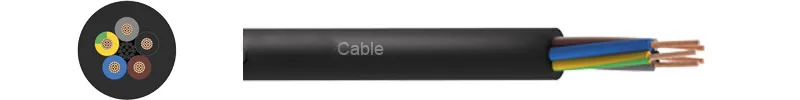

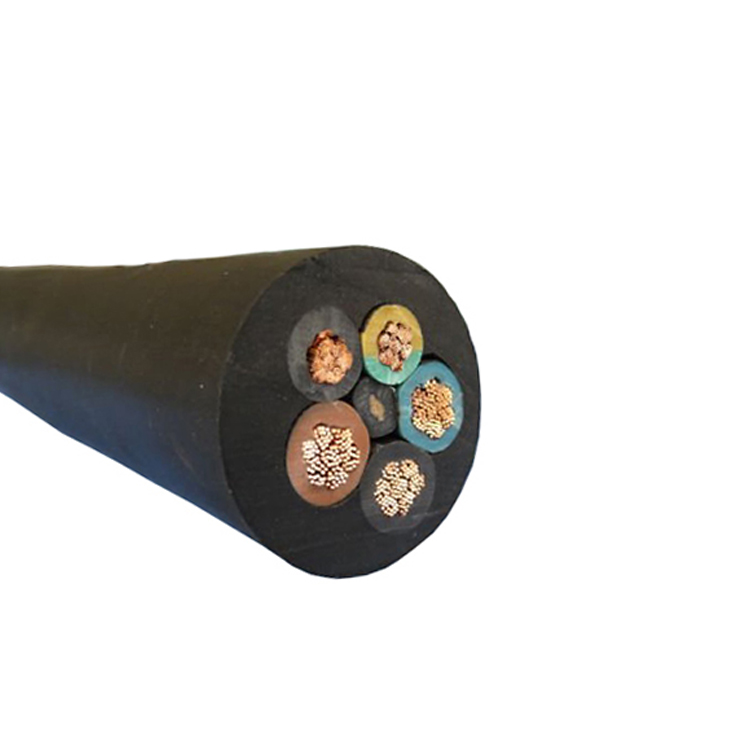

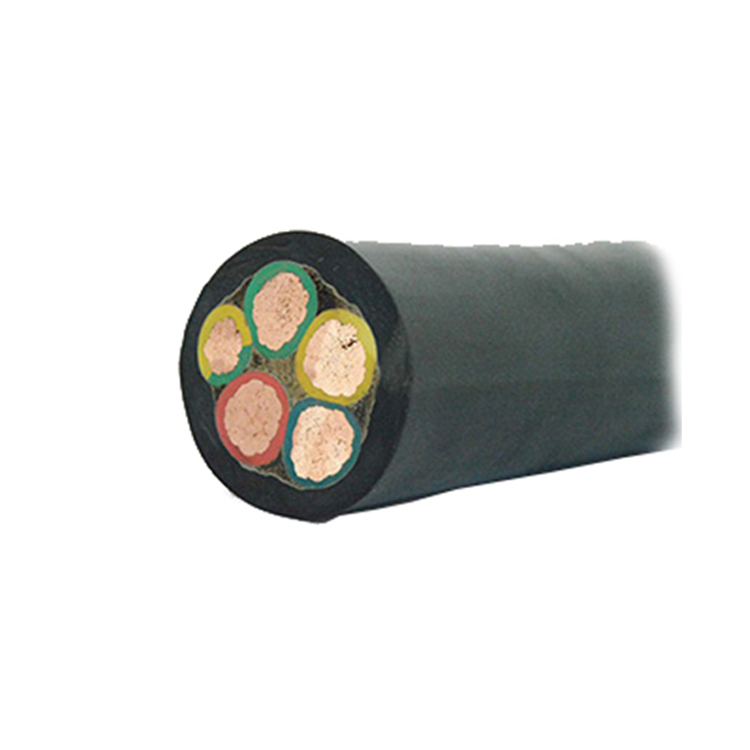

450/750V EPR insulated Neoprene sheath flexible HO7RN-F/Rubber cable
H07RN-F Cable Construction:
- Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
- Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
- Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
- Conductor Stranding: from 2 conductors stranded in layers
- Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
- Jacket Color: Black
H07RN-F Cable Technical Data:
- Nominal Voltage: Uo/U 450/750 volts
- Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
- Min. Bending Radius: 15 x O.D.
H07RN-F Cable Ratings & Approvals:
- Temperature Range: -25°C to +60°C
- VDE
- HAR
- CE
Working temperature:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C
Heavy Duty Oil Resistant Electrical Copper Conductor EPR Neoprene Insulated Rubber Sheathed 450/750v Flexible ho7rn-f Cable
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245IEC 53(YZ)/YZ | Ordinary rubber sheathed cord | 300/500V | 2~6 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
FAQ:
1. How many years has Qingdao yilan Cable Group been in production?

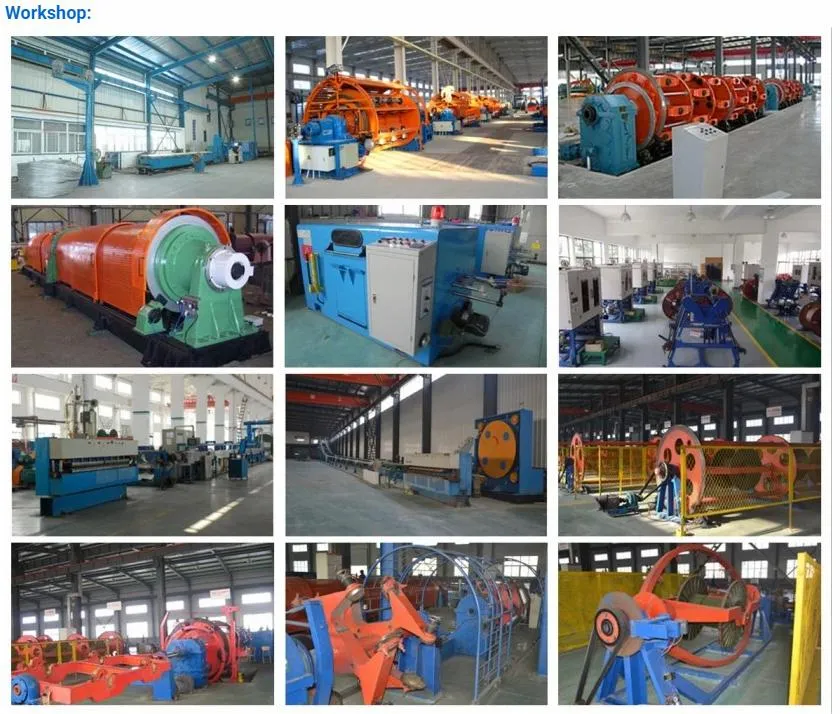

Founded in October 2011 by Mr. kuang, our facility has three separate manufacturing workshops within its 100, 000-sq. -FT. Building. In 2012, we operates in a new 666, 000 sq. Foot state-of-the-art facility in Qingdao ,China

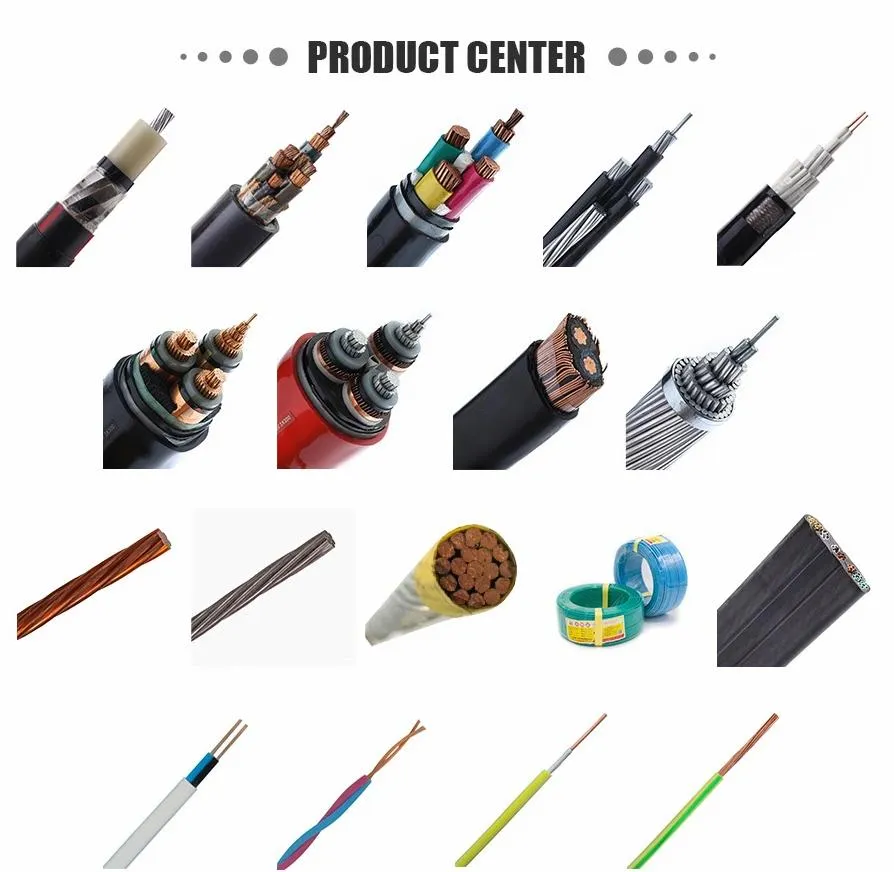

2. What kinds of products does Qingdao yilan Cable manufacture?
1)Bare Conductor, such as AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ), such as Duplex, Triplex, Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4. Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min. Order quantity?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted. But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow, we will try our best to solve the problem and meet with the requirement If you have special request.
7. What is the production capacity per week or per month?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3, 000, 000.00 for insulated aluminum cables and that is approx. USD8, 000, 000.00 for insulated copper cables.
8. Do you supply the customers with installation service in foreign country?
We don't have professional installation teams in foreign country. But if that is necessary, we will recommend our partners to cooperate with you
