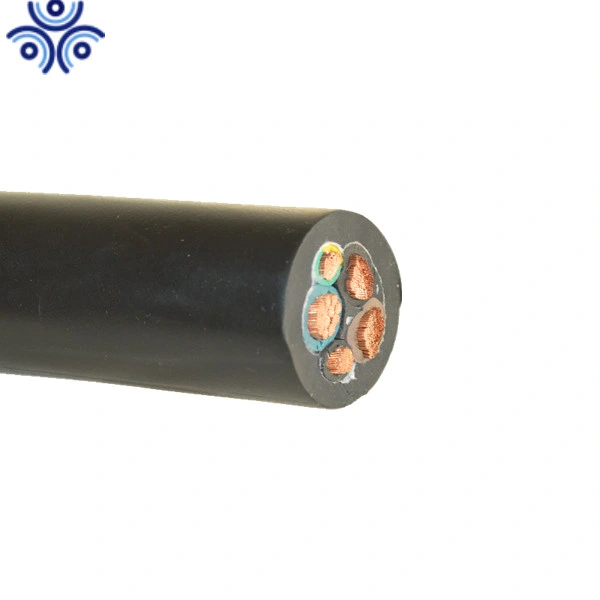

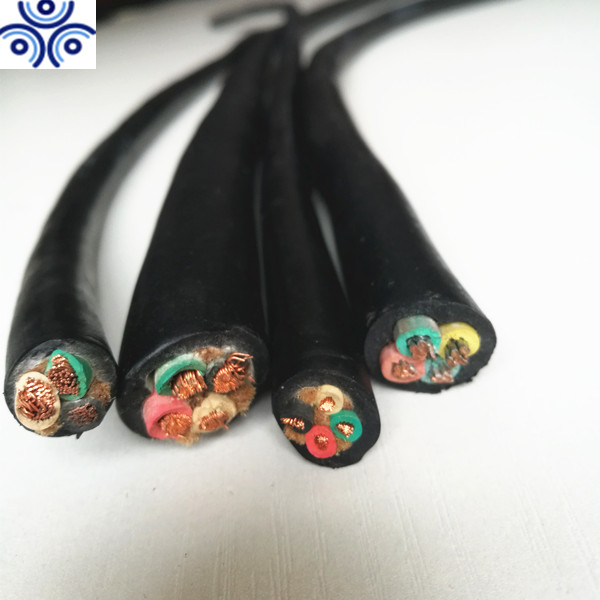

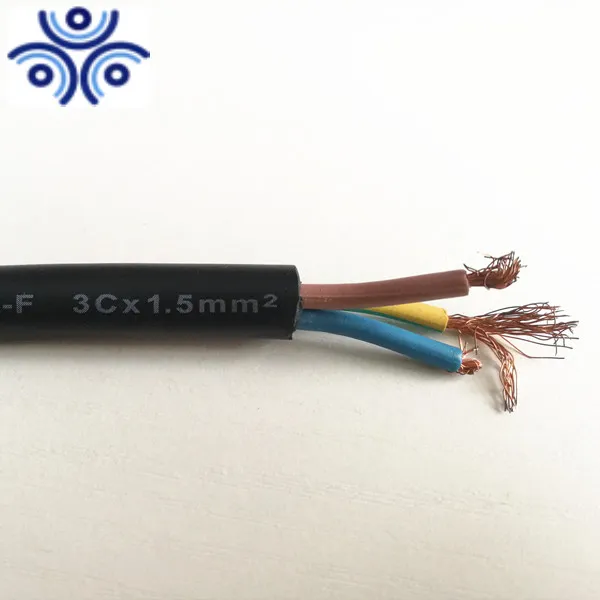

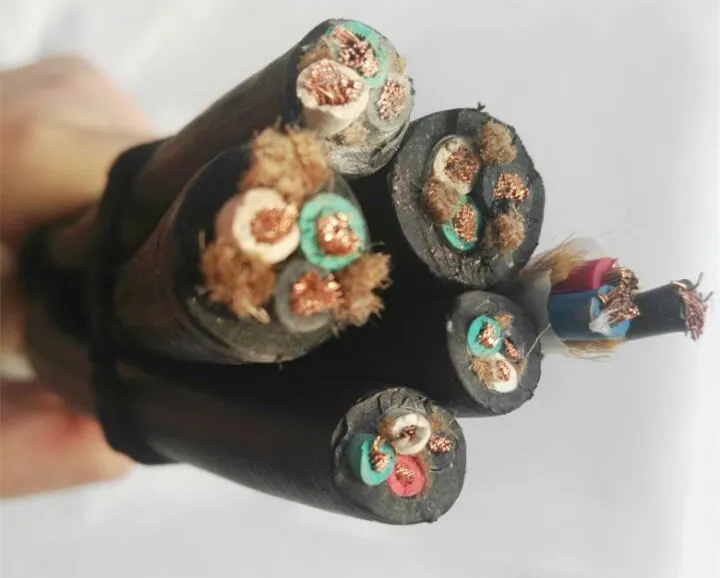

Flexible Rubber Cable Multicore Electrical Wire with High Quality Power Cable

TOP TEN CABLE MANUFACTURER IN CHINA
LARGEST CABLE MANUFACTURER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABORATORY



APPLICATIONS
Flexible PVC Rubber insulated Electrical Wire is intended for installations with moving equipment, electric appliances and for building sites. The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc. This cable can be used in refrigerating installations

SPECIFICATIONS
TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of the following standards, and guaranteed all cables manufactured and tested under these standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

CONSTRUCTION
Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1 EPR, or PVC
Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
Conductor Stranding: from 2 conductors stranded in layers
Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1, CPE or PVC.
Jacket Color: Black

MAXIMUM CONDUCTOR TEMPERATURE
Normal continuous at 70 or 90 ºC.
