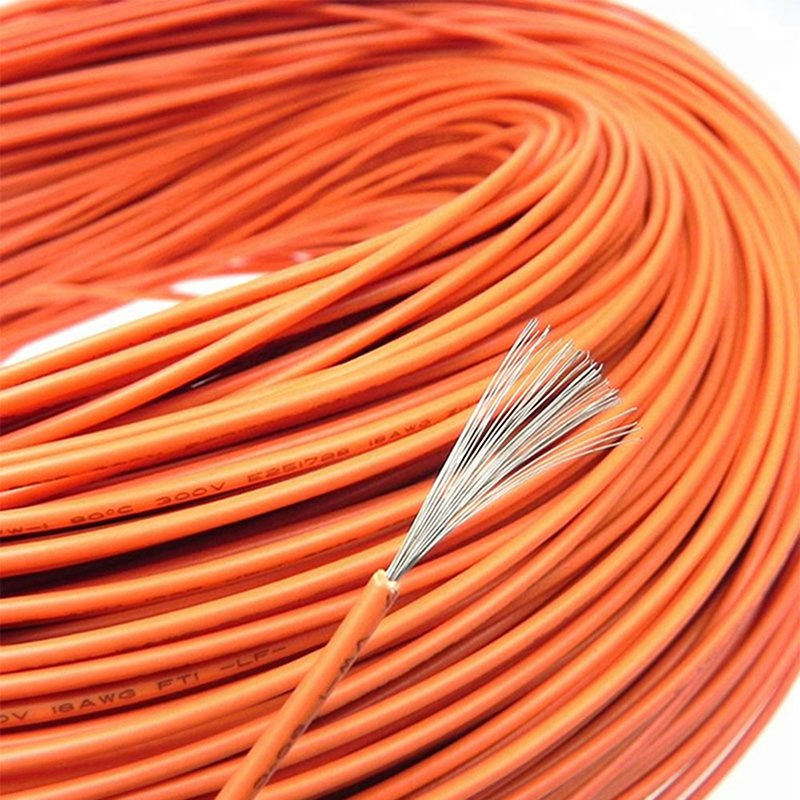

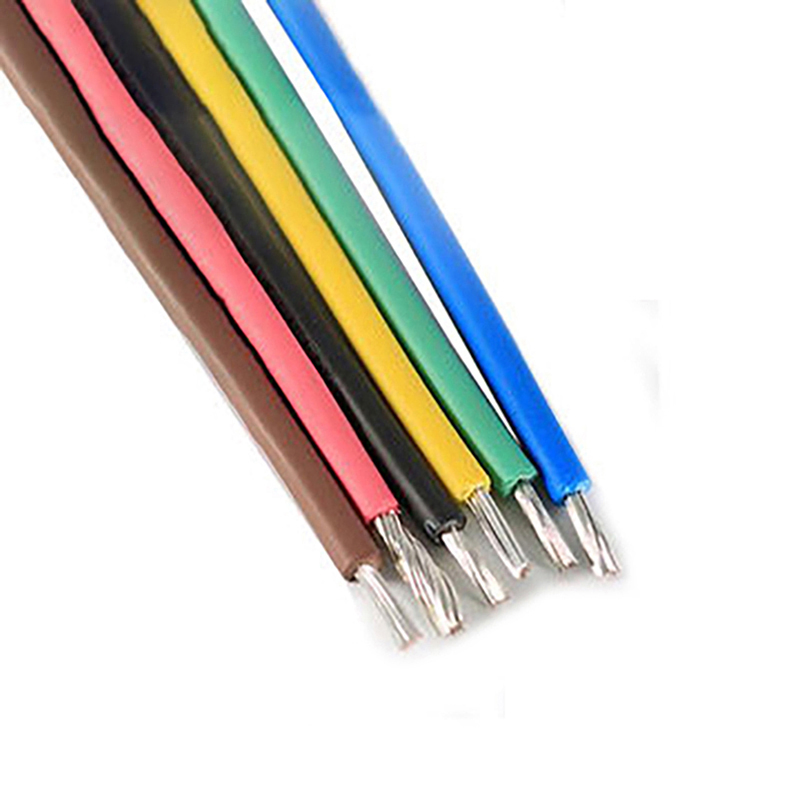

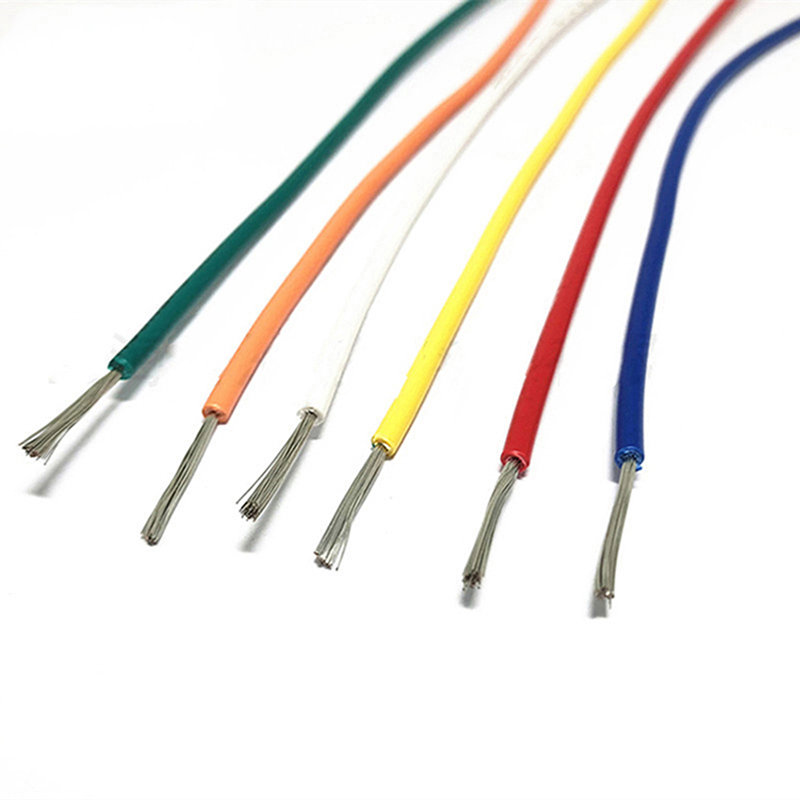

Fire Resisting UL3173 High Temperature Cable 22AWG 600V XLPE Copper Electrical Wire

Product Description

Fire Resisting Ul3173 High Temperature Cable 22AWG 600V XLPE Copper Electrical Wire

★Rated temperature:125ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 26--10AWG
★XLPE insulation
★Passes UL Horizontal and CSA FT2 flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For general purpose internal wiring of appliance

Conductor		Finished product		Maximum Resistance at 20ºC	DIELECTRIC STRENGTH
AWG	NO.of Cond	Insulation Thick.	Outside Thick.	Maximum Resistance at 20ºC	DIELECTRIC STRENGTH
AWG	No./mm	mm	mm	Ω/mm	VAC,1min
26	1/0.404	0.8	2.00	143.00	2000
26	7/0.16	0.81	2.10	150.00	2000
26	7/0.16 OS-1*	0.81	2.10	150.00	2000
24	1/0.511	0.8	2.10	89.30	2000
24	11/0.16	0.82	2.25	94.20	2000
24	7/0.20OS-1*	0.83	2.25	94.20	2000
22	1/0.643	0.8	2.25	56.40	2000
22	17/0.16	0.82	2.40	59.40	2000
22	7/0.254 OS-1*	0.82	2.40	59.40	2000
20	1/0.813	0.8	2.4	35.20	2000
20	26/0.16	0.81	2.55	36.70	2000
20	7/0.32OS-1*	0.8	2.55	36.70	2000
18	1/1.024	0.82	2.65	22.20	2000
18	16/0.254	0.82	2.8	23.2	2000
18	41/0.16	0.81	2.8	23.2	2000
18	7/0.404OS-1*	0.8	2.80	23.2	2000
16	1/1.29	0.81	2.9	14	2000
16	26/0.254	0.81	3.1	14.6	2000
14	1/1.60	0.8	3.2	8.78	2000
14	41/0.254	0.81	3.5	8.96	2000
12	65/0.254	0.82	4	5.64	2000
10	7/15/0.254	0.83	5.05	3.54	2000
