Product Description

Application and Description

The NYA conductor is suitable for most current wiring solutions for residential, commercial and industrial
environments. It is used in service entrance, feeders and branch circuits for permanent installations.
NYA conductors in sizes 14 AWG to 1000 Kcmil (MCM) can be installed in conduits and other raceways. The
temperature of installation shall not exceed 75ºC(THW), not exceed 90ºC(THW-2).

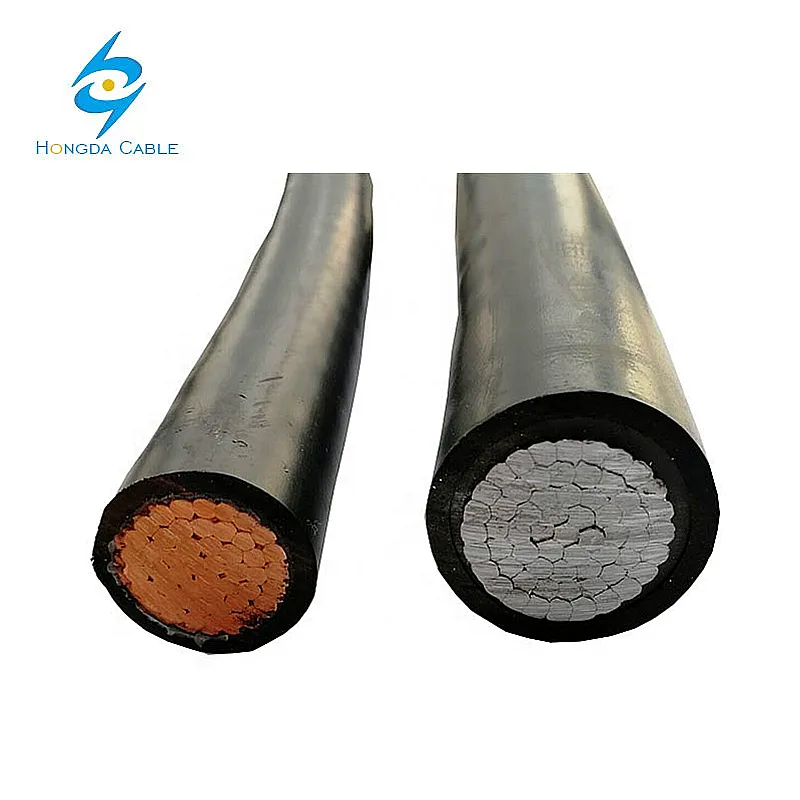

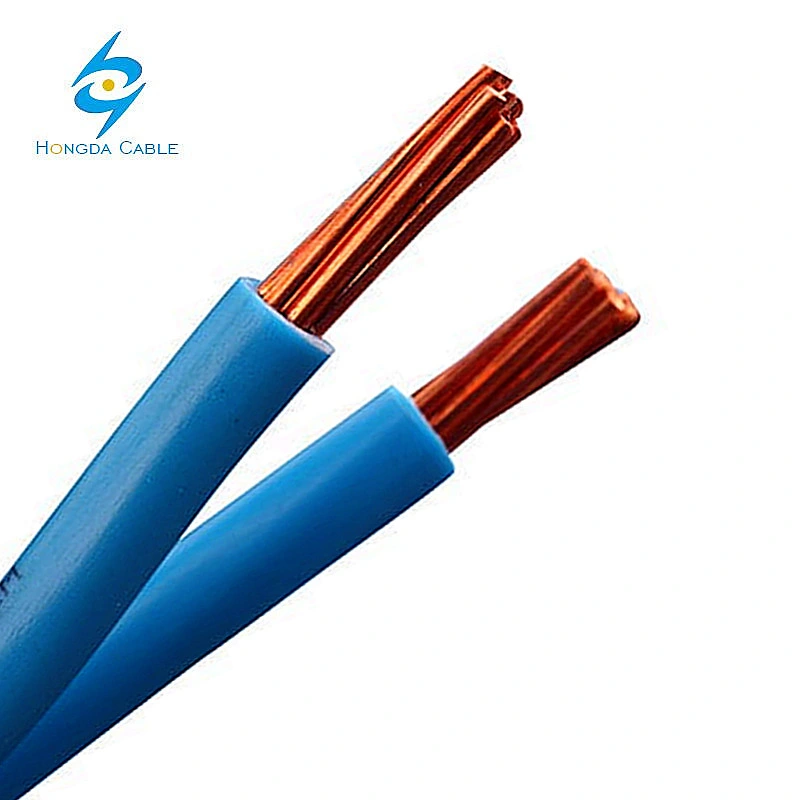

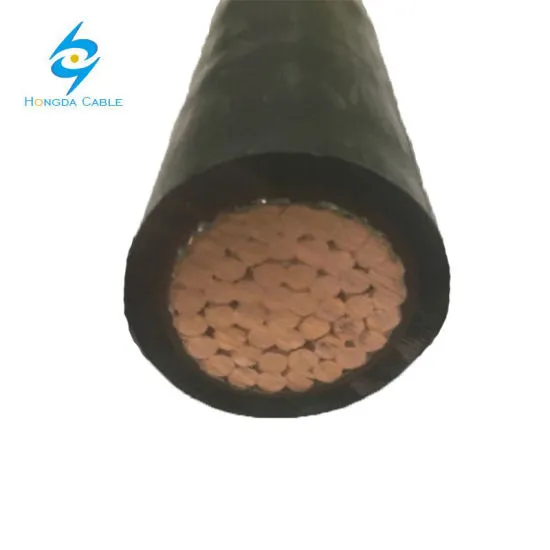

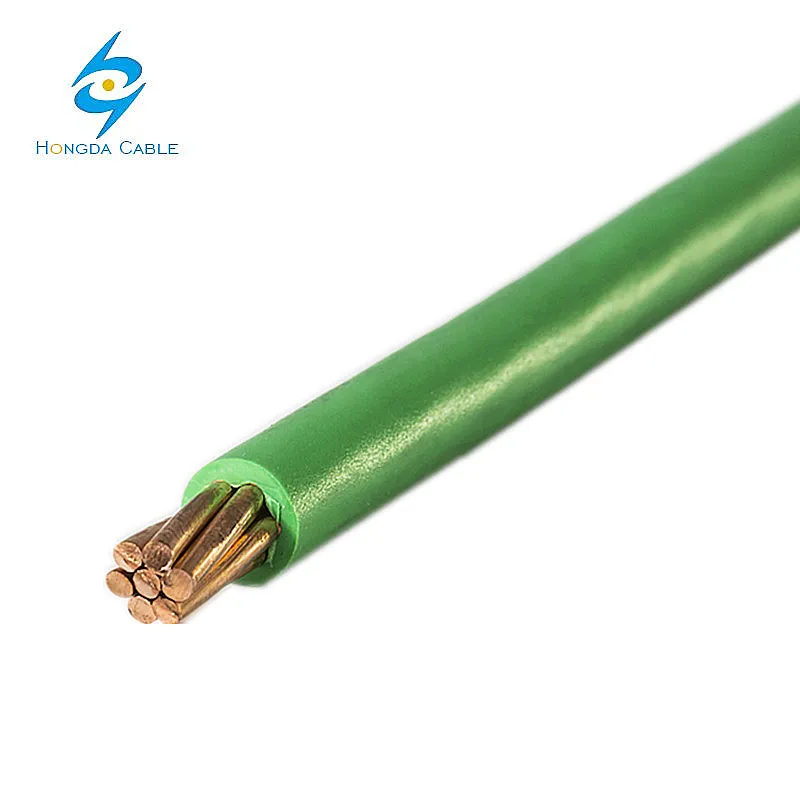

Cable Construction

Conductor:
Bare annealed copper conductor, solid or stranded
Insulation:
PVC 70°C insulation
Color:
upon request, black is preferable
Electrical Material List for a House Single Core Nya Wire Cable 630mm2
Technical Compliances

- ASTM B3, B8
- IEC60502
- UL 83 - Thermoplastic-Insulated Wires and Cables
- UL 1581 - Electrical Wires, Cables and Flexible Cords

Cable Parameter

AWG OR KCMIL	STRAND	NOMINAL INSULATION THICKNESS INCH/MM	NOMINL OVERALL DIAMETER INCH/MM	CABLE WEIGHT LBS/KFT KG/KM
14	1	0.030	0.76	0.169
12	1	0.030	0.76	0.189
10	1	0.030	0.76	0.213
8	1	0.045	1.14	0.240
6	1	0.060	1.52	0.276
14	7	0.030	0.76	0.177
12	7	0.030	0.76	0.201
10	7	0.030	0.76	0.228
8	7	0.045	1.14	0.291
6	7	0.060	1.52	0.335
4	7	0.060	1.52	0.386
2	7	0.080	2.03	0.445
1	19	0.080	2.03	0.531
1/0	19	0.080	2.03	0.575
2/0	19	0.080	2.03	0.622
3/0	19	0.080	2.03	0.677
4/0	37	0.080	2.03	0.740
250	37	0.095	2.41	0.823
300	37	0.095	2.41	0.882
350	37	0.095	2.41	0.937
400	37	0.095	2.41	0.984
500	61	0.095	2.41	1.079
600	61	0.110	2.79	1.197
700	61	0.110	2.79	1.272
750	61	0.110	2.79	1.307
800	61	0.110	2.79	1.343
900	61	0.110	2.79	1.409
1000	61	0.110	2.79	1.472

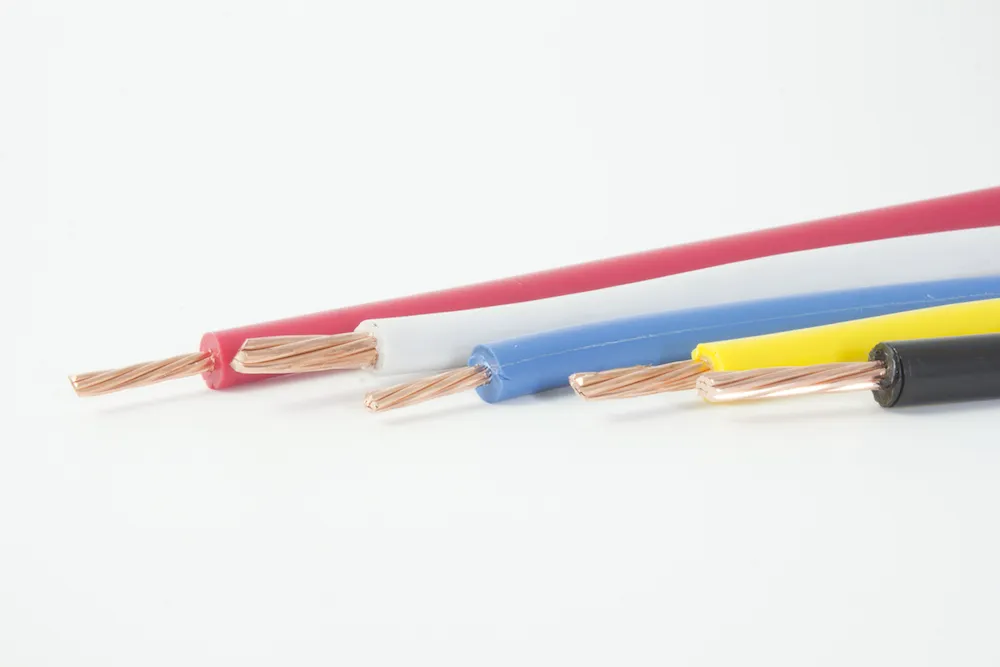

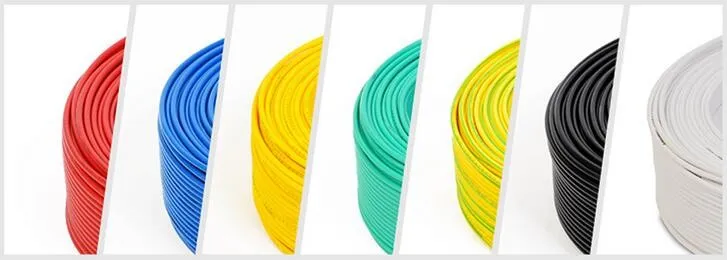

Available Color

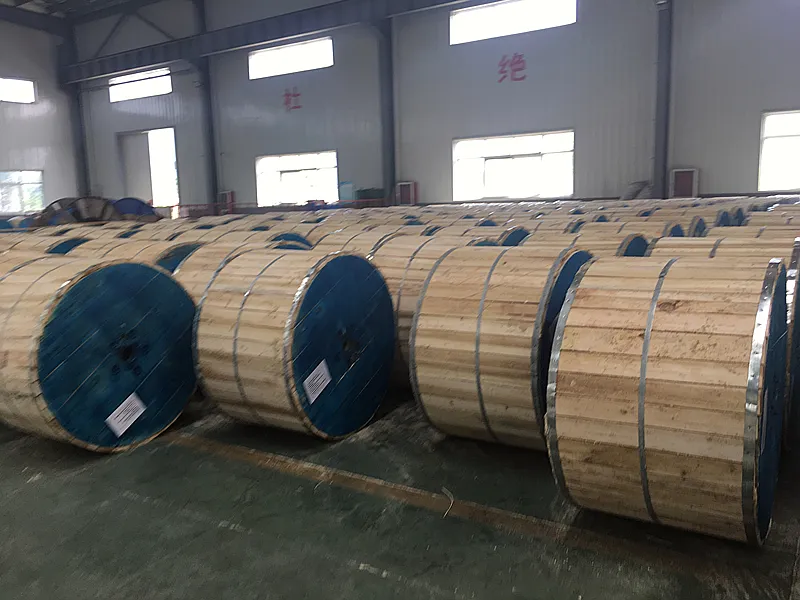

Packing shipping
