Electric Wire Cable Insulation Winding Wire Hook-up & Lead Wire for Appliance with UL/cUL 1061
UL1061 PVC Insulated Wire-Rated temperature: 80ºC-Rated voltage: 300V-Reference Standard: UL758, UL1581, C22.2 No.210-Passes UL VW-1 & CSA FT1 vertical flame test.-Uniform insulation thickness of wire to ensure easy stripping and cutting.-For internal wiring of electronic and electrical......
Send Inquiry
Product Description

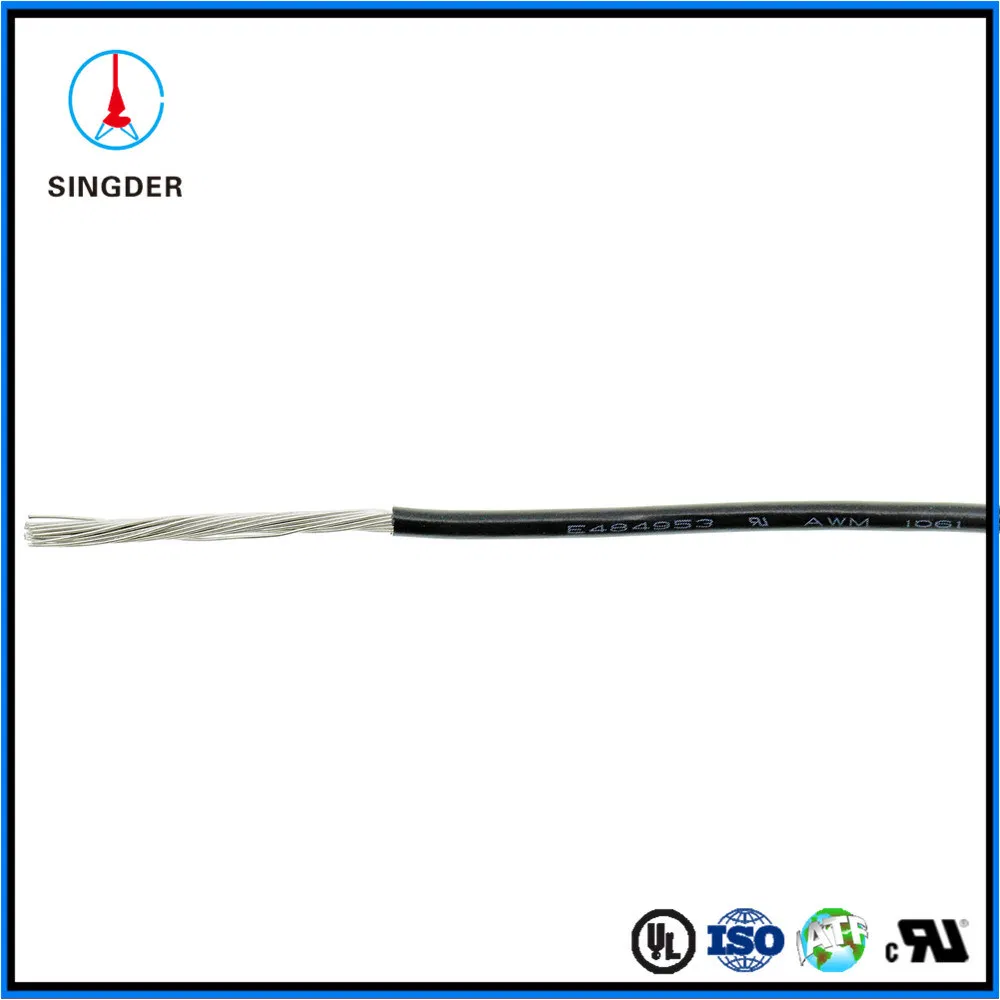

UL1061 PVC Insulated Wire
-Rated temperature: 80ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
-Rated temperature: 80ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 30 | 7/0.10 | 0.30 | 0.26 | 0.82 | 381 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 239 |
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 150 |
| 24 | 11/0.16 | 0.61 | 0.27 | 1.15 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.26 | 1.28 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.26 | 1.46 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.26 | 1.70 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.26 | 2.02 | 14.6 |
