China Customized AWG26 TPU Mechanical Keyboard Curly Spiral Coiled Cable

Product Description

Spiral Coiled Electric Cable is our Hot Sale cable item.We can Customize different sizes and different types as per every customer's requirement.

Coiled Spiral Cable Hot Sale to UK USA Poland Germany France Mexico Thailand Singapore Malaysia

1. Application:

For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.

2. Structure & Specifications:

Conductor: Tinned copper wire, Solid or multi-strands
Insulation material: PVC / PE / PP / PU /TPE
Sheath material: PU / TPU / PA / PVC
Expanding length: 1.0 m-25.5m
Color: black , Red, Gre en, Blue , Orange , White, different colors can be customized.

Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees

Spring Length: arbitrary (customized according to customer requirements)

Good flexibility and elasticityElongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.

3. Spiral cable Specification Range we can produce:
Nominal cross section: 0.12~4mm2
Hot sale specificationL 0.25mm, 0.50mm, 075mm, 1.0mm, 1.5mm 2.0mm
Nmubers of cores: 1~30 core
Length of Spring: customized as per your request

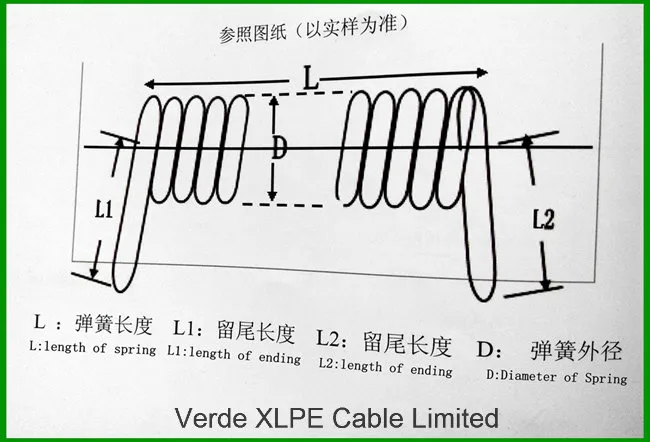

4.Drawing of cable

Customized AWG26 TPU Mechanical Keyboard Curly Spiral Coiled Cable

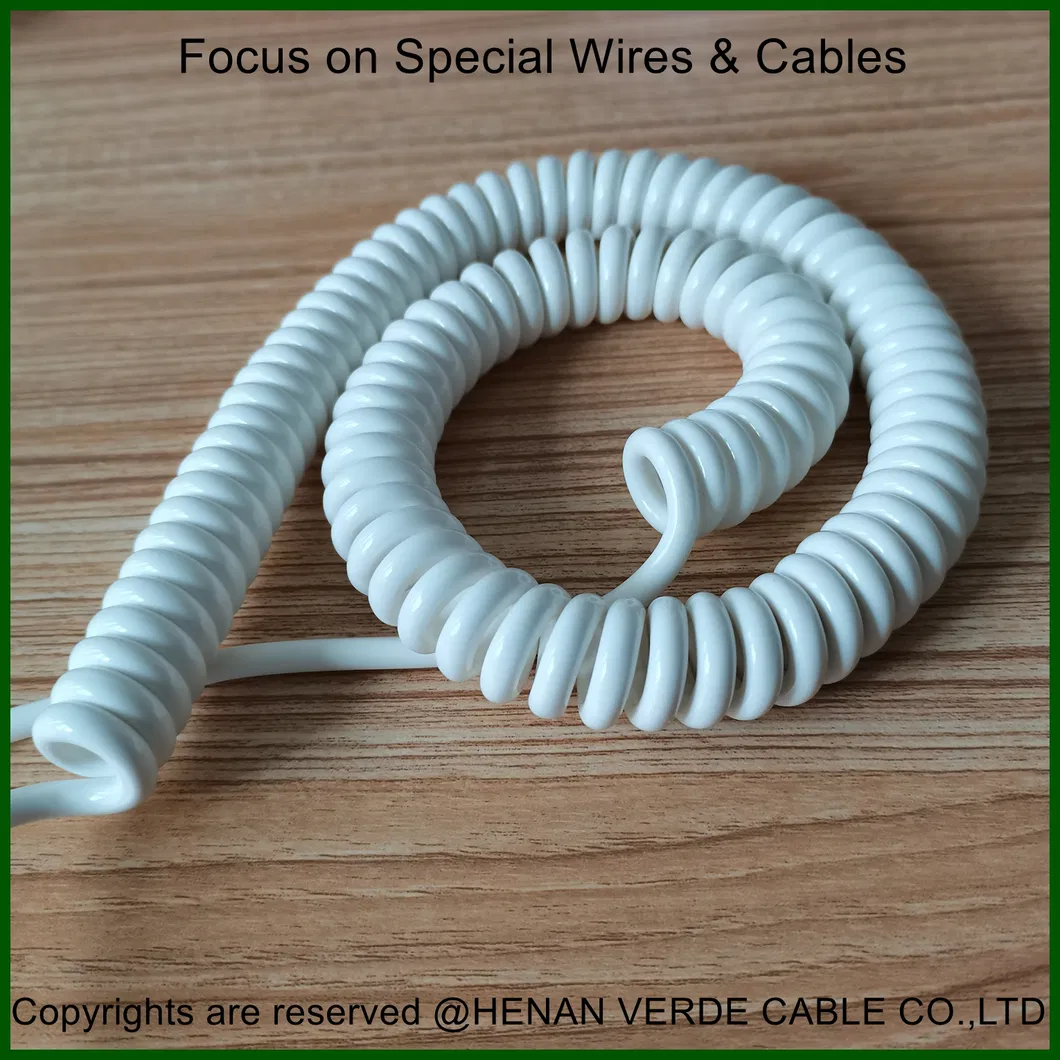

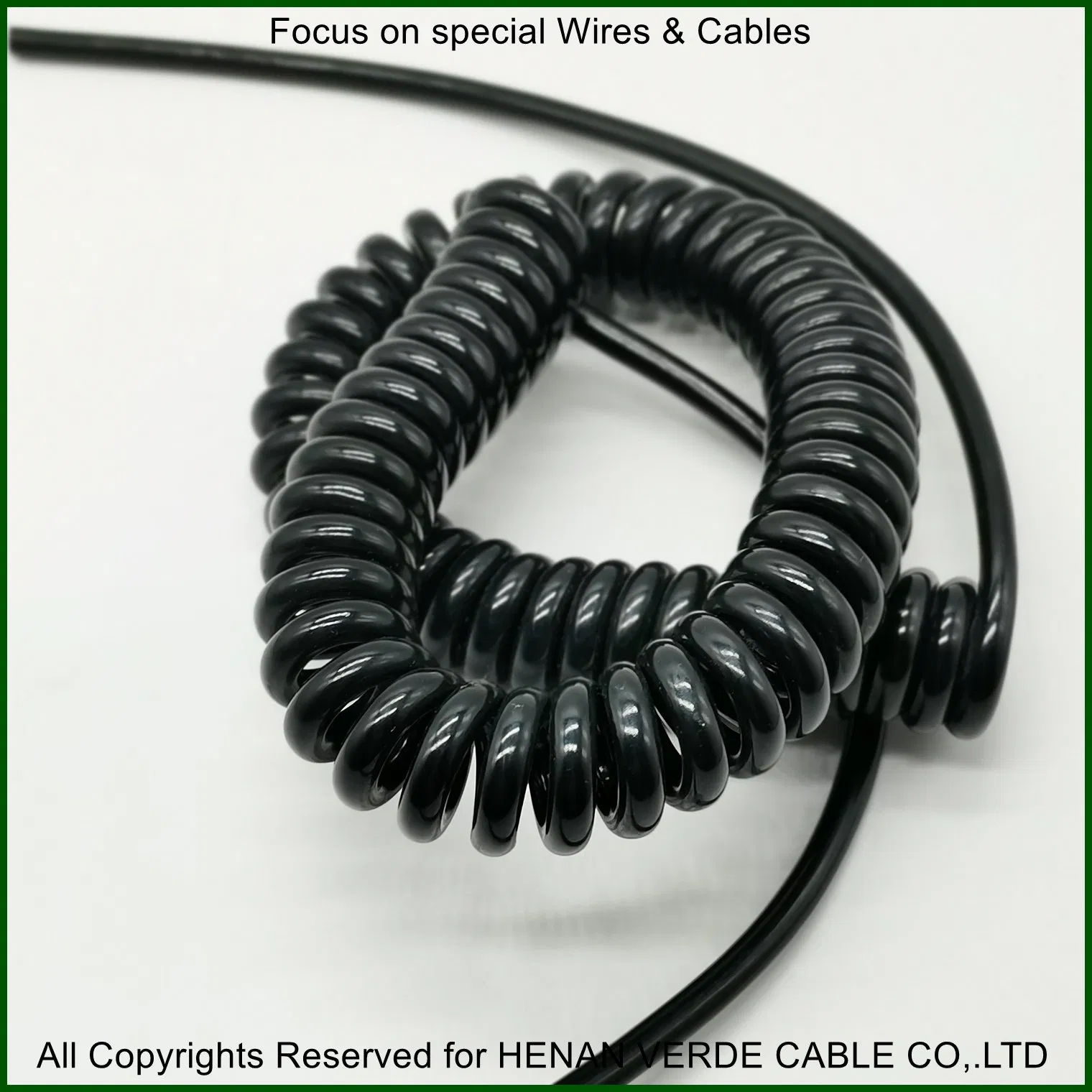

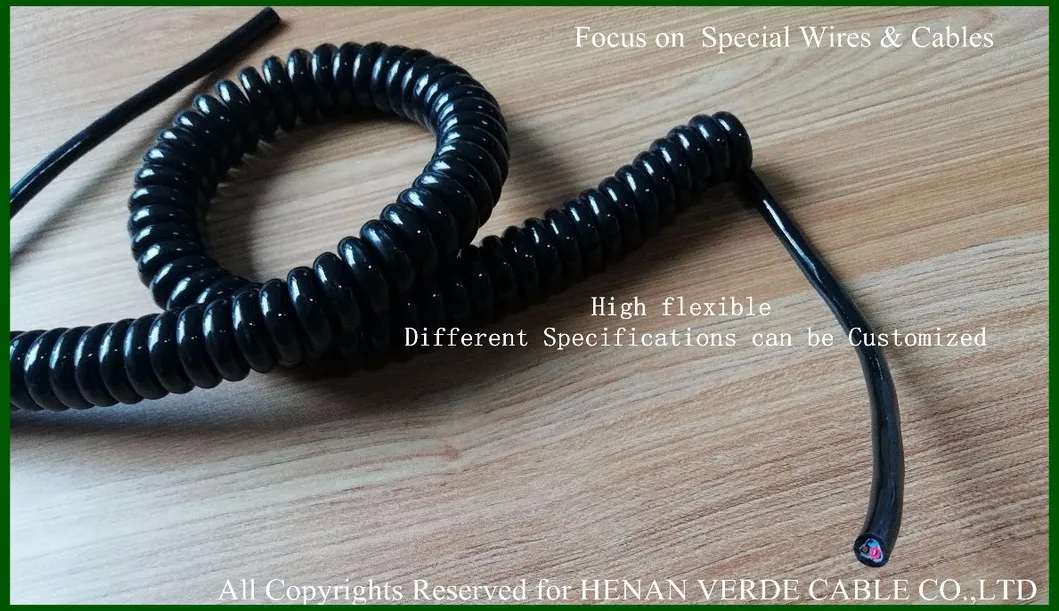

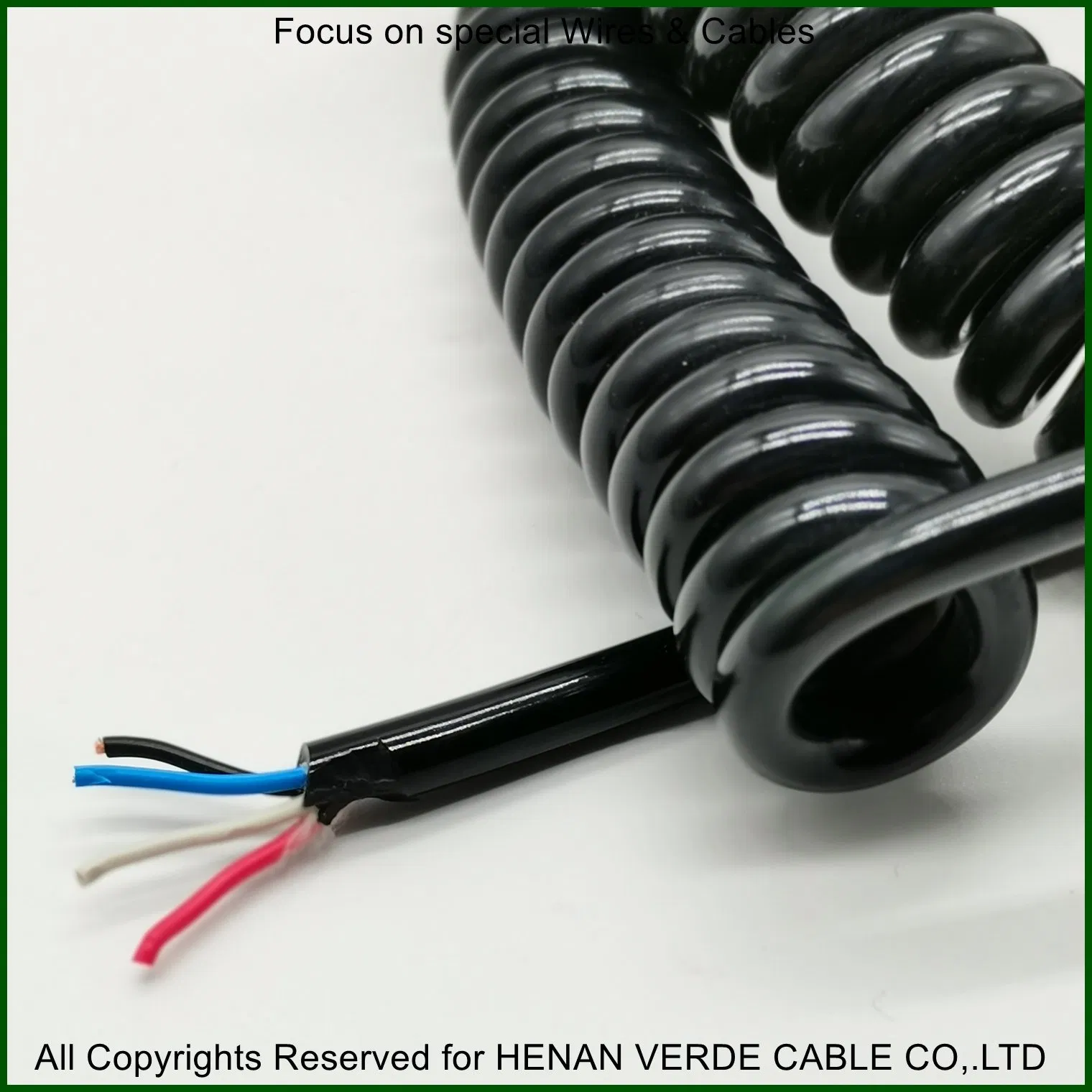

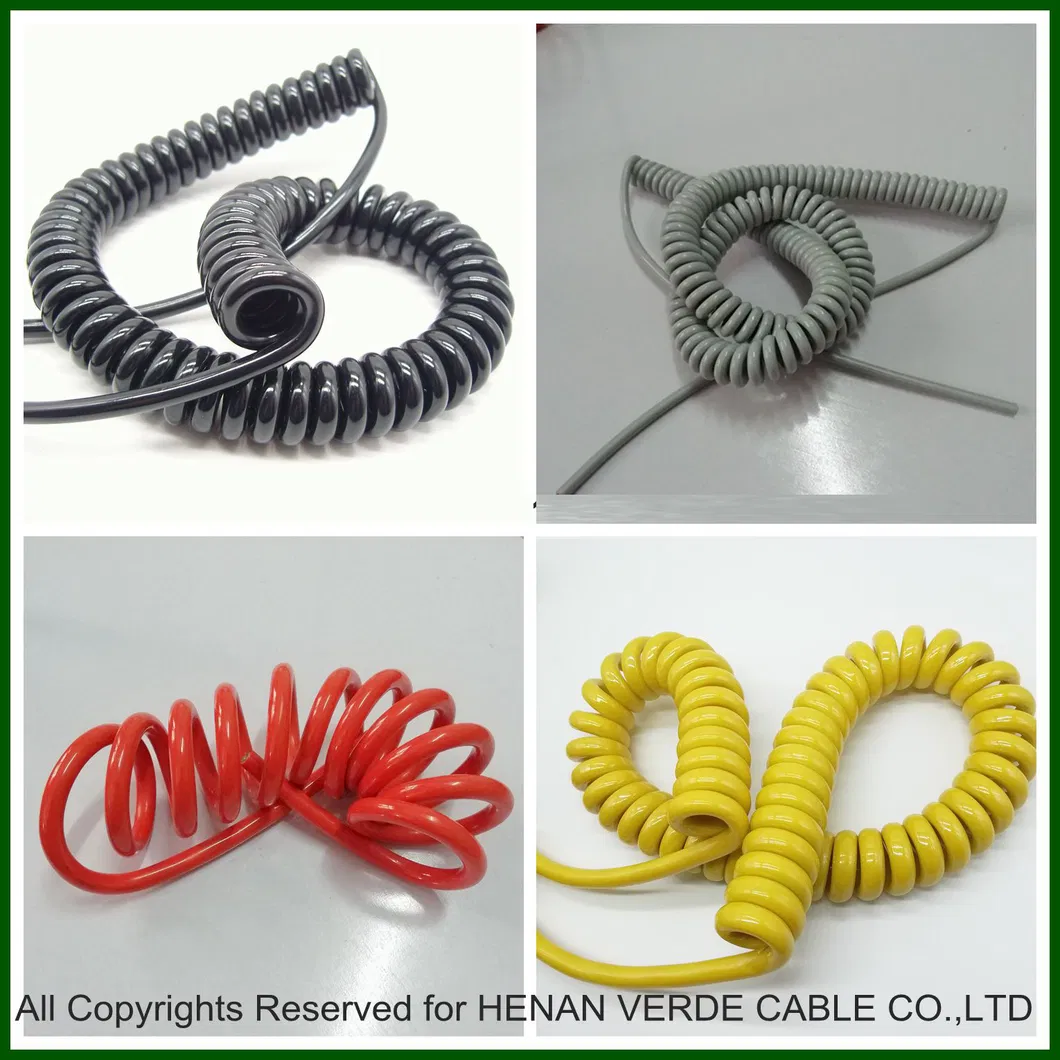

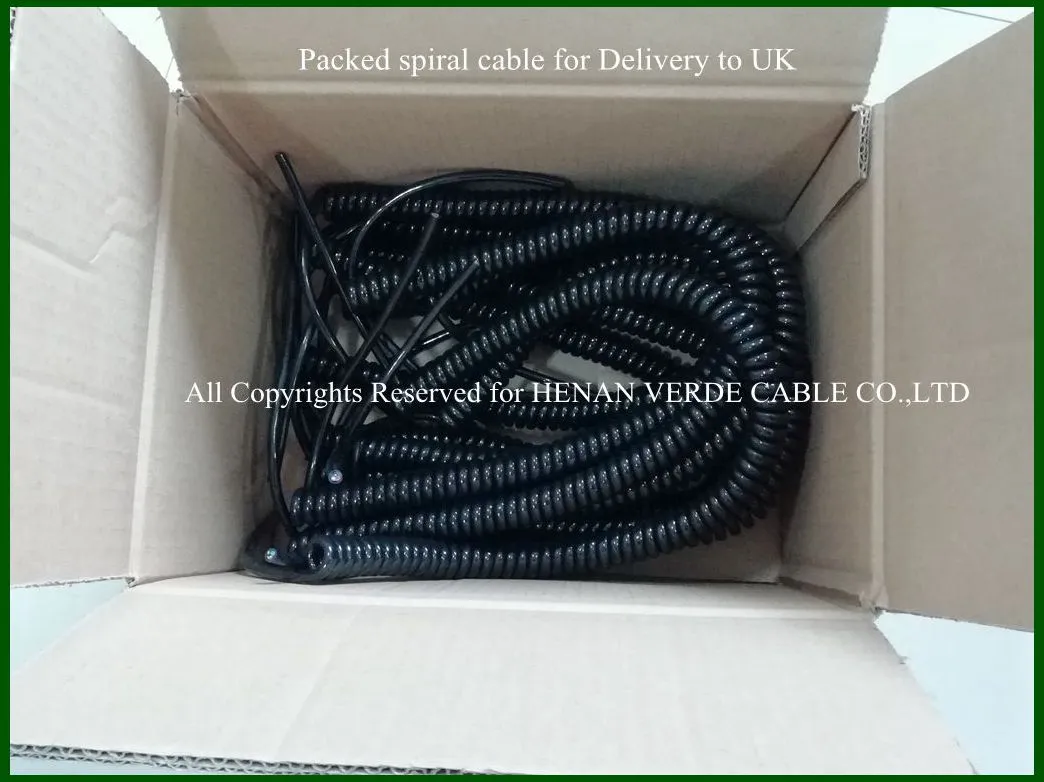

Following photos are our export record to different customers and different countries.
All copyrights is Reserved by our company.
Customized AWG26 TPU Mechanical Keyboard Curly Spiral Coiled Cable

If you want to know more about us and our products,pls contact us.
