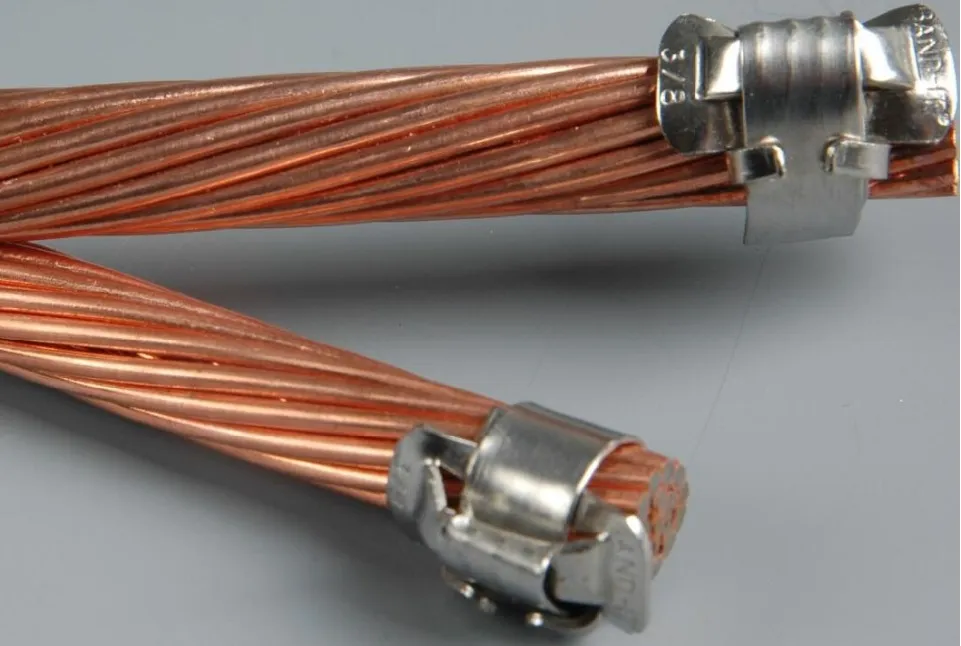

Copper Clad Steel Strand Wire 2.59mm 2AWG 1/ 0AWG
Copper clad steel strand Wire 2.59mm 2AWG 1/0AWG7/2.59mm CCS 30%21% conductivity 2AWG Strand Copper Clad Steel WirePRODUCT DESCRIPTIONThe Copper Clad Steel Conductor is used as flexible connector in electric transmission and distribution appliance (such as volt transformer, electric stove),electron......
Send Inquiry
Product Description

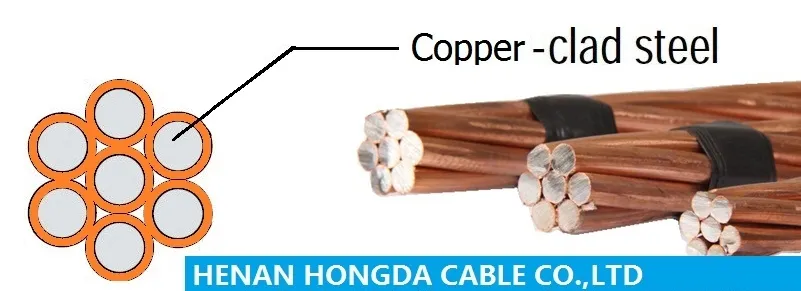

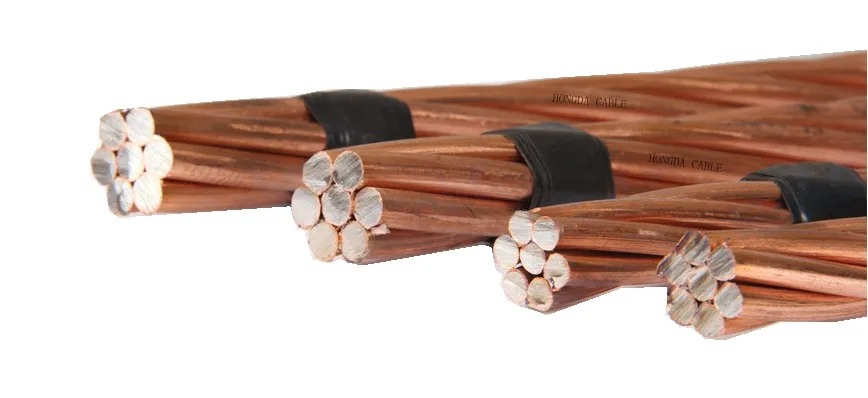

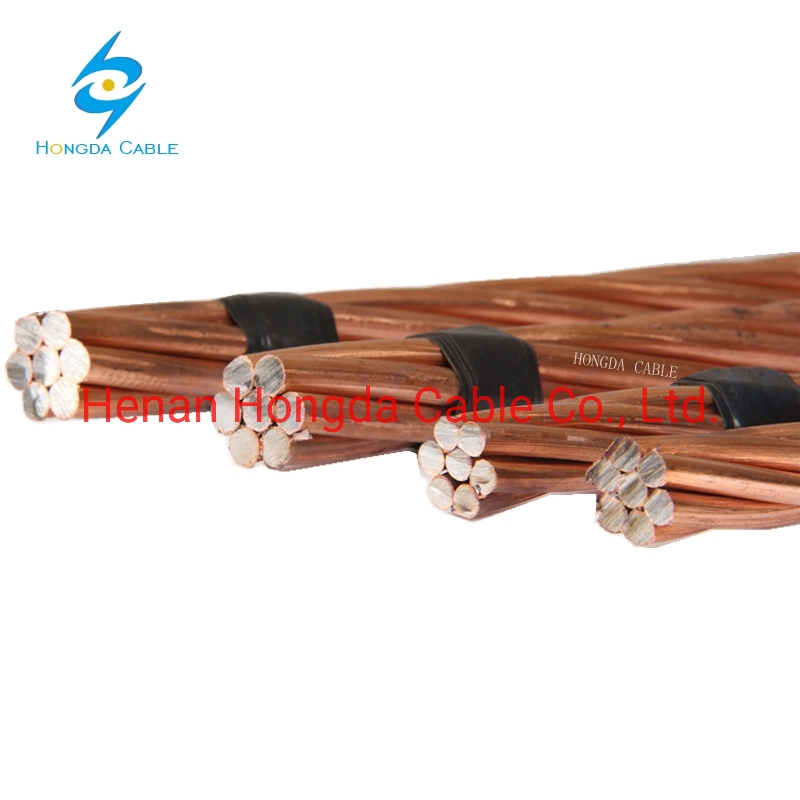

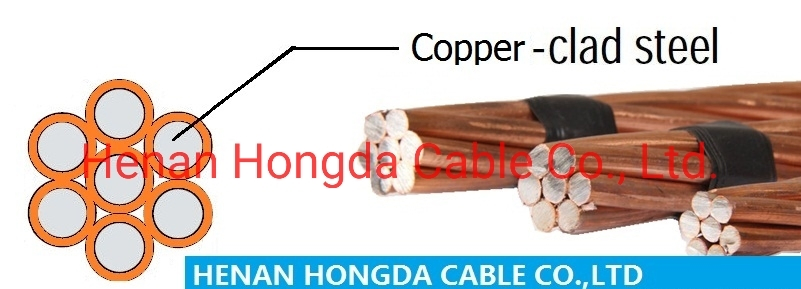

7/2.59mm CCS 30%21% conductivity 2AWG Strand Copper Clad Steel Wire
PRODUCT DESCRIPTION
The Copper Clad Steel Conductor is used as flexible connector in electric transmission and distribution appliance (such as volt transformer, electric stove),electronic equipment and thyristor. Underground Electrical Wire also could be used for grounding wire in electric working. Also, it can be manufactured according to customer's drawings and demands.
PRODUCT PARAMETER
| Material | copper clad steel |
| Diameter | 16~300 mm² |
| Conductivity | 20%, 25%, 30%, 40% |
| Life | ≥30 years |
| Tensile Strength | 240-360 mpa |
| Characters | Easy installation ,Good conductivity |
| Available service mode | OEM,ODM |
| Certificate | ISO9001:2008 |
PRODUCT SIZE
| Nominal cross-section mm2 | Structure No./mm | Actual area mm2 | Rated strength kN | DC Resistance,Ω/km | Structure weight kg/km | ||||
| 40HS | 30HS | 30EHS | 40 | 30 | 30 | 40 | |||
| 320 | 19/4.62 | 318.71 | 22.8 | 25.2 | 30.2 | 0.14 | 0.187 | 2634 | 2660.8 |
| 250 | 19/4.12 | 252.71 | 18.9 | 20.8 | 25.2 | 0.176 | 0.176 | 2087.9 | 2110.2 |
| 200 | 19/3.67 | 200.45 | 15.6 | 17.1 | 20.8 | 0.222 | 0.297 | 1656.3 | 1674.2 |
| 160 | 19/3.26 | 158.97 | 12.9 | 14.1 | 17.1 | 0.281 | 0.374 | 1313.6 | 1327.2 |
| 120 | 19/2.91 | 126.06 | 10.6 | 11.6 | 13.9 | 0.354 | 0.471 | 1041.7 | 1052.6 |
| 150 | 7/5.19 | 148.06 | 10.1 | 11.2 | 13.3 | 0.3 | 0.4 | 1218.7 | 1231.5 |
| 120 | 7/4.62 | 117.42 | 8.4 | 9.28 | 11.2 | 0.378 | 0.504 | 966.41 | 976.53 |
| 90 | 7/4.12 | 93.097 | 6.995 | 7.66 | 9.28 | 0.477 | 0.636 | 766.25 | 774.29 |
| 70 | 7/3.67 | 73.871 | 5.75 | 6.31 | 7.66 | 0.601 | 0.802 | 608.06 | 614.46 |
| 60 | 7/3.26 | 58.561 | 4.74 | 5.19 | 6.3 | 0.759 | 1.011 | 482.02 | 487.07 |
| 50 | 7/2.91 | 46.439 | 3.91 | 4.26 | 5.12 | 0.956 | 1.275 | 382.16 | 386.18 |
| 35 | 7/2.59 | 36.826 | 3.23 | 3.52 | 4.17 | 1.206 | 1.6 | 303.14 | 306.26 |
| 50 | 3/4.62 | 50.322 | 3.8 | 4.2 | 5.38 | 0.881 | 1.174 | 413.41 | 417.73 |
| 40 | 3/4.1 | 39.903 | 3.15 | 3.46 | 4.42 | 1.111 | 1.481 | 327.84 | 331.26 |
| 30 | 3/3.67 | 31.645 | 2.6 | 2.85 | 3.59 | 1.401 | 1.867 | 259.39 | 262.66 |
| 25 | 3/3.26 | 25.097 | 2.15 | 2.35 | 2.85 | 1.766 | 2.354 | 206.11 | 208.34 |
| 20 | 3/2.91 | 19.903 | 1.77 | 1.93 | 2.33 | 2.227 | 2.969 | 163.55 | 165.19 |
| 15 | 3/2.59 | 15.781 | 1.46 | 1.59 | 1.89 | 2.808 | 3.744 | 129.62 | 130.99 |
| 10 | 3/2.05 | 9.929 | 0.78 | 4.465 | 81.551 | 82.414 | |||
PRODUCT APPLICATION
Copper Clad Steel Conductor is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

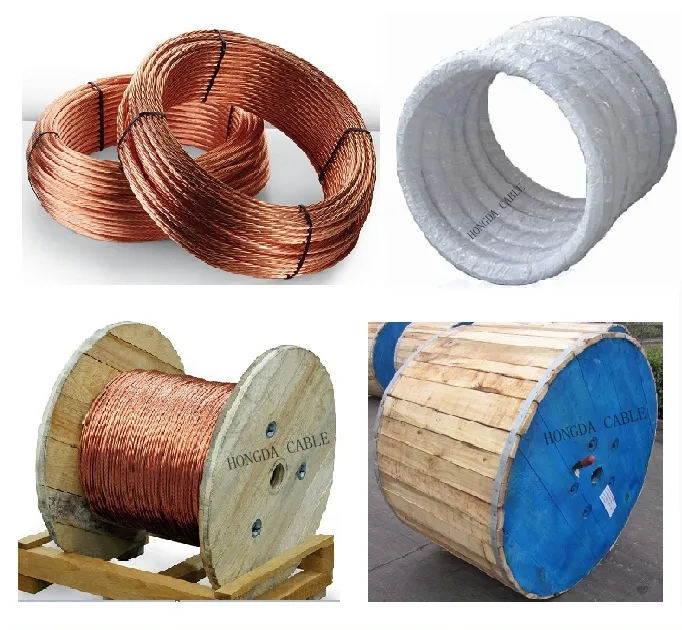

PRODUCT PACKINGAll of our products are with strong packing and free of charge, we also can provide packing according to customer's requirement.
