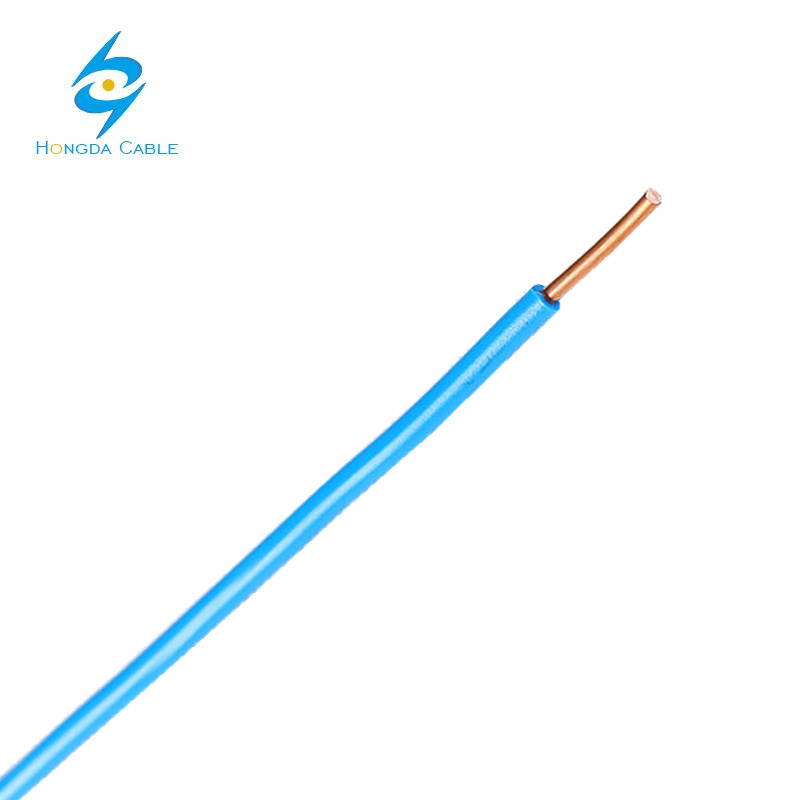

China Coiled Cable Ml Installation Wire H07V-U PVC Wire for Noreg

Product Description

Application and Description

ML/(H)07 V-U

These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

Standard and Approval

<HAR> HD 21.3 S3
VDE-0281 Part-3
CEI20-20/3
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant

Cable Construction

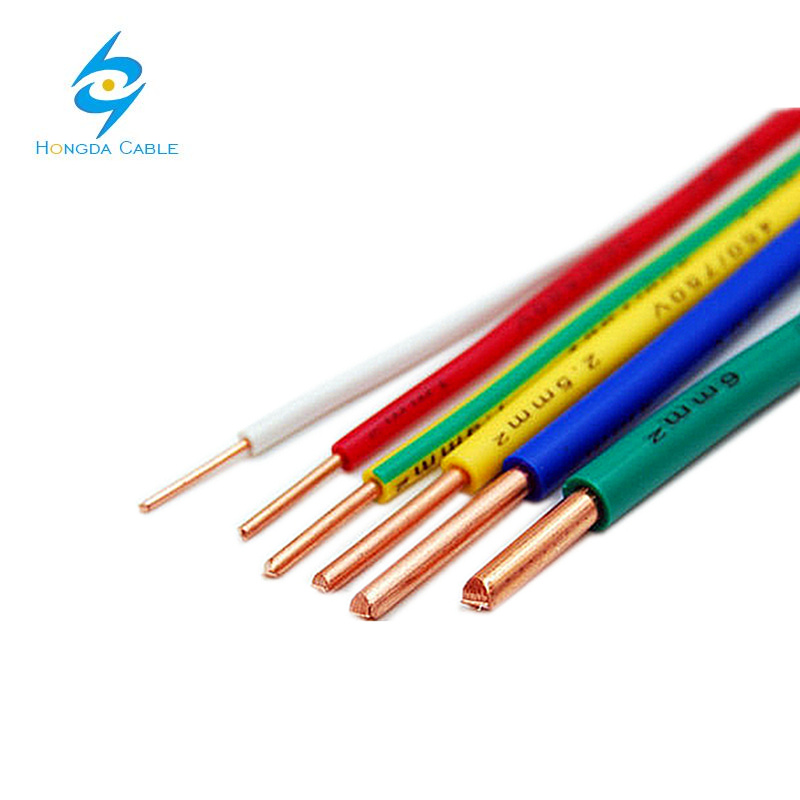

Solid bare copper single wire

Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1

Special PVC TI1 core insulation

Cores to VDE-0293 colors on chart

ML/H07V-U (16 AWG and Larger)

Technical Characteristics

Working voltage	450/750v (H07V-U/ML)
Test voltage	2500V (H07V-U/ML)
Flexing bending radius	15 x O
Static bending radius	15 x O
Flexing temperature	-5 oC to +70 oC
Short circuit temperature	+160 oC
Flame retardant	IEC 60332.1
Insulation resistance	10 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
	mm2	mm	mm	kg/km	kg/km
20	1 x 0.5	0.6	2.1	4.8	9
18	1 x 0.75	0.6	2.2	7.2	11
17	1 x 1	0.6	2.4	9.6	14
16	1 x 1.5	0.7	2.9	14.4	21
14	1 x 2.5	0.8	3.5	24.0	33
12	1 x 4	0.8	3.9	38.0	49
10	1 x 6	0.8	4.5	58.0	69
8	1 x 10	1.0	5.7	96.0	115

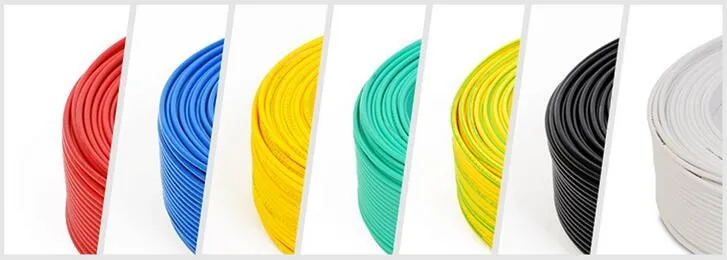

Available Color

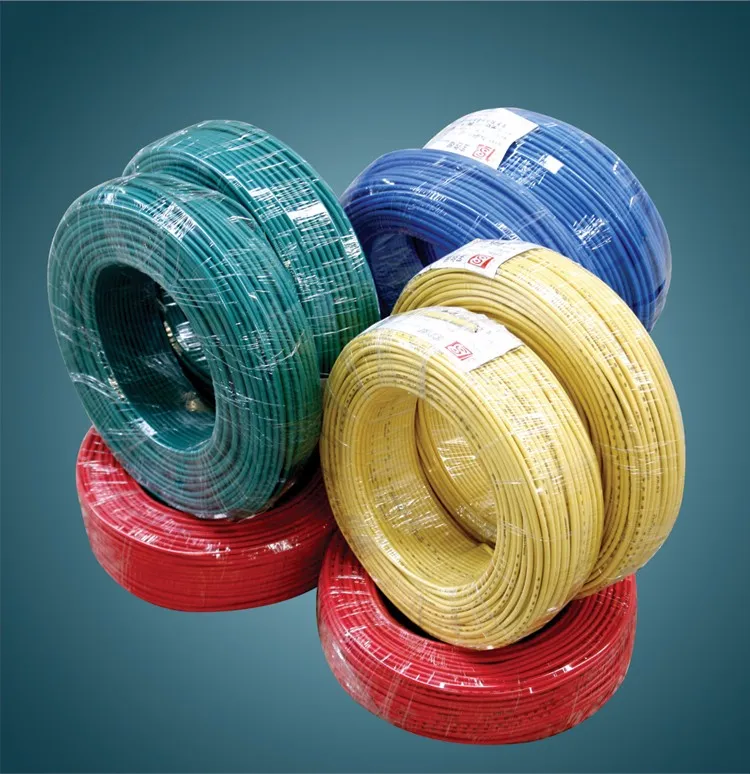

Packing shipping
Coiled Cable Ml Installation Wire H07V-U PVC Wire for Noreg
