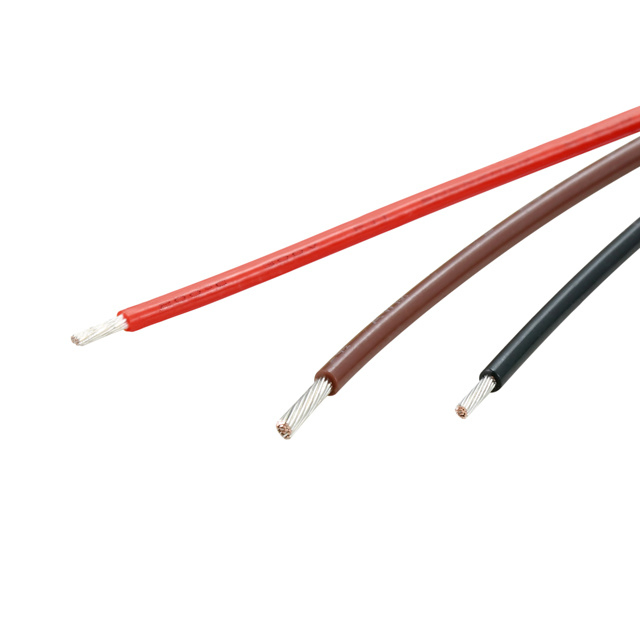

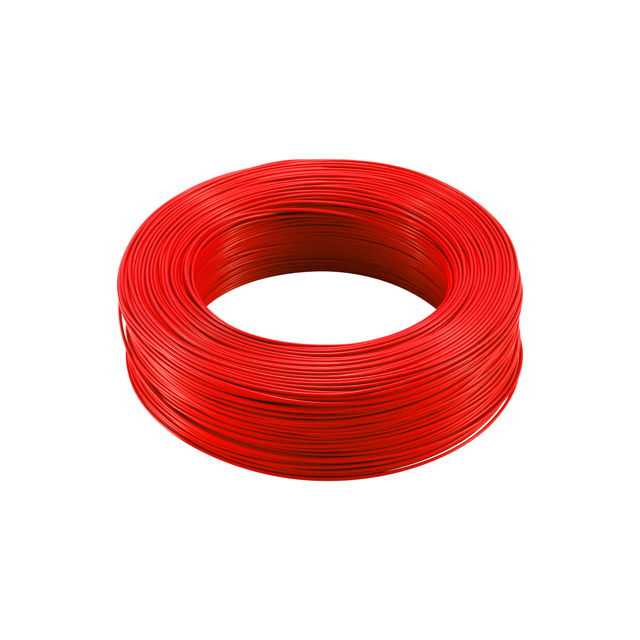

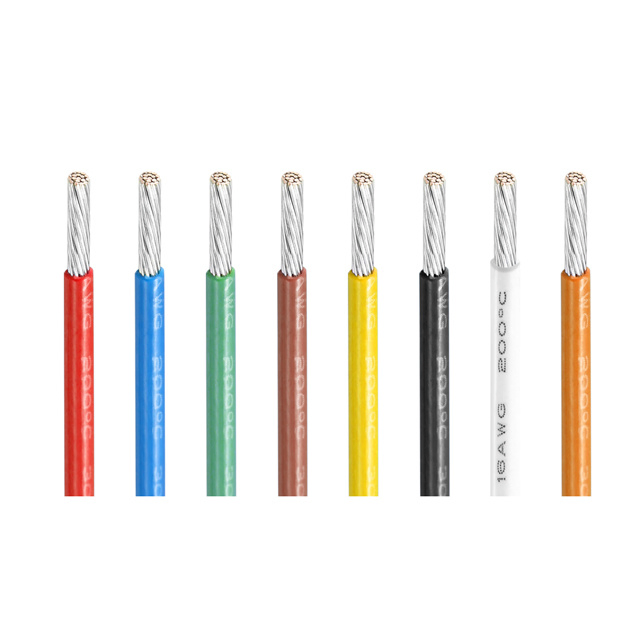

Certificated High Temp. Resistant Lead Electrical PTFE Insulated Wire
Specifications:Nominal voltage: 300VTemperature range: 150CStandard: UL 1858Conductor: Tinned copper wireInsulation: PFAProduct dimensions:conductorinsulationMax.Cond ResistanceUnit lengthSize(AWG)Construction(No./mm)Diameter(mm)Nominal Thickness(mm)Diameter(mm)(Ω/KM)(M)(Ft)327/0.080.240.3......
Send Inquiry
Product Description
Specifications:
Nominal voltage: 300V
Temperature range: 150C
Standard: UL 1858
Conductor: Tinned copper wire
Insulation: PFA
Product dimensions:
| conductor | insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | (Ω/KM) | (M)(Ft) |
| 32 | 7/0.08 | 0.24 | 0.33 | 0.90 | 563 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 0.33 | 0.96 | 381 | |
| 28 | 7/0.12 | 0.36 | 0.33 | 1.02 | 239 | |
| 26 | 7/0.16 | 0.48 | 0.33 | 1.14 | 150 | |
| 24 | 19/0.20 | 0.60 | 1.23 | 94.2 | 305/1000 | |
| 22 | 19/0.15 | 0.75 | 1.41 | 59.4 | ||
| 20 | 19/0.19 | 0.93 | 1.59 | 36.7 | ||
| 18 | 19/0.235 | 1.17 | 0.35 | 1.87 | 23.2 | |
| 16 | 19/0.30 | 1.50 | 2.20 | 14.6 | ||
| 14 | 19/0.37 | 1.85 | 2.55 | 8.96 | ||
| 12 | 19/0.47 | 2.35 | 3.05 | 5.64 | ||
| 10 | 37/0.43 | 3.00 | 3.70 | 3.55 | ||

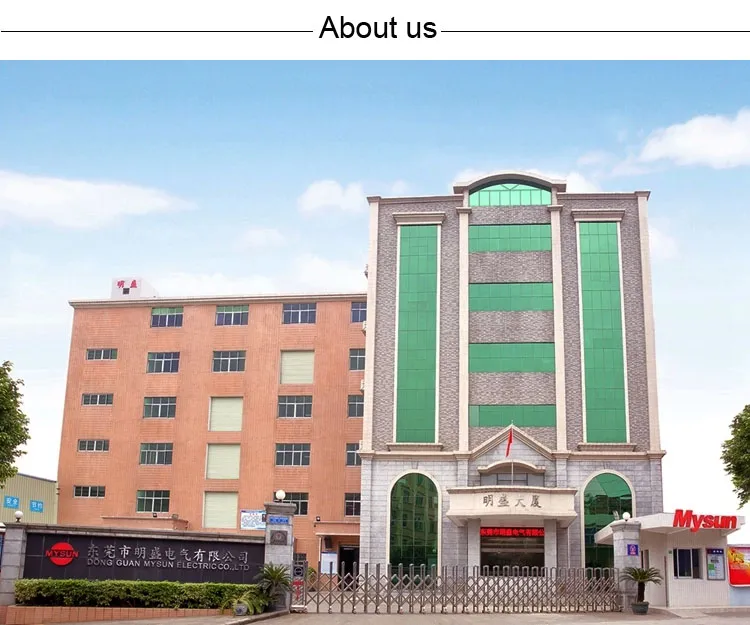

Shenzhen Mysun Insulation Materials Co., Ltd. Founded in 1999, It's a company of producing, selling and trading all kinds of UL, cUL, CSA, VDE, CCC, RoHS, REACH certified high temperature wire and cable. For home appliances, lighting, medical equipment, office facilities, industrial machine and motors & generators.

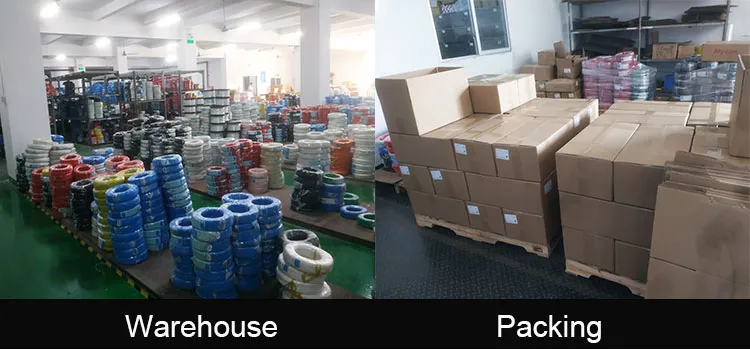

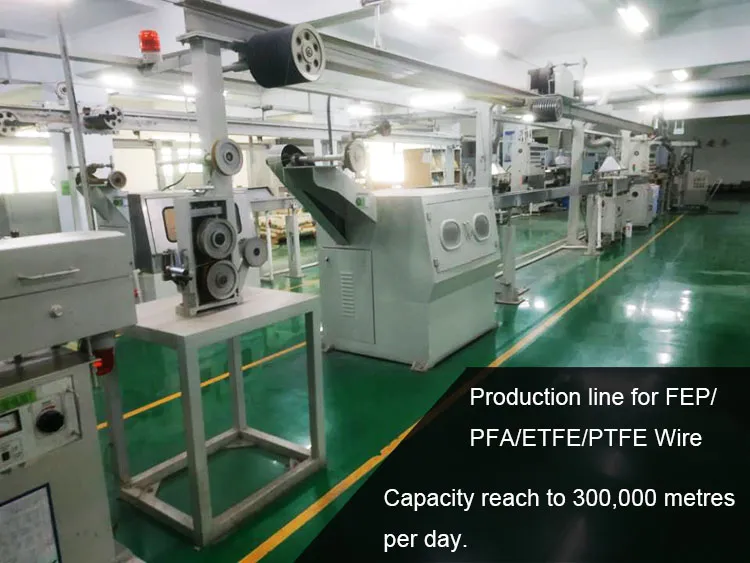

Our plant in Dongguan city and Hubei province, with branches in Shenzhen, Foshan and Hangzhou to better serve our clients inland and abroad.
FAQ
Q: Where your factory locating?
A: Our plant located in Dongguan. Have branches in several city to serving clients inland and abroad.
Q: How long is your guarantee Period?
A: We uaually offer 1 year guarantee for our general products.
Q: How can I get the samples?
A: We can make the samples according to your requests. And usually we will charge for it.
But the samples fee will be returned to you in later bulk order.
Q: What's your advantage upon other suppliers?

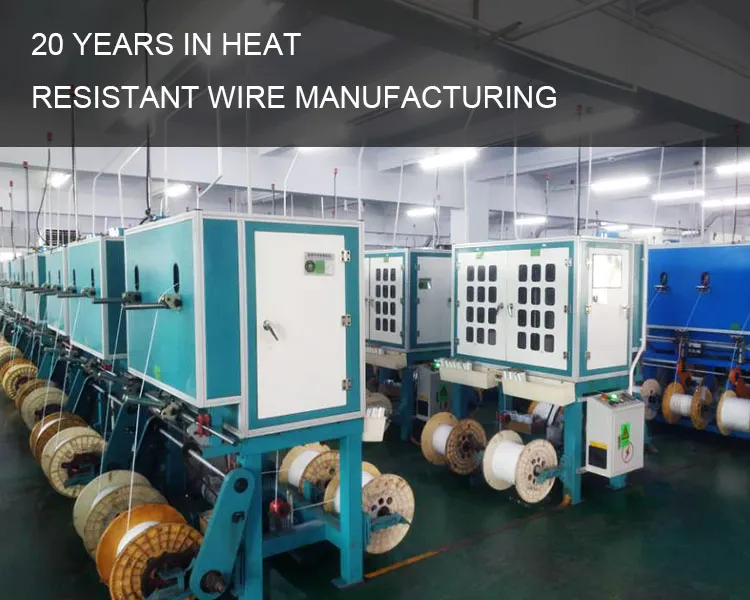

A: We have been on silicon and teflon wire for over 20 years, gain experience and grow up together with our
customers in the past years. We are familiar with clients demands, and help for their business.
Q: How can you keep stable quality and leadtime?

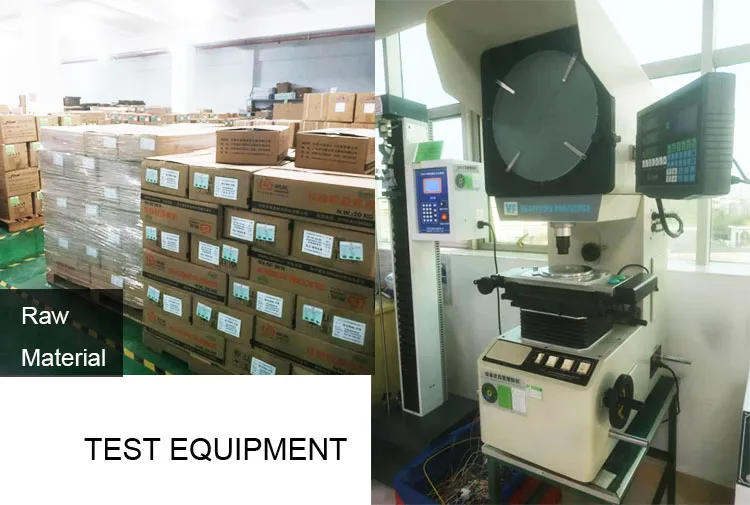

A: We have very standard rules in raw material, pre-production test, in-production test, after-production test
and test before delivery. Every procedure must reach the required standard before continuing to the later
process.
Q; What is your MOQ?
A: It`s base on the cable type or wire type. Please contact me. We will let you know.
